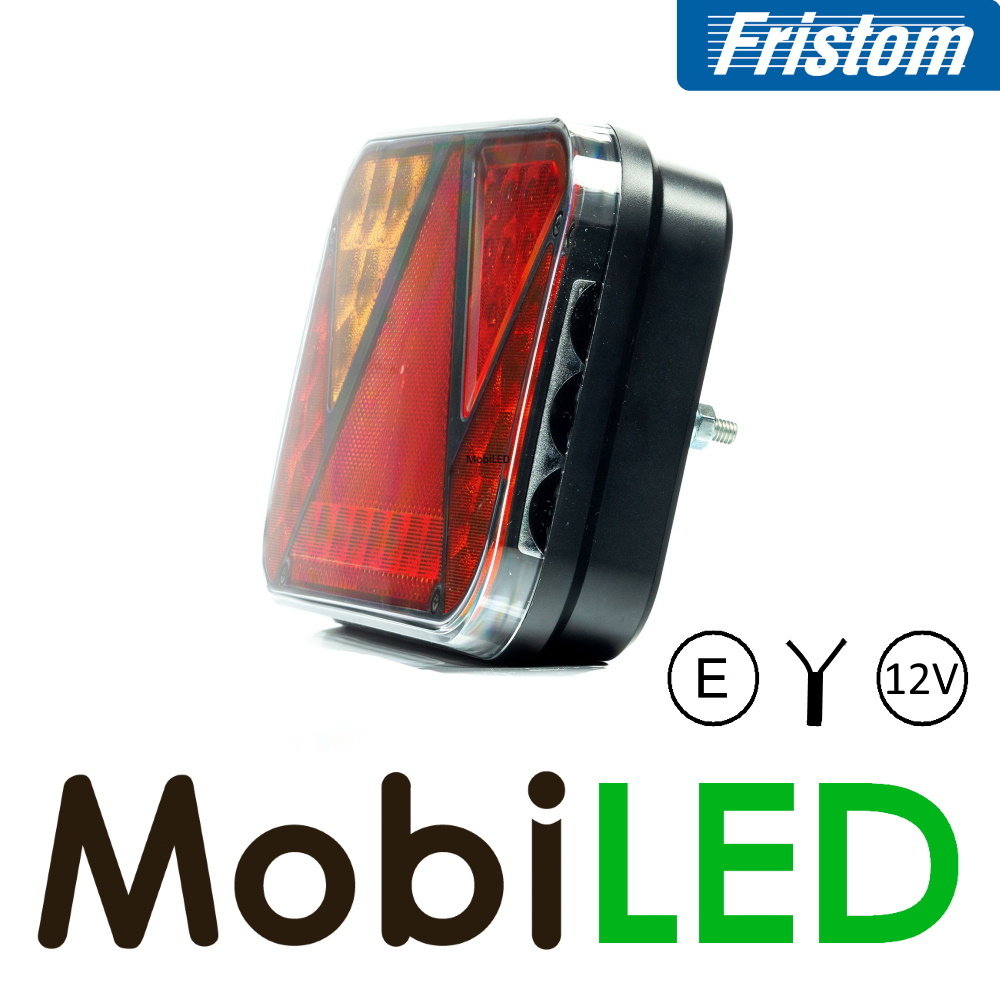

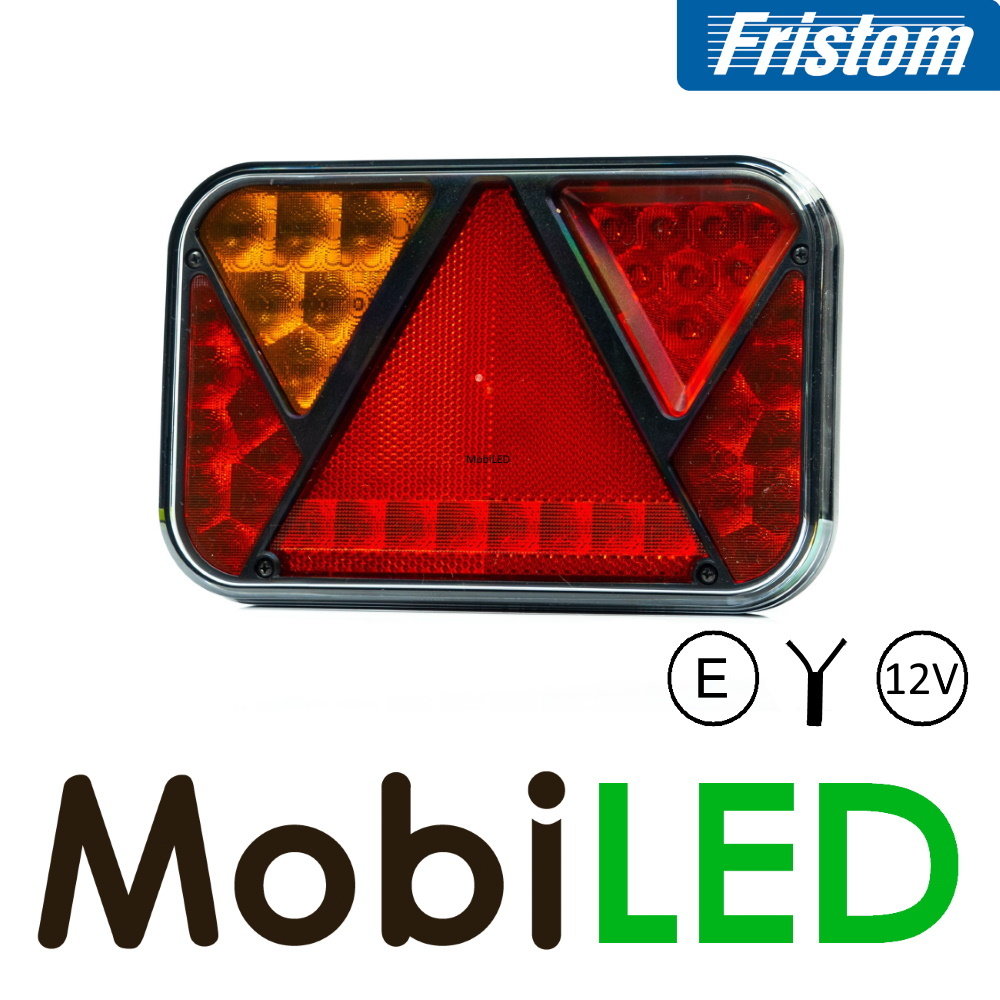

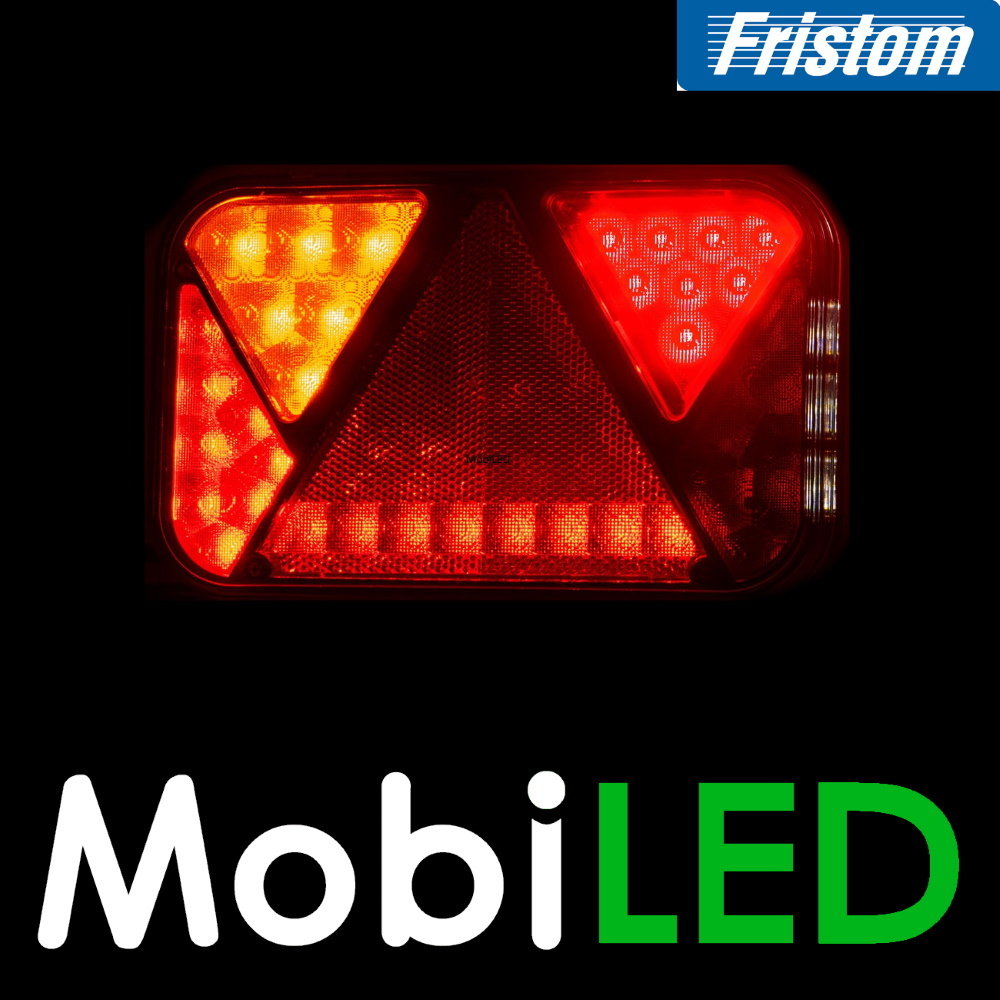

Fristom FT-270 12V Rear lights 4 functions left E-mark

Classic model that can be found on many trailers. The design resembles that of the Äspock Multipoint 5 and is therefore perfectly interchangeable due to the same mounting dimensions. So you can easily replace your old lighting with LED. Whether it is attached with cable or bayonet (5-pins), both are possible.
The lamp is available in a left and right version, with or without license plate and with cable or 5-pin connection. So pay attention when ordering!
This lamp is the left version with a 100 cm cable.

Functions:

1. Rear light
2. Brake light
3. Turn signal
4. Fog light

Connection diagram:

• White= mass
• Black/brown= position light 1.2 watt
• Yellow/green= turn signal 1.2 watt
• Red= brake light 1.2 watt
• Gray/Blue= fog light 1.2 watt
