AI Reversing camera set with 4 cameras wired

With this kit you can always drive in reverse safely. The camera gives an excellent view of what is behind your vehicle. The monitor is the ideal tool to drive in reverse safely and neatly without hitting obstacles or endangering people. The cameras recognize vehicles and people. In addition, it has a buzzer alarm, guidance lines and DVR function (recording function, SD card is not included).

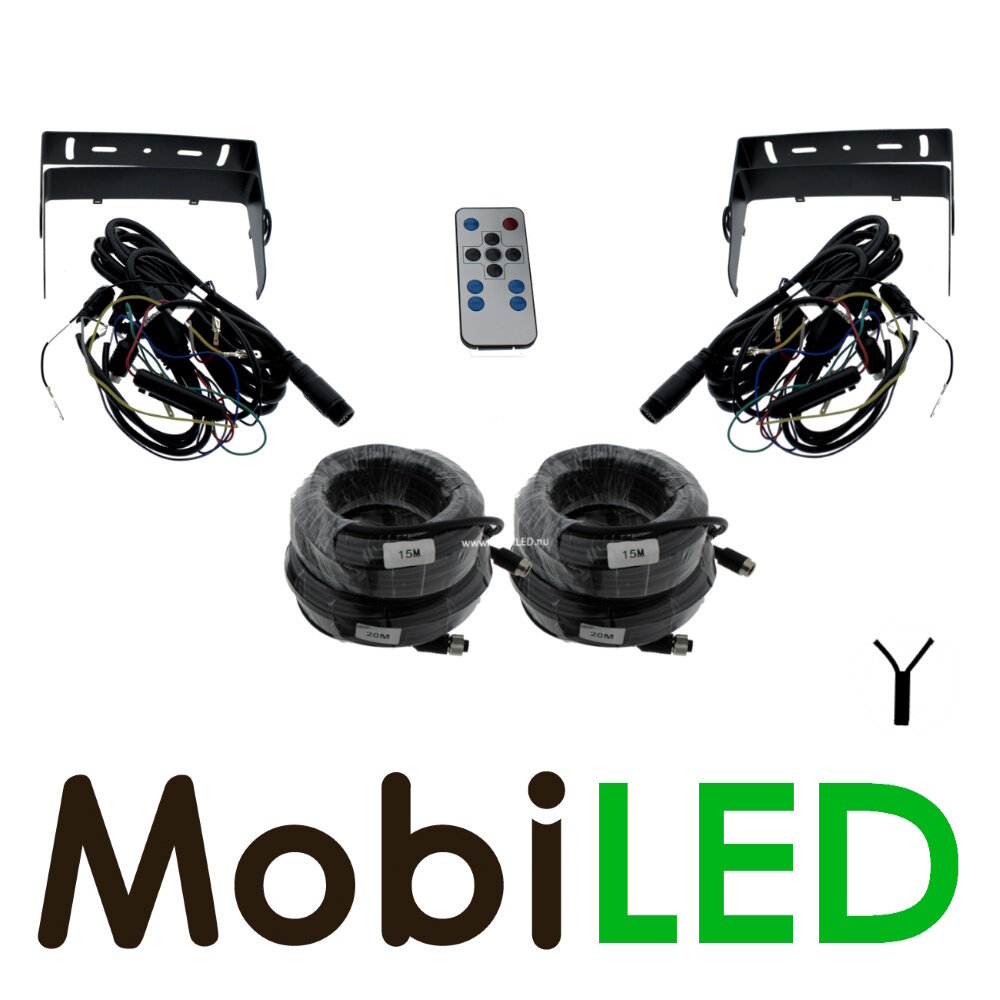

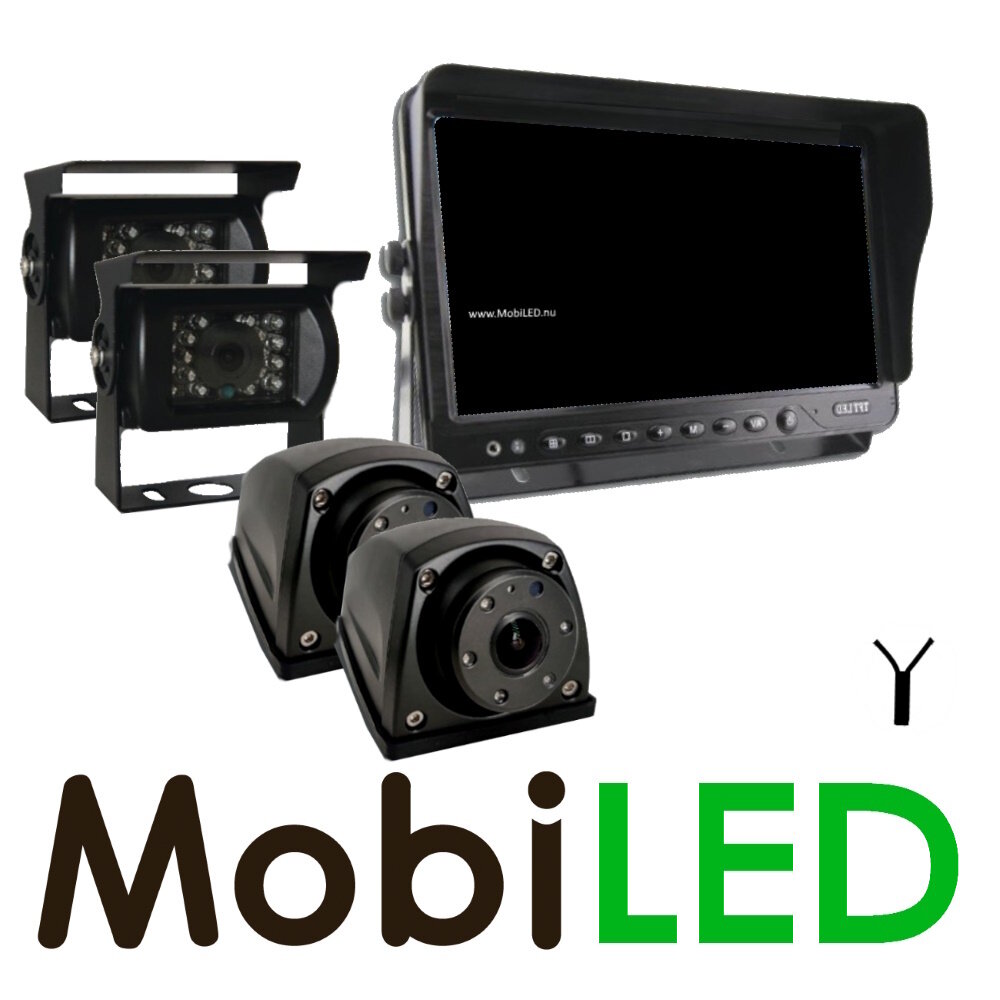

The set consists of 1 AI monitor, 2x AHD camera, 2x AHD camera side mounting, 2x cables (15 and 20m), bracket, remote control, power cable and sun visor. This set can be further expanded with 2 extra cameras.

Monitor Specifications:

• Screen: 7-inch (177 mm) 2 split digital AHD monitor
• Screen resolution: 1024 RGB (H) x 800 (V) Dot
• TV color system: NTSC/PAL
• Menu: Brightness; Contrast; Color; Mode; Language; Mirror image; Delay; Guide lines; Reset
• Vertical Bracket Mount / 360º Rotation
• Video Input: 4-Way
• 18-Pin Cable Connector / 1500mm Cable Length
• Dimensions: 177mm*122mm*26mm
• ECE REG 10 Approved
• IP Rating: IP54
• Operating Temperature: -20°C - +70°C

Camera Specifications:

• Voltage: 12V
• TV: NTSC: 1280, PAL: 720
• Horizontal Resolution (TV Lines): 550TVL
• Audio Function: no
• Built-in lens: 2.8 mm
• Viewing angle: 120°
• Night vision: 10m
• Infrared LEDs: 18
• Cable connection: 4-pin
• Cable length from monitor: 650 mm
• Dimensions: 77 x 76 x 69 mm
• Bracket mounting: metal
• Water resistance: IP69
• Certification: CE

Side mount camera specifications:

• Voltage: 12 volts
• Operating system: CMOS
• TV: NTSC: 1280, PAL: 720
• Audio function: no
• Viewing angle: 135°
• Night vision: 8m
• Infrared LEDs: 5
• Cable connection: 4-pin
• Cable length from monitor: 650 mm
• Dimensions: 73 x 39 x 53 mm
• Water resistance: IP69
• Certification: CE
