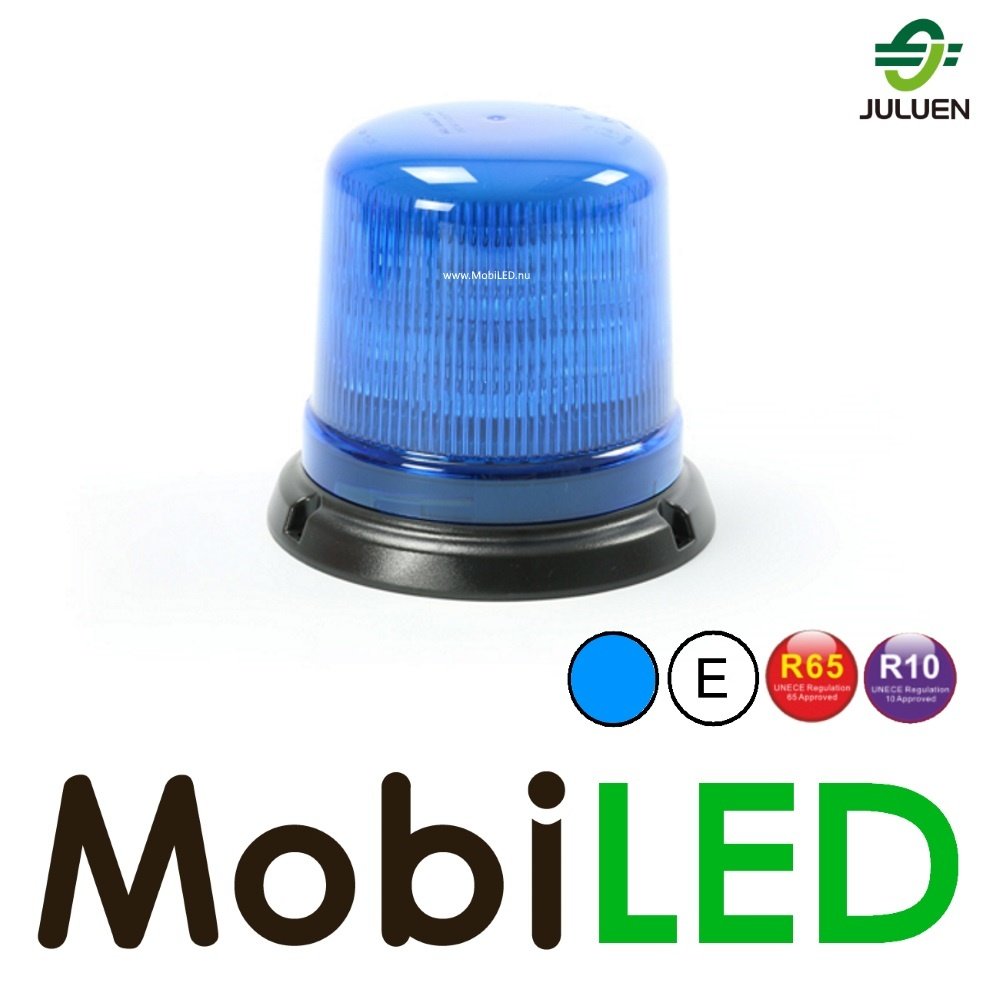

B14 Rotating beacon/Flasher 14 patterns blue fixed mounting 10-30 VDC R65

B14 Rotating beacon / Flasher Blue 14 patterns Fixed mounting

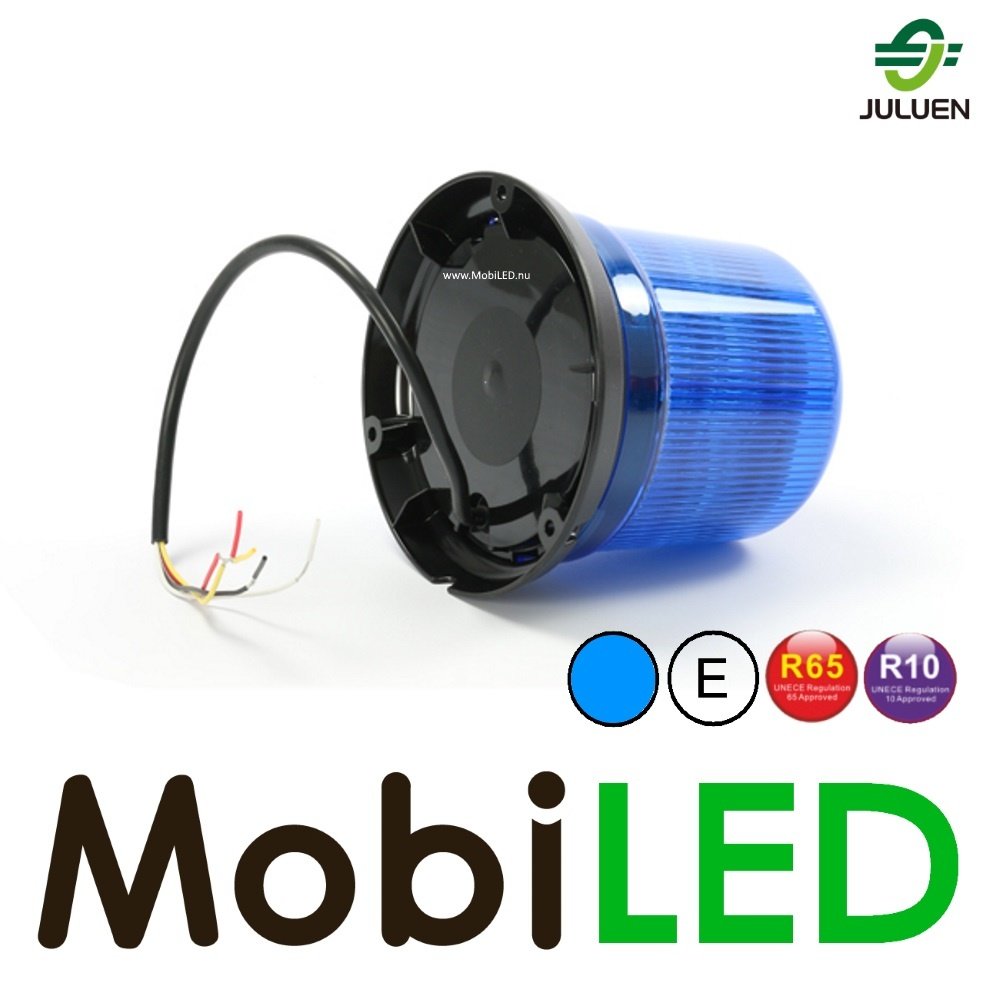

The B14 is a powerful LED flasher with a total height of 109 mm, not including the base. The lamp is provided with a cable. The flash pattern, synchronization and simultaneous/alternating flashing can be set with the wiring, the manual is included in the package.
The rotating beacon is fully certified according to ECE R65. It is compact, robust and has a great flash power.
The lamp meets all standards and also performs under tough conditions.

Specifications:

• Voltage: 9–30 V (multi-voltage)
• Number of LEDs: 10x 3 W
• Average power in continuous use: 21 W (depending on the flash pattern)
• Peak power: 42 W
• Housing: aluminum
• Certification: ECE R65 TA1, TB1, EMC ECE R10
• Water resistance: IP68
• Dimensions: 109 x 130 mm
• Flash patterns: 14

Flash Patterns:

1. Double R65 (2Hz)
2. Single (2Hz)
3. Quad (2Hz)
4. Single
5. Double
6. Quad
7. Quint
8. Mega
9. Ultra
10. Single-Quad
11. Single H/L
12. Single Column Rotator
13. Double Column Rotator
14. Double Rotator x5 -> Quint x5

Connection diagram:

• Red: plus
• Black: mass
• White: set simultaneous or alternating flashers
• Yellow: set flash pattern and sync
