B22 Amber/Clear Beacon / flash lamp fixed mounting E-mark

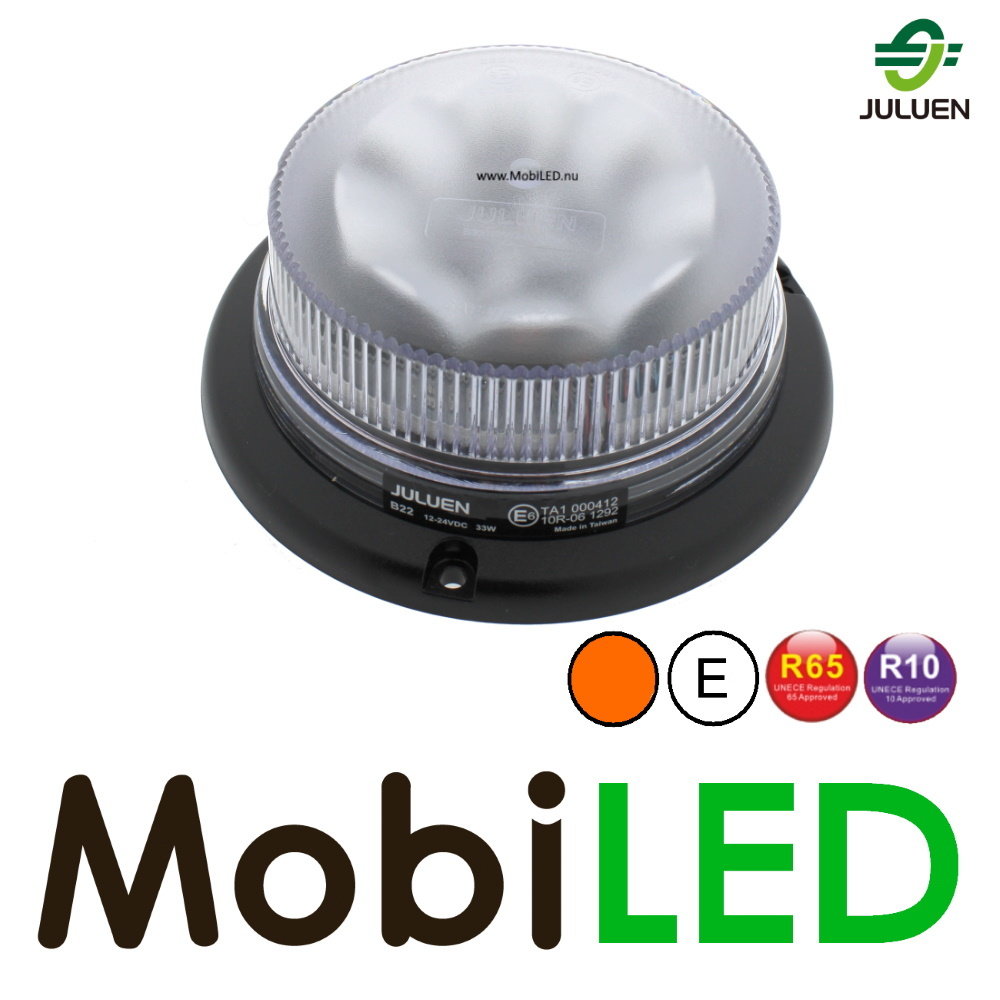

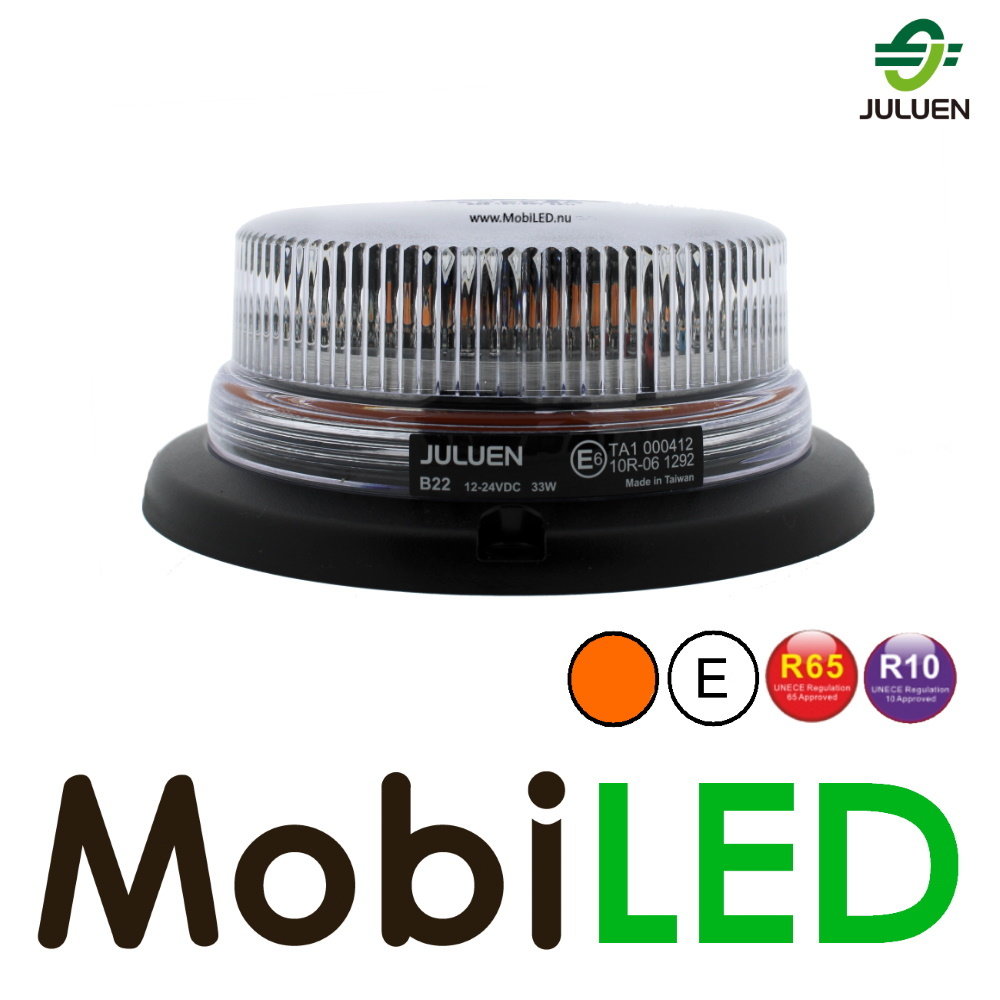

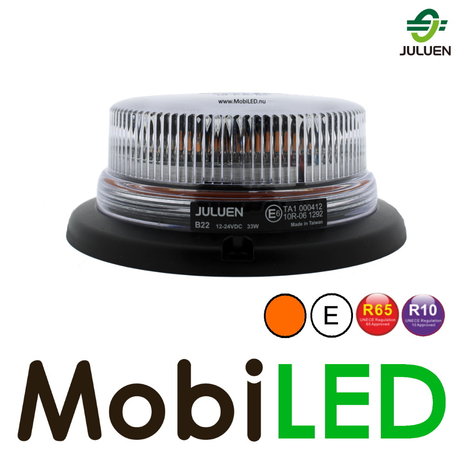

The Juluen B22 is a very low rotating beacon, only 57 mm including base. The lens in combination with the powerful LEDs provides a high light output. The lamp has a rotating light image with an amber-colored light, but is equipped with a clear hood. As a result, it fits perfectly on contemporary vehicles that no longer have an orange hood on their beacon.

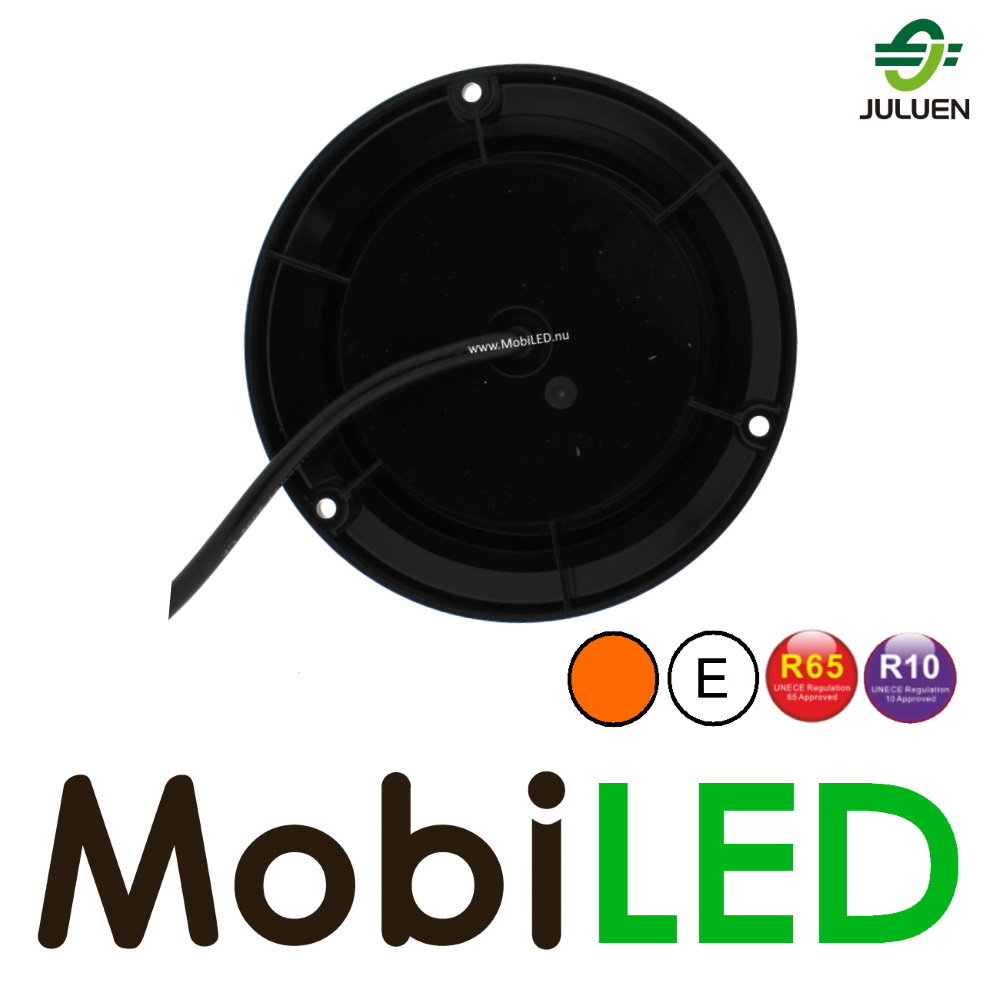

This beacon meets all standards and withstands the toughest conditions. The lamp can be mounted by means of three screws. The lamp has E-marking ECE R65 and R10 approval and can therefore be used professionally and used in the construction of new vehicles.
The 12 patterns can be set by unscrewing the cap and pressing the orange button. At the end of the more than 2 meter long cable is a switch for extra ease of operation and switching between flash and cruise function.

Specifications:

• Voltage: 9-30 V
• Number of LEDs: 8x 3 W
• Average power at continuous use: 15 W
• Peak power: 30 W
• Number of flash patterns: 12 (incl. stable scene)

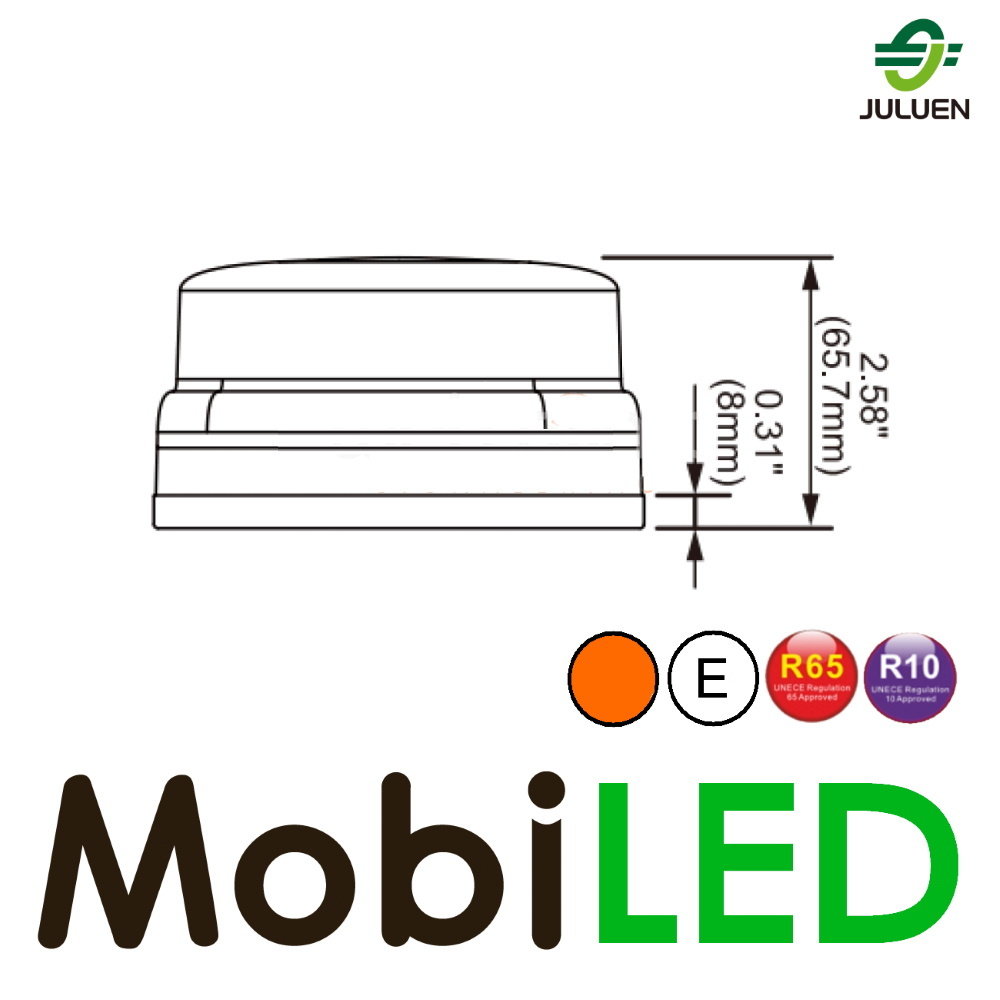

• Dimensions: 57.7 x 142 mm
• Warranty: 5 years
• Rating: IP68
• Light color: amber
• Hood color: clear
• Rotation: 360 degrees
• Certification: ECE R65 TA1, EMC ECE R10

Flash patterns:

1. Double (2Hz)
2. Single (2Hz)
3. Quad (2Hz)
4. Stable Scene (Cruise Mode)
5. Single (SAE)
6. Double(SAE)
7. Quad (SAE)
8. Quint (SAE)
9. Mega
10. Ultra (SAE)
11. Single-Quad
12. Single H/L
