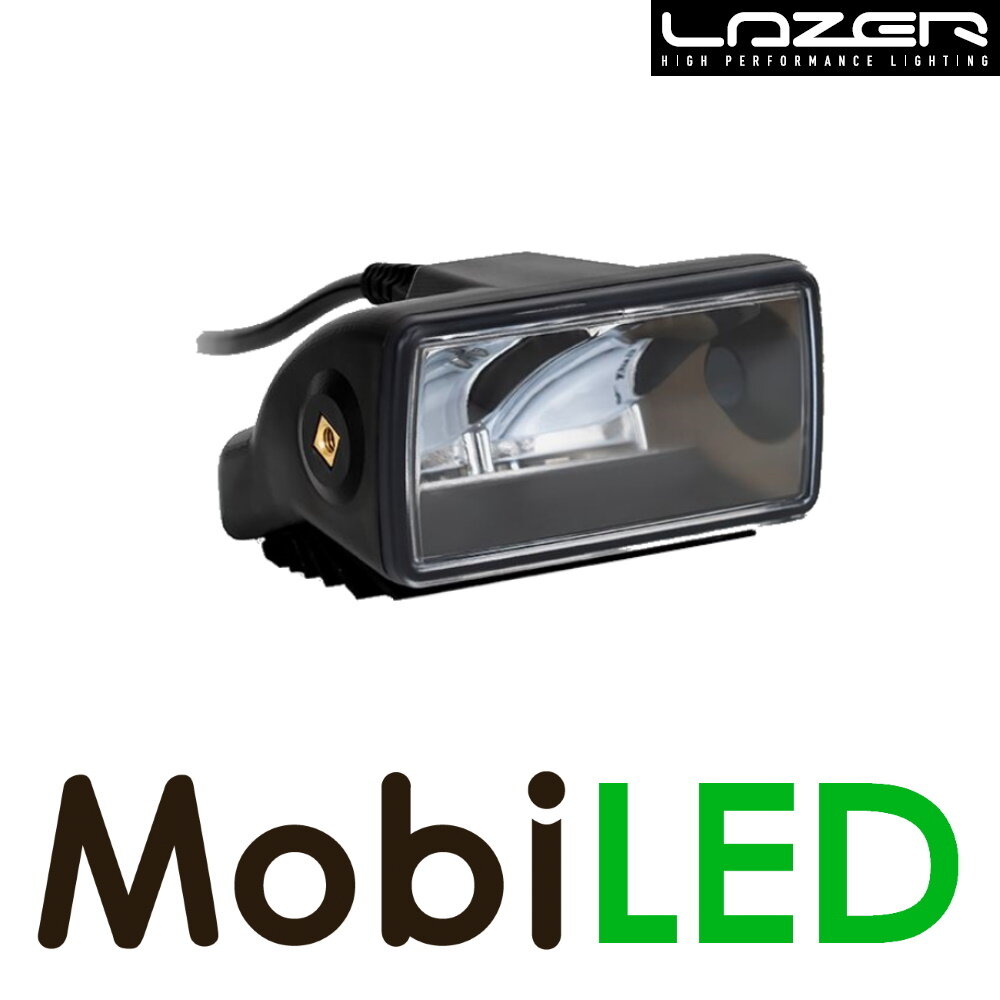

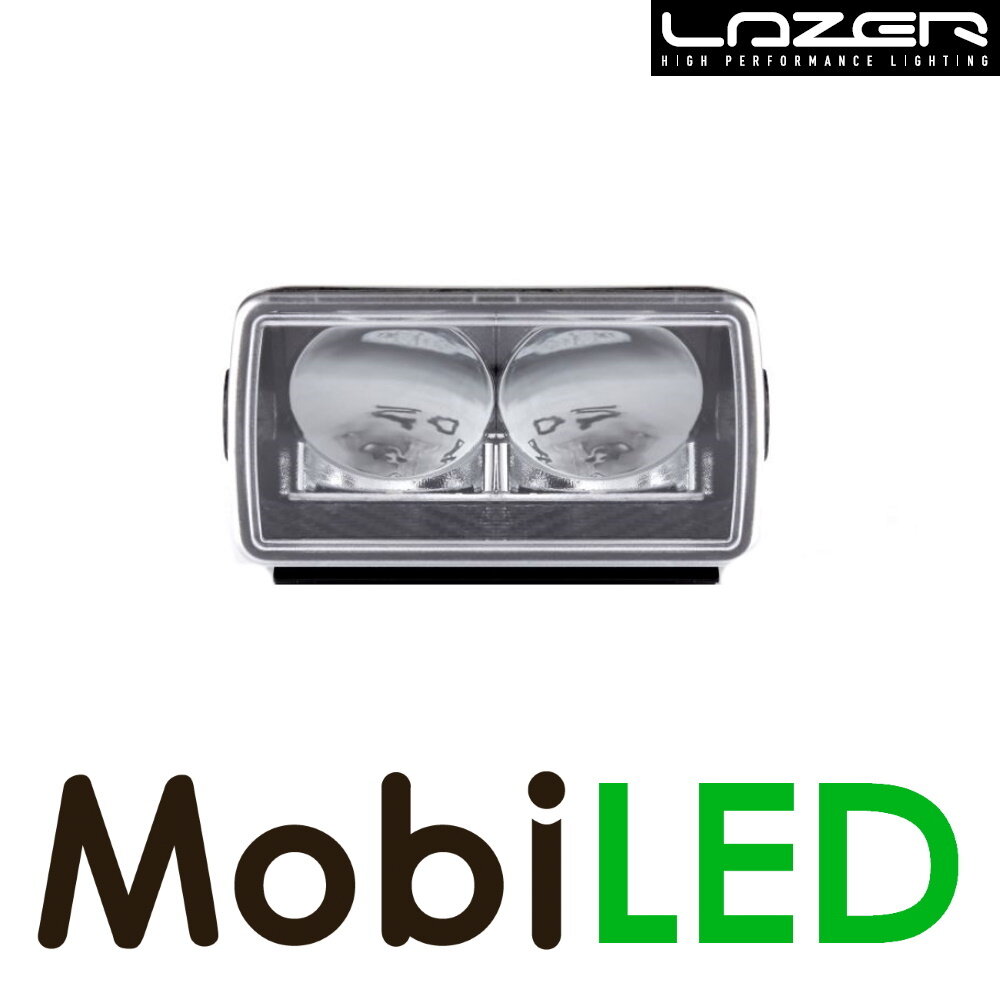

LAZER Carbon 2 Spot 22W

The LAZER Carbon-2 weighs only 230 grams and has a huge light output. The 2 high-intensity LEDs still produce 1 lux at 466 metres.

The housing of the LED spot light is constructed from a 3D printed high-strength composite. The CAE optimised heat sink ensures rapid heat dissipation. The unique design of both the housing and the internal electronics, including rear-facing LEDs, ensures better light utilisation, less scattering and more homogeneous light distribution. The "unbreakable" polycarbonate lens protects the LEDs and determines light distribution.

The LED lamp is available as spot light with a smooth lens or as wide-beam with a striped lens. Whereby the wide beam has two versions: horizontal (BS054) or vertical (BS055) striped lens. This allows the lamp to be mounted vertically or horizontally.

This is the spotlight.

The set consists of:

• 1 x flood light Carbon-2
• 1 x Deutsch plug with 30 cm cable
• 1 x installation instructions

Specifications:

• Voltage: 10-32V
• Power: 22W
• Consumption at 14.4V: 1.5A
• Number of LEDs: 2
• Lumen, theoretical: 2,255
• Light pattern: spot, 11 degrees

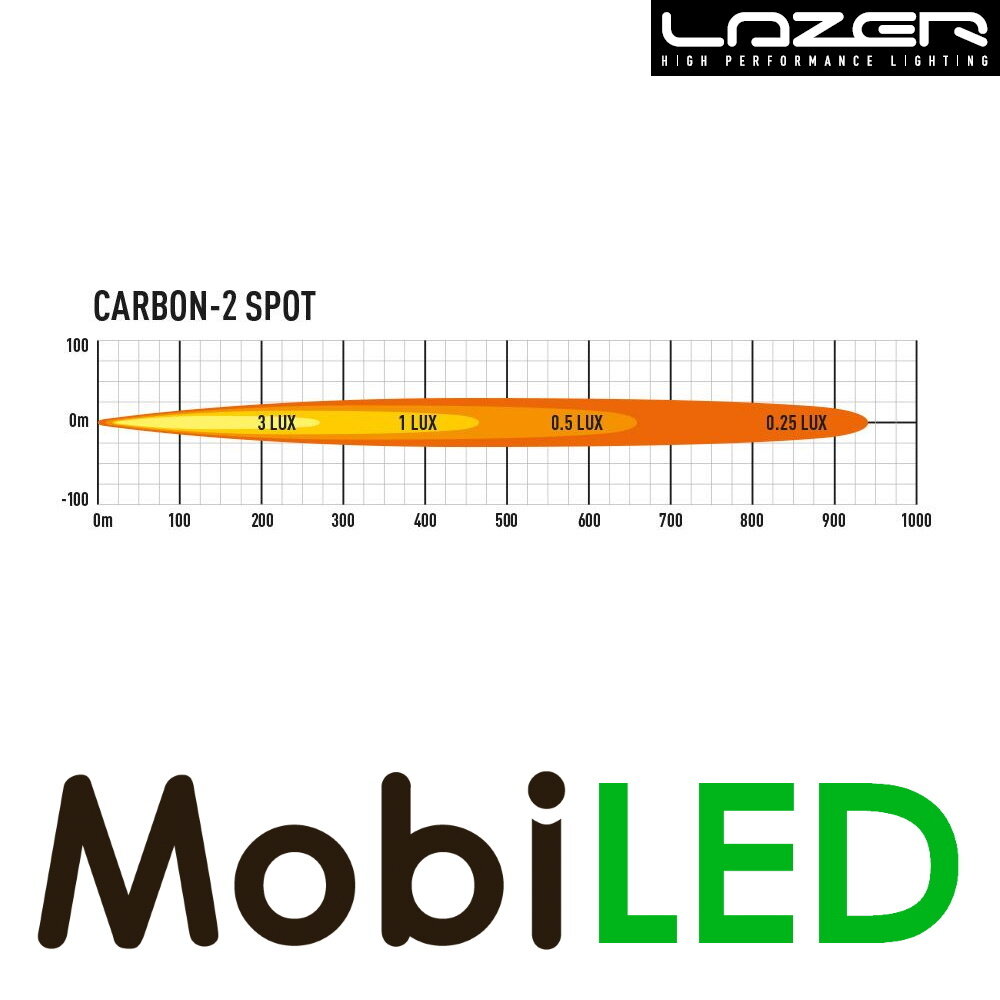

• Light range: 1 LUX @: 466 m; 0.25 LUX @: 933 m
• Light colour: 5,000K
• Water resistance: IP68

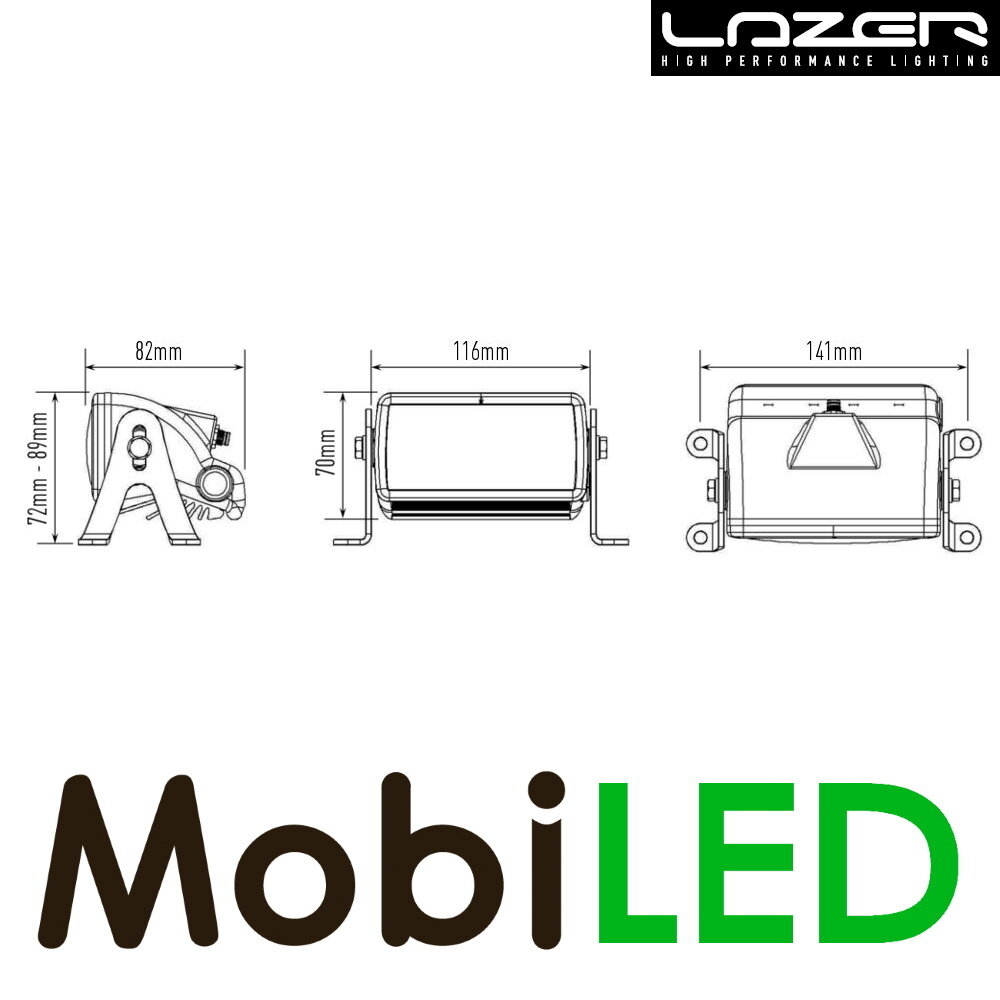

• Dimensions: 116 x 84 x 70 mm
• Housing: 3D printed PA12 nylon reinforced with carbon fibres
• Weight: 230 gr
• LAZER part number: 00C2-3D-S / 5060404990216
