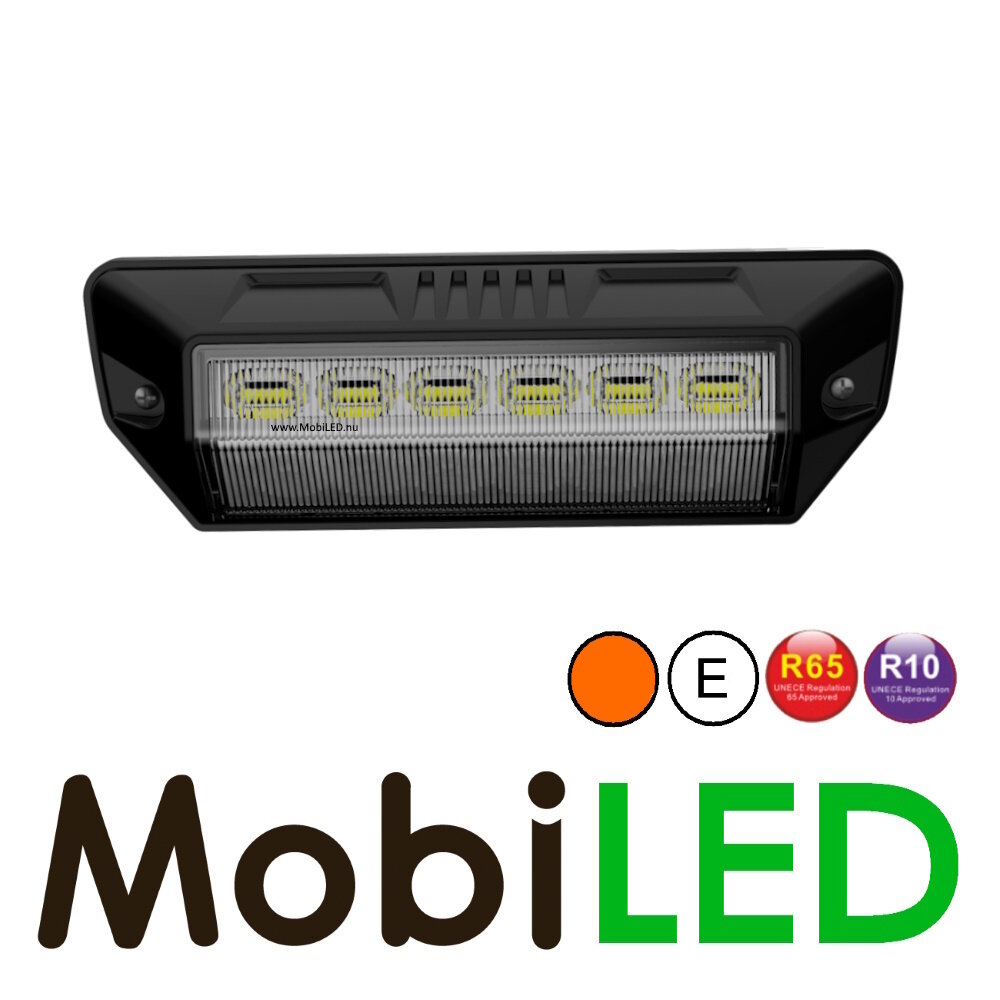

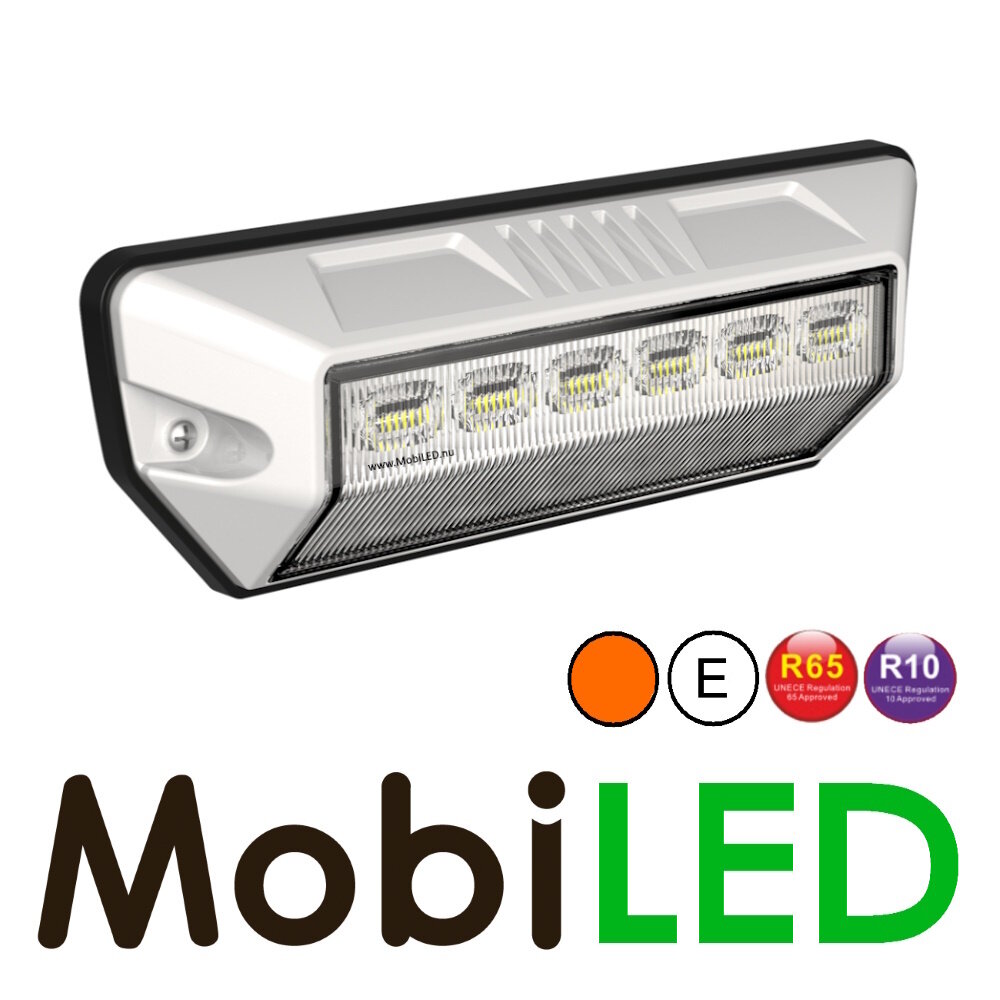

Surface-mounted combination lamp "scene light" White with flasher
Product description
Very solid surface-mounted work lamp, combined with flasher. The flasher has amber colored light in 19 different patterns. The lamp is fully certified ECE R65 Class 2 and SAE Class 1 / R148 and ECE R10 EMC Compliance. This item has a day and night mode (50% power).The solid aluminum housing gives this lamp a solid and striking appearance. The stron...
Very solid surface-mounted work lamp, combined with flasher. The flasher has amber colored light in 19 different patterns. The lamp is fully certified ECE R65 Class 2 and SAE Class 1 / R148 and ECE R10 EMC Compliance. This item has a day and night mode (50% power).
The solid aluminum housing gives this lamp a solid and striking appearance. The strong LEDs provide a well-lit work area with 1200 lumens. The lamp is resistant to weather influences and damage according to IP69K standards. Of course it has multi-voltage and a long cable of 2 meters.
Connection diagram:
- Black: mass
- red: 10-30 VDC
- White: 50% power
- Green: scene light
- Yellow: synchronize
Show more
Show less
Product specifications
- Article number
- WL363

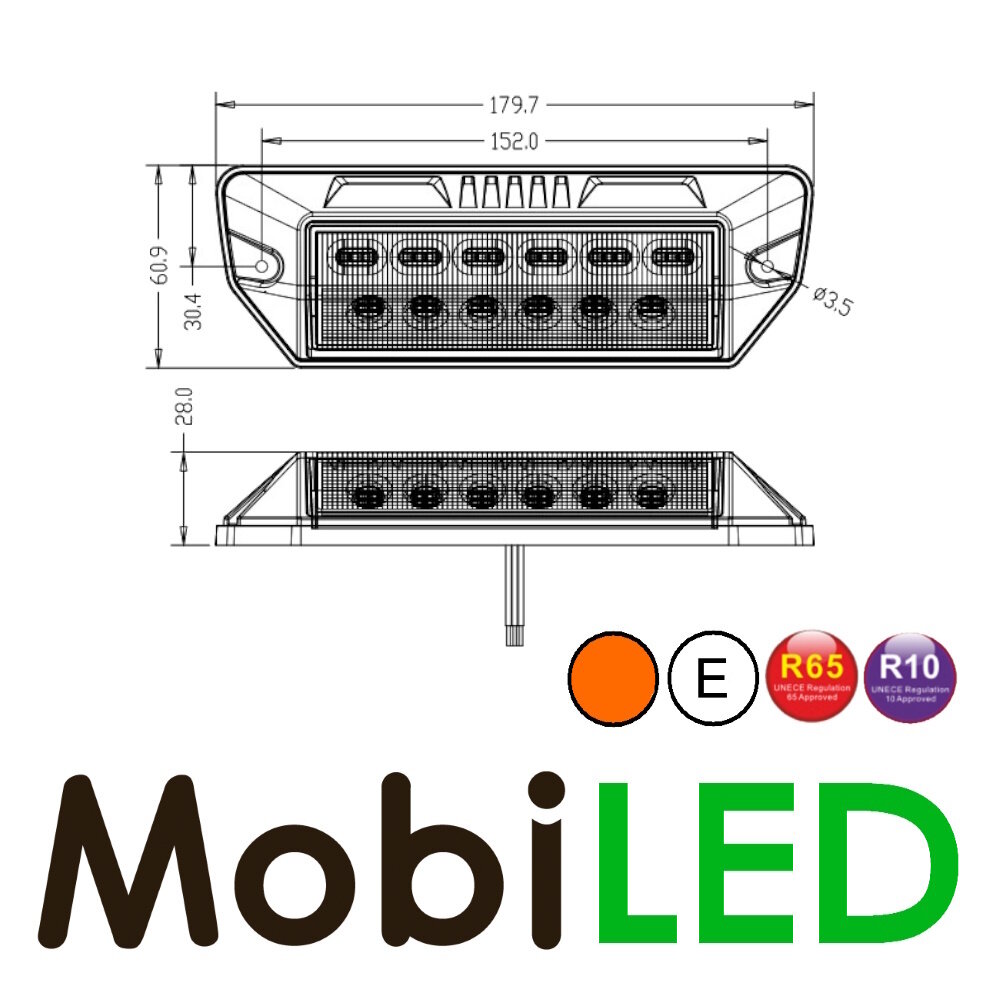

- Length (cm)
- 18
- Height (cm)
- 6,1
- Depth (cm)
- 2,8
- Weight (gr)
- 350
- Shape
- Elongated
- Tension
- 12-30V
- Power
- 24W + 12W
- Light image
- Flood
- Lumens
- 3000/1200
- Light colour
- White / Amber
- LED Type
- Osram
- Number of LEDs
- 24 + 12
- Lens material
- PC
- Housing material
- Aluminum
- Mounting type
- Screw
- Bolt spacing / bolt size (cm)
- 15,2
- Connection
- Cable
- Cable Length (cm)
- 200
- Flush-mounted / surface-mounted
- Surface-mount
- Certification
- ECE R10 EMC, R65 Class 2, SAE Class 1/R148
- IP rating
- IP69K
- Packed per
- 1
