Crawer flush mounting work lamp 40W round 12-24V CREE
Small but very powerful 40 watt flush mounting work lamp. It is the replacement for the traditional halogen lamp. It gives a lot of light, 3600 lumens. The light distribution is fine, so a lamp of top quality. Modern tractors have a different look and the round/oval LED lamps from Crawer fit in perfectly with this.
The lamps are 40 watts and equipped with CREE LEDs. A sturdy aluminum housing that is powder coated and has a PMMA lens. The lamp gives a bright white light, 6000K and 3600 Lumen. Can be used from 10-30 volts. Of course, the Crawer lamps are radio suppressed according to the strict CISPR requirements class 4.

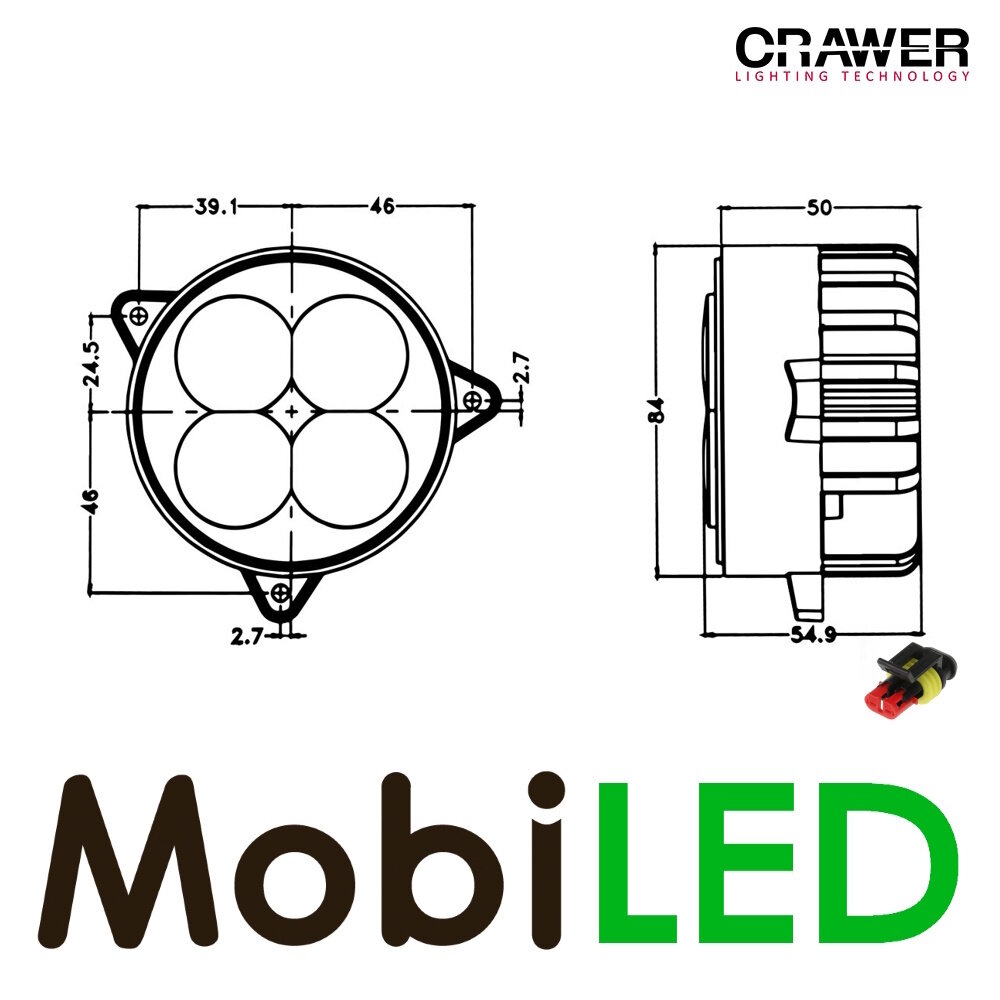

The plug and dimensions are identical to the halogen lamp, so that replacing this work lamp does not have to take long, thanks to the plug & play connection.
This flush mounting work light is a perfect match for almost all John Deere tractors. Also very well to use on the Case IH and New Holland.
Part numbers:
John Deere:
- AL209455, CNH part number 87539115, 87328621
New Holland:
T8010 | TG215 |
T8020 | TG230 |
T8030 | TG245 |
T8040 | TG255 |
T8050 | TG275 |
TG210 | TG285 |
TG305 |
John Deere:
6105M | 6150R |
6105R | 6155M |
6110M | 6155R |
6110R | 6170M |
6115M | 6170R |
6115R | 6175M |
6120M | 6175R |
6120R | 6190M |
6125M | 6190R |
6125R | 6195M |
6130M | 6195R |
6130R | 6210M |
6140M | 6210R |
6140R | 6215M |
6145M | 6215R |
6145R | 6230R |
6150M | 6250R |
Case IH:
Puma 115 | Magnum 220 |
Puma 125 | Magnum 225 |
Puma 130 | Magnum 235 |
Puma 140 | Magnum 240 |
Puma 145 | Magnum 245 |
Puma 150 | Magnum 250 |
Puma 155 | Magnum 260 |
Puma 160 | Magnum 275 |
Puma 165 | Magnum 280 |
Puma 170 | Magnum 290 |
Puma 180 | Magnum 305 |
Puma 185 | Magnum 310 |
Puma 195 | Magnum 315 |
Puma 200 | Magnum 335 |
Puma 210 | Magnum 340 |
Puma 215 | Magnum 370 |
Puma 220 | Magnum 380 |
Puma 225 | MX215 |
Puma 230 | MX220 |
Puma 240 | MX230 |
Magnum 180 | MX240 |
Magnum 190 | MX245 |
Magnum 200 | MX255 |
Magnum 210 | MX275 |
Magnum 215 | MX285 |
Product specifications
- Article number
- WL120
- Depth (cm)
- 5
- Diameter (cm)
- 8,4
- Shape
- Round
- Tension
- 9-32V
- Power
- 40W
- Lumens
- 3600
- Light colour
- Bright white (6000-6500K)
- LED Type
- CREE
- Number of LEDs
- 4
- Lens material
- PMMA
- Housing material
- Aluminum (powder coated)
- Mounting type
- Screw
- Connection
- Superseal connector
- Flush-mounted / surface-mounted
- Flush-mount
- Certification
- EMC (CISPR class 4)
- IP rating
- IP68
- Packed per
- 1
- Manufacturer article number
- 7435145523559 / CRW012
