Cruise light strobe controller

Strands Cruise Light Strobe Controller

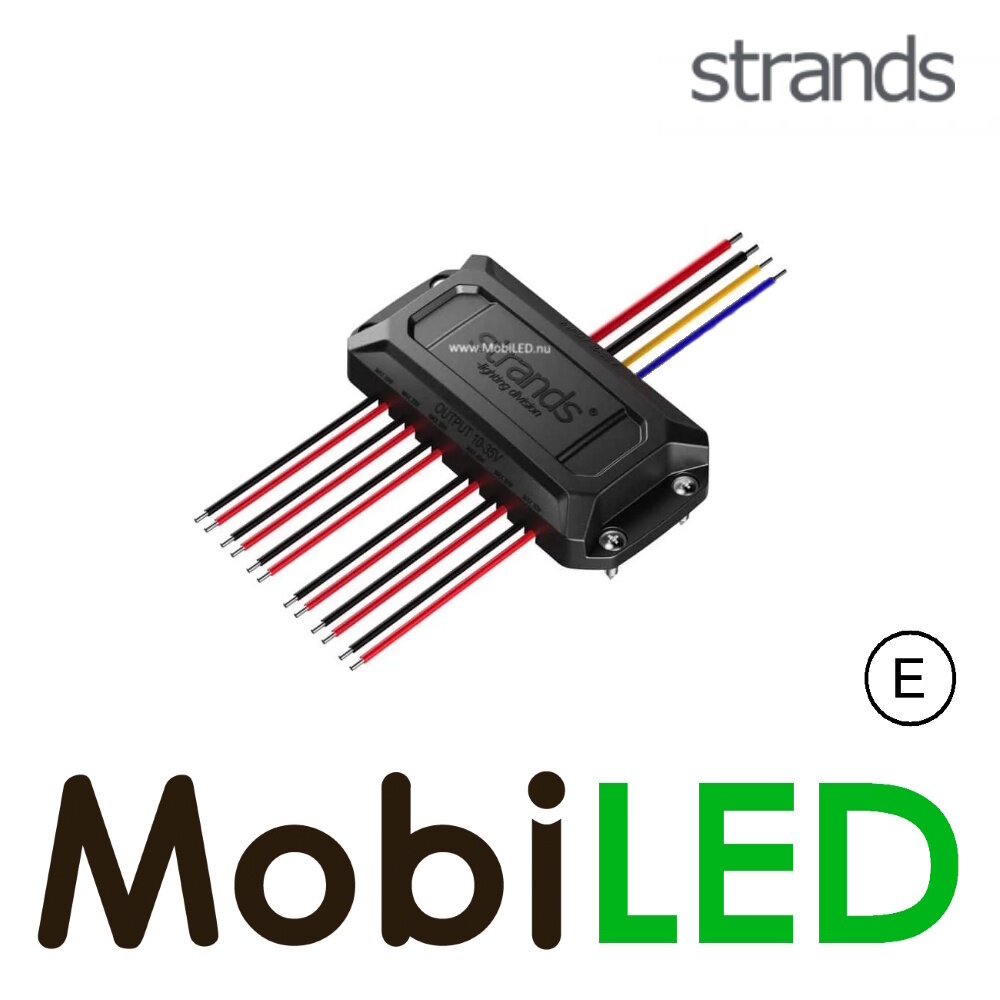

With this Strands Cruise Light Strobe Controller you can make up to six regular lights of max 30 watts per light flash in 12 patterns, including 4 directional patterns. Pattern selection is done by briefly connecting the yellow wire to a VDC+ signal. The last selected pattern is remembered. The blue cable provides a steady on function. The controller is suitable for 10-35 volts, it is IP68 waterproof and comes with 45 to 50 cm long connection wires at both the input and the output side.

Patterns:

1. All lights single flash
2. All lights double flash
3. All lamps quadruple flash
4. Alternating lamp 1,3,5 and 2,4,6 single flash
5. Alternating lamp 1,3,5 and 2,4,6 double flash
6. Alternating lamp 1,3,5 and 2,4,6 quadruple flash
7. Sequence lamp 1,2,3,4,5,6 (1 lamp at a time)
8. Sequence lamp 6,5,4,3,2,1 (1 lamp at a time)
9. Sequence lamp 1,2,3,4,5,6 (2 lamps at the same time)
10. Sequence lamp 6,5,4,3,2,1 (2 lamps at the same time)
11. All patterns random (13 sec per pattern)
12. Steady on (cruise light)

Specifications:

• Voltage: 10-35 V
• Power: max 30 W per lamp
• Water resistance: IP68
• Housing: black
• Assembly: screws (4x)
• Number of flash patterns: 12
• Connection: cable

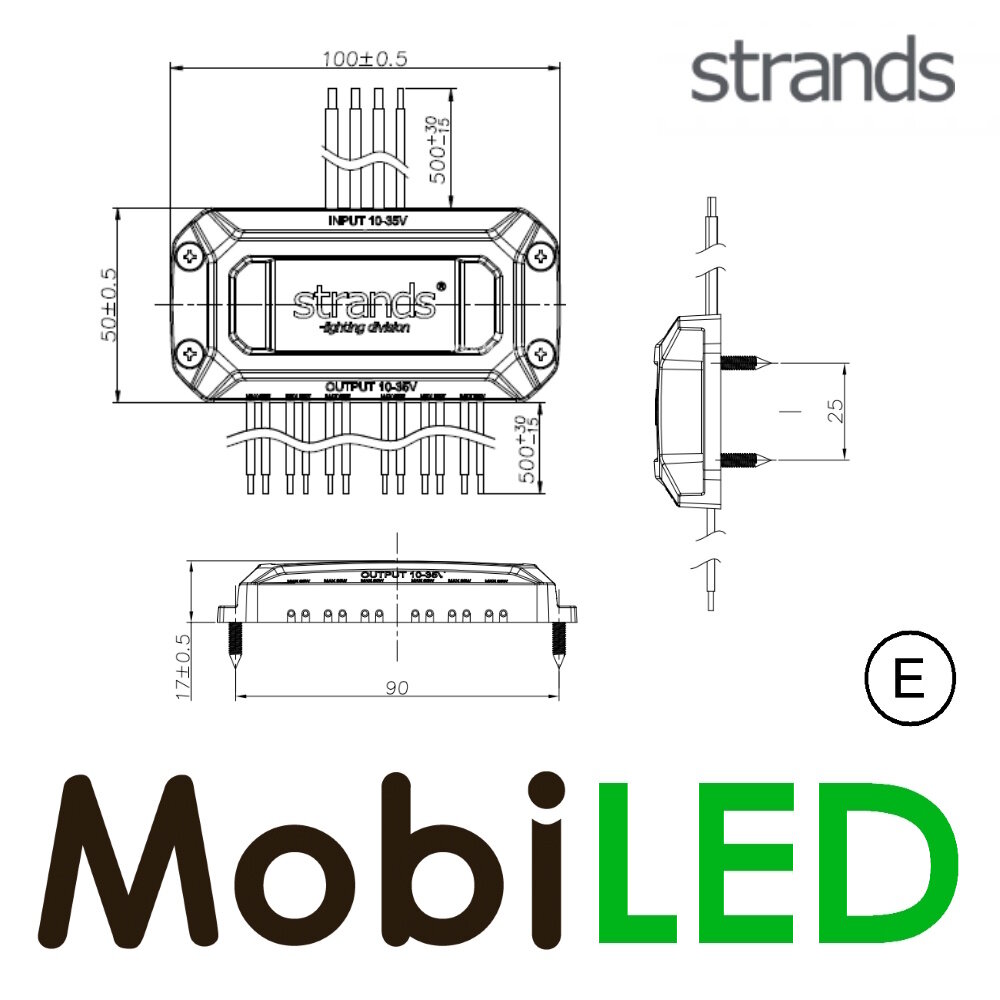

• Dimensions: 100 x 50 x 17 mm
