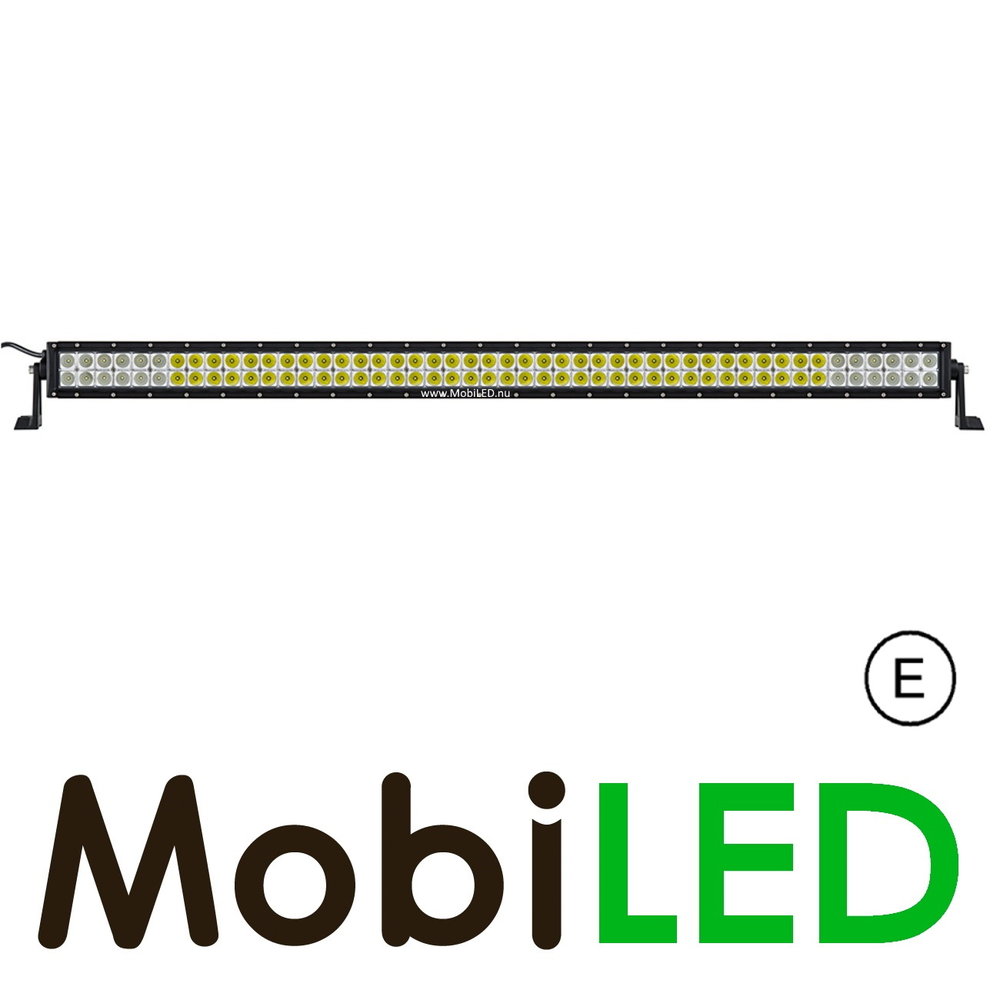

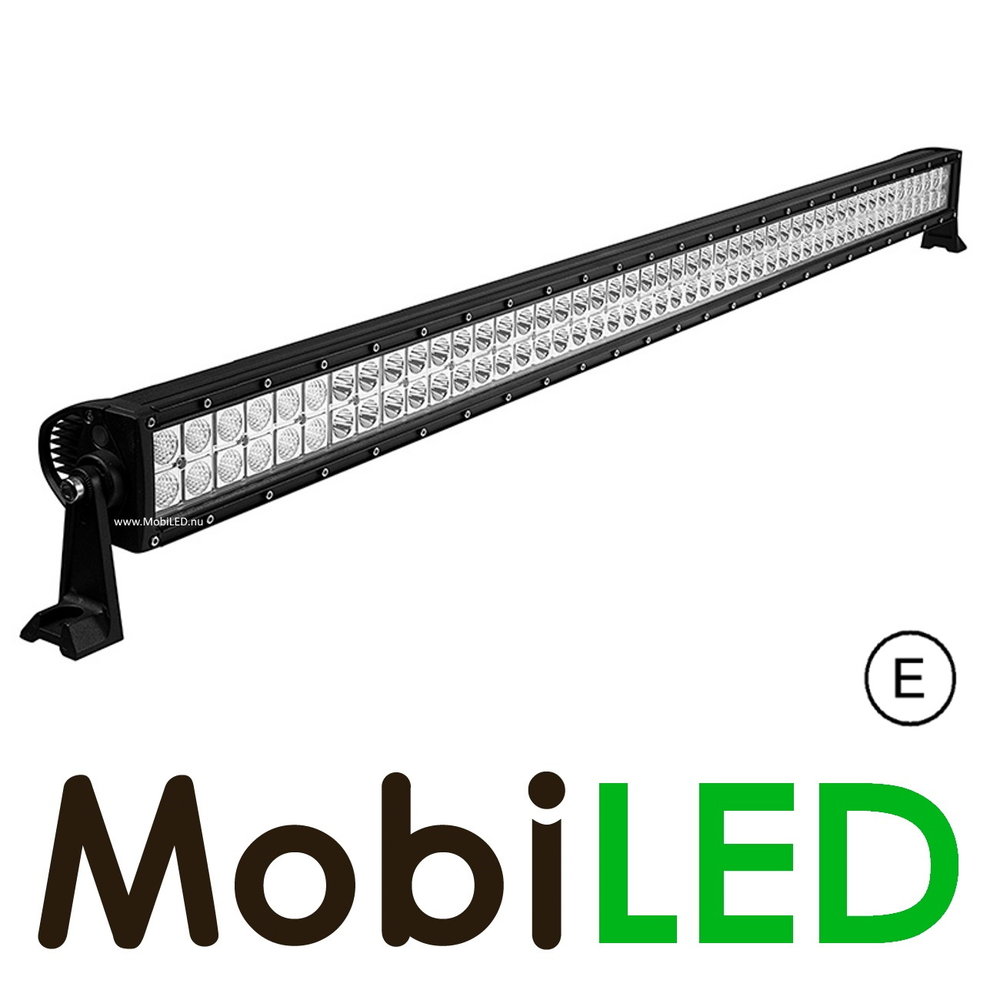

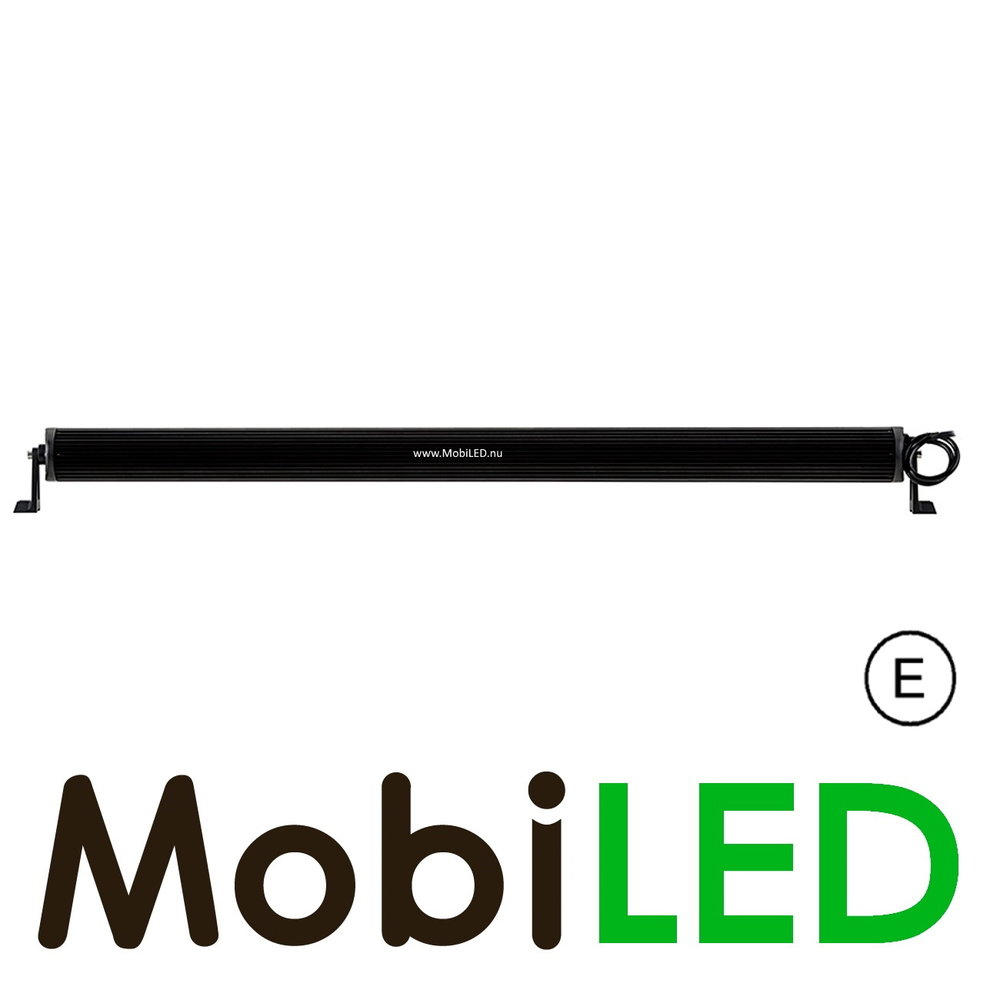

D-type basic light bar 288 watts combo beam
After the rally sport and the Dakar, we are now seeing the LED light bars or LED bars more and more. Not only in the rally world but also in the off road and the 4x4. A compact replacement for the traditional high-beam headlamps. In addition to being used in motorsport, we also see that more and more work vehicles are equipped with LED bar lighting. Salvage companies, car ambulances, ramps, agricultural mechanization and excavators benefit from these lamps. Furthermore, LED bars are also used for maritime purposes on yachts, boats and inland vessels.
MobiLED supplies these lamps as a high-beam headlamp and as a combination. That is a spotlight and floodlight in one bar. With a combi bar, the ends of the bar are equipped with floodlights with a beam angle of 60 degrees and the center of the bar with spotlights with a beam angle of 30 degrees. These cannot be switched separately from each other. The wider the bar, the wider the working field of these lamps. In addition to the light intensity and wattage, the size is especially decisive when purchasing these lamps.
All bars we have in our program are shock and water resistant according to IP67. They are also multi-voltage (10-30 volts). It makes no difference in terms of brightness whether they are connected to 12 or 24 volts. In heavy duty applications, these lamps are also mounted in a steel U-profile to protect them against branches and trees, among other things. The bars are compact and easy to install and connect. In the grill or push bar of your car or on the roof or cabin of your vehicle.
Product specifications
- Article number
- LB151
- Length (cm)
- 127 (133)
- Height (cm)
- 8
- Height incl bracket (cm)
- 12,2
- Depth (cm)
- 8,8
- Weight (gr)
- 4440
- Shape
- Elongated
- Tension
- 12-24V
- Power
- 288W
- Current draw
- 12V: 24,0A/24V: 12,0A
- Lumens
- 8300
- Light colour
- Cool white (6000-6500K)
- Number of LEDs
- 96
- Light image
- Combo
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Aluminum

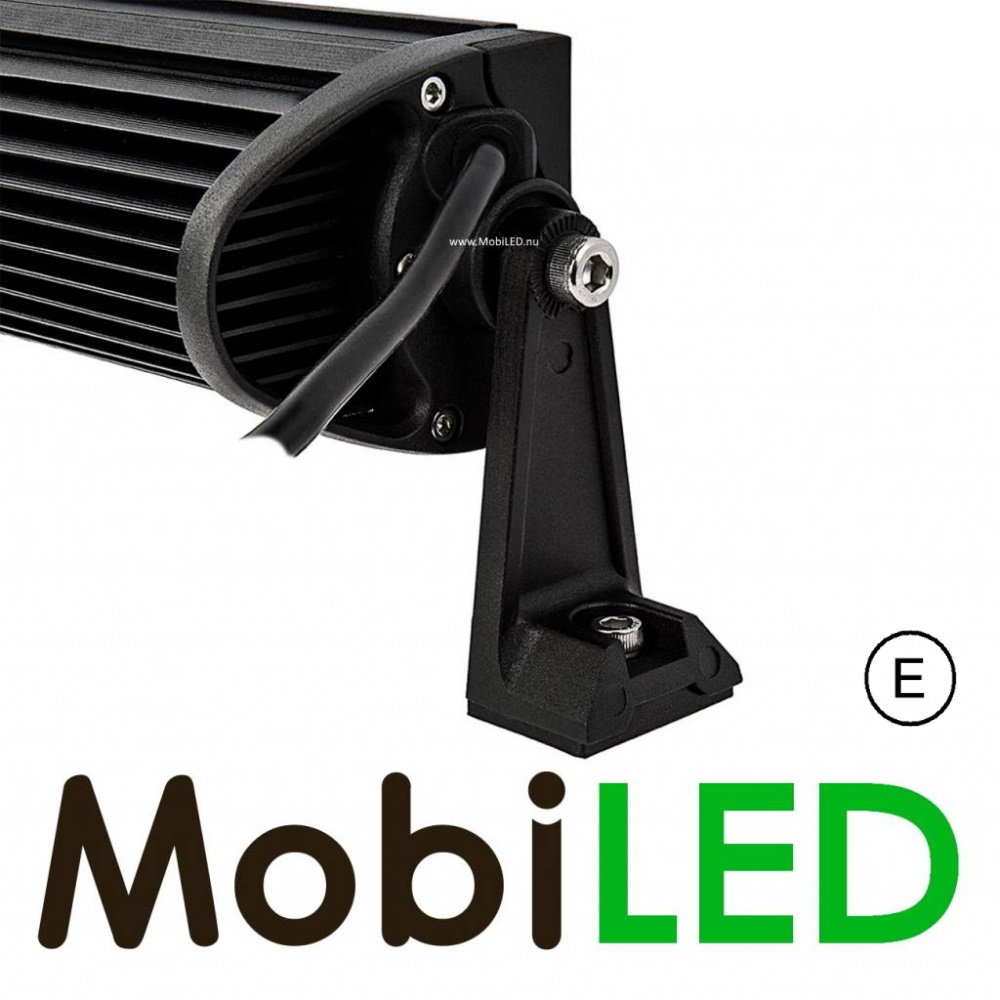

- Mounting type
- Screw
- Cable Length (cm)
- 25
- IP rating
- IP67
- Certification
- ECE R10
- Packed per
- 1
- Manufacturer article number
- 5901741300556 / LB0007
