Compact reversing light 12 volts Fristom FT-224 LED Cable
Product description

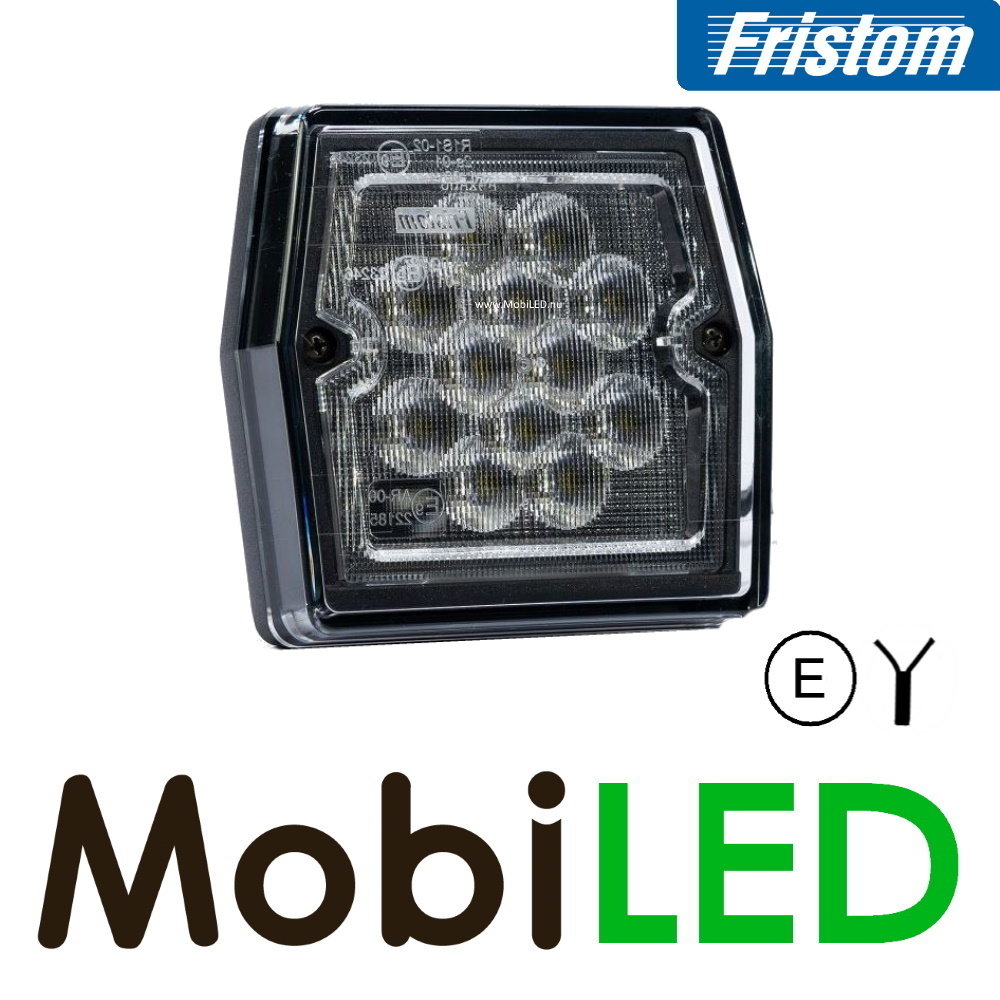

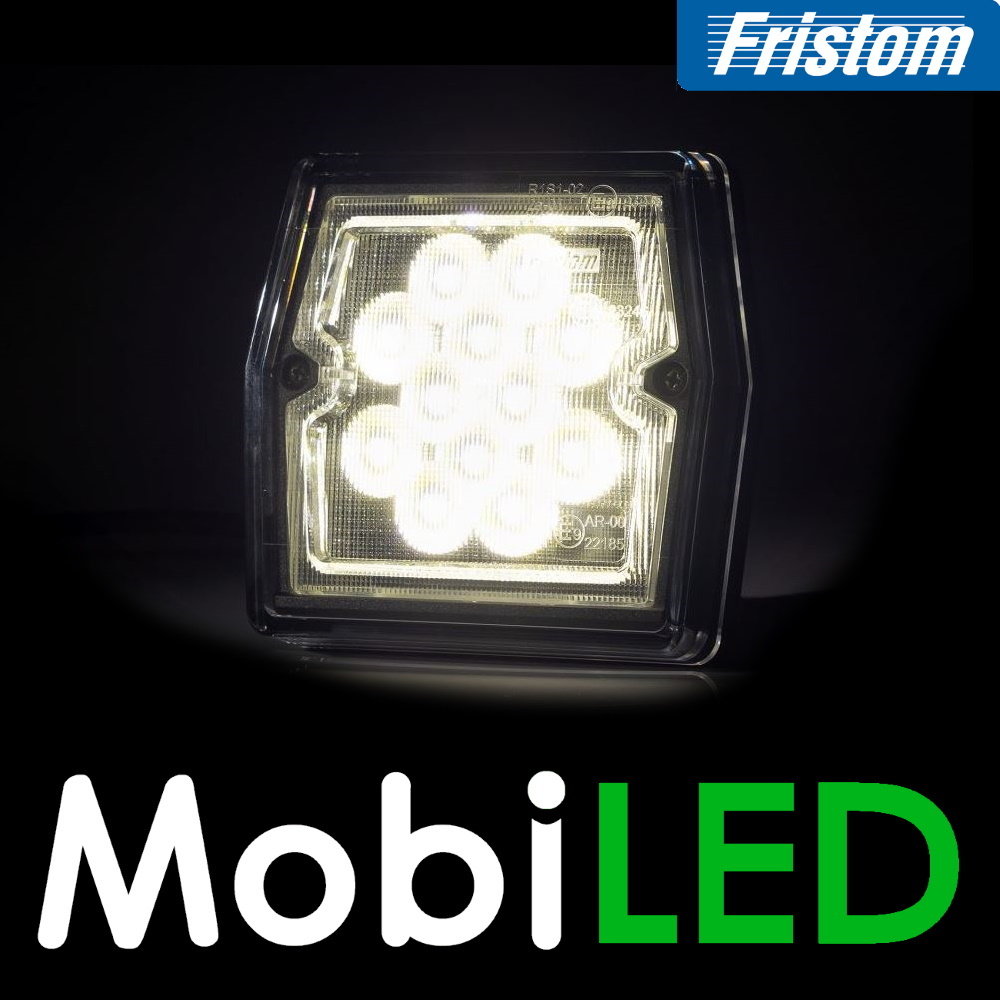

Hexagonal reversing light. Equipped with E-mark and EMC certification. The lens is shock-resistant and with an IP68 rating resistant to all weather conditions. This version comes with 1 meter cable.A version is also available with a 5 pin bayonet connection.

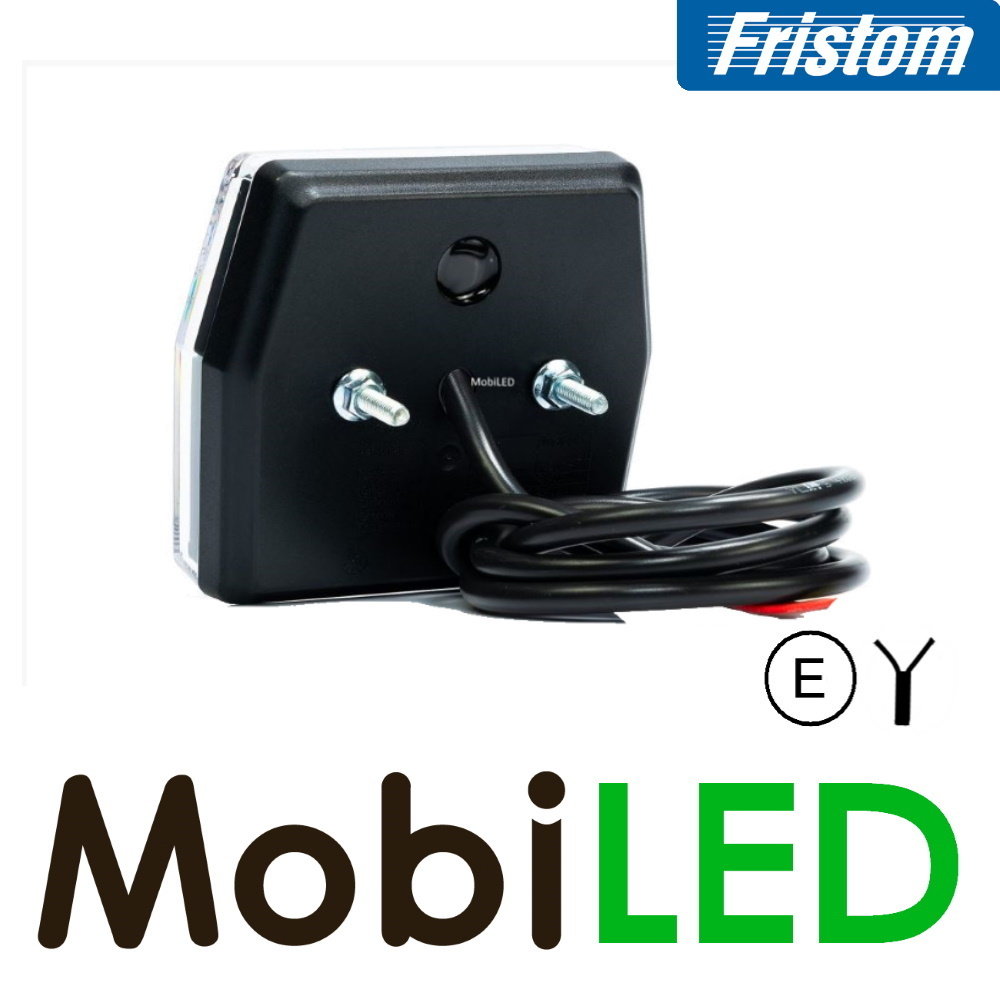

Connection diagram:
White= mass
Black= reversing light
Video:
...
Hexagonal reversing light. Equipped with E-mark and EMC certification. The lens is shock-resistant and with an IP68 rating resistant to all weather conditions. This version comes with 1 meter cable.
A version is also available with a 5 pin bayonet connection.
Connection diagram:
- White= mass
- Black= reversing light
Video:
Show more
Show less
Product specifications
- Article number
- AL221
- Tension
- 12-15V
- Length (cm)
- 10
- Height (cm)
- 9,3
- Depth (cm)
- 3
- Housing material
- PC
- Housing colour
- Black
- Mounting type
- Bolt
- Flush-mounted / surface-mounted
- Surface-mounted

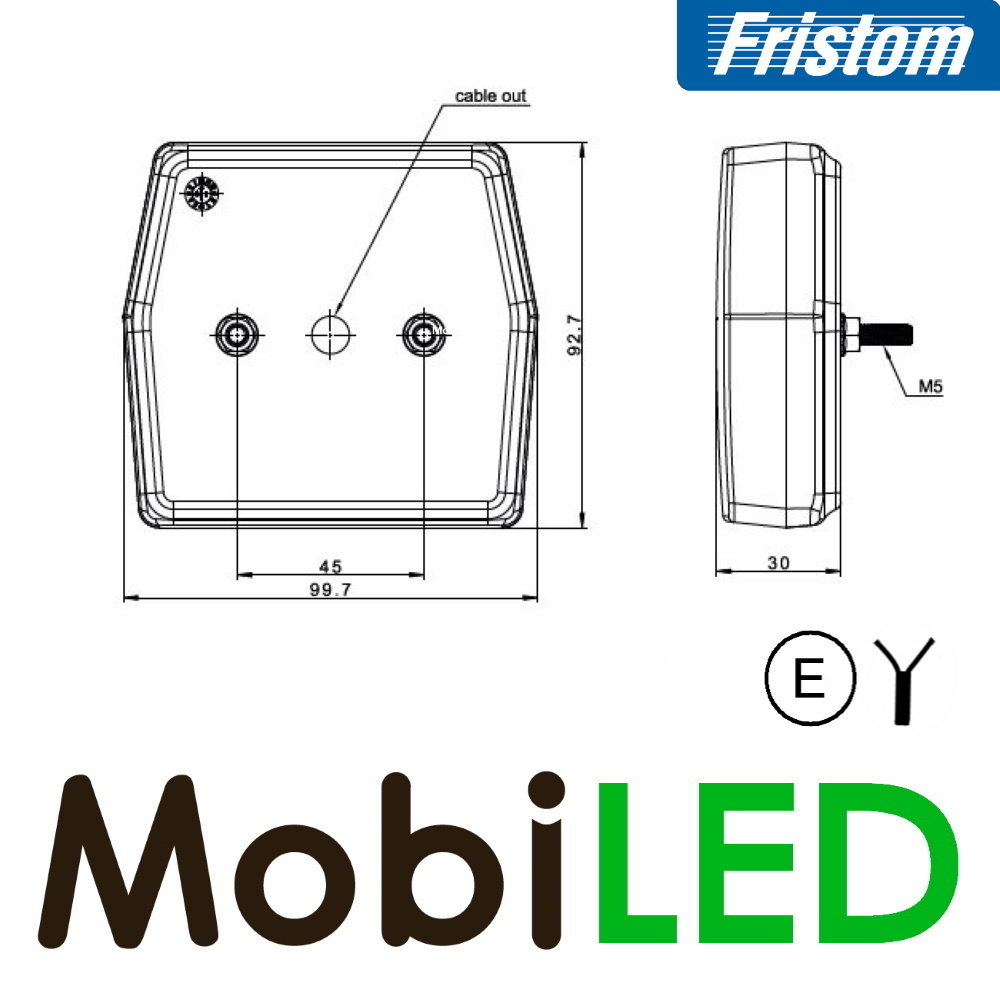

- Bolt spacing / bolt size (cm)
- 4,5
- Connection
- Cable
- Cable Length (cm)
- 100
- Number of wire cores
- 2
- IP rating
- IP68
- Certification
- UNECE R10, R23
- Shape
- Hexagonal
- Vehicle side
- Universal (L/R)
- Reversing light function
- Yes
- Packed per
- 1
- Manufacturer article number
- 5907556015241 / FT-224 LED
