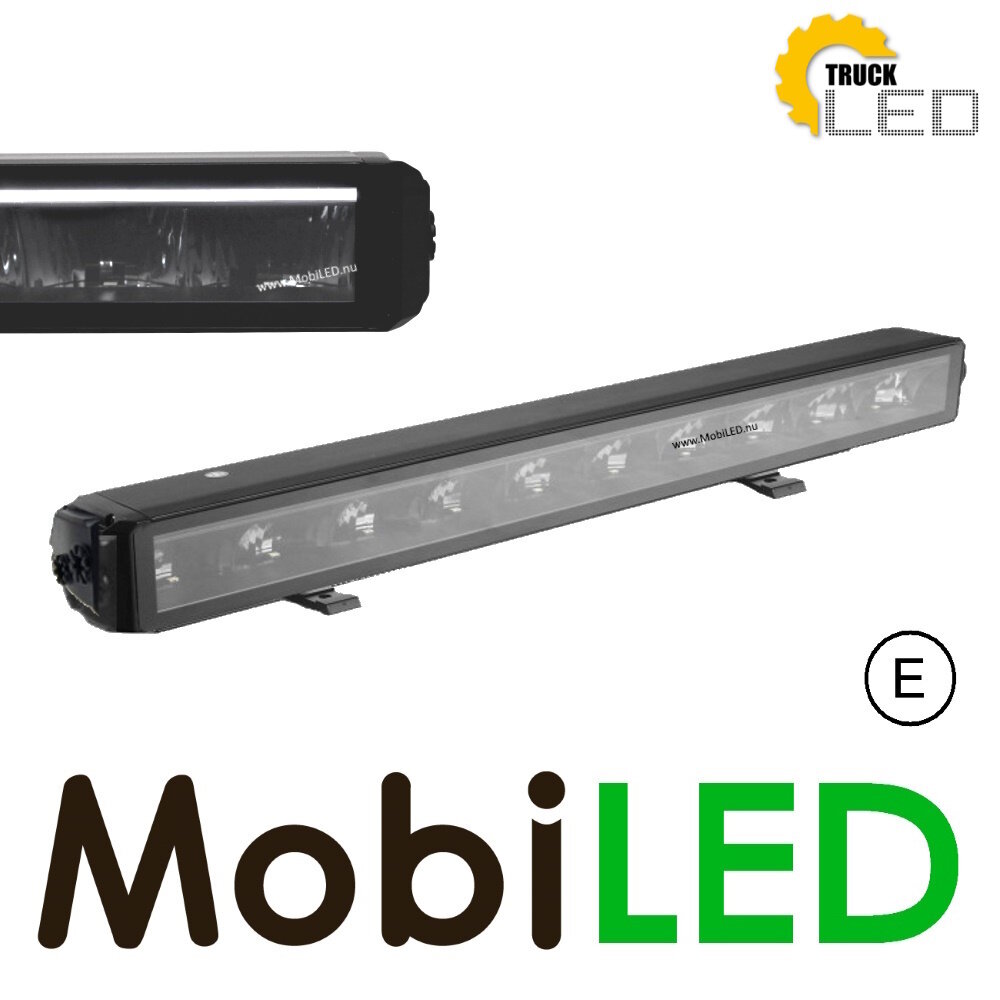

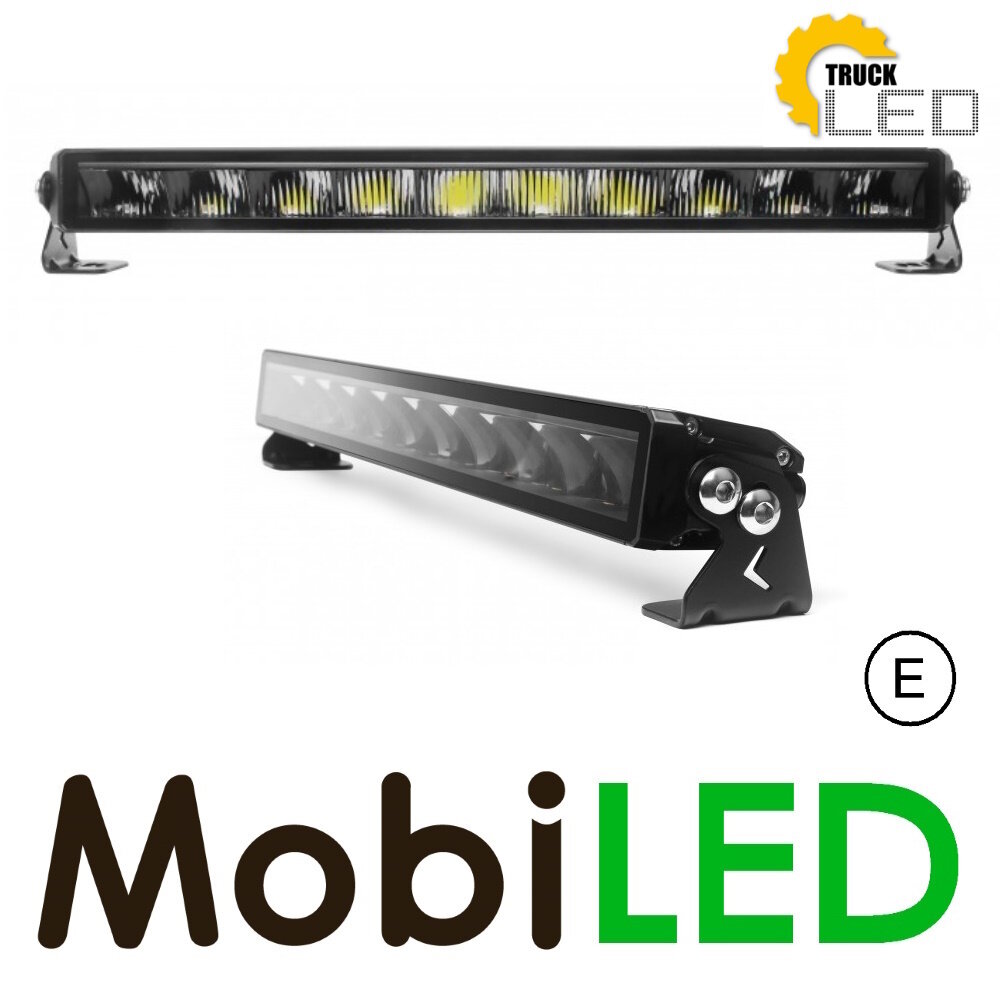

Ride the line with Gladiator series
Contemporary edgeless design, the Gladiator fights the darkness with you. Together through the night, the Gladiator ensures that you arrive at your destination safely and rested. A bright driving light that extends well over your high beam. Approved according to European regulations E-mark R112.
But the most eye-catching is the fine thin line as position light. This gives the bar a unique look and distinguishes itself by a slightly more stylish appearance. Finesse is in the details.
In addition to design, this bar is also equipped with the necessary technical innovations.
Innovations:
- Edgeless, screwless design
- Dark contemporary look of the housing and the supports
- Directional reflectors that place the light where it is needed. No loss in yield due to the use of a chrome reflector and transparent lens
- Scratch resistant UV resistant lens
- ITC, Built-in temperature protection against overheating and therefore extends the life span
- Supplied with stainless steel mounting hardware and supports for both the side and the bottom of the bar

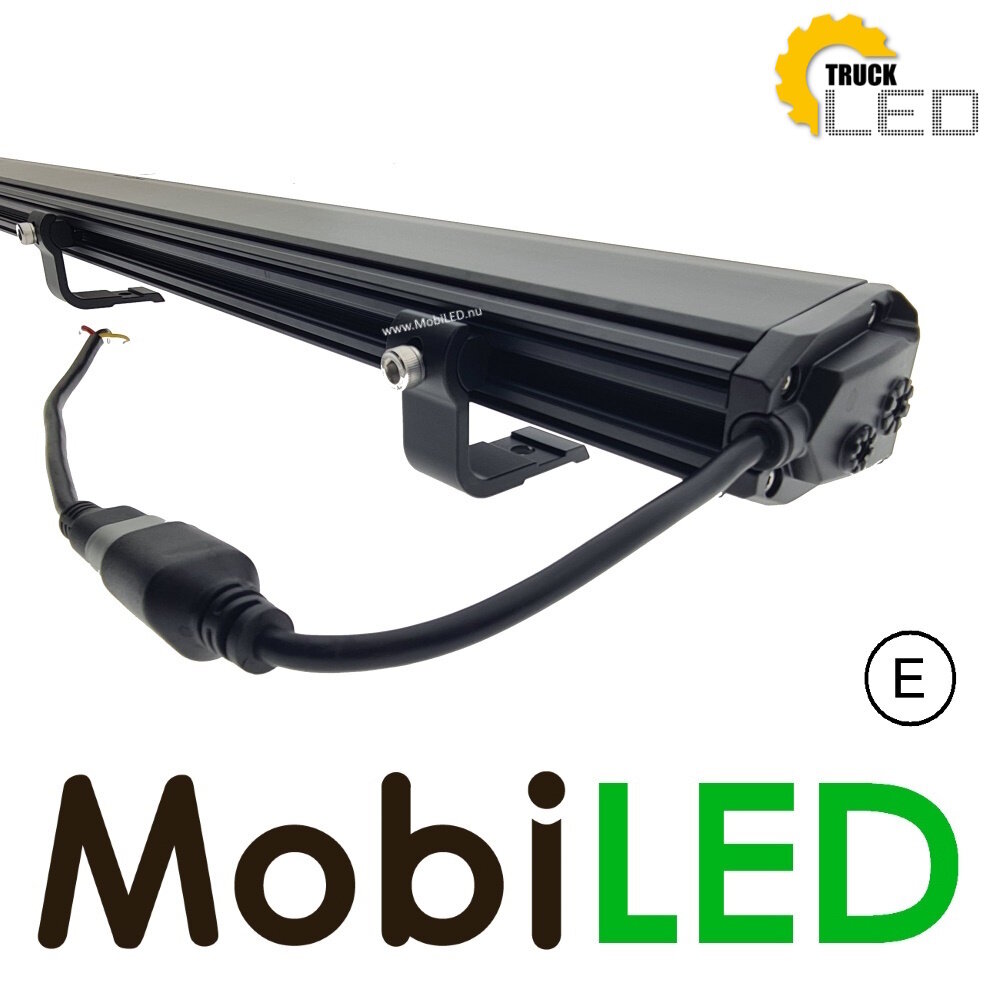

- Equipped with a DT-3 connector with female connector
- Military breather (pressure valve) for optimal regulation of air pressure differences
Will you go into battle with the Gladiator on your side?
Connection diagram:
- Black: negative
- Red: positive
- Yellow: position light
Product specifications
- Article number
- LB286
- Length (cm)
- 54,5
- Height incl bracket (cm)
- 7,5
- Depth (cm)
- 6,5
- Weight (gr)
- 2500
- Shape
- Elongated
- Tension
- 10-30V
- Power
- 65W, 10W
- Lumens
- 5730
- Light colour
- White
- Number of LEDs
- 10 + 36
- Position light function
- Yes
- High beam function
- Yes
- Light image
- Combo
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- DT-3 connector
- Cable Length (cm)
- 25
- Number of wire cores
- 3
- IP rating
- IP67
- Certification
- ECE R10, ECE R148, ECE R149
- Packed per
- 1
- Manufacturer article number
- 5901741301225 / L3421
