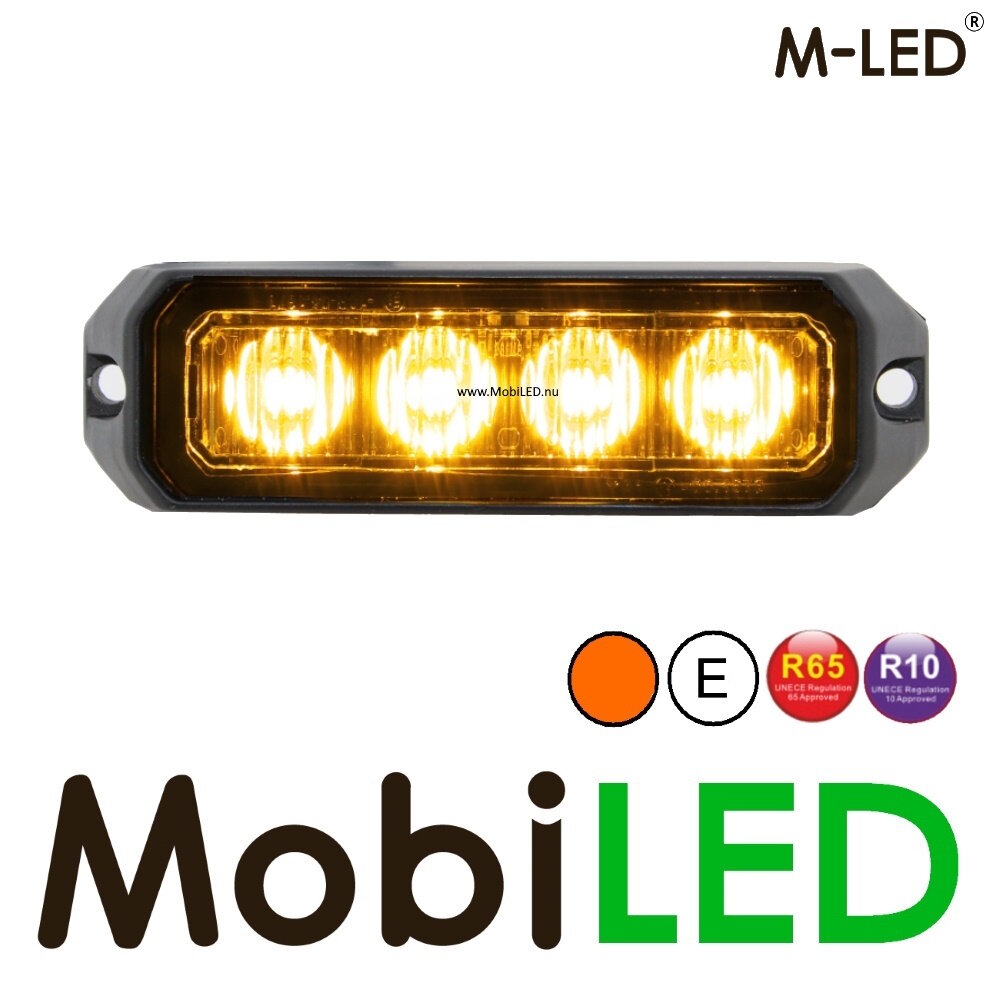

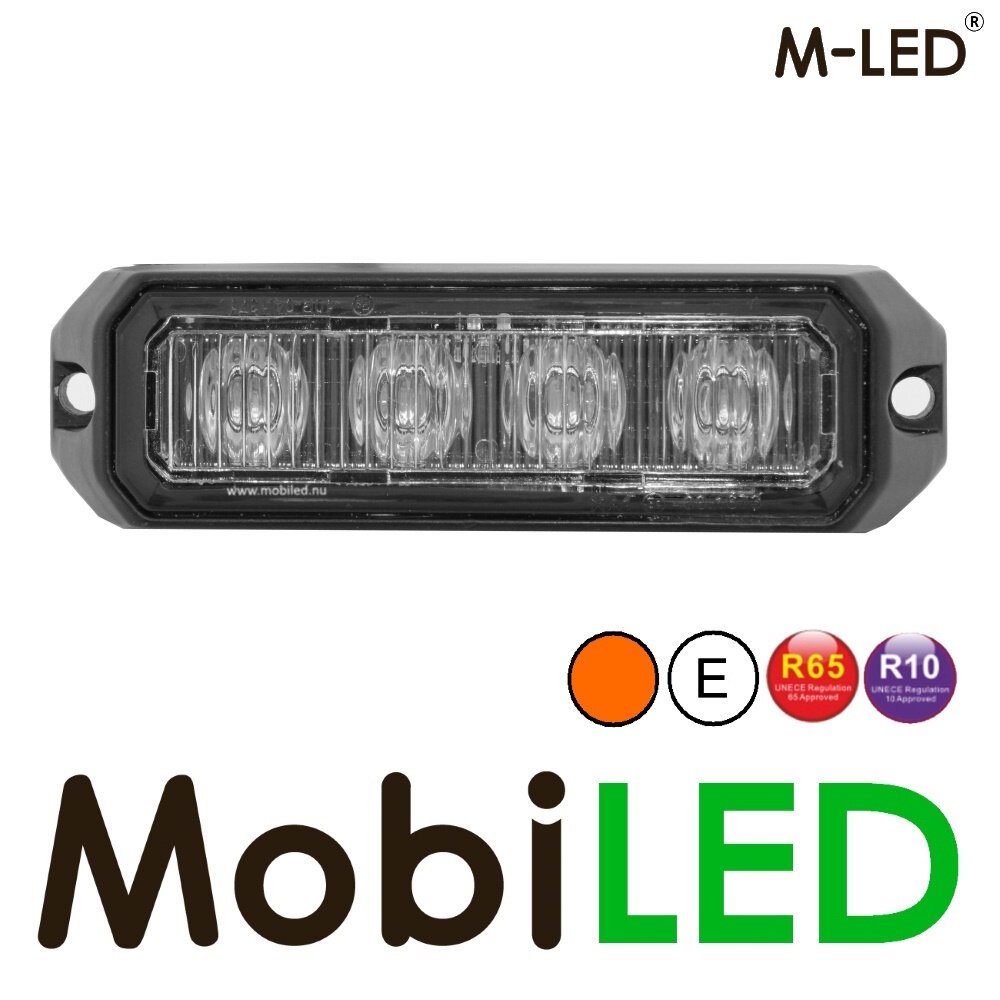

M-LED Flasher amber Pro 4 compact R65 12-24 volts

Compact amber flasher suitable for professional use. With ECE R65 / R10 certification. Installation into the grill is possible. With 4 powerful LEDs with a total power of 12 watts. The flasher is equipped with an aluminum mounting plate, and a plastic lens that further amplifies the light and ensures a good spread. Can be used on 12 and 24 volts (multi-voltage).
Linking multiple flashers is possible. There is a choice of 26 different flash patterns. Pattern change switch on ground wire.

Flash patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash
6. Quad flash fast
7. Quad flash slow
8. Octa flash fast
9. Octa flash slow
10. Twelve flash
11. Sixteen flash
12. Single flash alternate
13. Double flash alternate
14. Triple flash alternate
15. Quad flash alternate
16. Octa flash fast alternate
17. Single flash split
18. Double flash split
19. Quad flash split
20. Octa flash split
21. Single flash split accelarate
22. Double flash split accelerate
23. SOS flash
24. Cycle (1,8,3,9,4,18)
25. Cycle (2,7,9,11,19,21)
26. Steady on

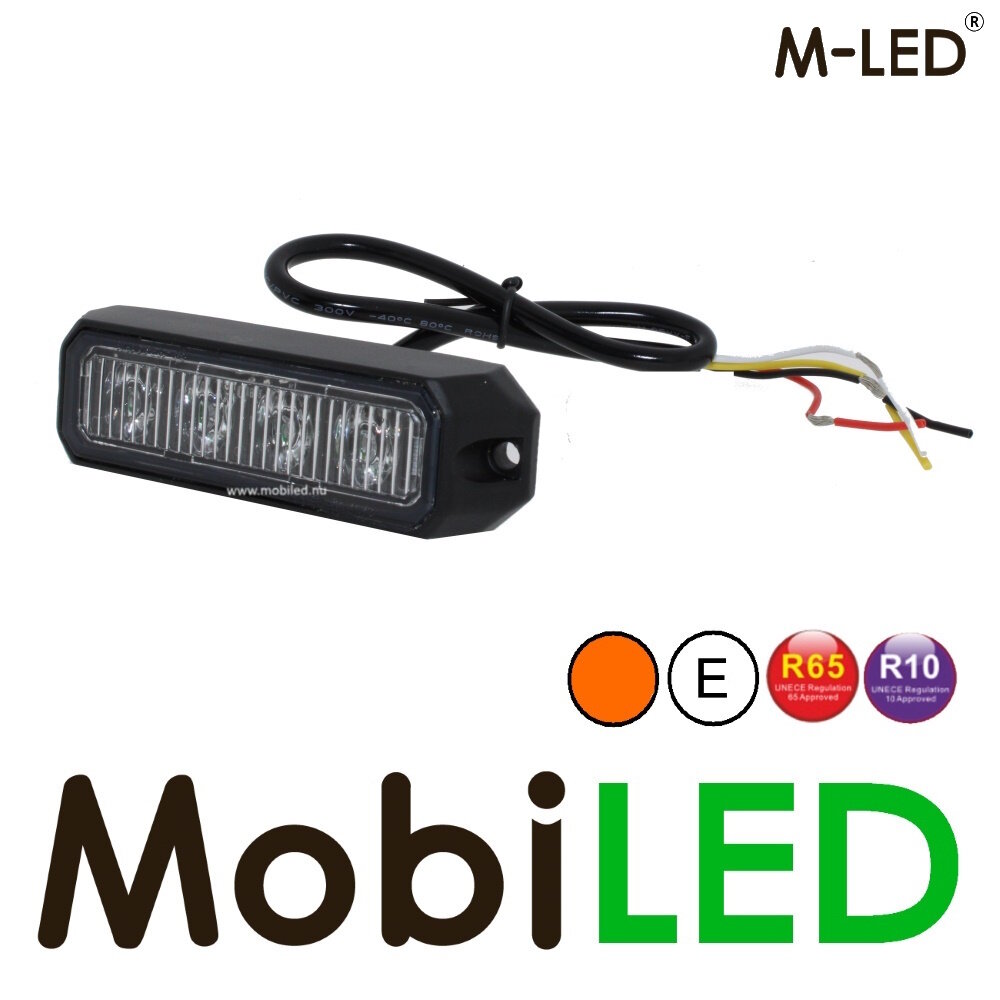

Connection diagram:

• Red: plus
• Black: mass
• Yellow: change flash pattern
• White: sync
