Siberia Night Guard 32 inches Single Row
Product description
Limitless innovation from Strands, the Siberia Night Guard range is the solution if you are looking for a LED bar with integrated stroboscope. Fully approved for professional use. In addition to the stroboscope, the bar is of course also equipped with the choice between white and amber position lighting.The bars are available in 5 versions: 12" and...
Limitless innovation from Strands, the Siberia Night Guard range is the solution if you are looking for a LED bar with integrated stroboscope. Fully approved for professional use. In addition to the stroboscope, the bar is of course also equipped with the choice between white and amber position lighting.
The bars are available in 5 versions: 12" and 22" double row and 20", 32" and 38" single row.
All are in combi beam version, so the light image is both far and wide. The bar is suitable for both bottom and side mounting.
Connection diagram:
- Black: - Earth
- Red: + LED bar
- Yellow: + amber position light
- White: + white position light
- Green: + amber stroboscope
Video:
Show more
Show less
Product specifications
- Article number
- LB240

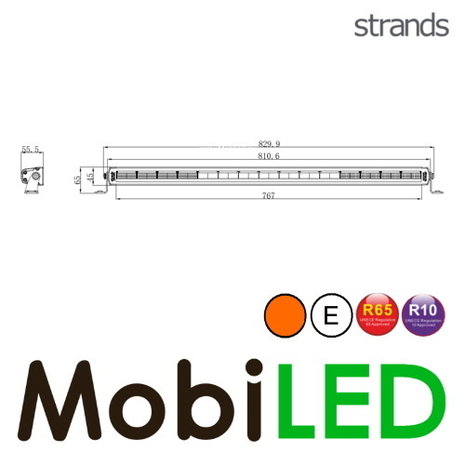

- Length (cm)
- 81
- Height (cm)
- 4,5
- Height incl bracket (cm)
- 6,5
- Depth (cm)
- 5,55
- Weight (gr)
- 2830
- Shape
- Elongated
- Tension
- 9-35V
- Power
- 87,2W
- Lumens
- Theoretical: 12000, actual: 4979
- Light colour
- Cool white (6000-6500K)
- Number of LEDs
- 30
- Position light function
- Yes, white or amber
- High beam function
- Yes
- Light image
- Combo
- Beam range
- 1 lux @ 463 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- Cable
- Cable Length (cm)
- 250
- Number of wire cores
- 5
- Operating temperature
- -30°C - +65°C
- Certification
- ECE R112 (ref 45), R7, R65, ECE R10,
- Packed per
- 1
- Manufacturer article number
- 7323030187064 / Strands 809213
