Hella Luminator Spotlight Metal Position light E-mark

Hella Luminator Spotlight Black Metal Position Light E-mark

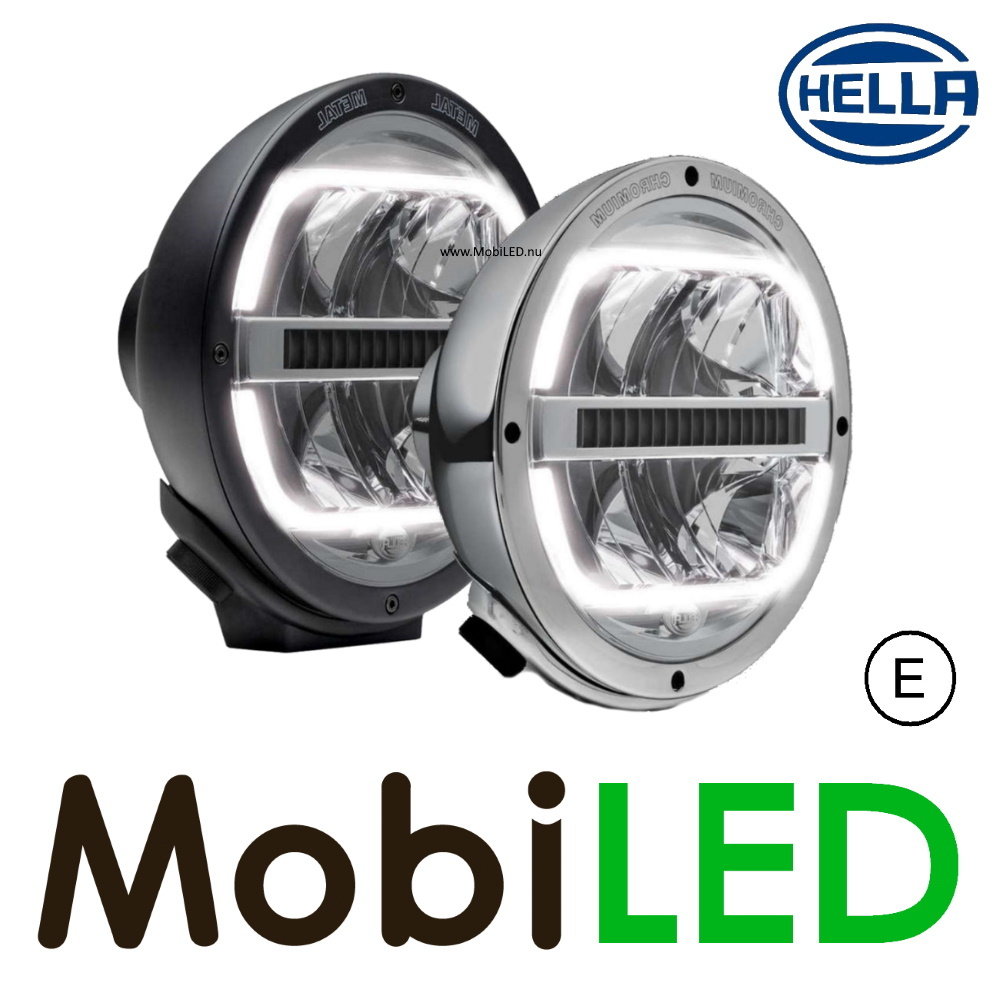

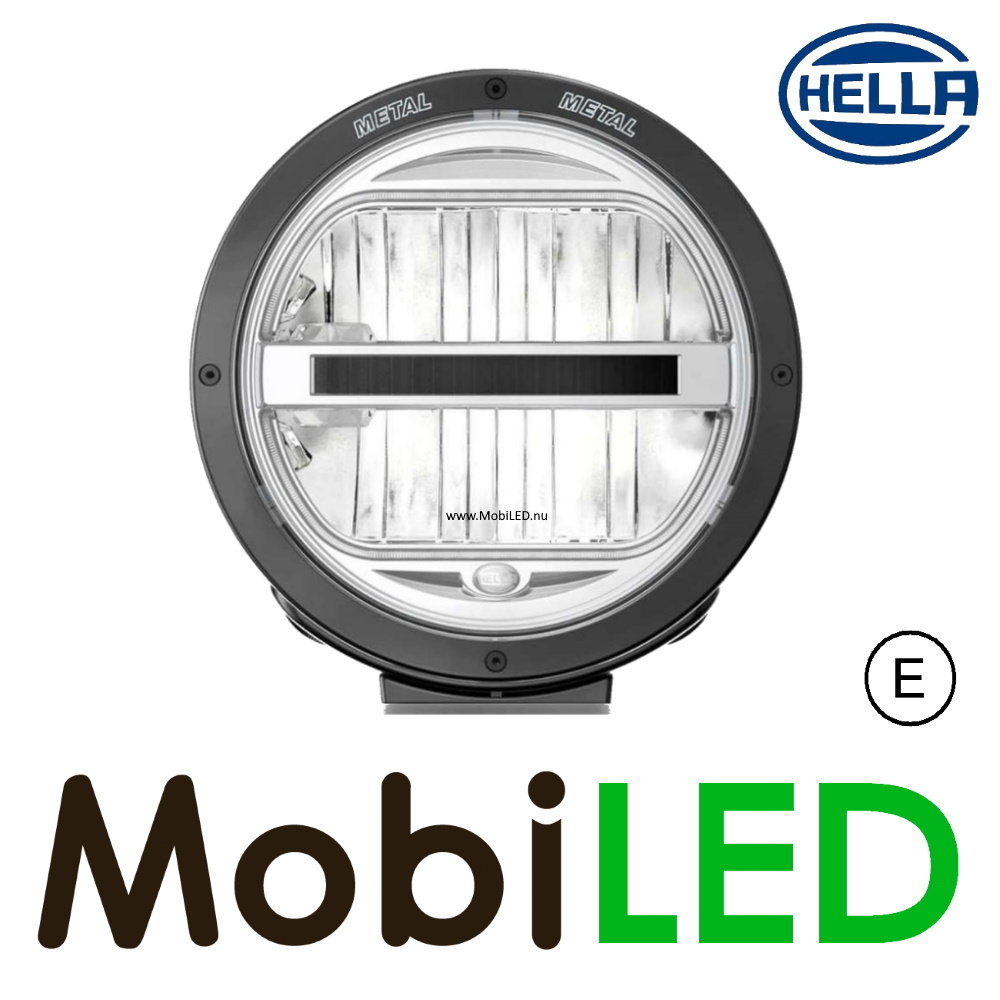

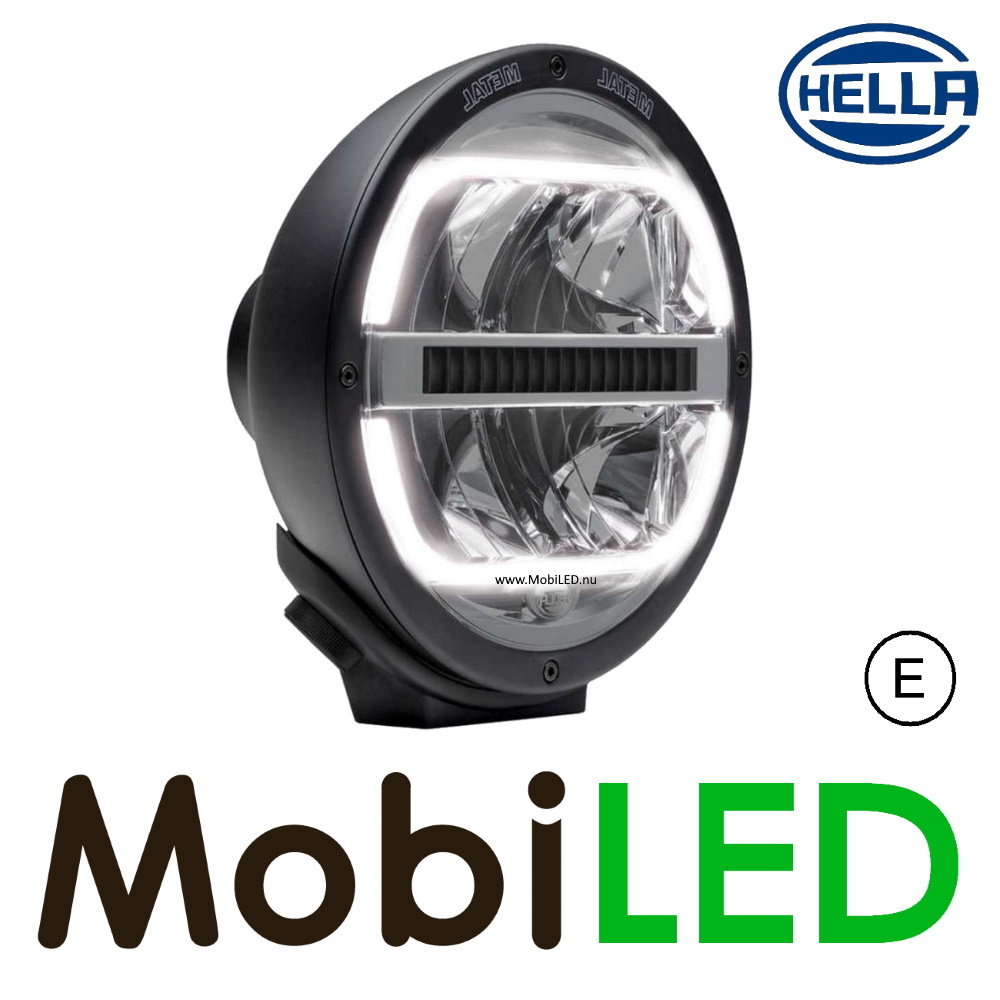

The Luminator is a large round spotlight in a black metal or chrome version, this is the black metal version. The functionality and technical performance are distinctive and provide optimal lighting conditions. The light is therefore pleasant and absolutely not disturbing for oncoming traffic. The lamp has cold white LEDs. This LED headlight has a low energy consumption and an extremely long service life.

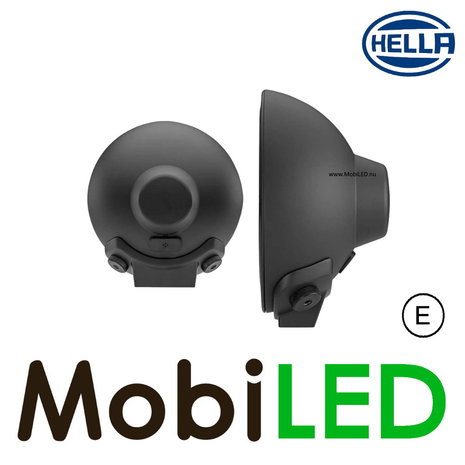

The housing is completely made of metal, the mounting bracket is made of die-cast zinc. The horizontal radiator fins enable efficient heat management. Precisely adjusted fans take care of the heat dissipation. This spotlight can be mounted on the left or right.
The lamp is mounted upright on the vehicle. This product can be used with a rated voltage of 12 volts and 24 volts, and the voltage range is 9 to 32 volts. The power consumption at 12 volts is 2.4 watts for the position light and 14.5 watts for the high beam. With a power consumption of 24 volts, the position light has 5 watts and the high beam also has 14.5 watts. Of course, this product has an E-mark (ECE-R112 high beam, ECE-R7 position light, ECE-R10 EMC).

Specifications:

• Voltage: 12-24 V
• Light image: narrow (spot)

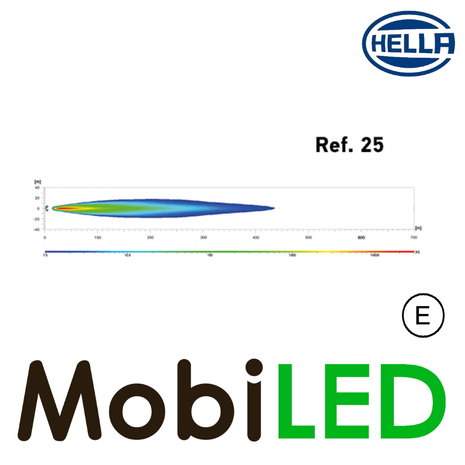

• Light beam: up to 430 m
• Housing: metal
• Water resistance: IP67
• Reference number : 25

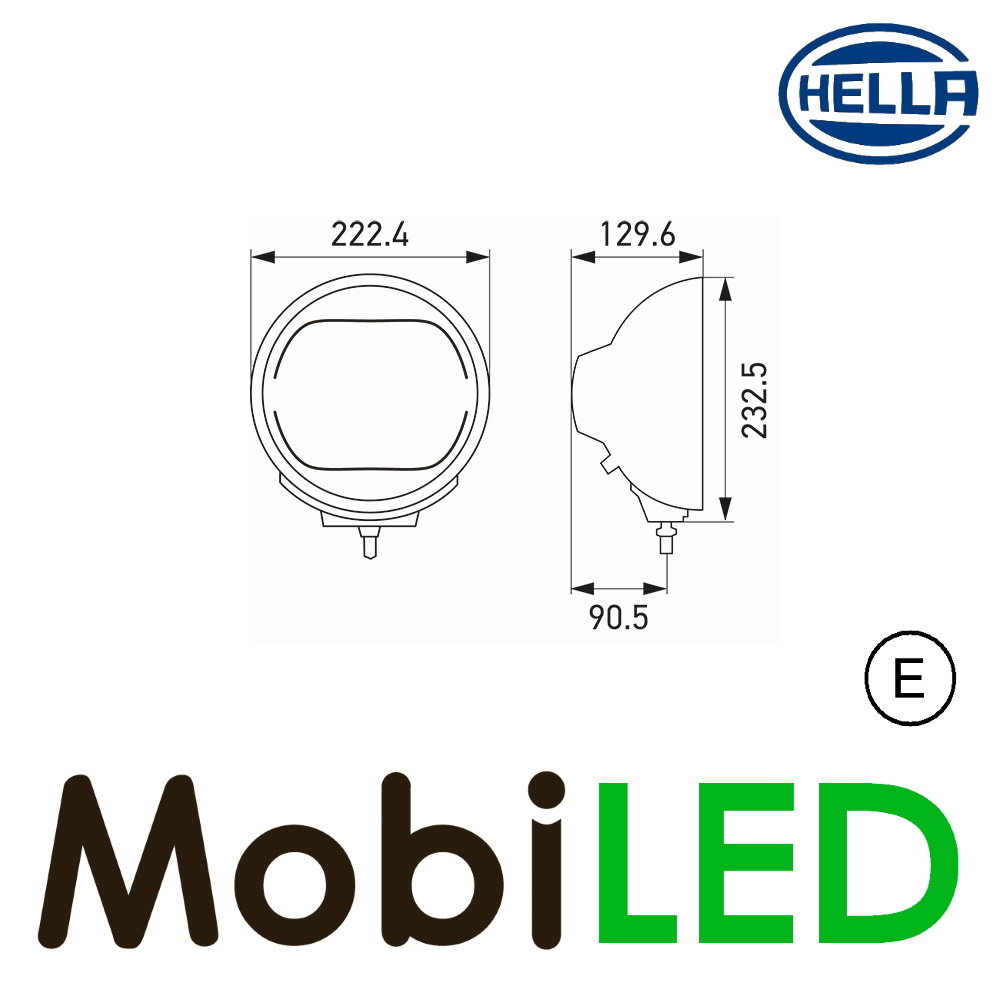

• Dimensions: 222.4 x 232.5 x 129.6mm
• Weight: 2.7 kg
• Certification: ECE-R112 high beam, ECE-R7 position light, ECE-R10 EMC
