Strands Siberia DR 8 inches
The Strands Siberia Single row series is made for your truck. Cutting-edge design in combination with revolutionary features. Slim, dark and sophisticated. The lens extends from edge to edge. All models are E-approved.
The series comes in six sizes, 8", 12", 22", 32", 42" and 50". The light pattern is increasing with size.
Siberia is also available in a single-row model, these come in five sizes.

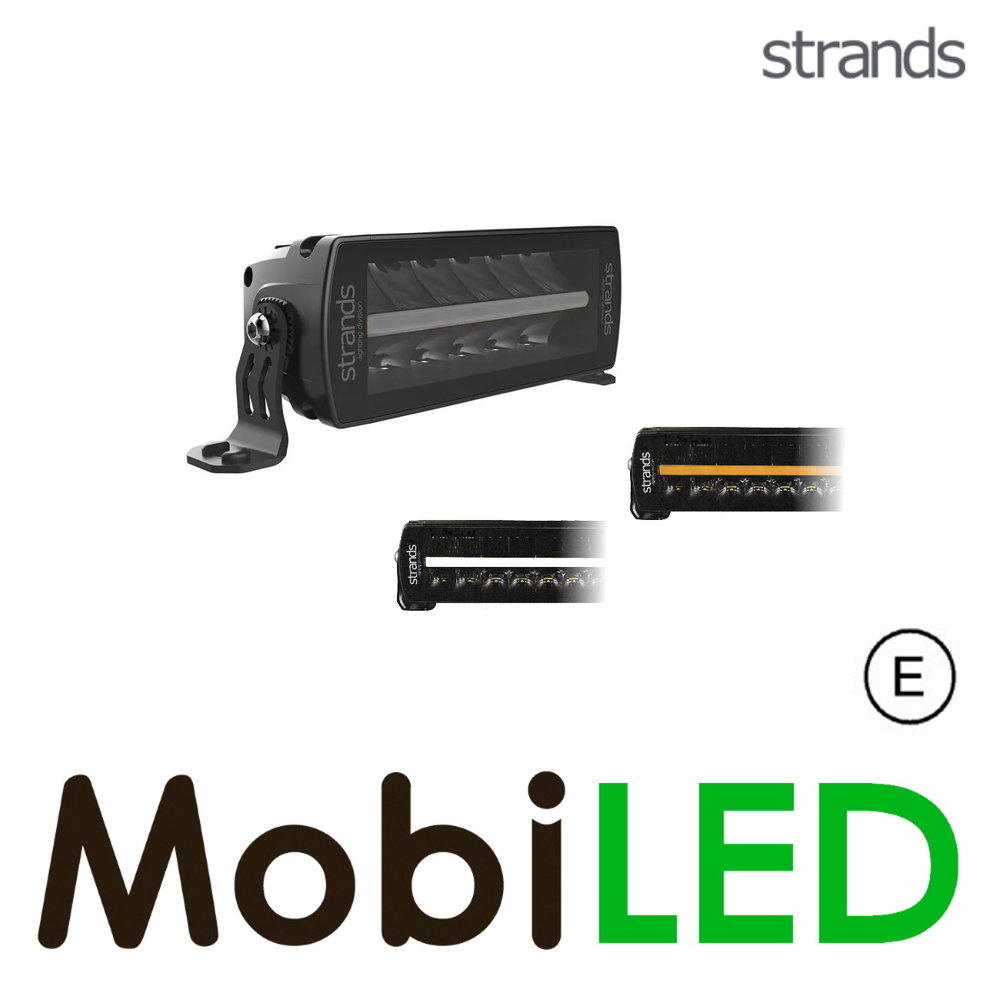

The unique dual position light let's you express your style and personality by choosing between orange and white light. This option is standard on every bar, you could also connect both to different circuits.
Siberia enhances the appearance of your vehicle and gives you efficiency at completely new levels on all roads and in all conditions. A brand new type of LED bar, created for those who are looking for the best.

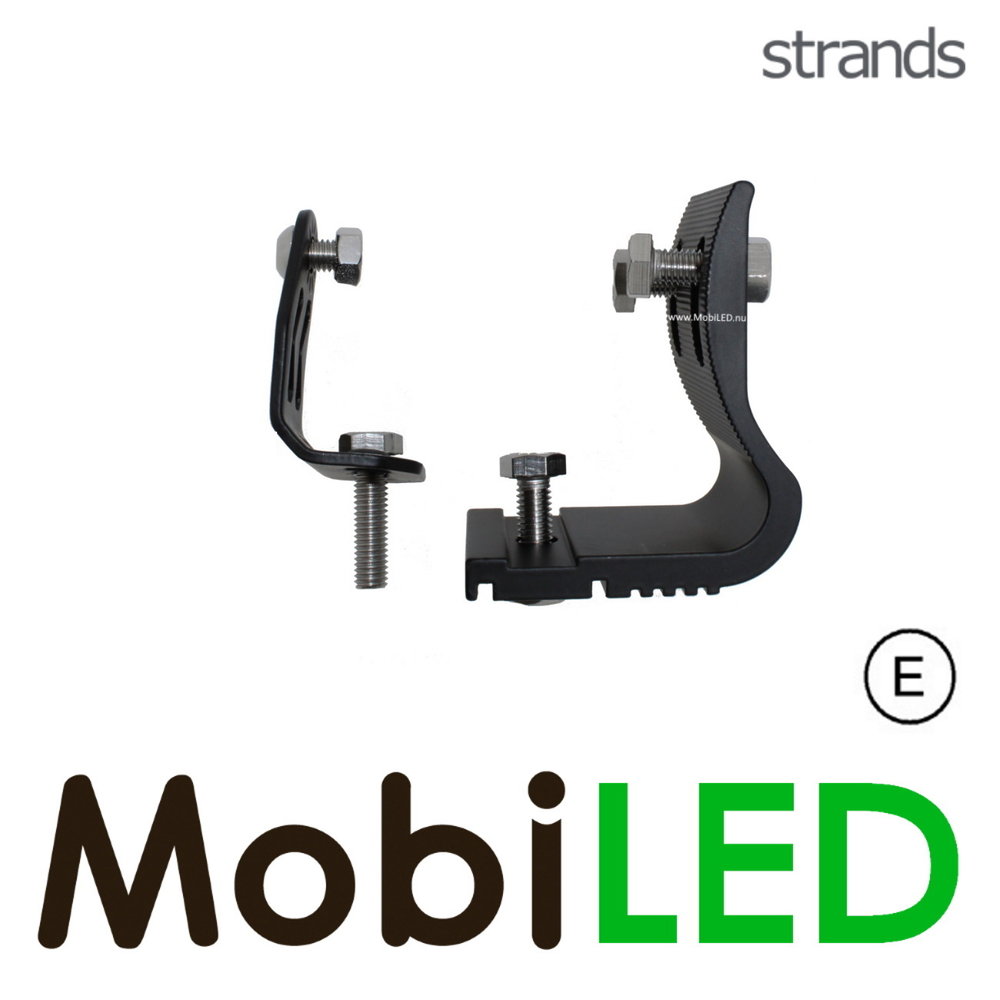

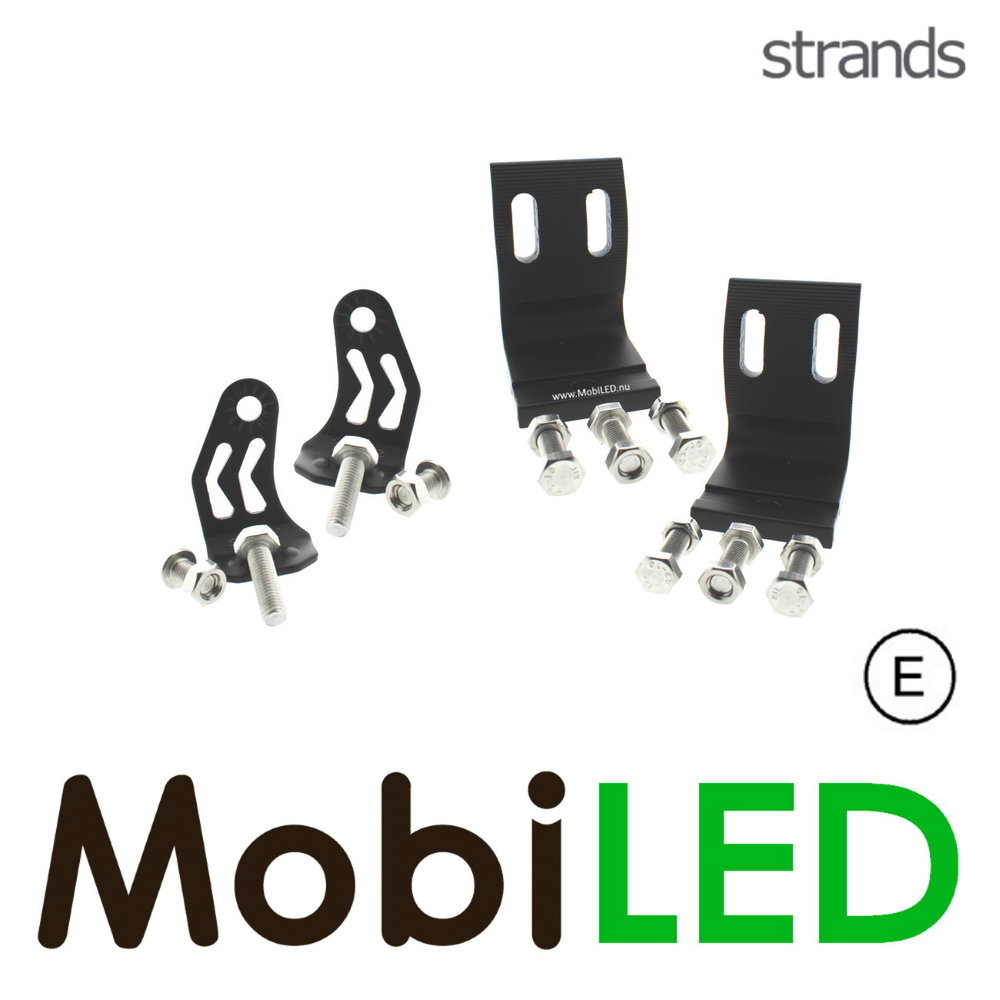

The mounting brackets are included, for both side and bottom mounting.
Connection diagram:
- Black: - (earth)
- Red: + (positive)
- White: white position light
- Yellow: amber position light
Video:
Product specifications
- Article number
- LB265
- Length (cm)
- 20,5
- Height (cm)
- 7,6
- Height incl bracket (cm)
- 8,9
- Depth (cm)
- 7,16
- Shape
- Elongated
- Tension
- 10-40V
- Power
- 60W theoretical, 26-28W practical
- Lumens
- 4800 theoretical, 2002 practical
- Light colour
- Cool white (6000-6500K)
- Number of LEDs
- 6
- Position light function
- Yes, white or amber
- Light image
- Spot
- Beam range
- 1 lux @ 447 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side / bottom mounting
- Connection
- DT-4 connector
- Cable Length (cm)
- 50
- Number of wire cores
- 4
- Operating temperature
- -30°C - +65°C
- IP rating
- IP67 & IP69K
- Certification
- ECE R112 (ref 45), ECE R10
- Packed per
- 1
- Manufacturer article number
- Strands 809179
