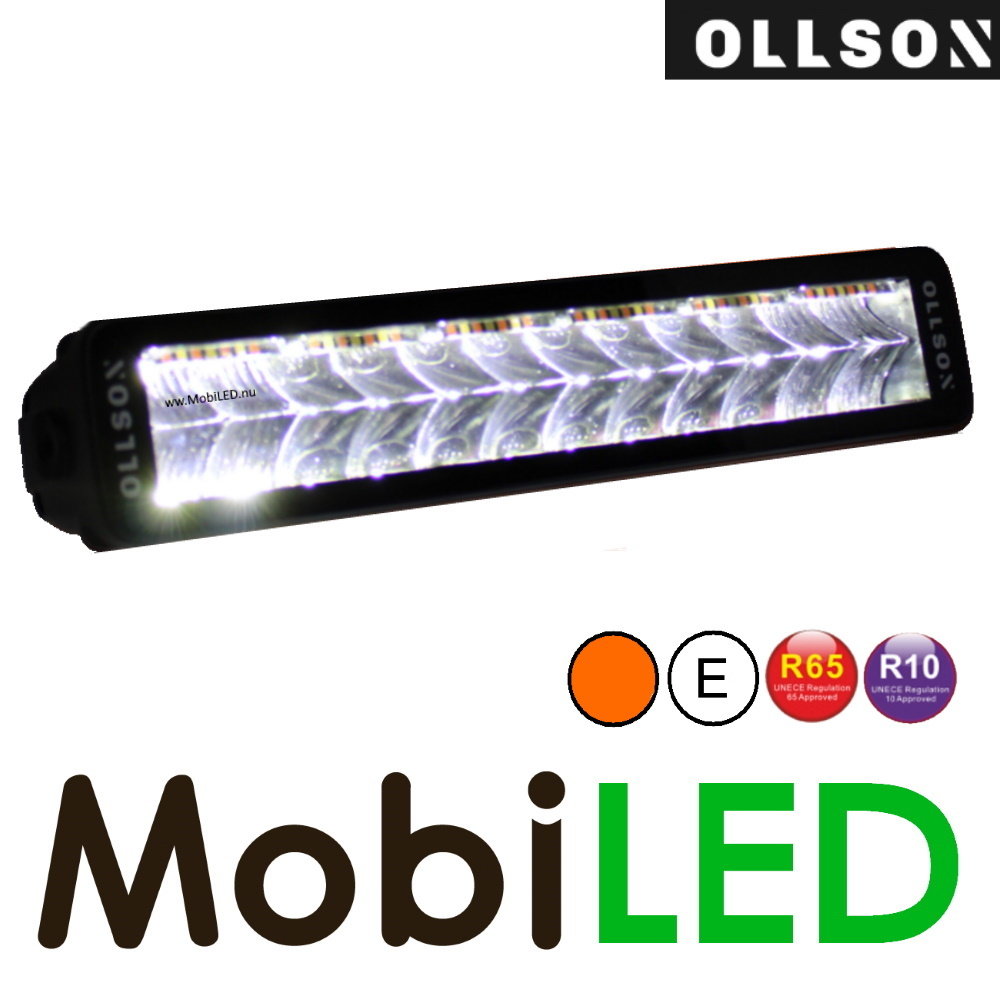

Ollson 220 Multibar Edge-less 30 inches Double row
This 220 multibar from Ollson is 30 inches (82 cm) long and the latest development in the field of LED bars. What makes this bar so special is the ECE R65 approved orange flash function. It has R7 approved white and amber parking lights. Only white is certified. The high beam function is R112 approved. The bar is equipped with bright 5W Osram LEDs.
The LED bar has a beautiful slim design and is equipped with a smooth seamless front. Thanks to this finish, called Edge-less , dirt accumulates less quickly because it cannot adhere well. This allows you to keep good light for longer. Watch the video below for a complete picture.
Connection diagram:
- Black: - Earth
- Red: + LED bar
- Yellow: + amber position light
- Gray: + white position light
- Green: + amber flash
Video:
Product specifications
- Article number
- LB277
- Length (cm)
- 81,5
- Height (cm)
- 7
- Depth (cm)
- 6,7
- Shape
- Elongated
- Tension
- 10-30V
- Power
- 300W
- Lumens
- 25200 raw
- Light colour
- White / Amber
- LED Type
- Osram

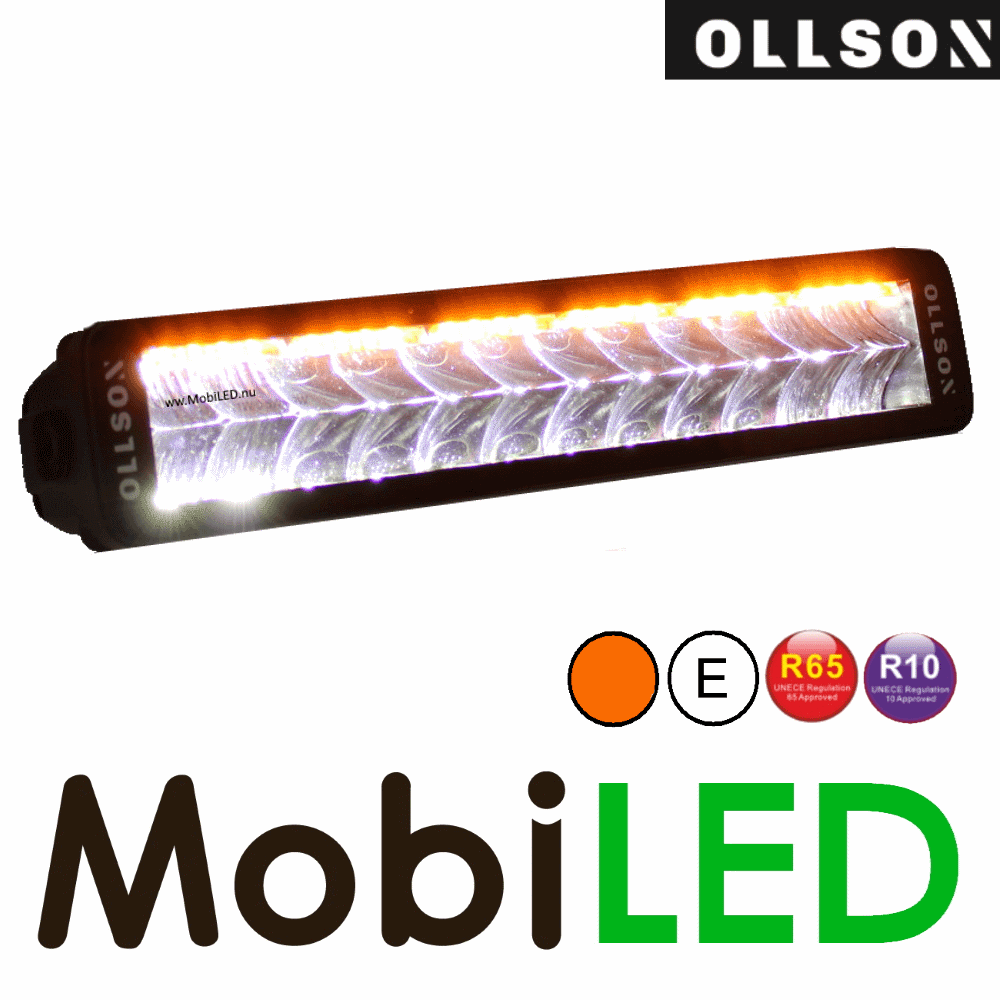

- Position light function
- Yes, white or amber
- High beam function
- Yes
- Light image
- Combo
- Beam range
- 1 lux @ 862 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC

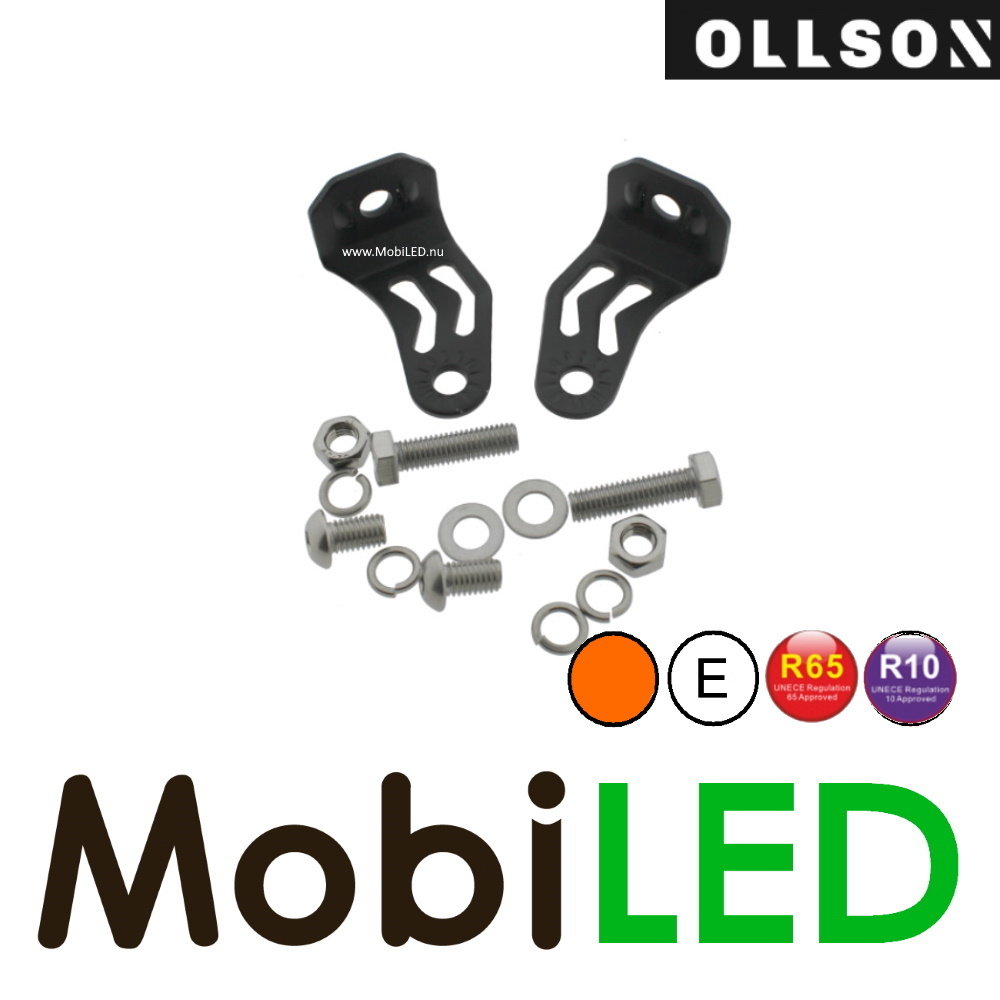

- Mounting type
- Bolt
- Connection
- Cable
- Cable Length (cm)
- 50
- Number of wire cores
- 5
- Operating temperature
- -40°C - +60°C
- IP rating
- IP67
- Certification
- EMC R10, R7, R65, R112
- Packed per
- 1
- Manufacturer article number
- 6097356544528 / 220-30EAW
