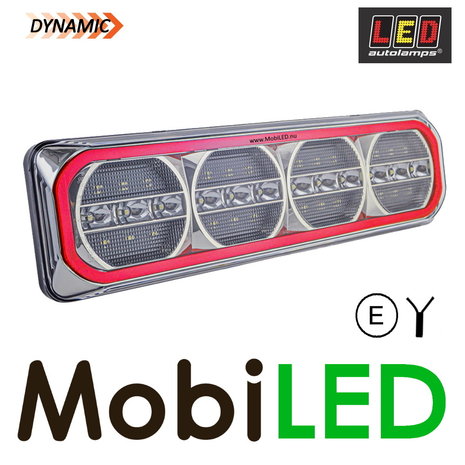

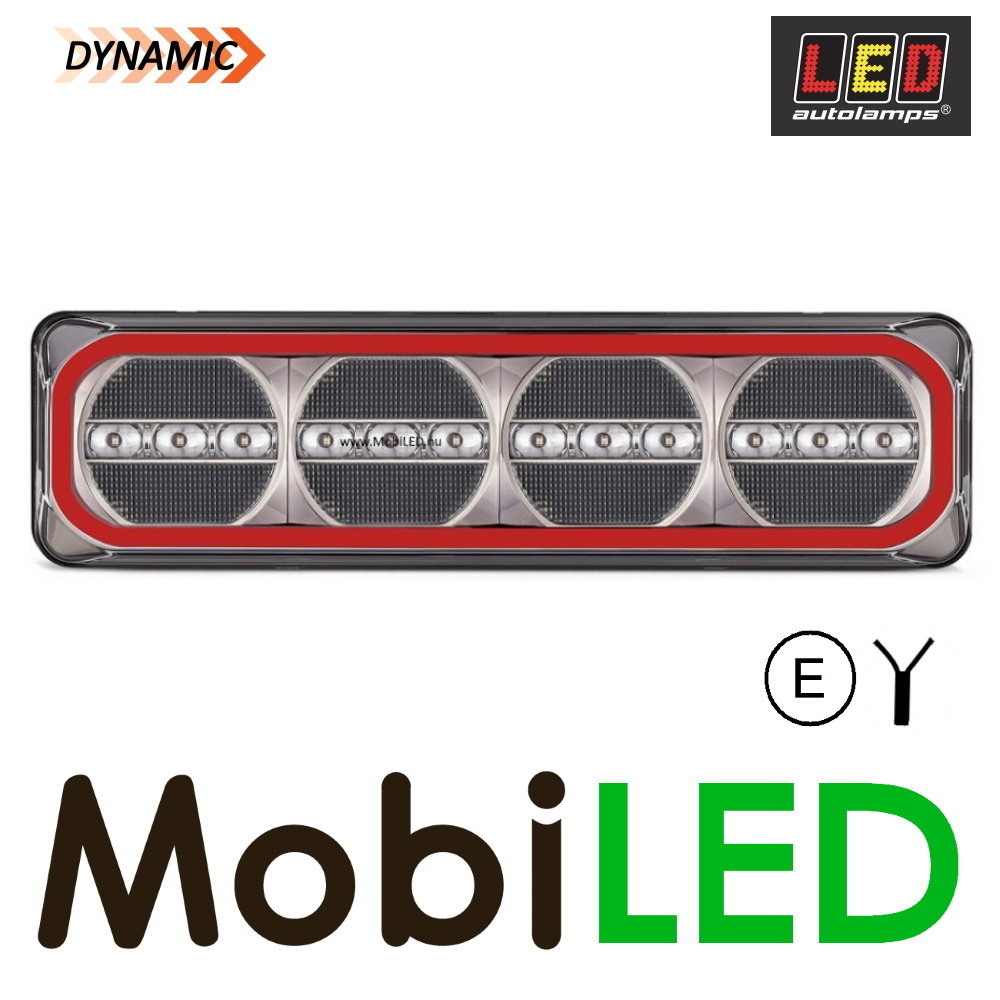

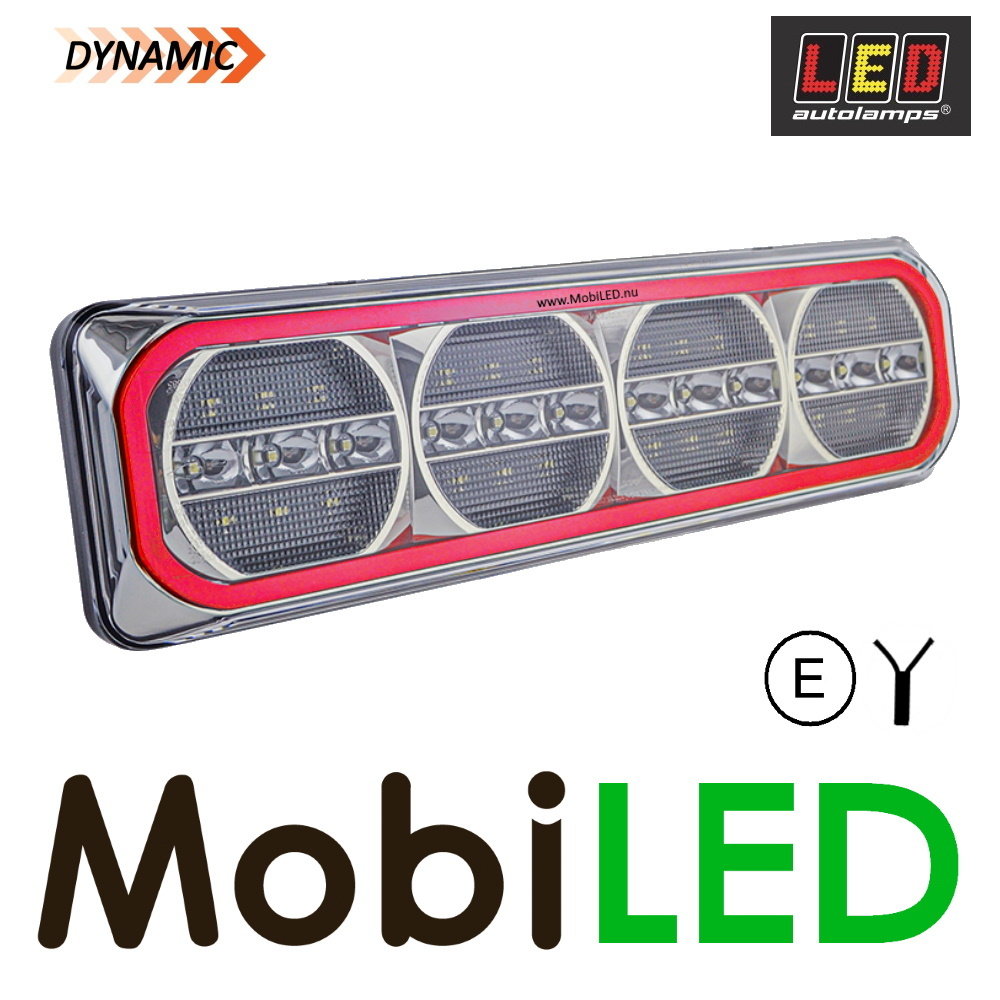

LED autolamps Dynamic rear light 5 functions 12-24 volts

Wide dynamic rear light, modern styled in 4 parts. Equipped with innovative dynamic functionality and ultimate durability. Universal, so can be used on both the left and right.
This product has a striking black-chrome housing, a neon look rear light that runs around the blocks and a dynamic indicator that runs over the entire length of the lamp.

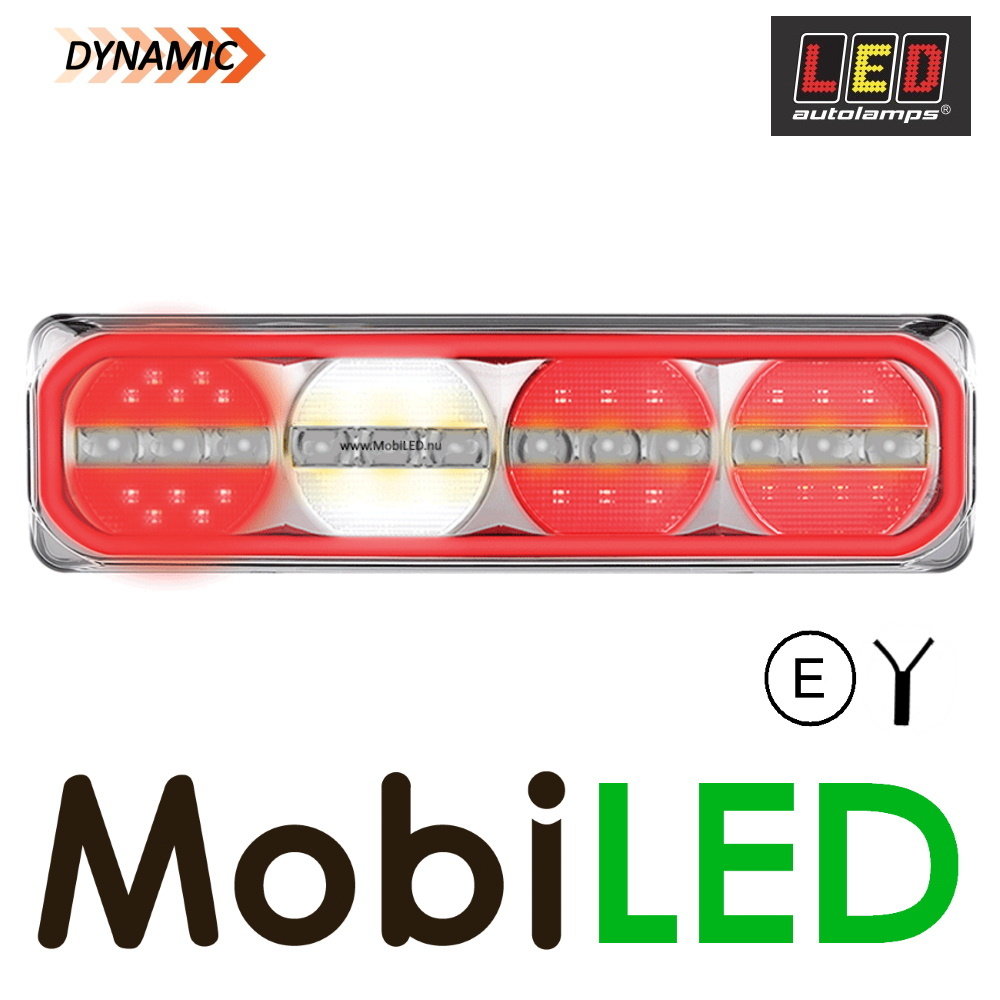

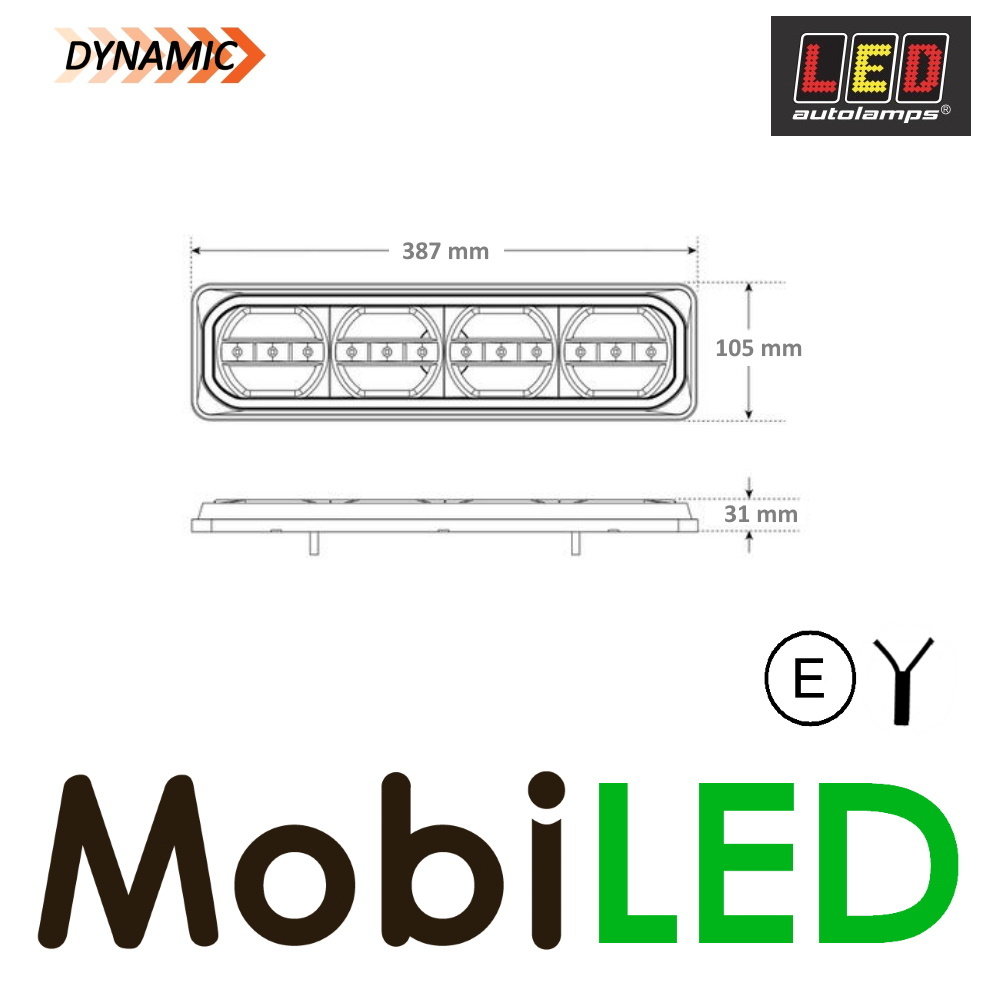

The 4 blocks are fog lamp, reversing light, brake light 2x. Each function is fully ECE certified. This lamp is suitable for 12 or 24 volts and can therefore be used widely. There are 2x hidden screw mounts, which can be adjusted from 250mm to 185mm (bolt distance).

Functions:

• Rear light
• Brake light
• Turn signal
• Fog light
• Reversing light

Wiring diagram:

• White: ground
• Brown: rear light
• Red: brake light
• Yellow: turn signal
• Blue: fog light
• Black: reversing light
