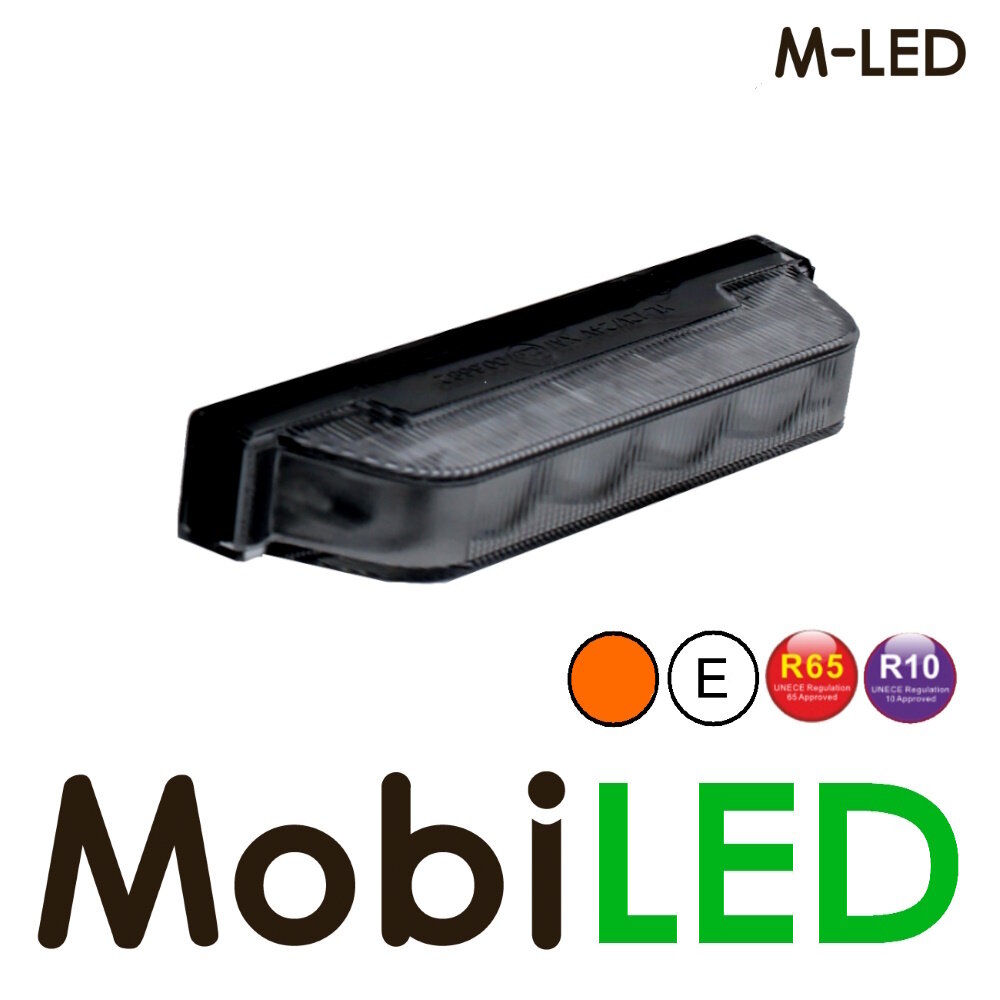

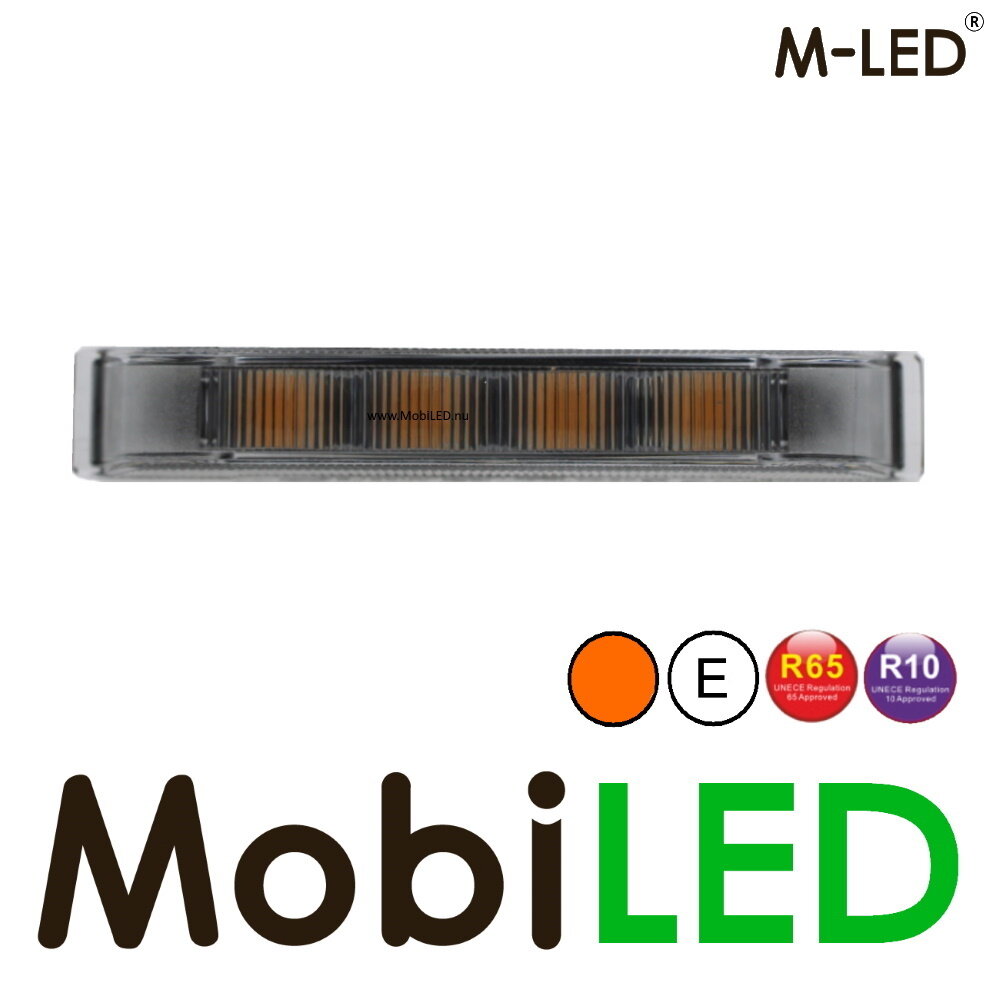

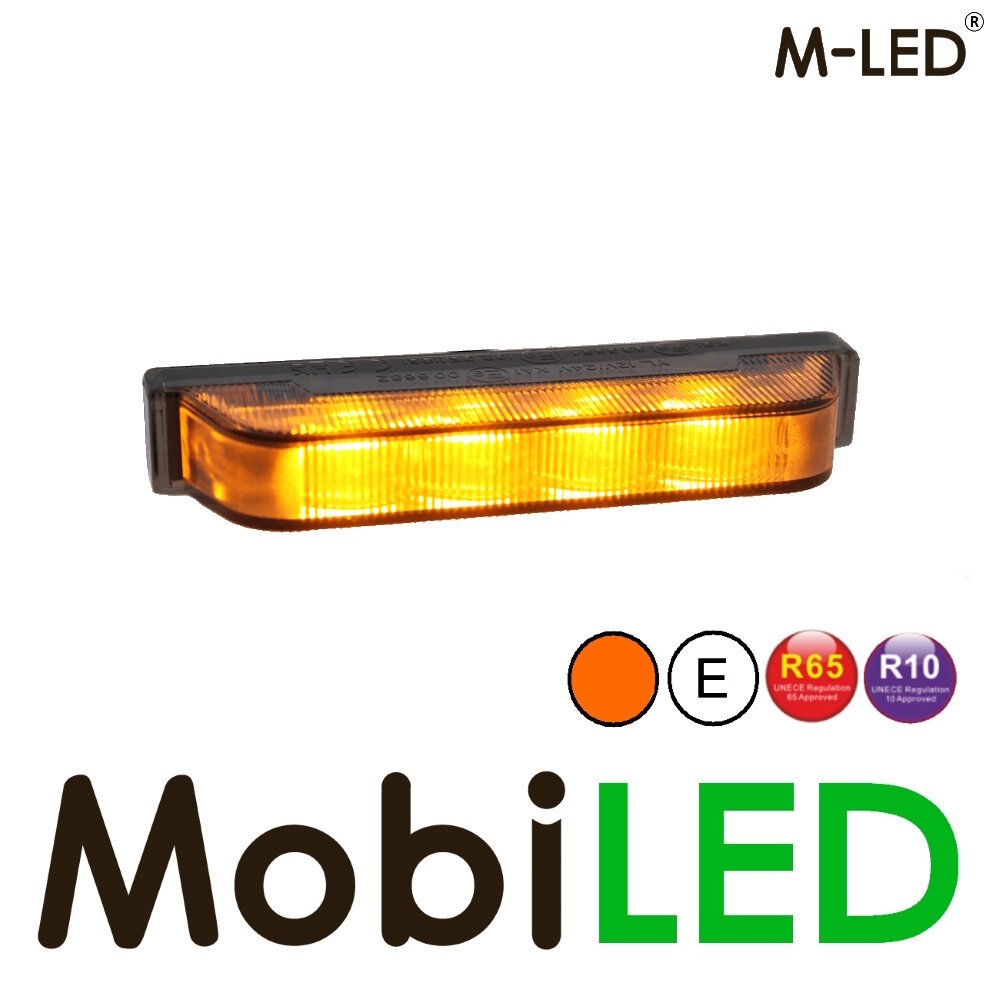

M-LED Ultra narrow flasher amber smoke look 4 LEDs E-mark

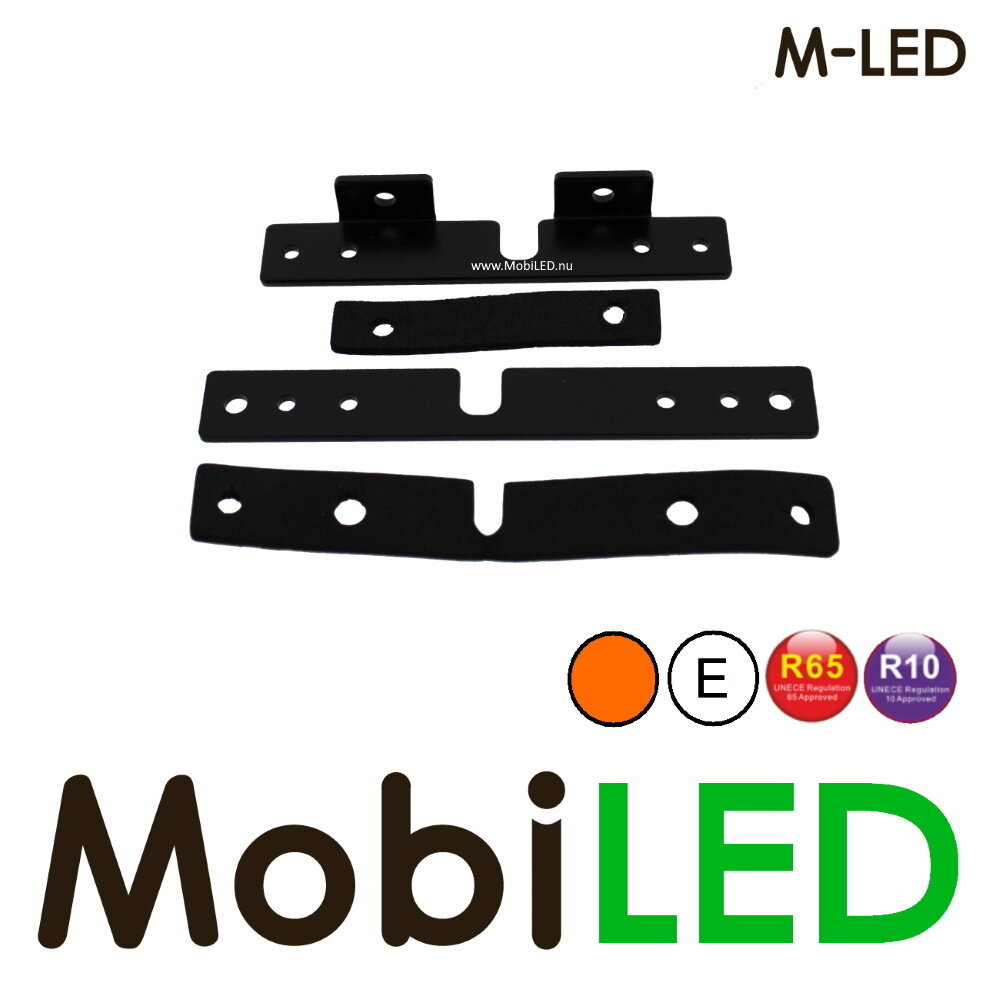

This is an ultra narrow grill flasher in a particularly beautiful design, known as the smoke look. Very contemporary and an eye-catcher on your vehicle. The flash light is amber in color and ECE approved in R65 class 1. The flasher has 4 LEDs and 22 different flash patterns, including continuously on. There are several mounting methods. The flasher can be synchronized with up to 14 other flashers. Moreover, it is equipped with a memory function.

Flash patterns:

1. Single
2. Single slow
3. Double
4. Double slow
5. Triple fast
6. Quadruple fast
7. Quadrupleslow
8. Octuple fast
9. Octuple slow
10. Twelvefold
11. Sixteenfold
12. Single split
13. Double split
14. Quadruple split
15. Octuple split
16. Single split accelerated
17. Double split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without change

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection with black for low intensity
• Yellow: pattern selection and synchronization
