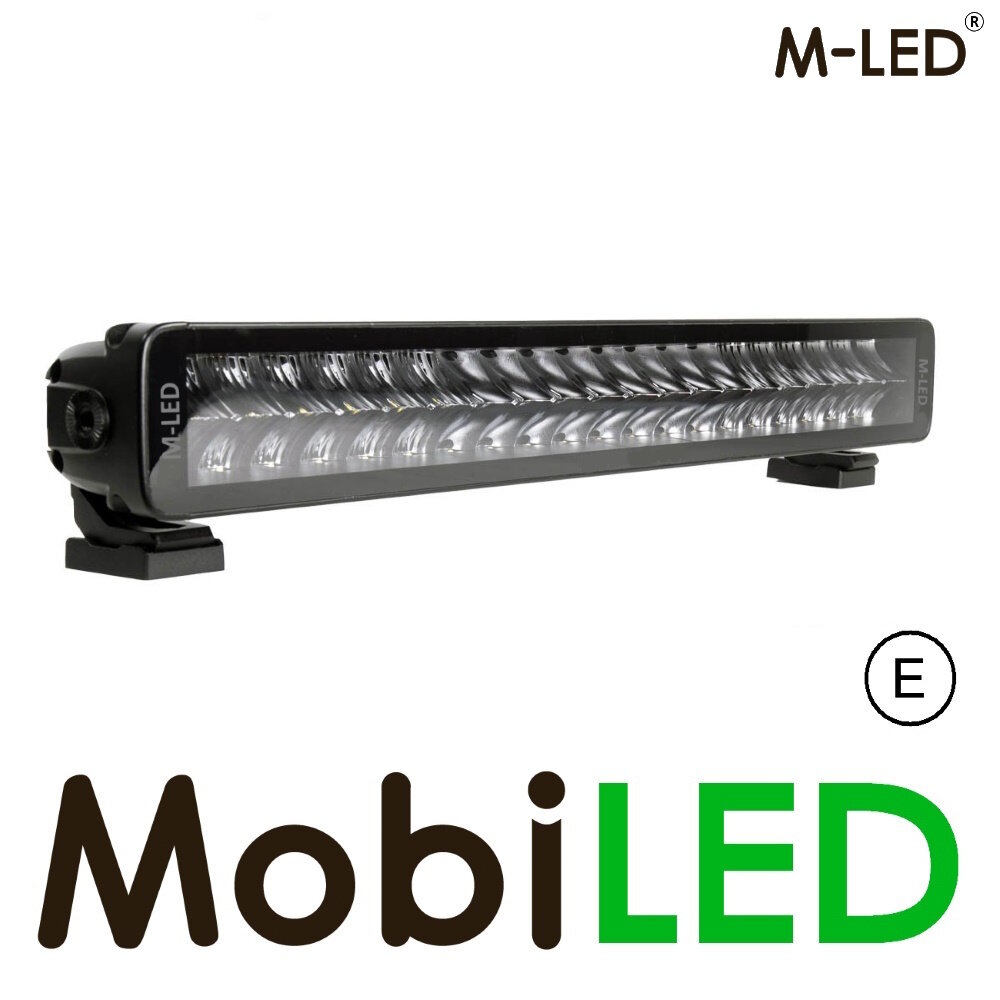

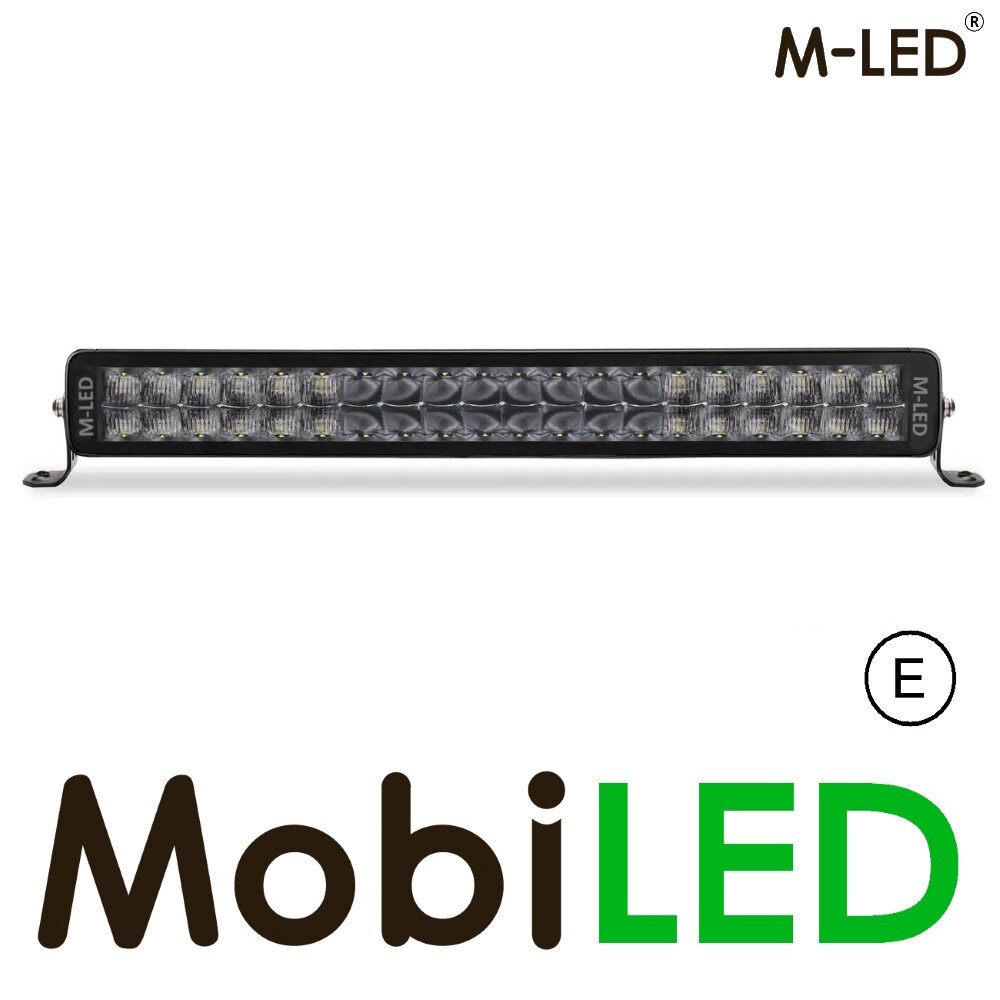

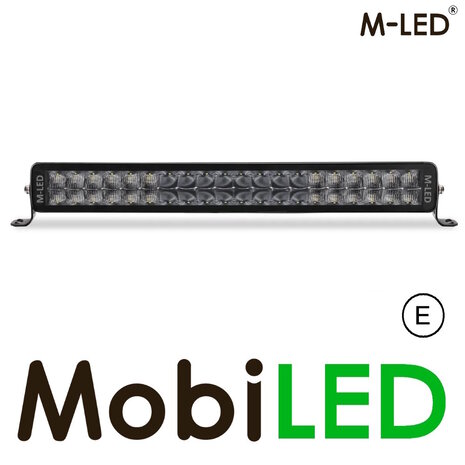

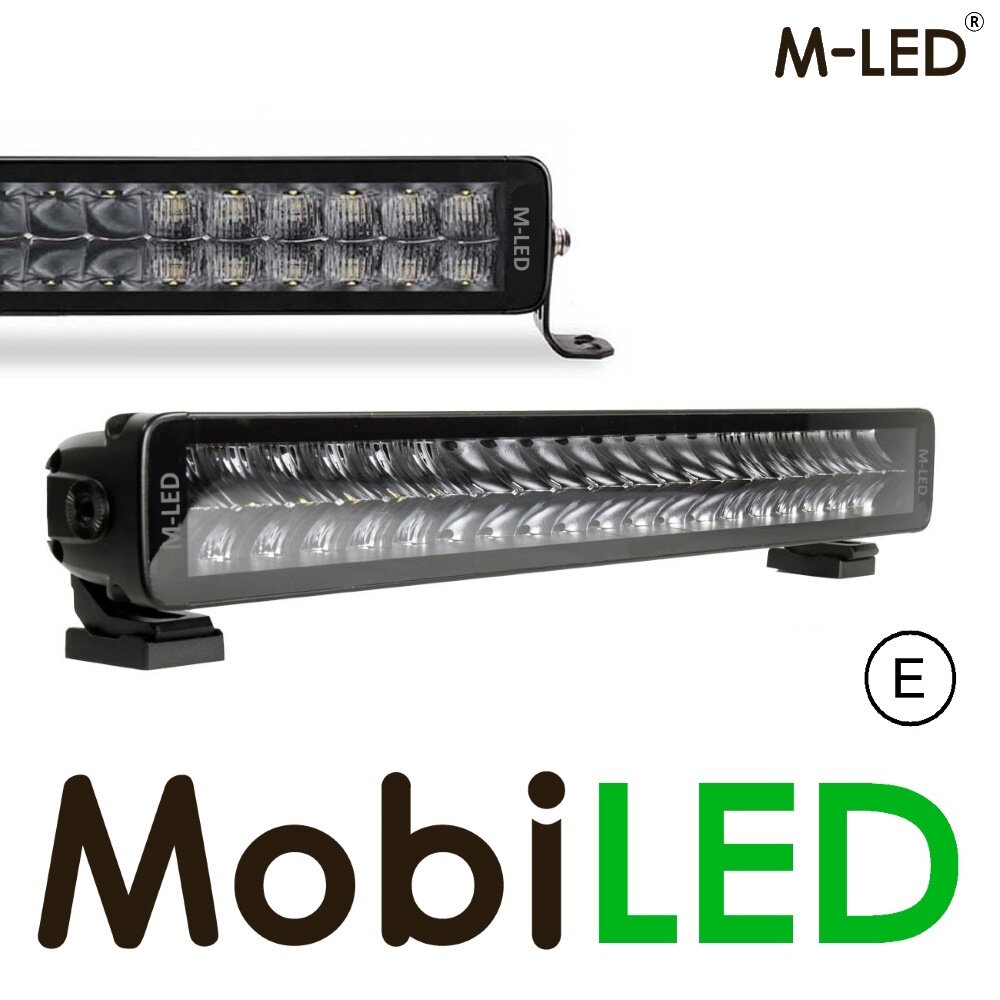

M-LED Sergeant DR 21.5"/56 cm 200 watts LED bar E-mark
The 21.5"/56 cm, 200 watt M-LED Edge-less double row LED bar has a beautiful design and a dark look. The dark look gives it a modern look.
The M-LED Edge-less LED bar is equipped with bright 5 watt Osram LEDs and the bar is supplied with a 500 mm cable. All bars in this series have E-mark R10 and R112 and are multi-voltage, so suitable for 10 to 30 volt connections.
Thanks to the smooth front (edge-less), dirt is less likely to accumulate because it cannot adhere properly to the smooth surface. This means that the light output always remains maximum. The thermal protection continuously switches the light output for optimal results.

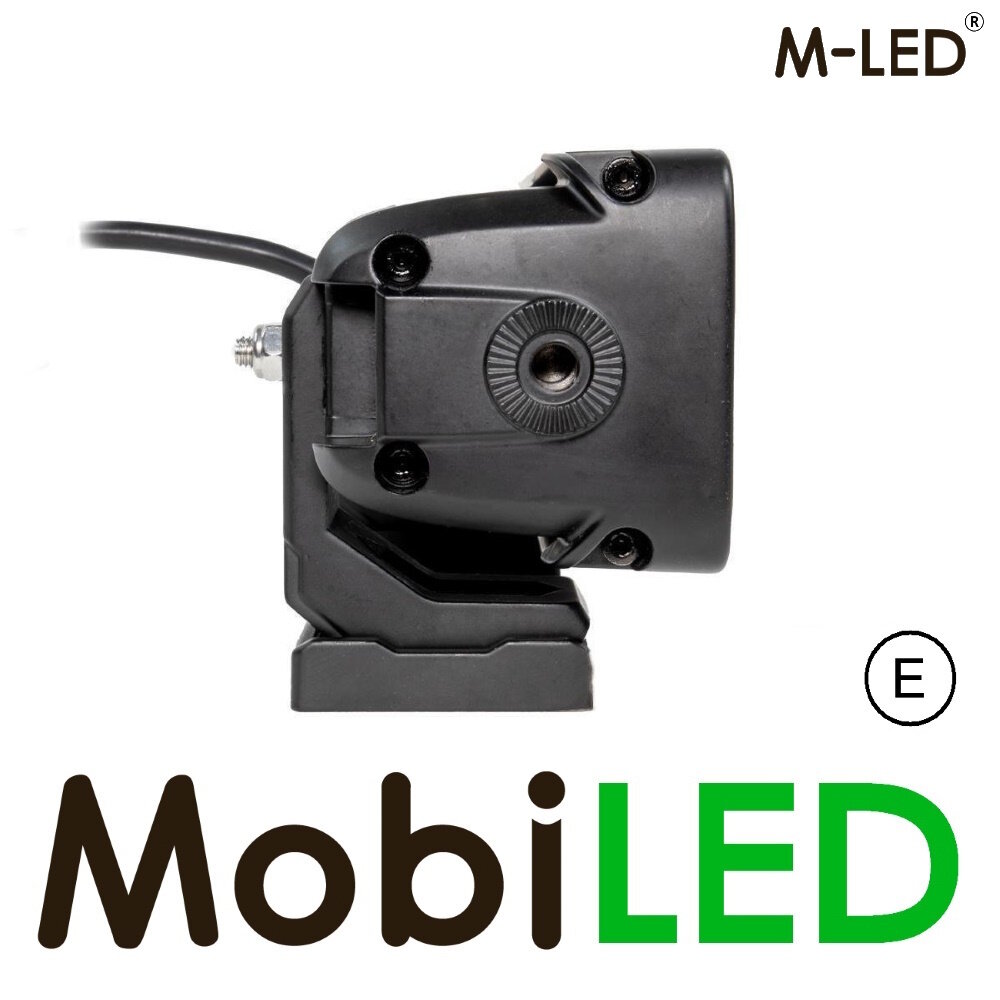

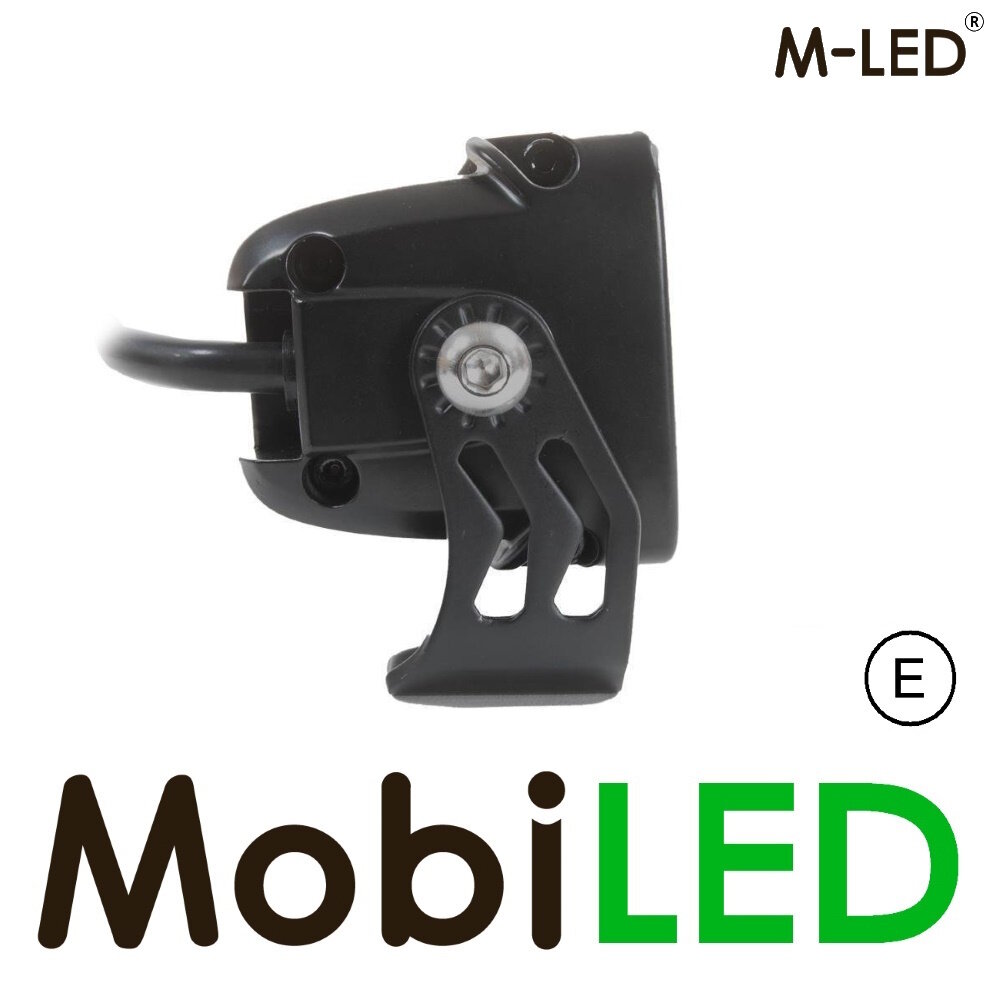

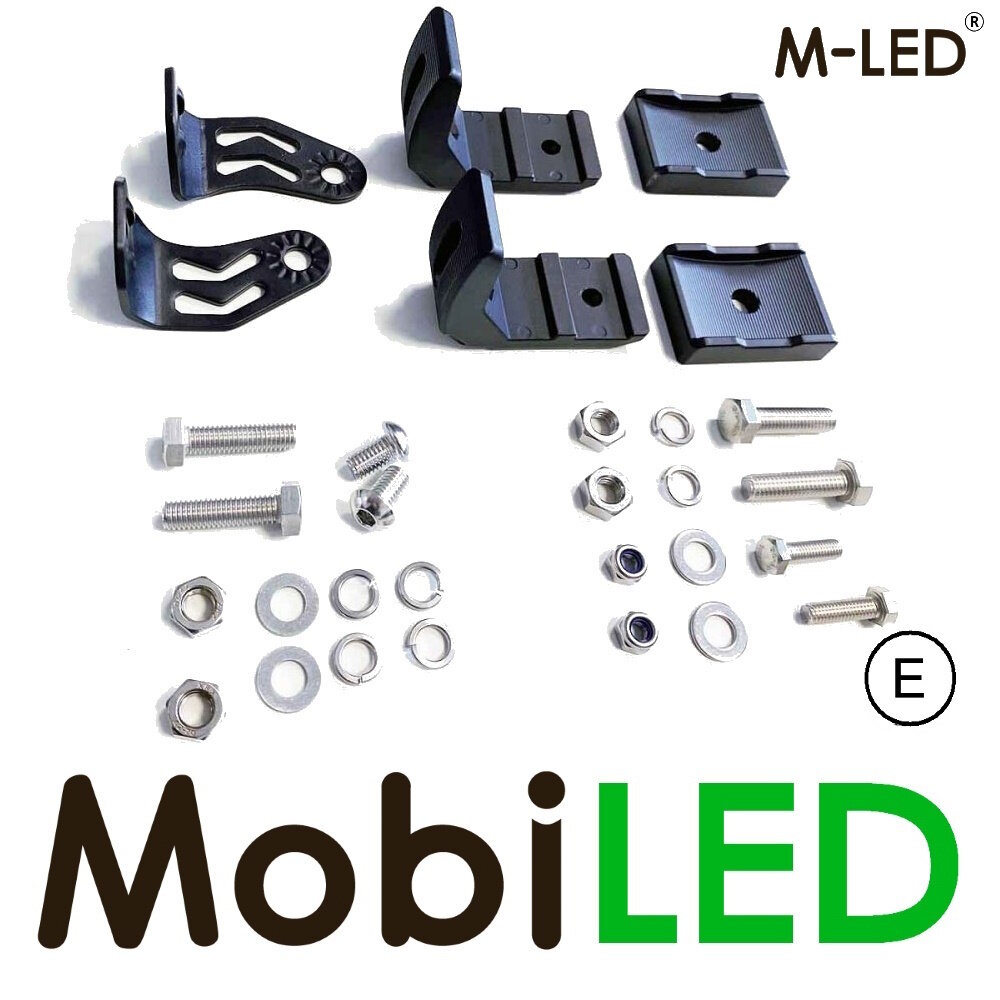

The bar is supplied with 2 sets of mounting supports as standard. Side supports so that the bar can be hung upright or mounted at the rear. Supports for top or bottom mounting. These can be slid along the length of the bar for easy installation in new or existing holes.
Product specifications
- Article number
- LB296
- Length (cm)
- 56,8
- Height (cm)
- 7,3
- Depth (cm)
- 7,2
- Shape
- Elongated
- Tension
- 10-30V
- Power
- 200W
- Lumens
- 6083
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 40
- LED Type
- Osram
- Position light function
- No
- High beam function
- Yes

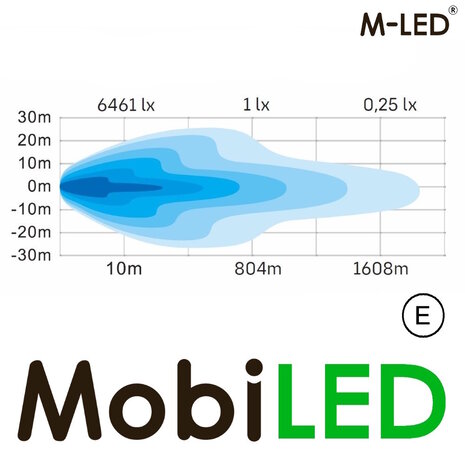

- Light image
- Combo
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting type
- Side and bottom/top mounting
- Cable Length (cm)
- 50
- Operating temperature
- '-40°C - +60°C
- IP rating
- IP67
- Certification
- R10, R112 (ref 45)
- Packed per
- 1
- Manufacturer article number
- TLB-B15120E-OS3-13797-04
