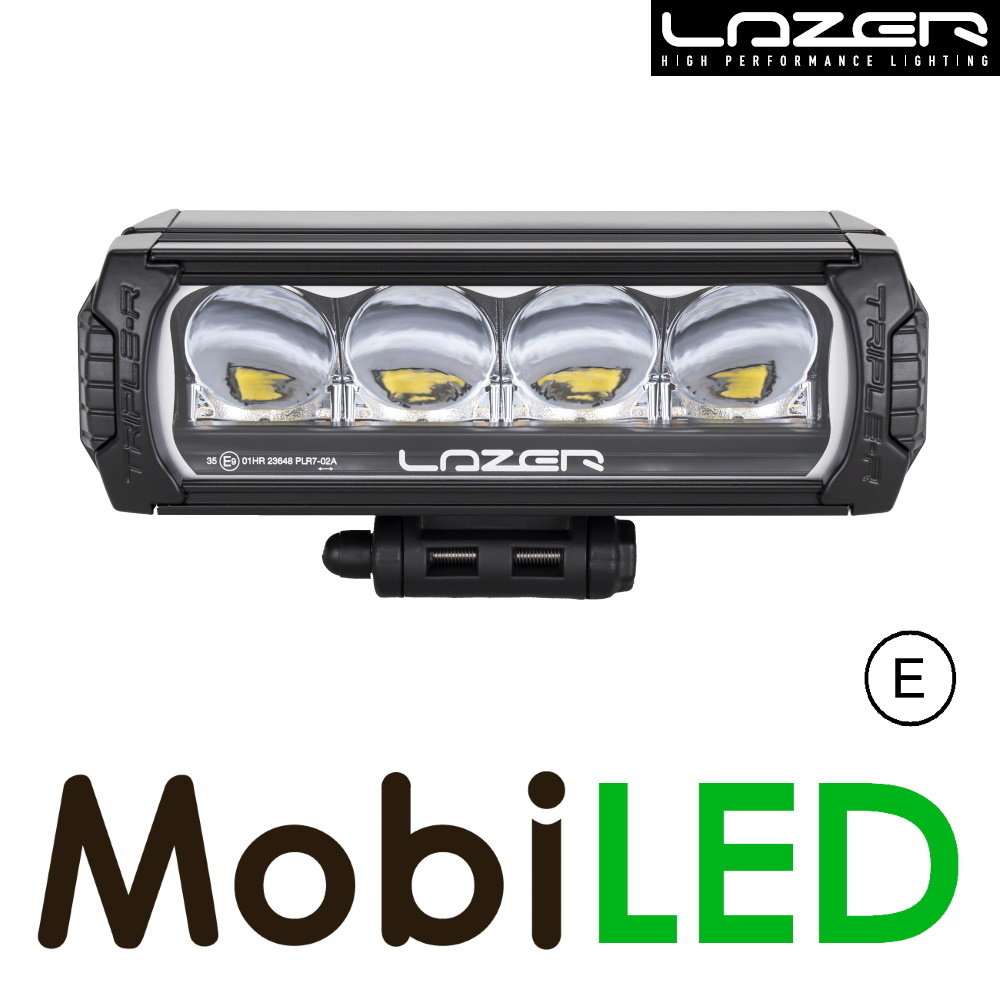

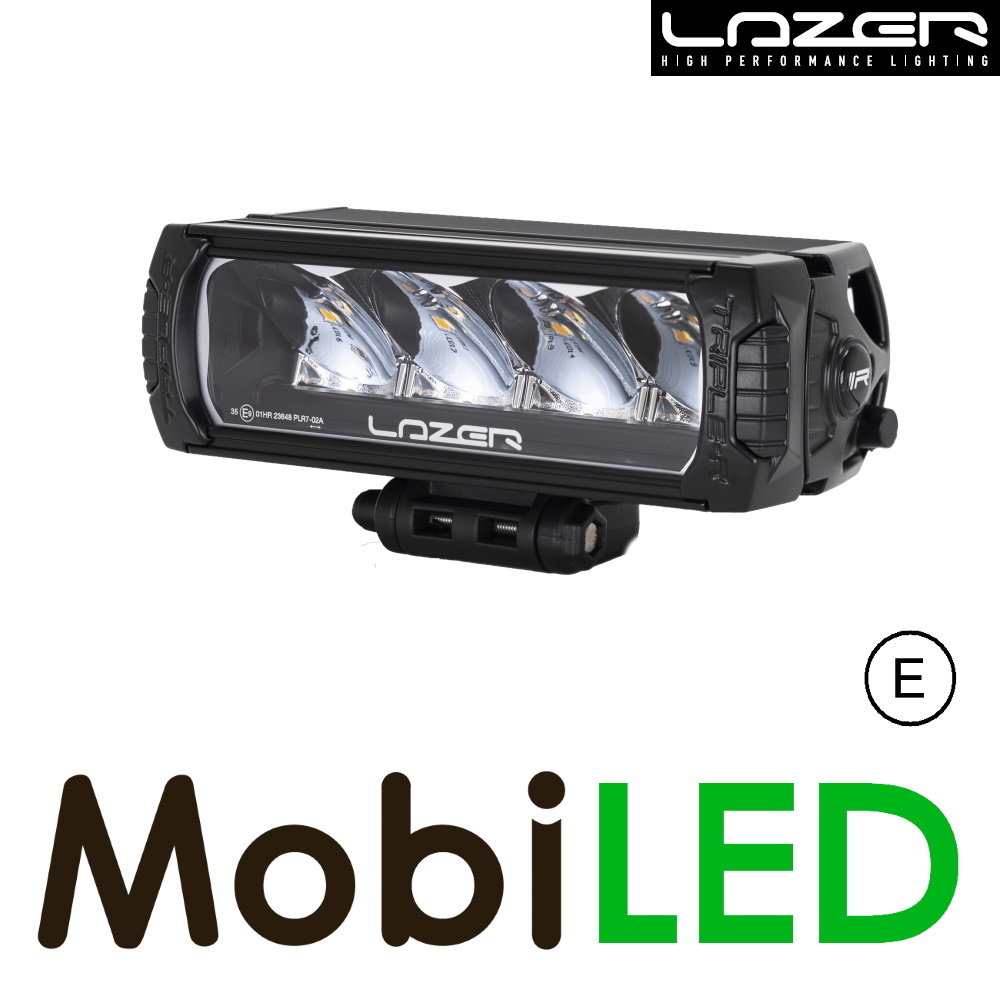

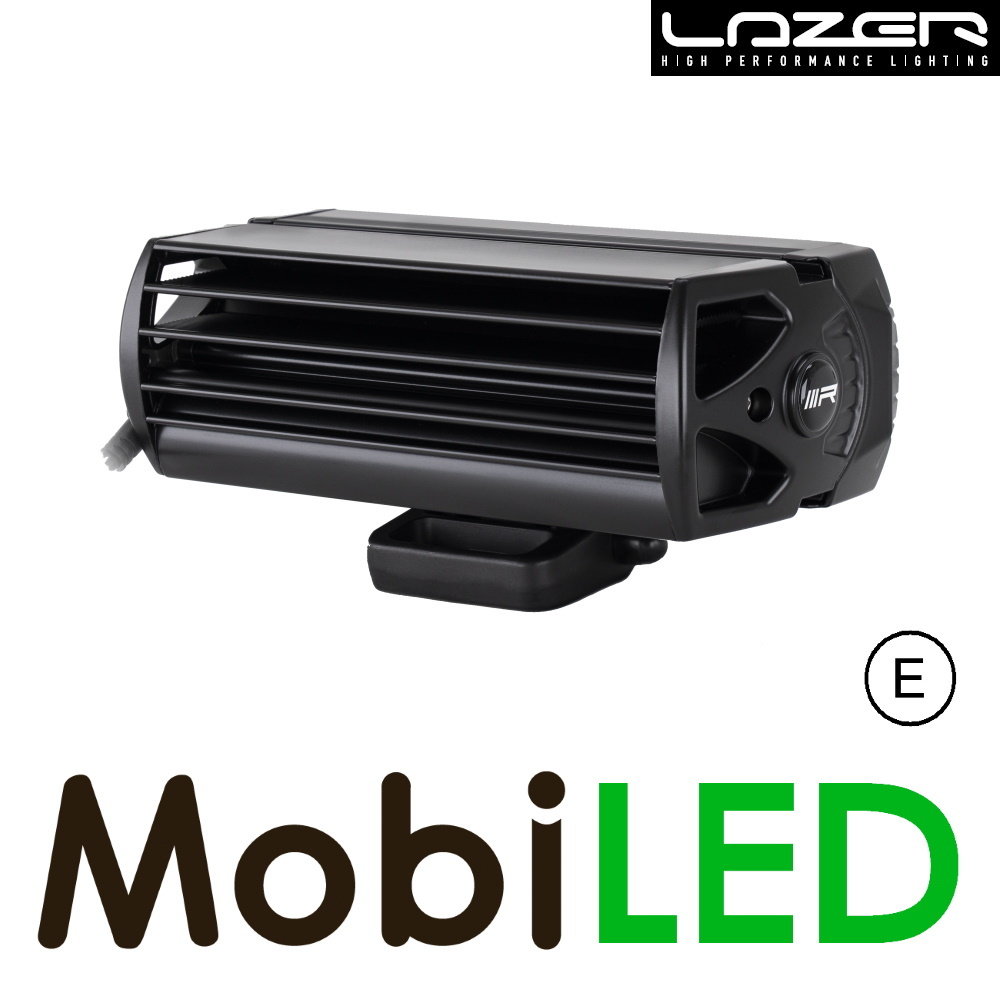

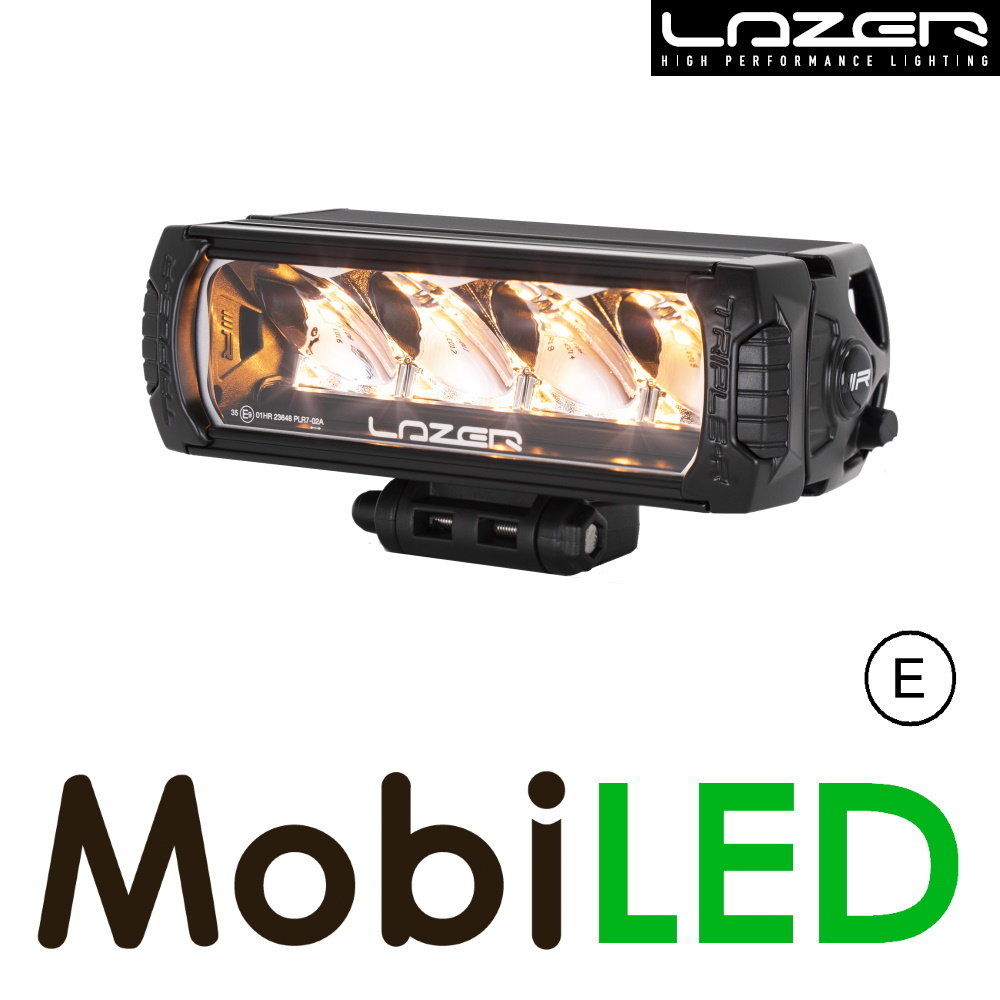

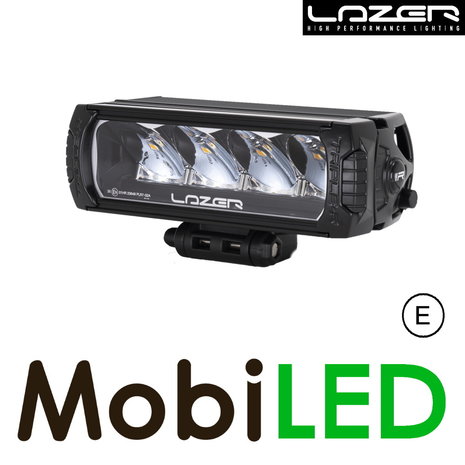

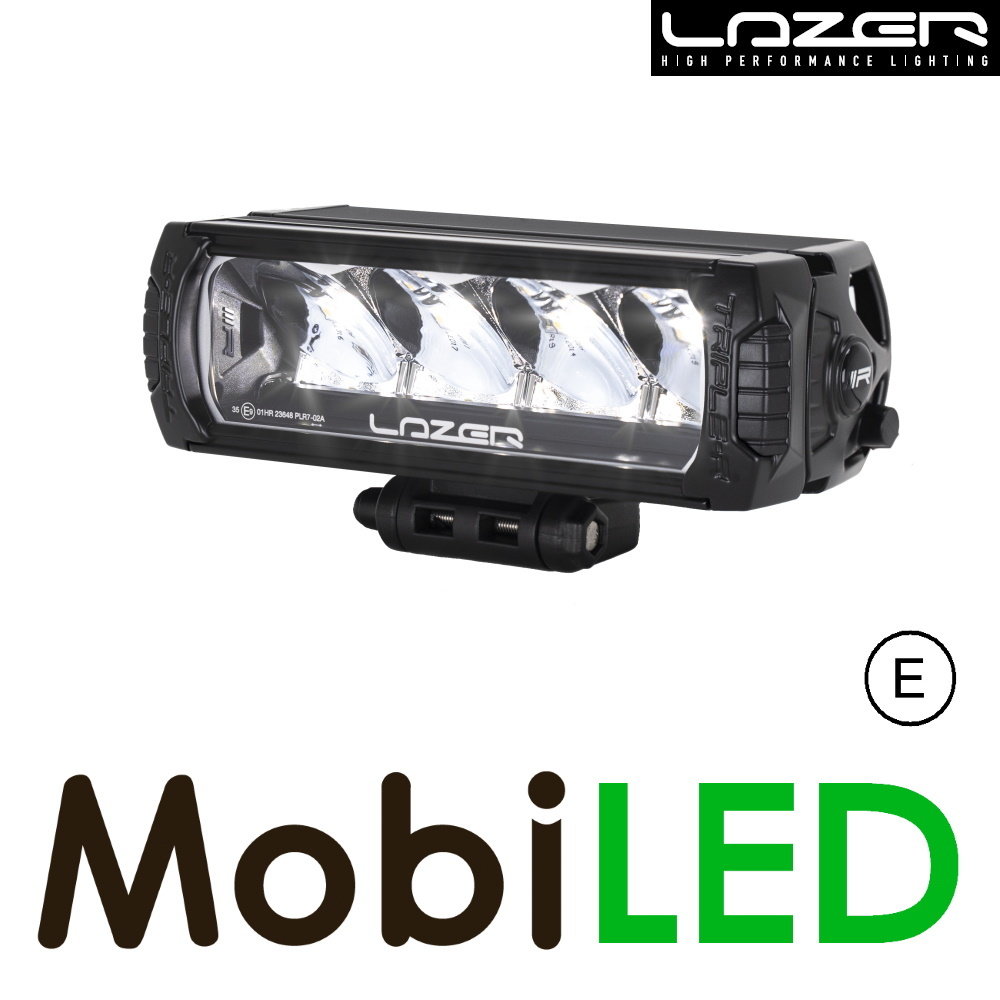

LAZER Triple-R 750 with position light 230 mm 45W

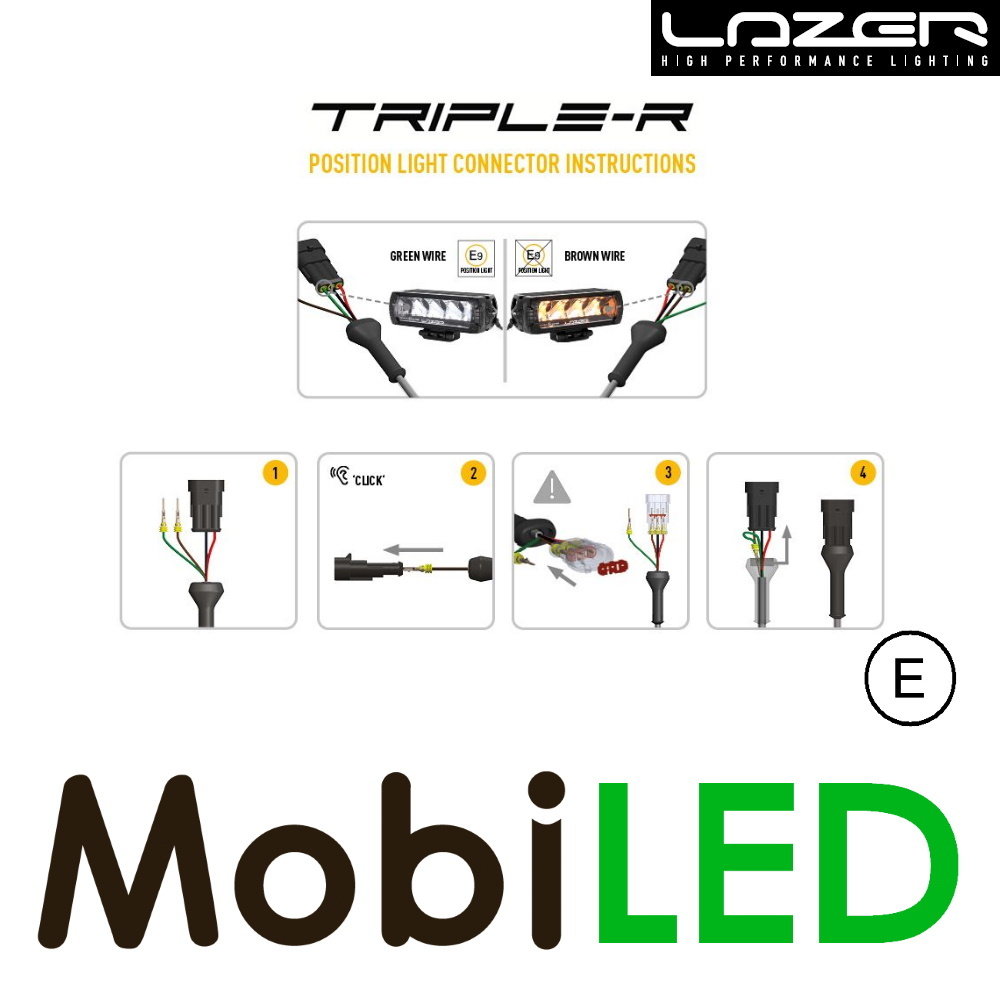

The LAZER Triple-R 750 with position light has an exceptional light output. The 11W LEDs and the ultra-reflective vacuum metallic lens deliver spot beam pattern and still providing excellent left/right spread. On installing the lamp, either the white or the amber position light can be connected.
The electronic heat management system optimises light output making the LEDs last longer. The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.
The Triple-R 750 with position light is R112 B certified for on-road high beam function and R7 for the white position light.
The LED bar can be mounted at the bottom with the supplied centre brackets. Side mounting is also possible, but the side brackets are not included. It comes with male/female 3-pin superseal connectors.
Triple-R LED bars impress, even before the sun goes down.
Video:
Product specifications
- Article number
- LB354
- Length (cm)
- 23 (27)
- Height (cm)
- 7,3
- Height incl bracket (cm)
- 10,3
- Depth (cm)
- 10,5
- Weight (gr)
- 1000
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 45W
- Current draw
- 14,4V: 3,1A
- Lumens
- 4620 theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 4
- Position light function
- Yes, white or amber
- High beam function
- Yes
- Light image
- Spot

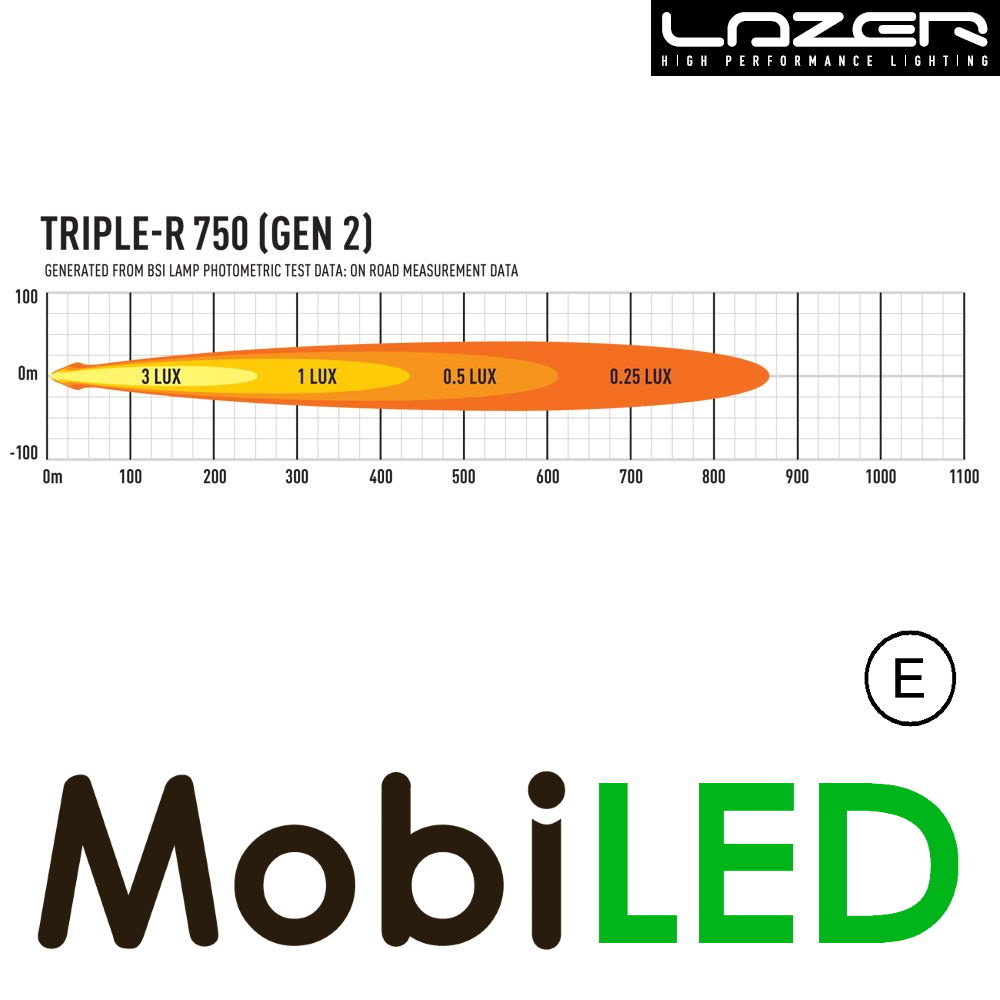

- Beam range
- 1 lux@433 m/0,25 lux@866 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom mounting
- Connection
- Superseal connector
- IP rating
- IP68
- Certification
- R10, R112, R7
- Packed per
- 1
- Manufacturer article number
- 00R4-G2-B
