Trailer cable harness 7 pole 11.5m / 8.1m 5-pin heavy duty bayonet

Cable set 7 poles 5 pins bayonet 11,5m / 8,1m

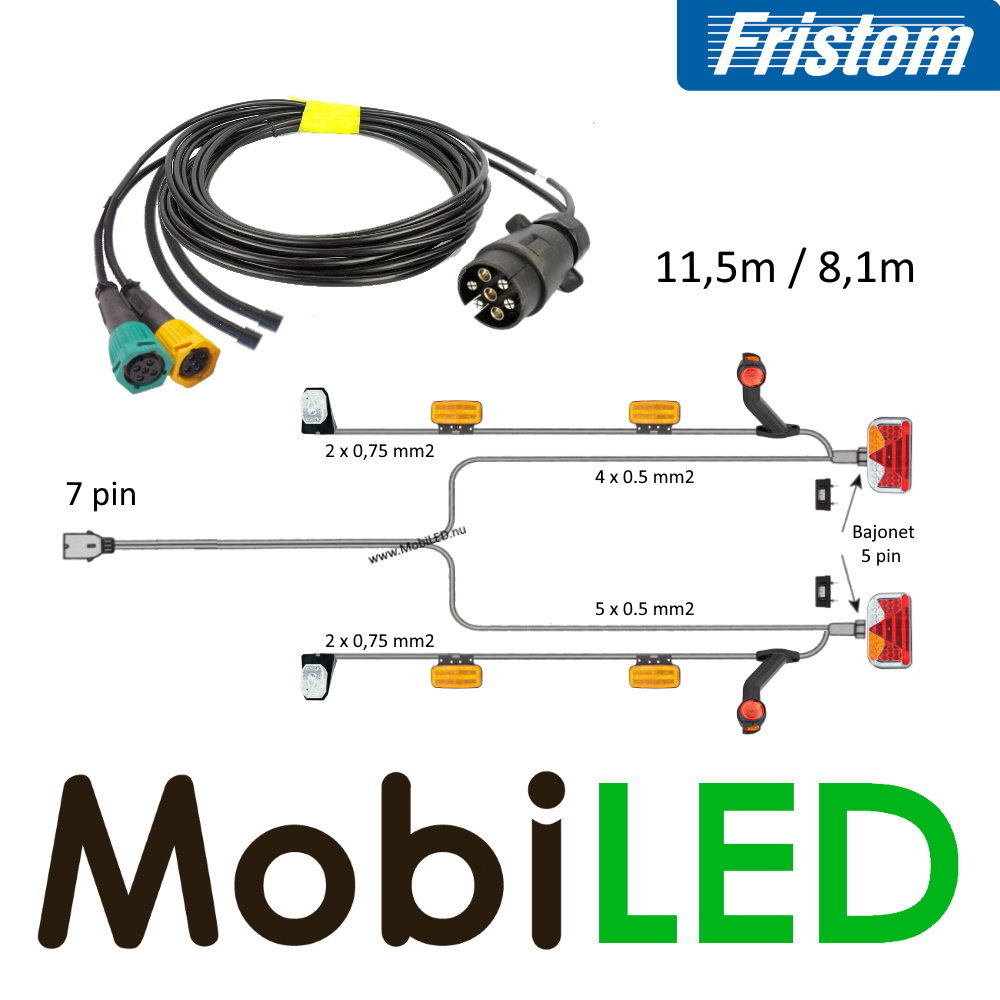

Wiring harness for installing all lighting with a 5 pin heavy duty bayonet connection. Get your trailer lighting in order quickly, easily and safely with this complete set.
This version has a DC cable for connecting marker lights, pendulum lights and license plate lights. The marker and license plate lights must be equipped with the blue 0.75mm^² connector.

The set is suitable for:

• Rear light / license plate (integrated)
• Brake light
• Turn signal
• Fog lamp on the left side
• Marker and pendulum lights and license plate light (separate)

If you want to equip the trailer with license plate lighting, you can choose between lamps with integrated license plate lighting or separate units that you then connect to the DC cable.
You can calculate the length of the cable as follows: the distance from the position in front of the rear lights to the end of the drawbar plus 50 cm. In the case of separate number plate lighting, add some extra.
