Headlight with positionslight and turn signal left E-mark
Headlight with position light and turn signal left

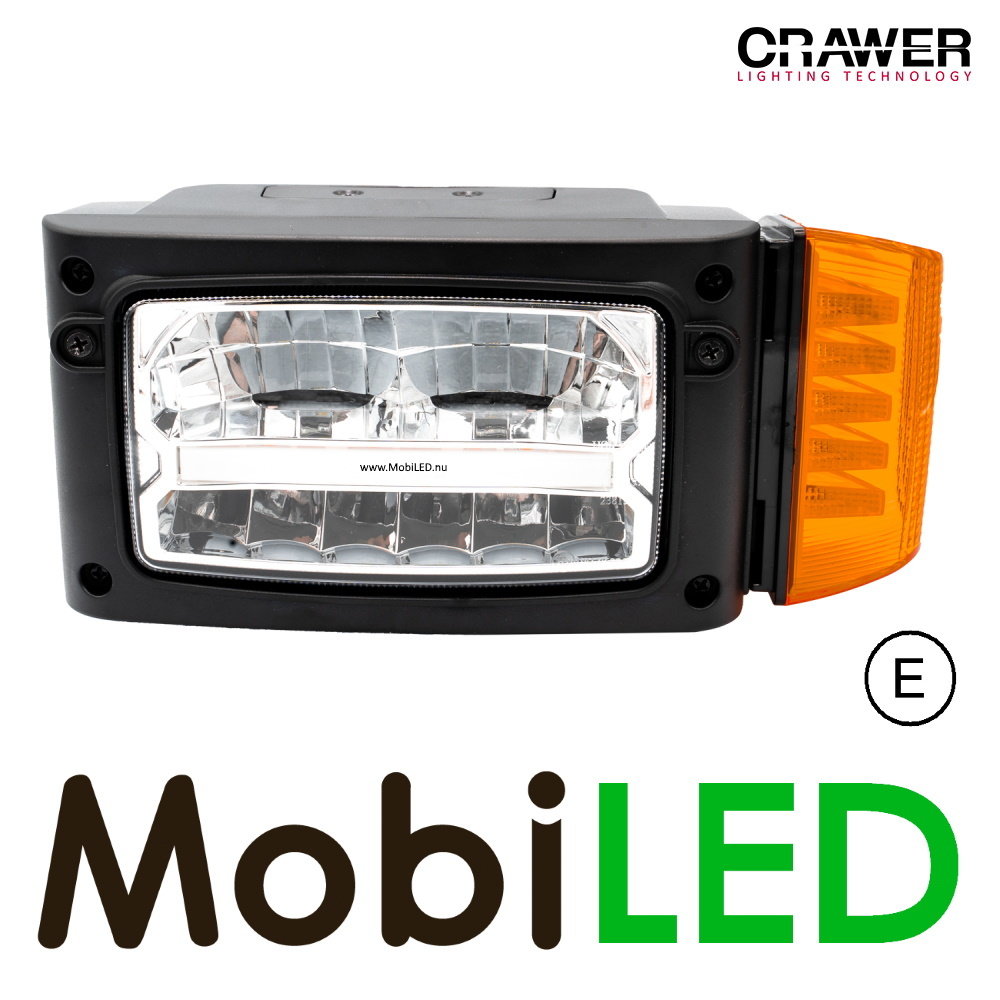

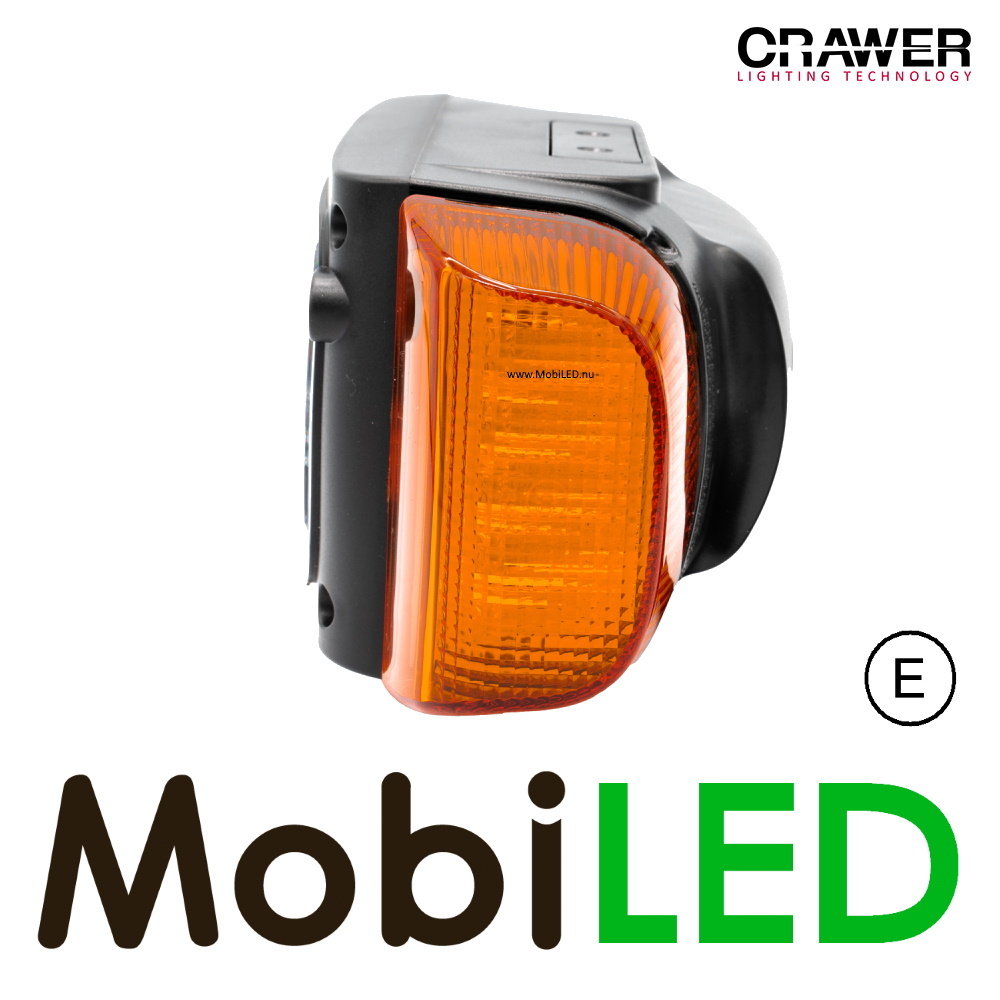

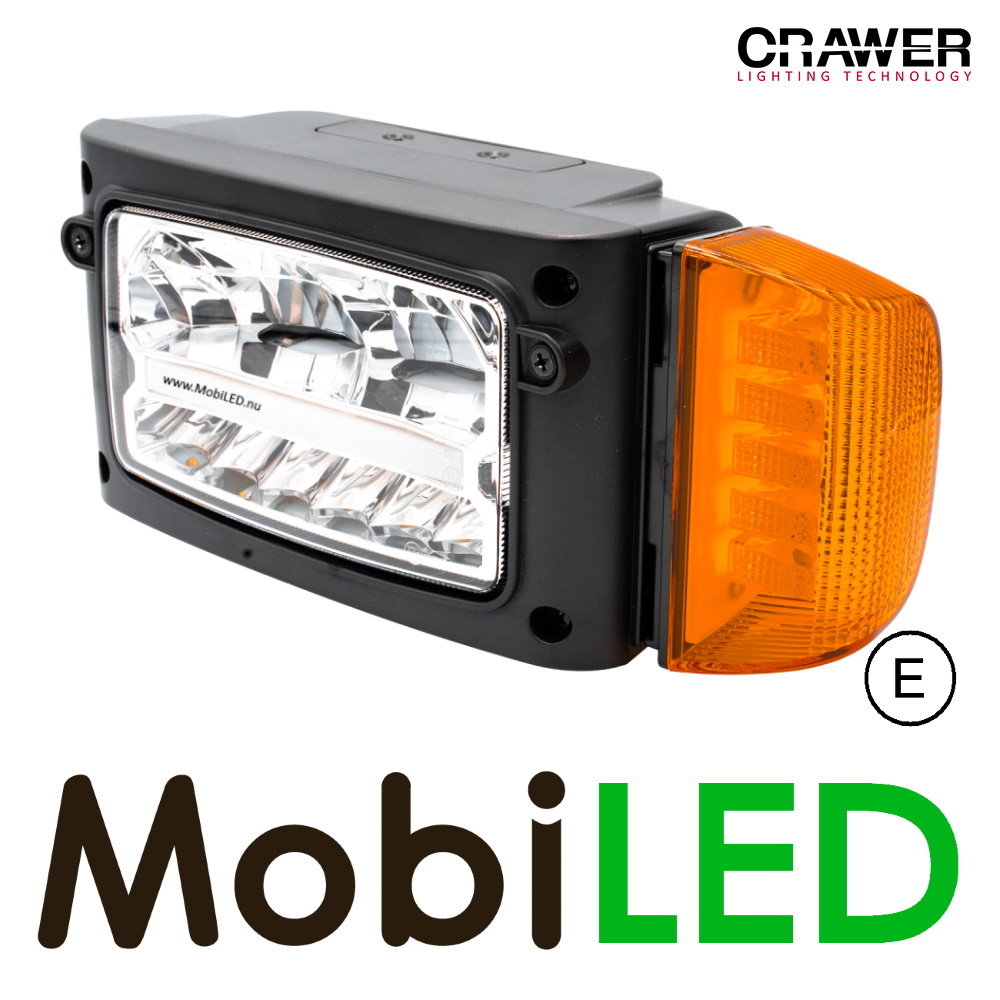

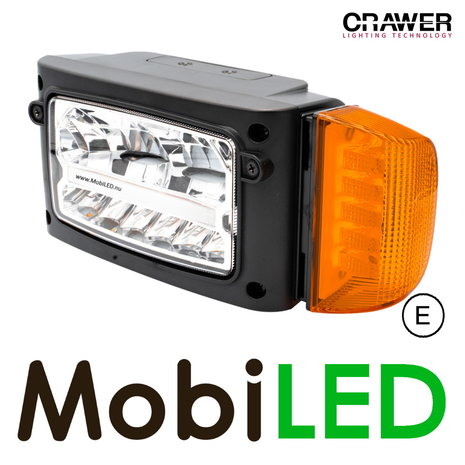

Low beam, high beam, position light and turn signal, this headlamp has it all. A real all-rounder with the great advantage that the turn signal is integrated, and it is also very robust.

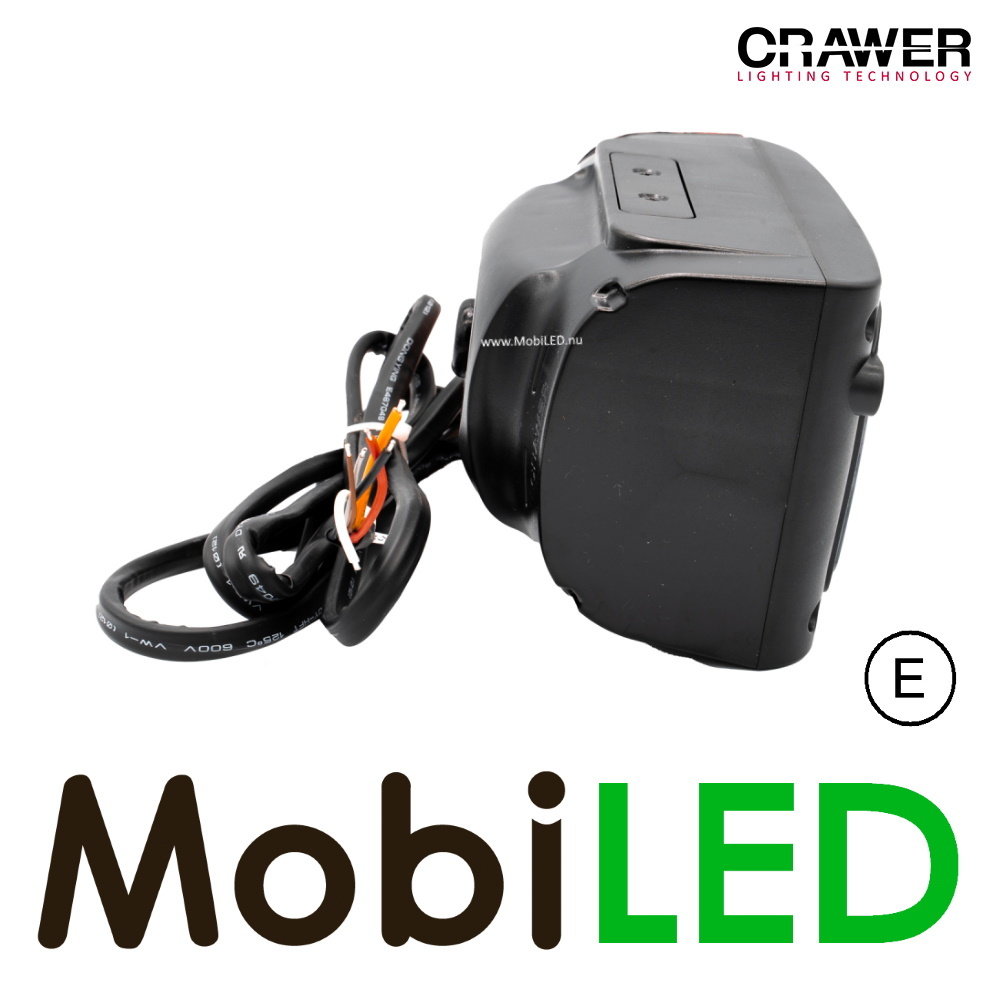

The lamp is multi-voltage and provided with all quality marks: EMC CISPR class 4 and ECE R112, R10, R7, R6. Easy to connect with the supplied 2 meter cable with Deutsch DT 6 pin connector.
Note when ordering: The combination LED headlight is available in left and right.
Specifications:
- Power: 30W high beam, 18W low beam, 4W position light, 5W turn signal
- Voltage: 9-32 volts

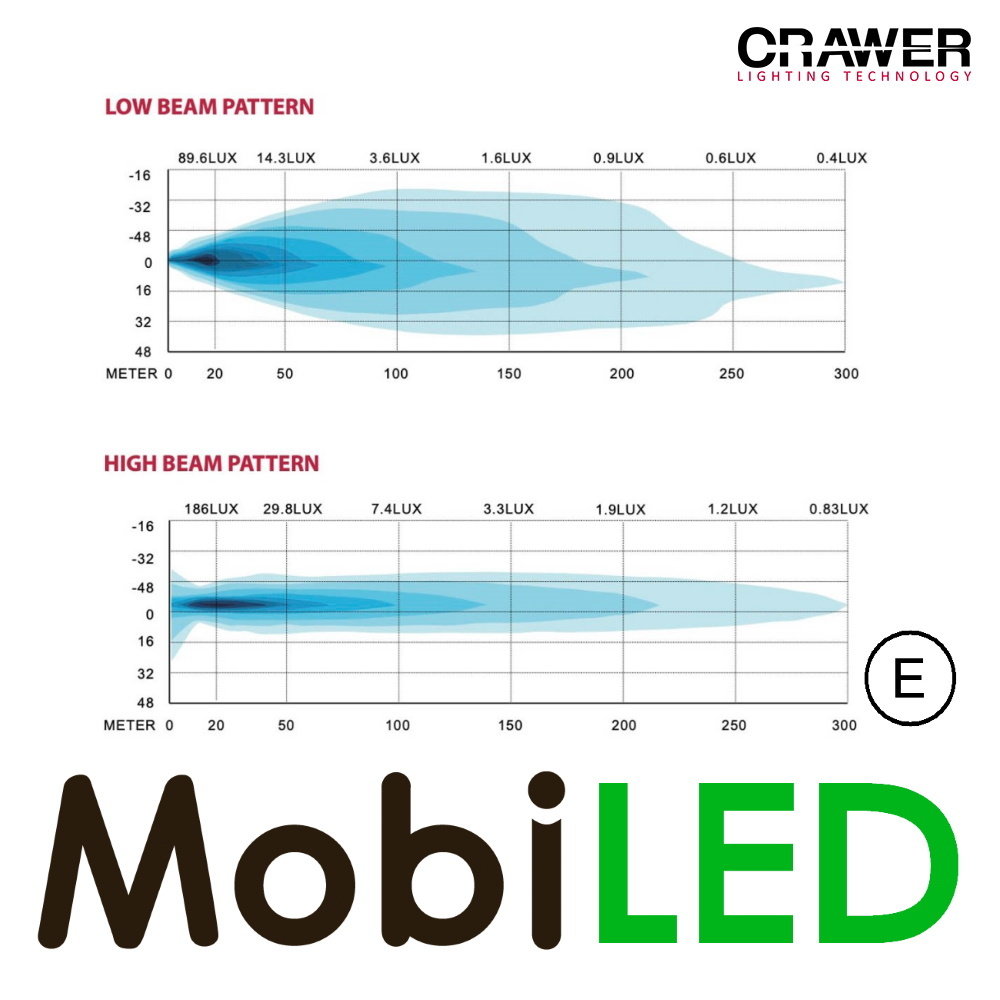

- Lumen: 1510 high beam, 1120 low beam, 112 position light, 231 turn signal
- Light color: 6000K

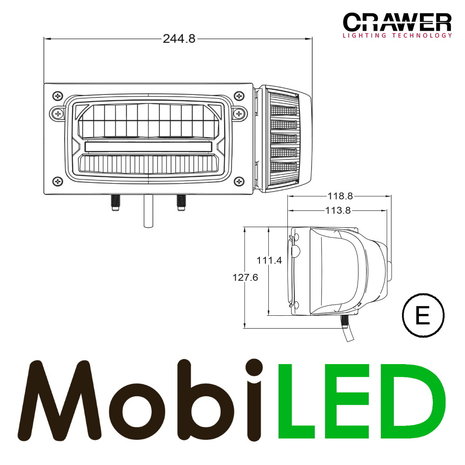

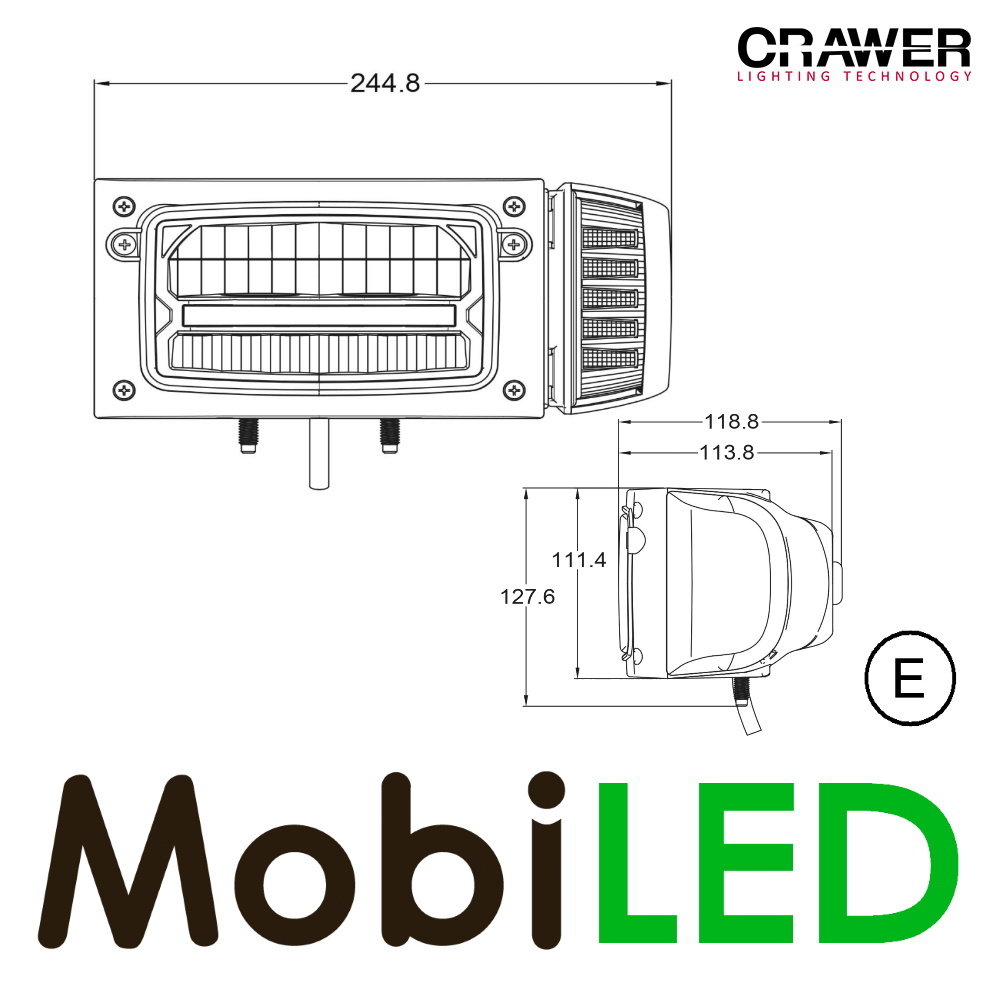

- Dimensions: 244.8 x 111.4 x 118.8 mm
- Housing: aluminum
- Lens: polycarbonate

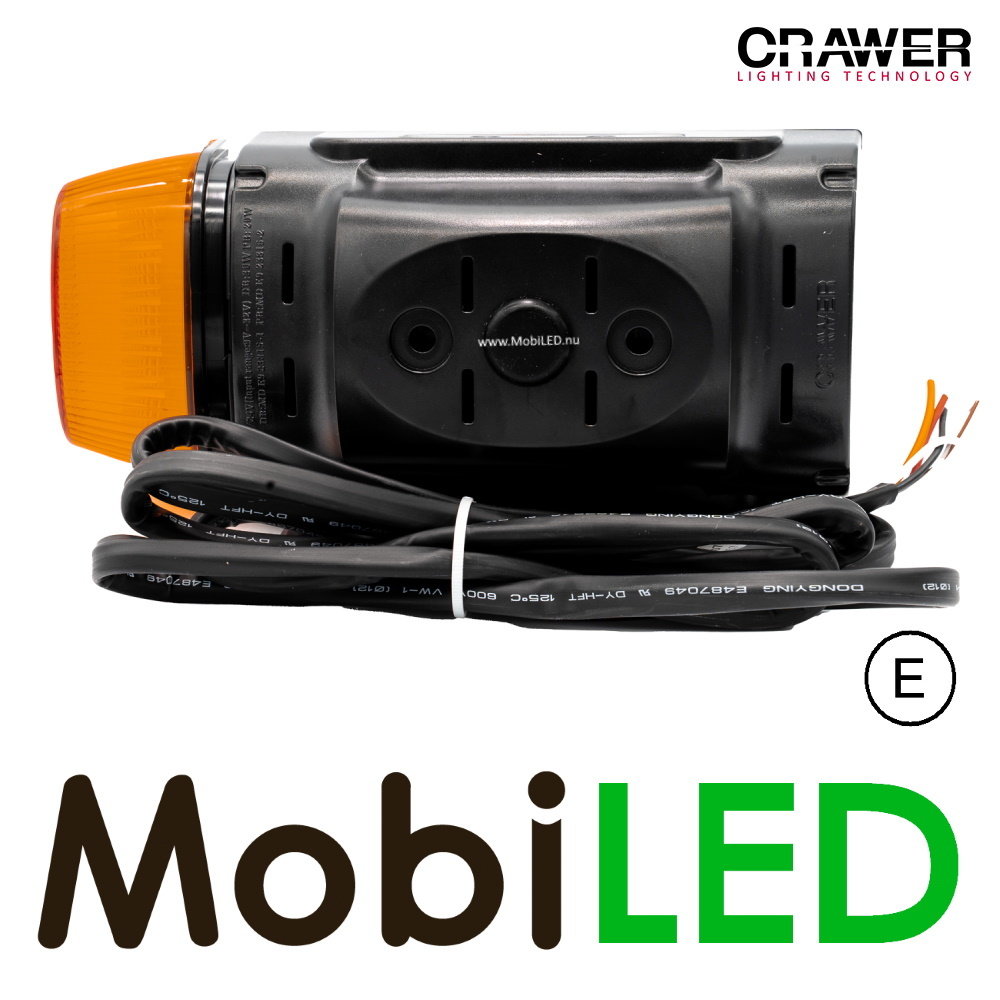

- Connection: 6-pin cable, Deutsch DT 6 pin connector is included separately
- Cable length: 2 m
- Water resistance: IP67
- Certification: EMC CISPR Class 4 and ECE R112, R10, R7, R6
Connection diagram:
- Black: Negative
- Red: Positive high beam
- White: Positive low beam
- Yellow: Positive city light
- Brown: Positive turn signal
- Gray: Negative turn signal
Product specifications
- Article number
- KL110
