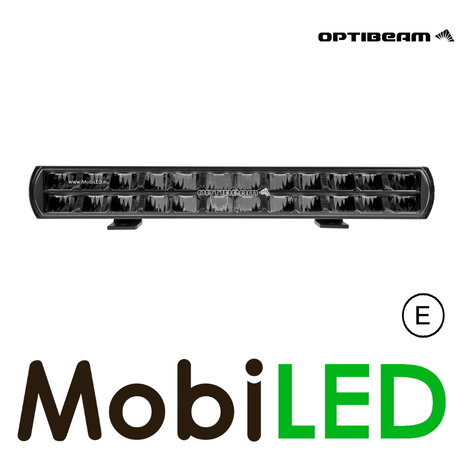

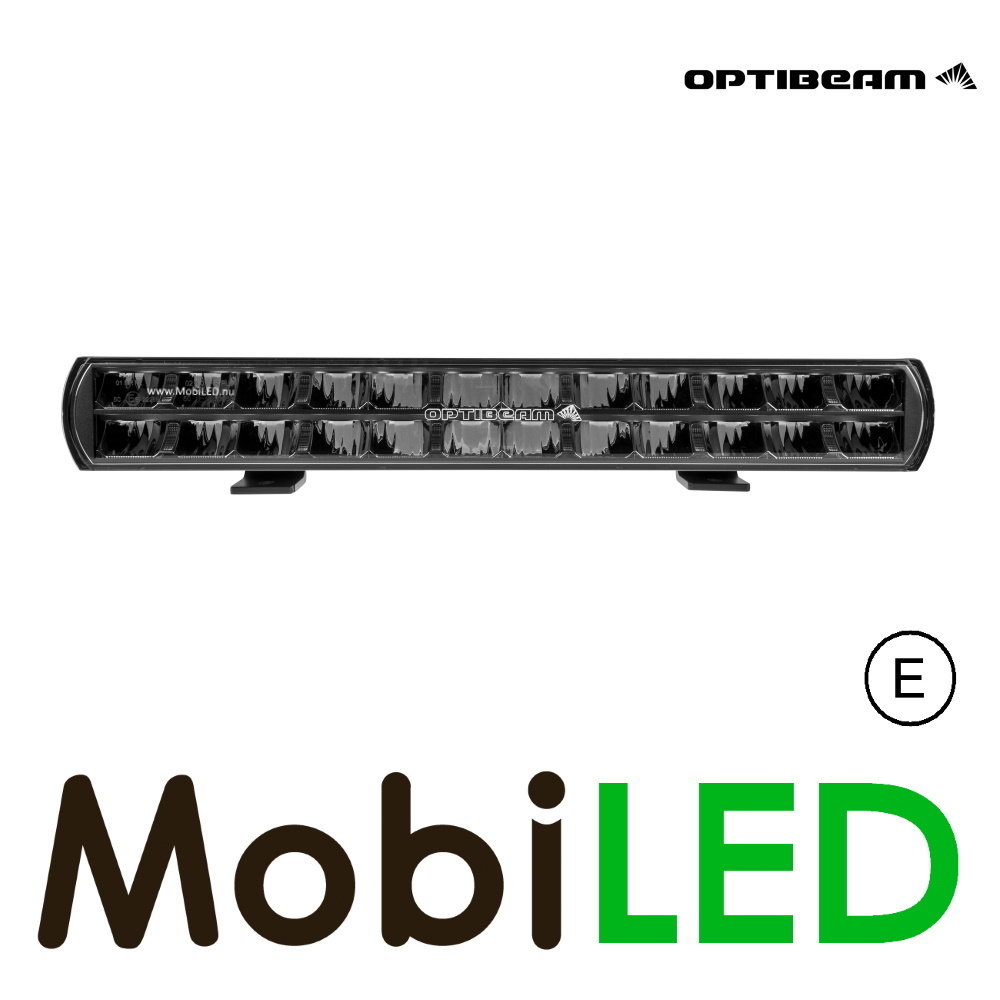

Optibeam Super Captain Dual 600 52 cm

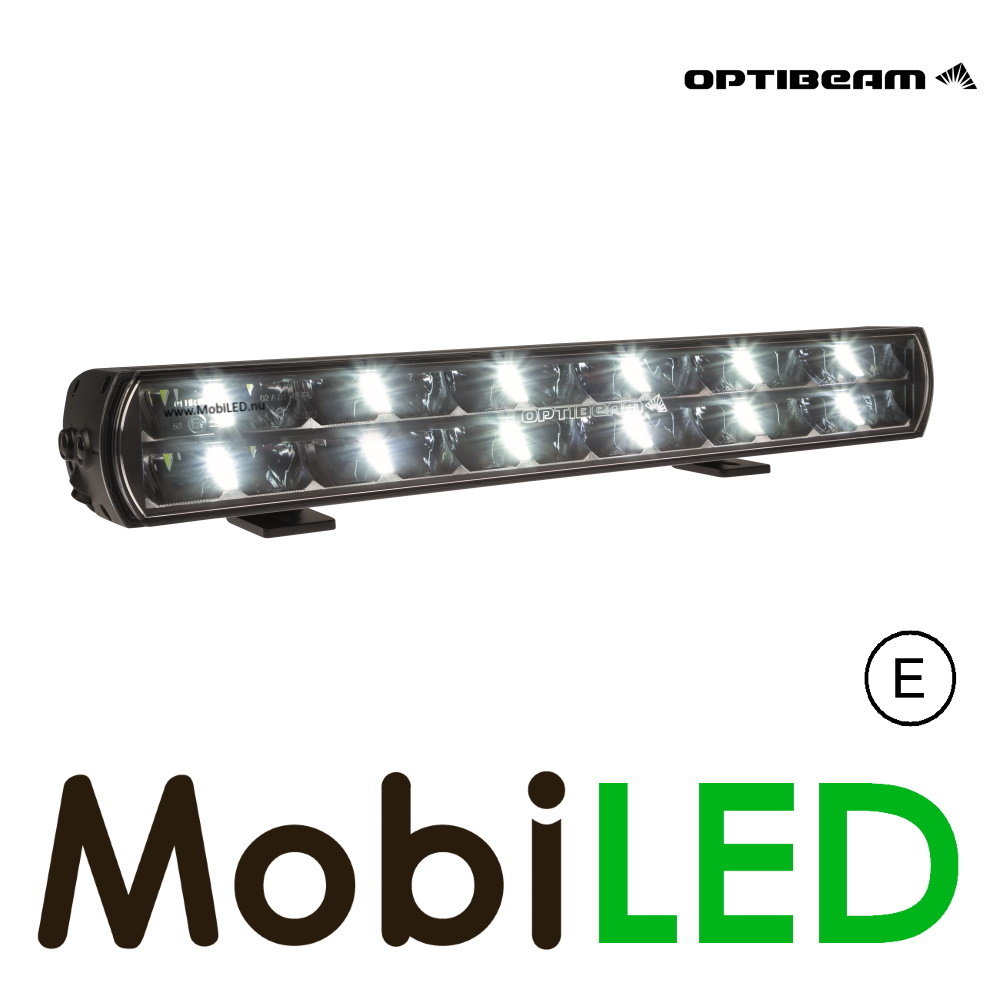

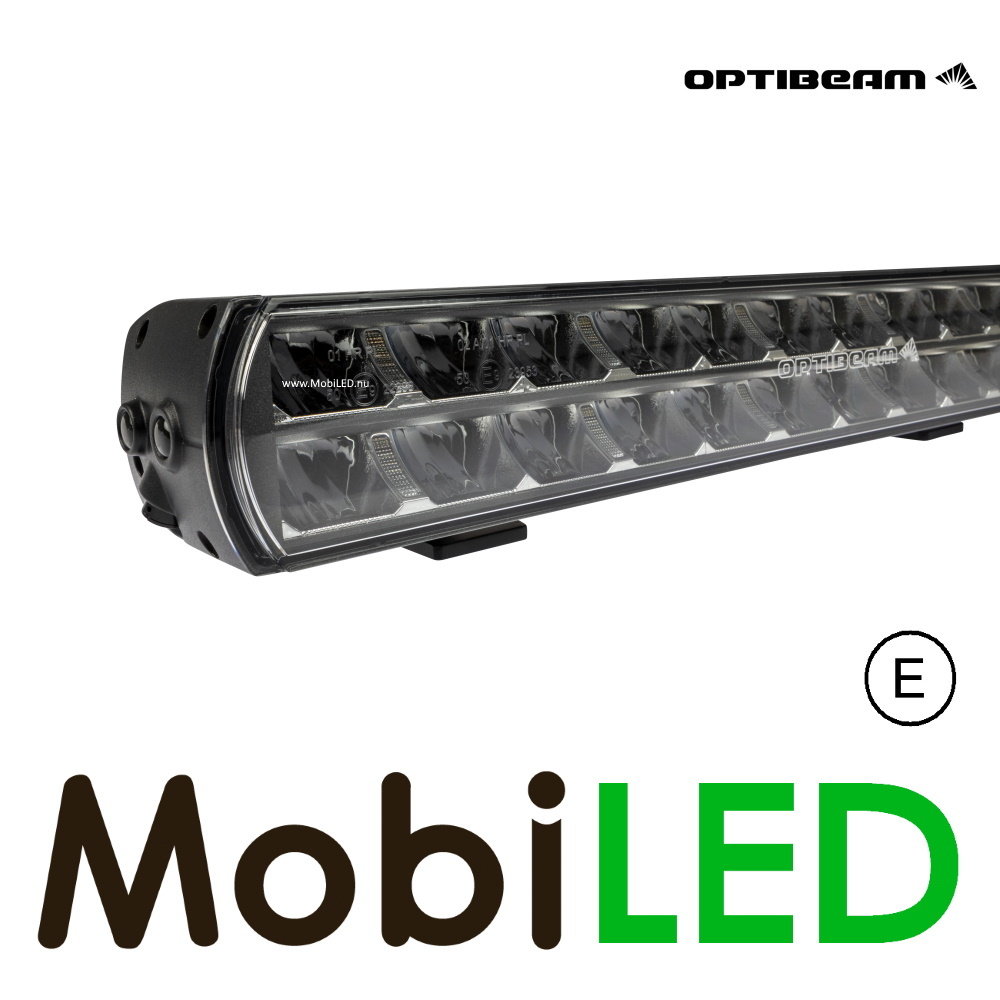

Extremely powerful Optibeam Super Captain Dual LED bars. The lighting has 2 brightness levels: full brightness for off-road and work light, and a position that complies with the R112 regulations, approved for on the road. One of the most powerful street-legal LED light bars in its class, now with a 5000K color temperature. The bar is equipped with a double row of LEDs.

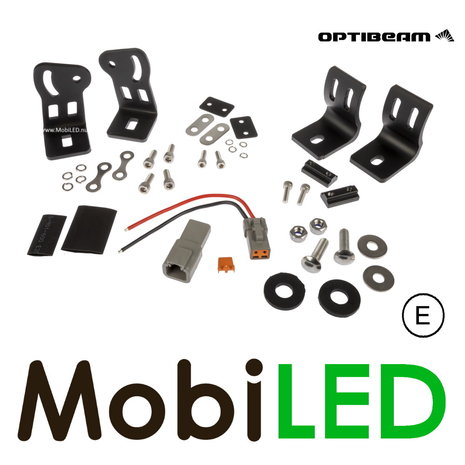

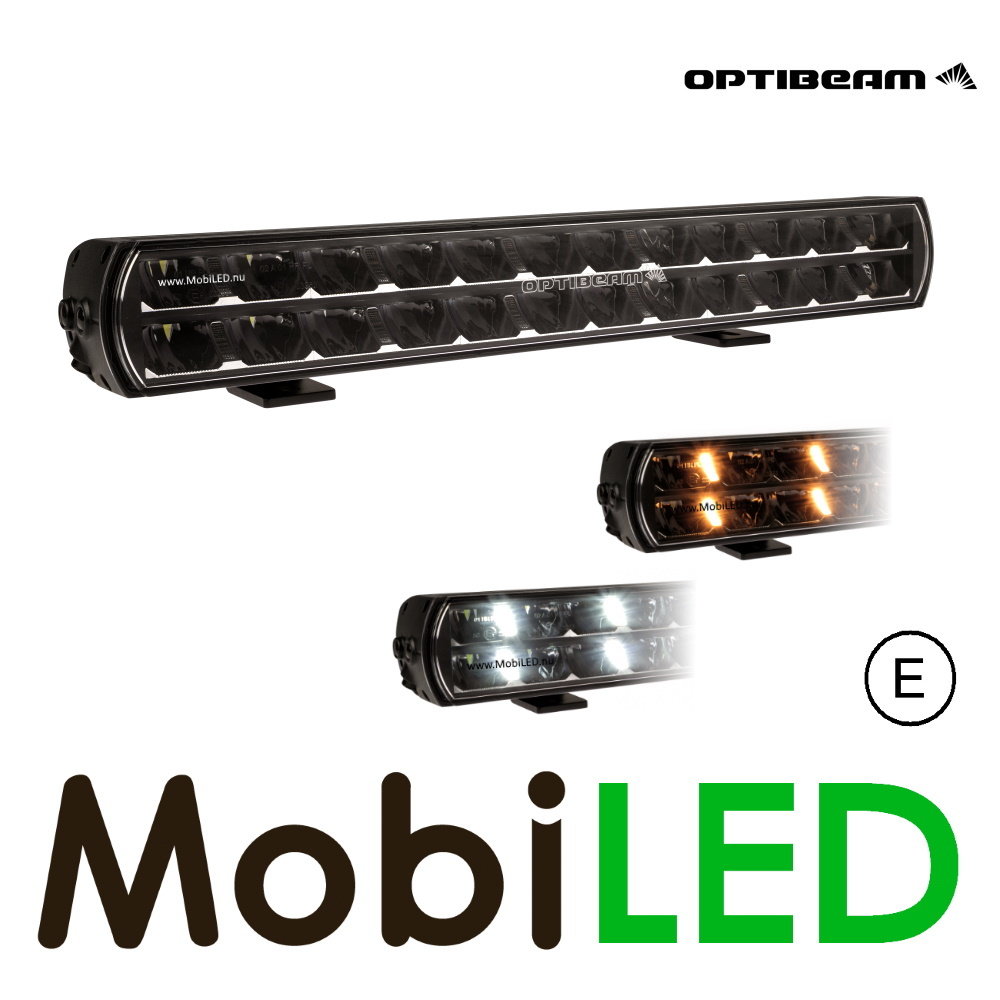

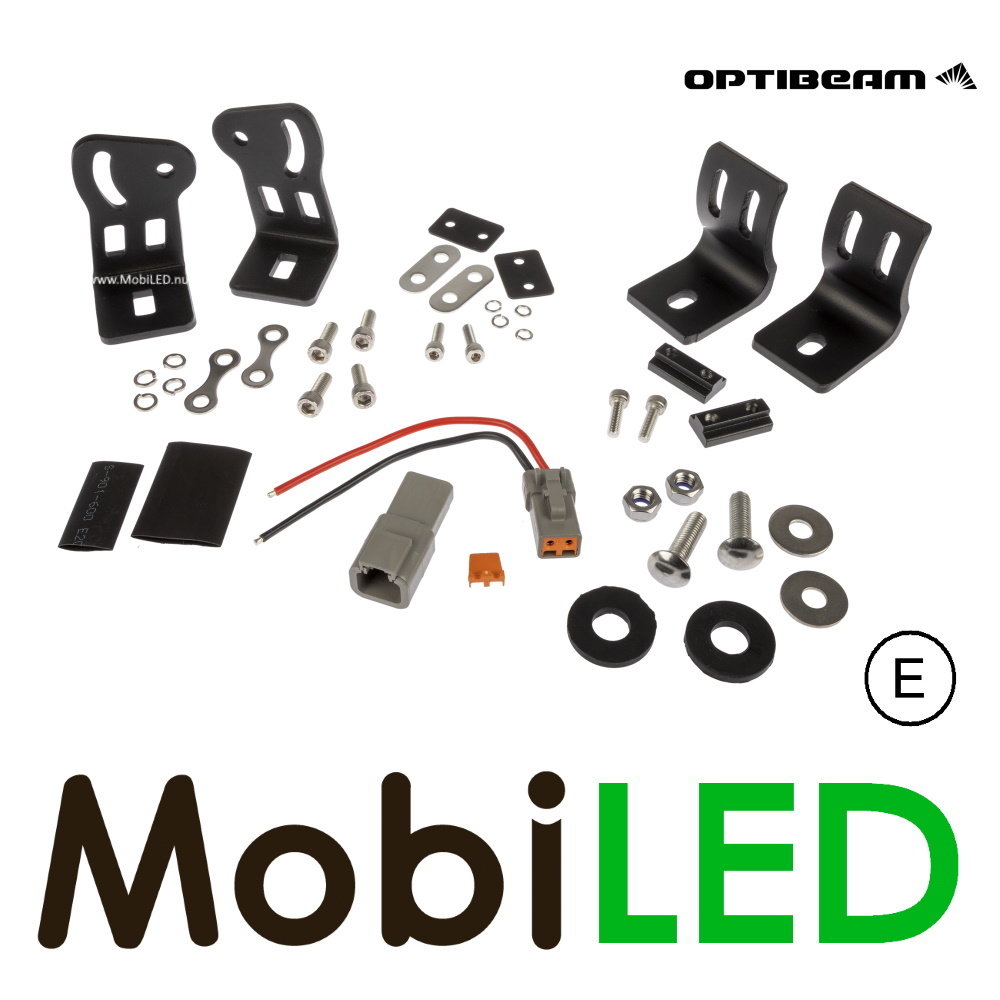

All Super Captain Dual models are equipped with position lights. You can choose the color of the position light as desired amber or white. The item is supplied complete with stainless steel brackets for side, rear or bottom mounting, stabilizing bars and connection material.
Optibeam is a Finnish product that stands for optimum performance, reliability and quality. The lamps have been tested in the harsh winter conditions of Scandinavia and Finland, because of their quality the lamps have guarantees of up to 3 years. Optibeam high-quality lamps are perfect for even the most demanding users. Thanks to their excellent price-performance ratio, Optibeam LED lamps have become extremely popular with enthusiasts and professionals alike.
Connection diagram:
- Black (-): ground
- Red (+): lighting, only off road
- Green (+) with red: lighting, with E-mark for road use
- White (+): white position light
- Yellow (+): amber position light
Product specifications
- Article number
- LB325

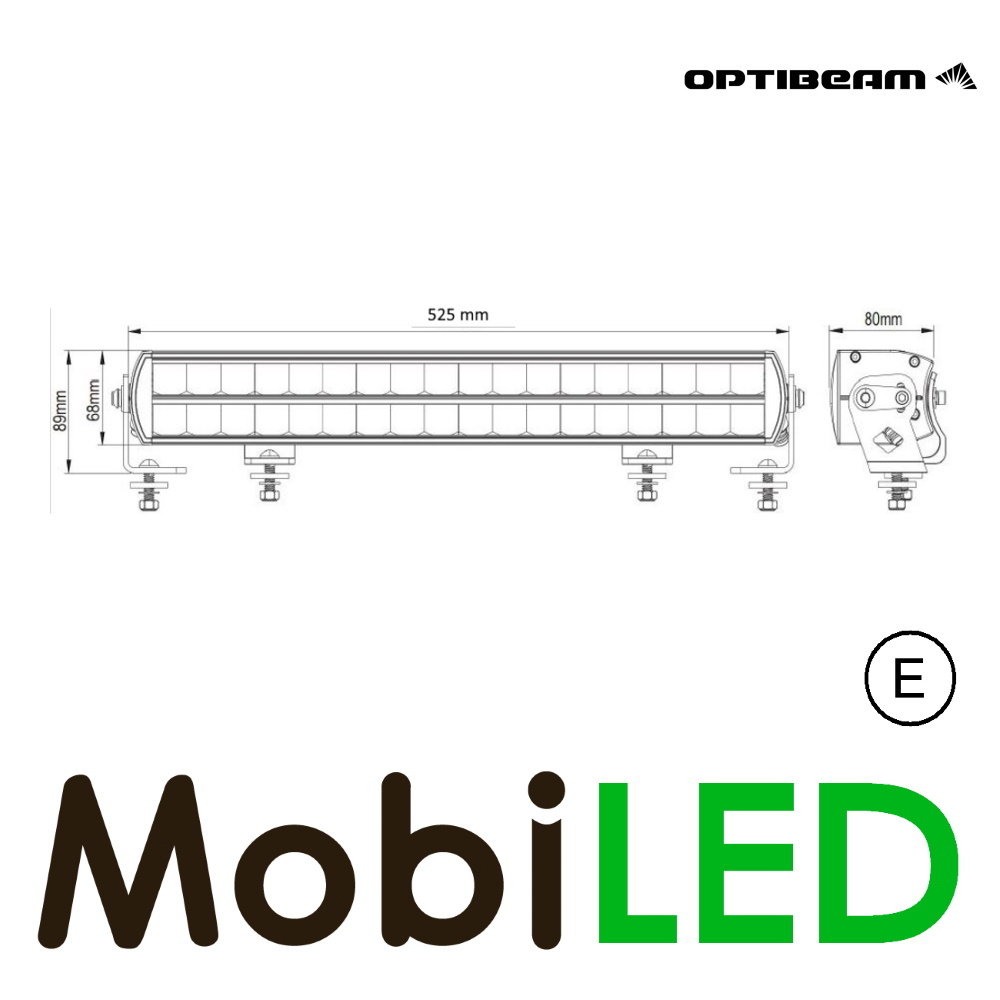

- Length (cm)
- 52,5
- Height (cm)
- 6,8
- Height incl bracket (cm)
- 8,9
- Depth (cm)
- 8
- Shape
- Elongated
- Tension
- 9-36V
- Lumens
- 25000 theoretical, 19896 practical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 24
- Position light function
- Yes, white or amber
- Light image
- Combo
- Beam range

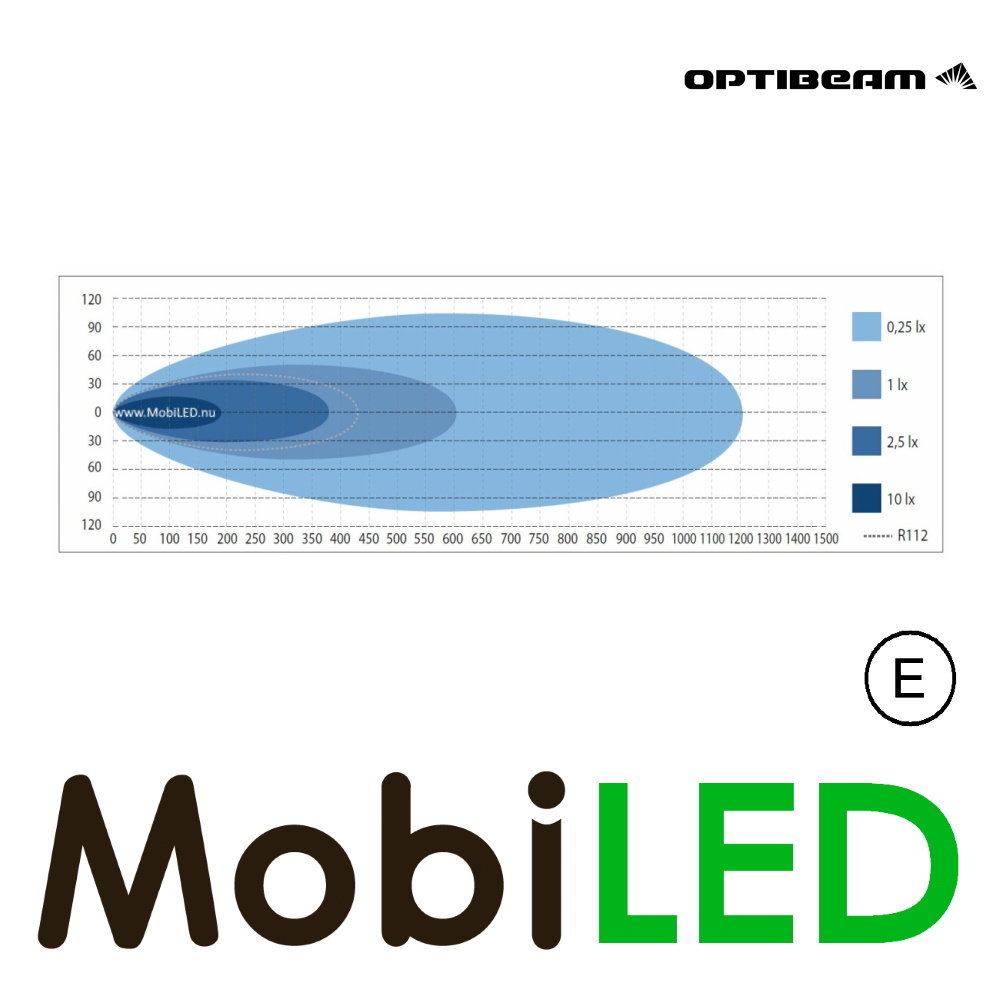

- 1 lux@604m, 1 lux@431m (R112)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type

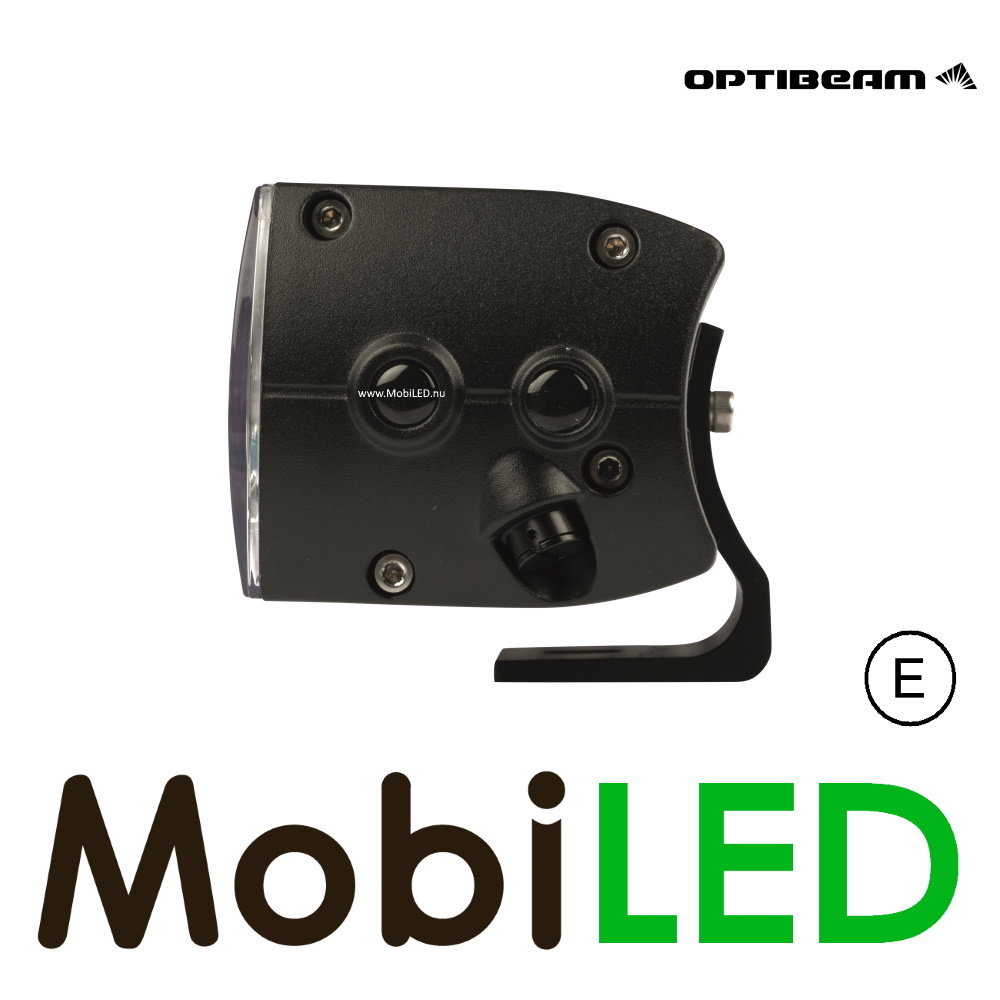

- Side- rear or bottom mounting
- Connection
- DT-2 connector
- Cable Length (cm)
- 220
- Number of wire cores
- 5
- IP rating
- IP68
- Certification
- ECE R10, R112 (ref 50)
- Packed per
- 1
- Manufacturer article number
- 1605-NS2085
