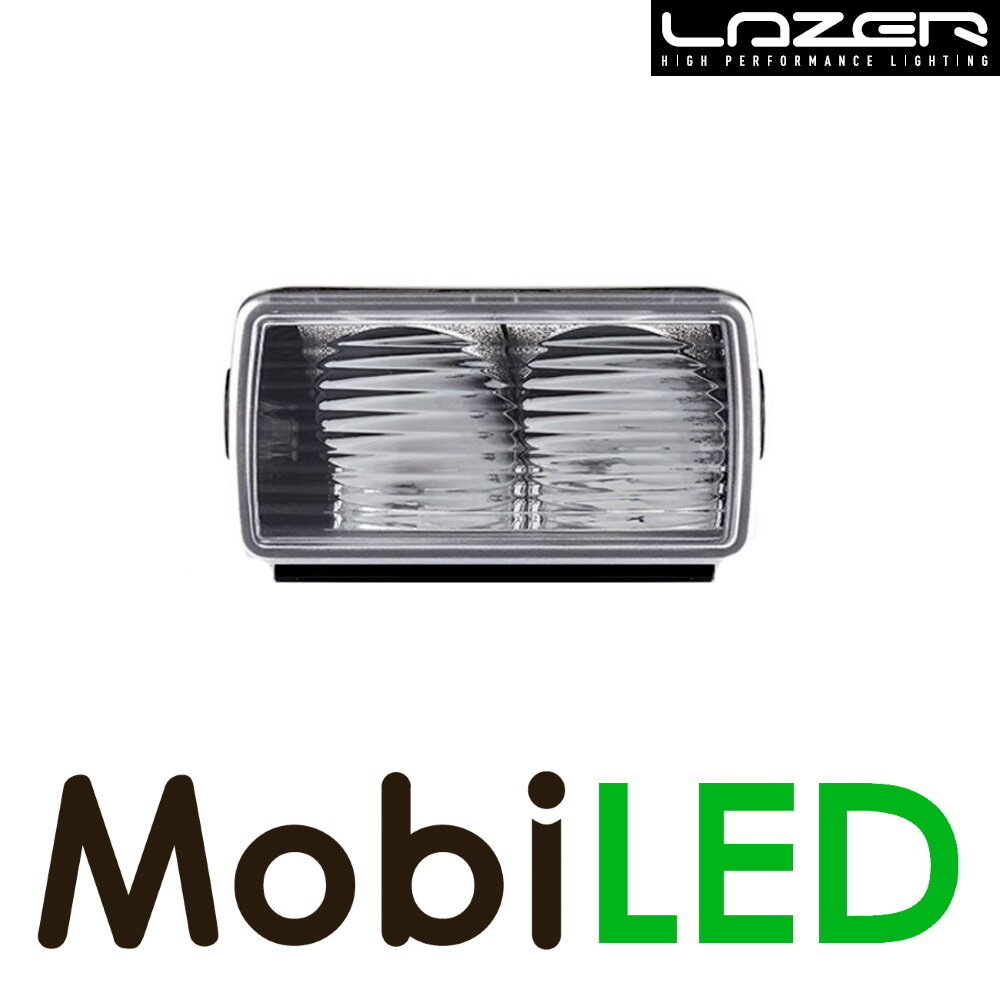

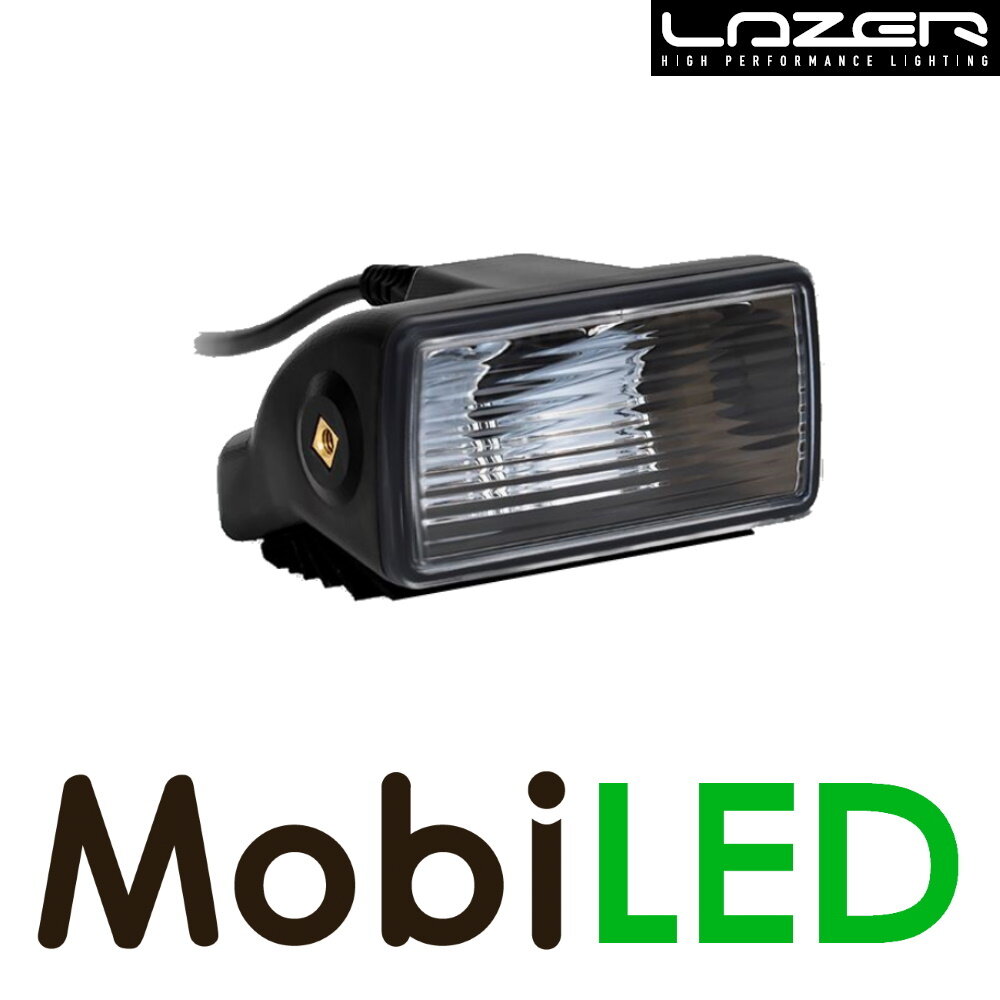

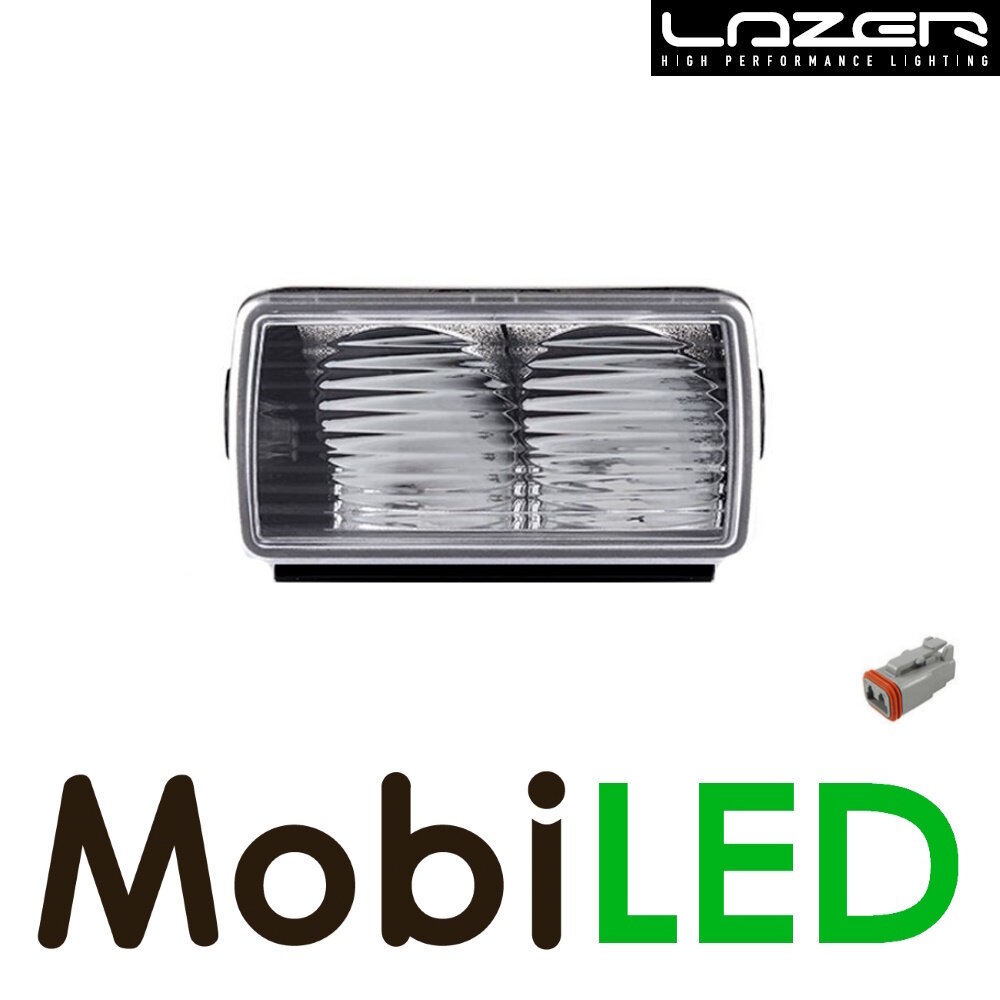

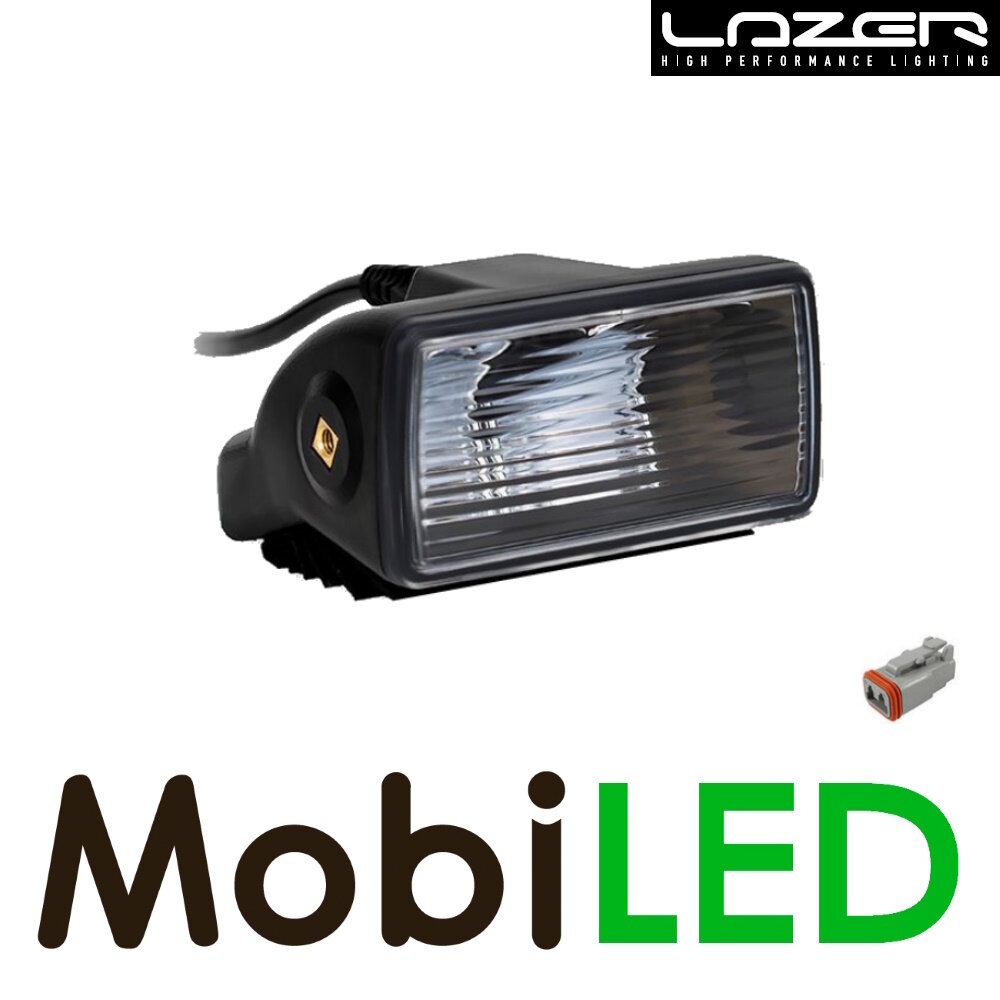

LAZER Carbon 2 Flood Vertical mountl 22W

Product description
The LAZER Carbon-2 weighs only 230 grams and has an enormous light output. The 2 high intensity LEDs still produce 1 lux at 260 meters. The housing of the LED spotlight is 3D printed composite. The CAE optimized heat sink ensures fast heat dissipation. The unique design of both the housing and the internal electronics, including rear-facing LEDs, ...

The LAZER Carbon-2 weighs only 230 grams and has an enormous light output. The 2 high intensity LEDs still produce 1 lux at 260 meters.

The housing of the LED spotlight is 3D printed composite. The CAE optimized heat sink ensures fast heat dissipation. The unique design of both the housing and the internal electronics, including rear-facing LEDs, ensures better light utilization, less scattering and a more homogeneous light distribution. The "unbreakable" polycarbonate lens protects the LEDs and determines the light distribution.

The LED lamp is available as a spotlight with a smooth lens (VS133) or as a floodlight with a striped lens. Where the floodlight has two versions: horizontal or vertical (BS057) striped lens. This allows the lamp to be mounted vertically or horizontally.

This is the floodlight with horizontal striped lens for vertical mounting.

The set consists of:

  • 1 x flood light Carbon-2
  • 1 x Deutsch plug with 30 cm cable
  • 1 x Installation instructions

Specifications:

  • Voltage: 10-32V
  • Power: 22W
  • Consumption at 14.4V: 1.5A
  • Number of LEDs: 2
  • Lumen, theoretical: 2,255
  • Light pattern: wide, 20 degrees

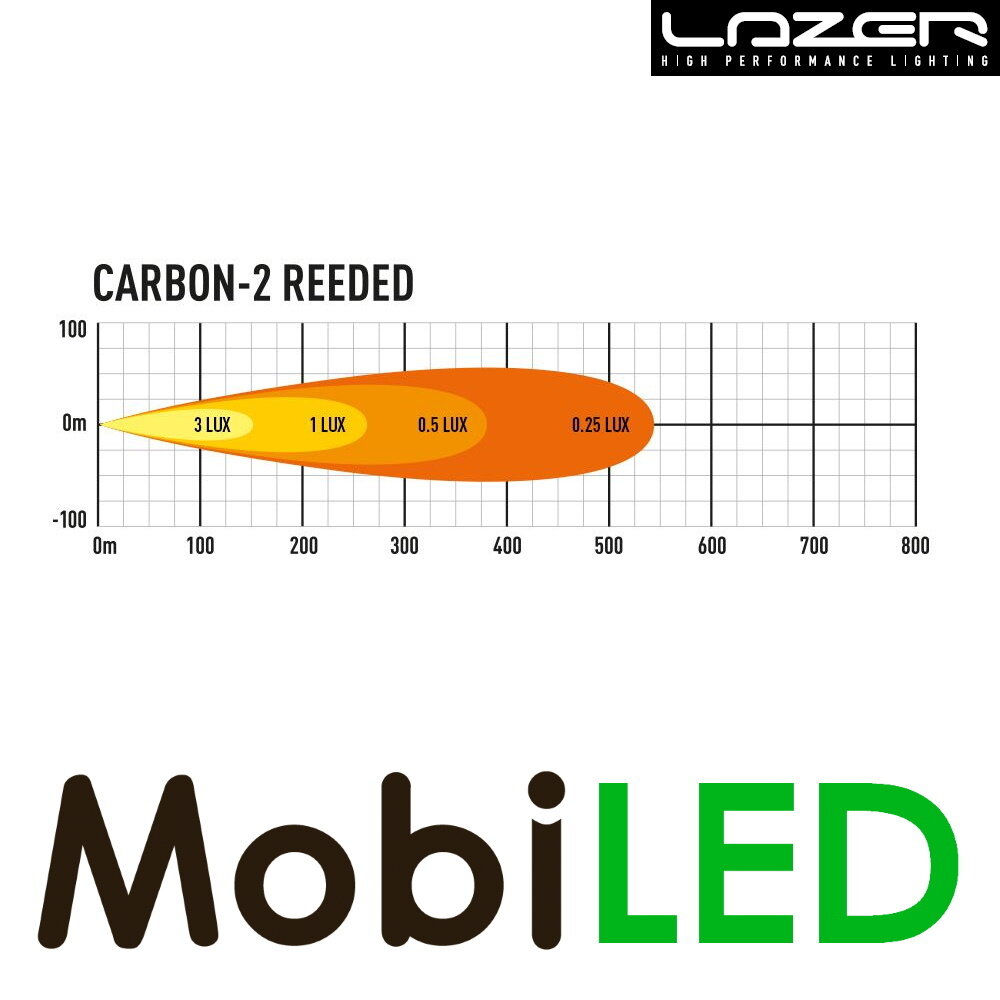

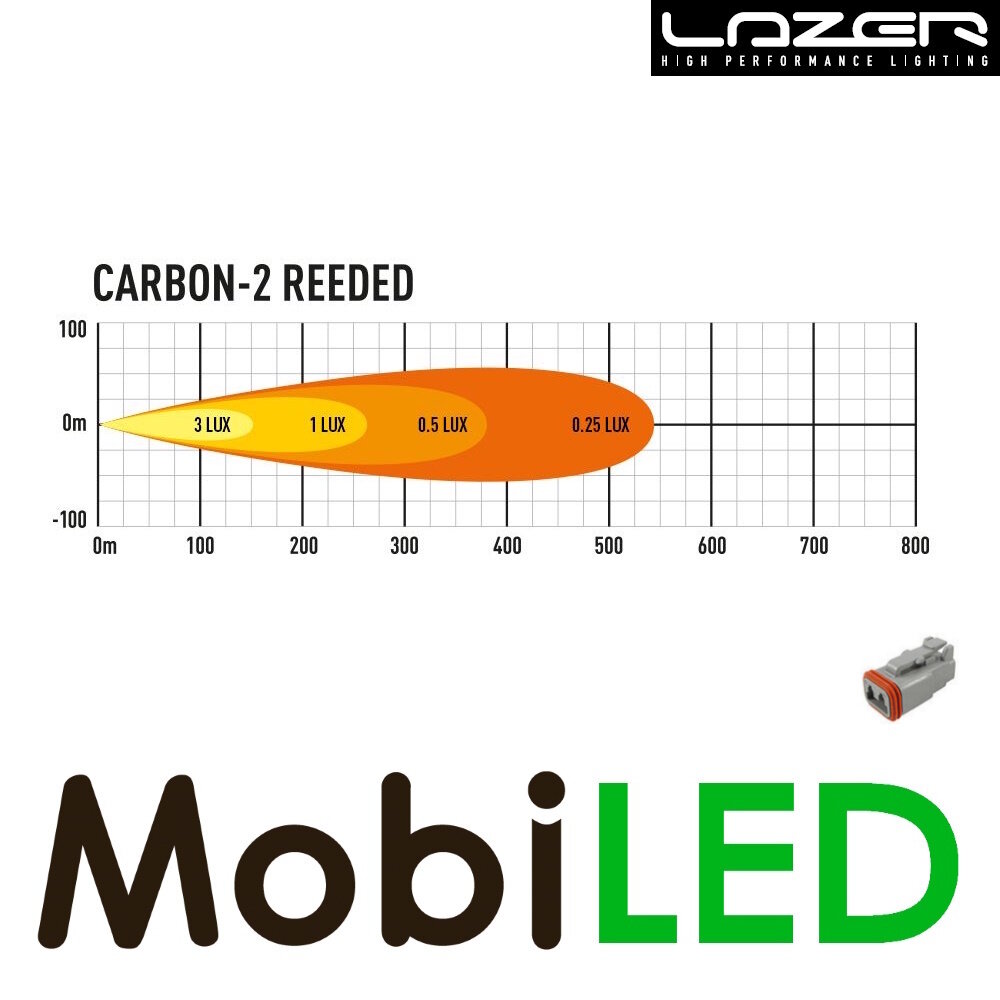

  • Light range: 1 LUX @: 267 m; 0.25 LUX @: 539 m
  • Light color: 5,000K
  • Water resistance: IP68

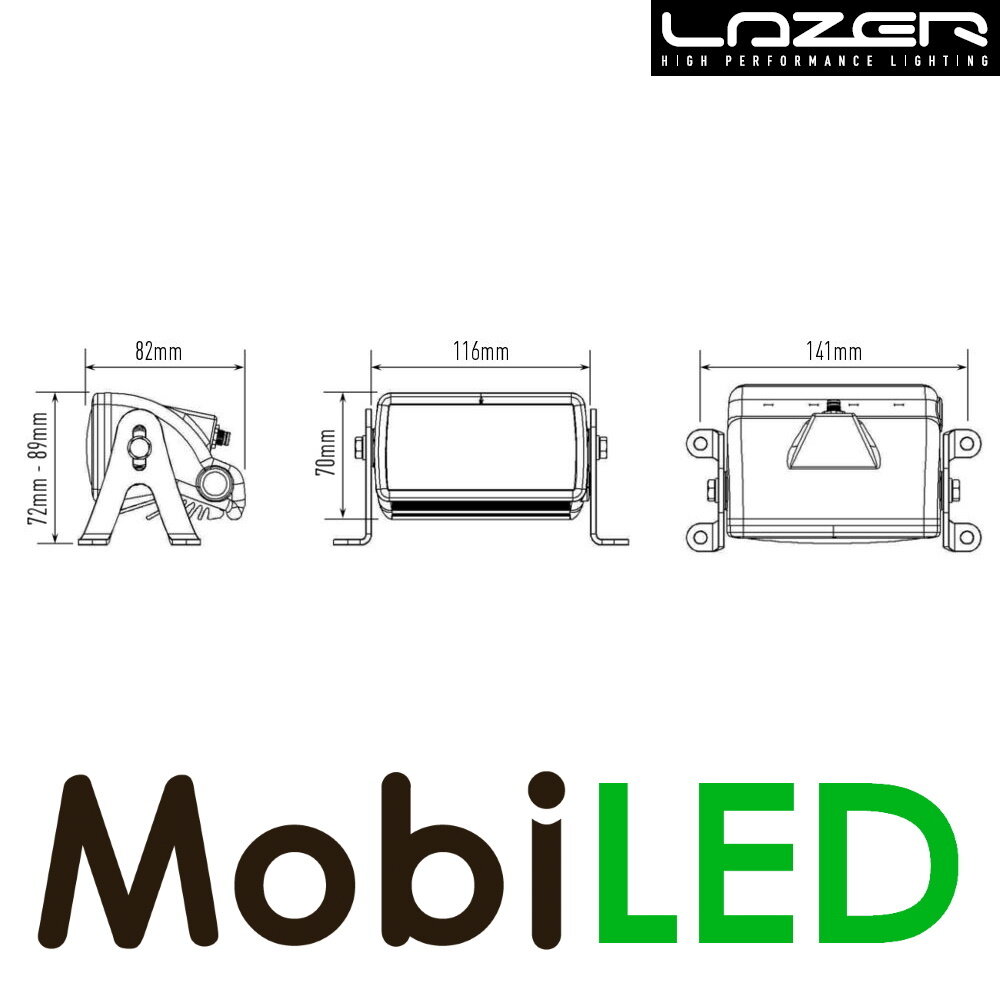

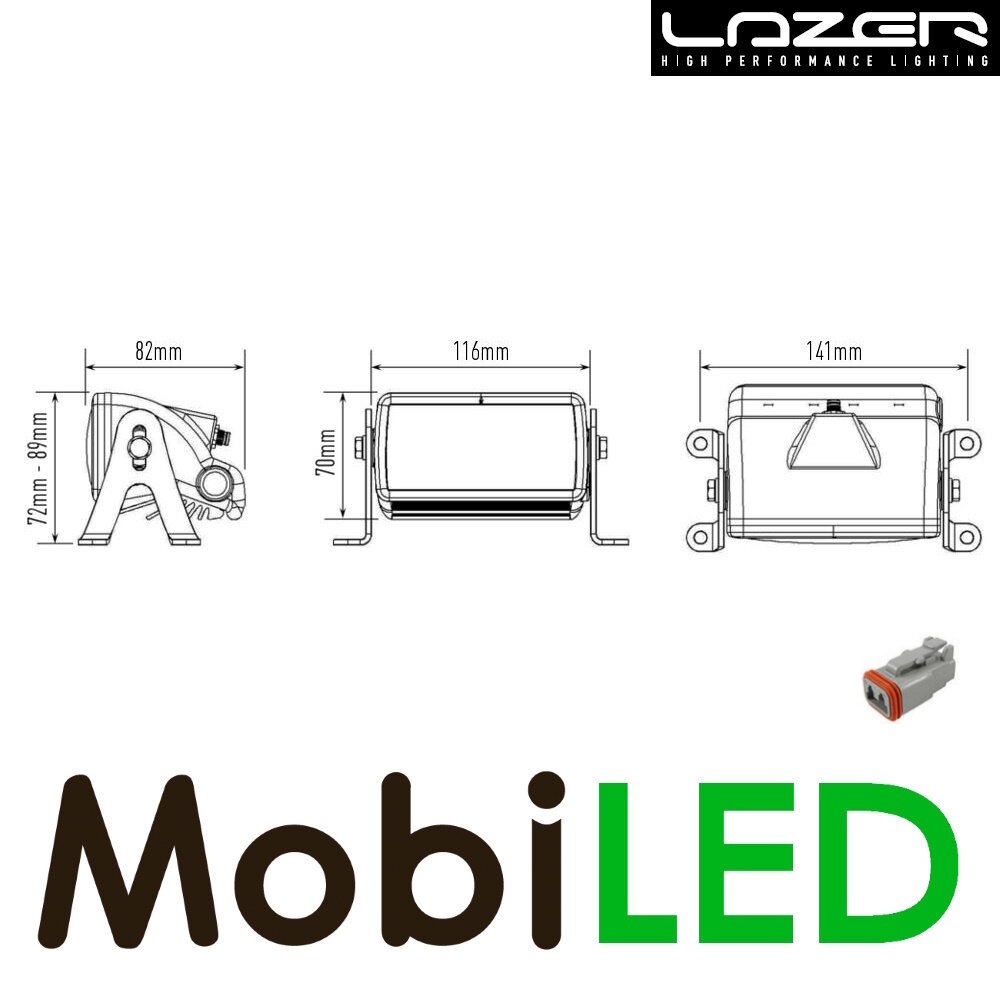

  • Dimensions: 116 x 84 x 70 mm
  • Housing: 3D printed PA12 nylon reinforced with carbon fibres
  • Weight: 230 gr
  • LAZER article number: 00C2-3D-V / 5060404998230

Product specifications

Article number
BS056

Recently viewed

LAZER Carbon 2 Flood Vertical mount
Carbon 2 Flood Vertical mount
In stock
€425,00 (€351,24 excl. VAT)
