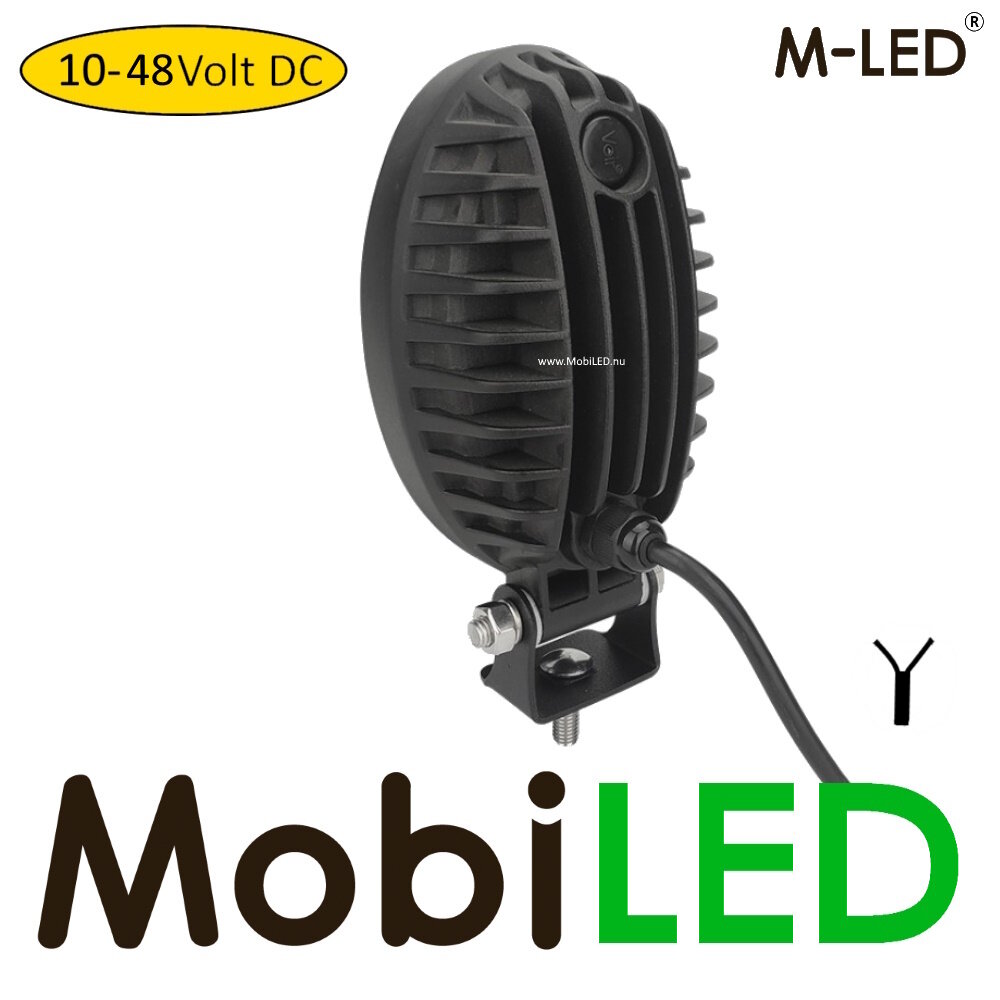

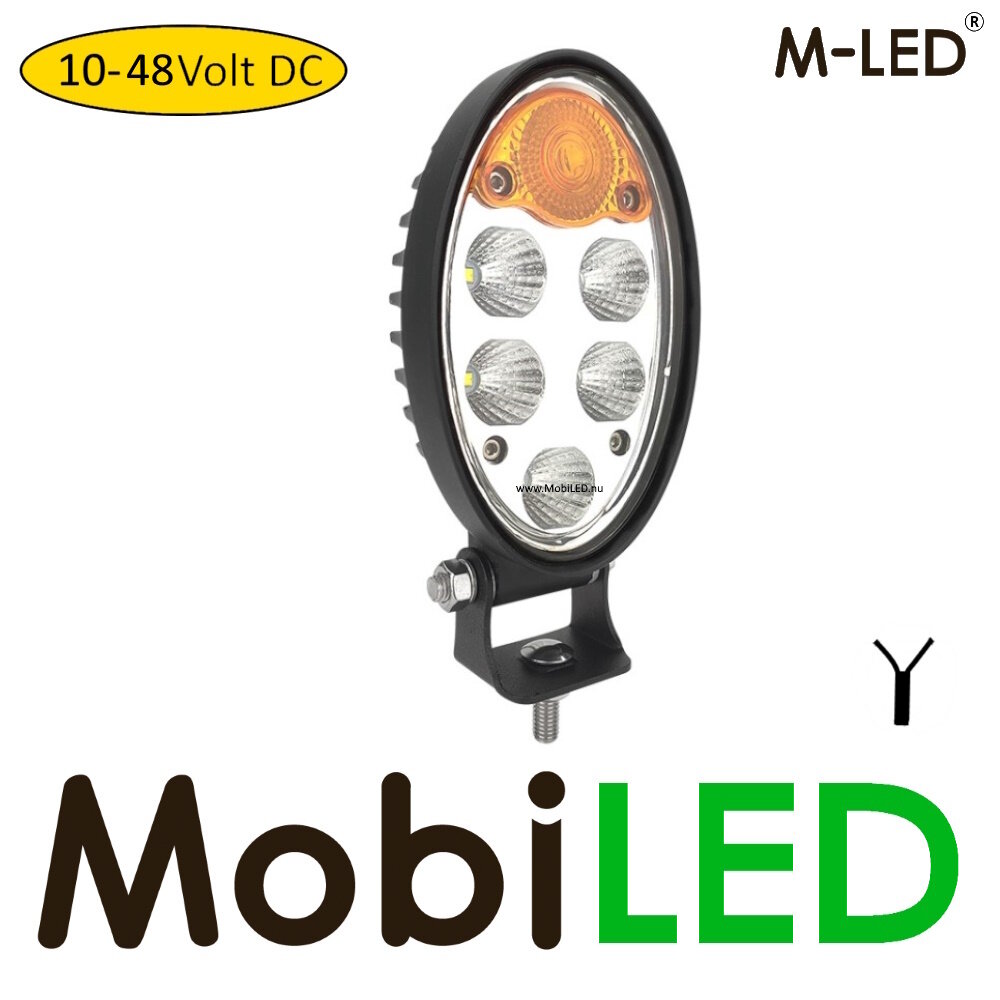

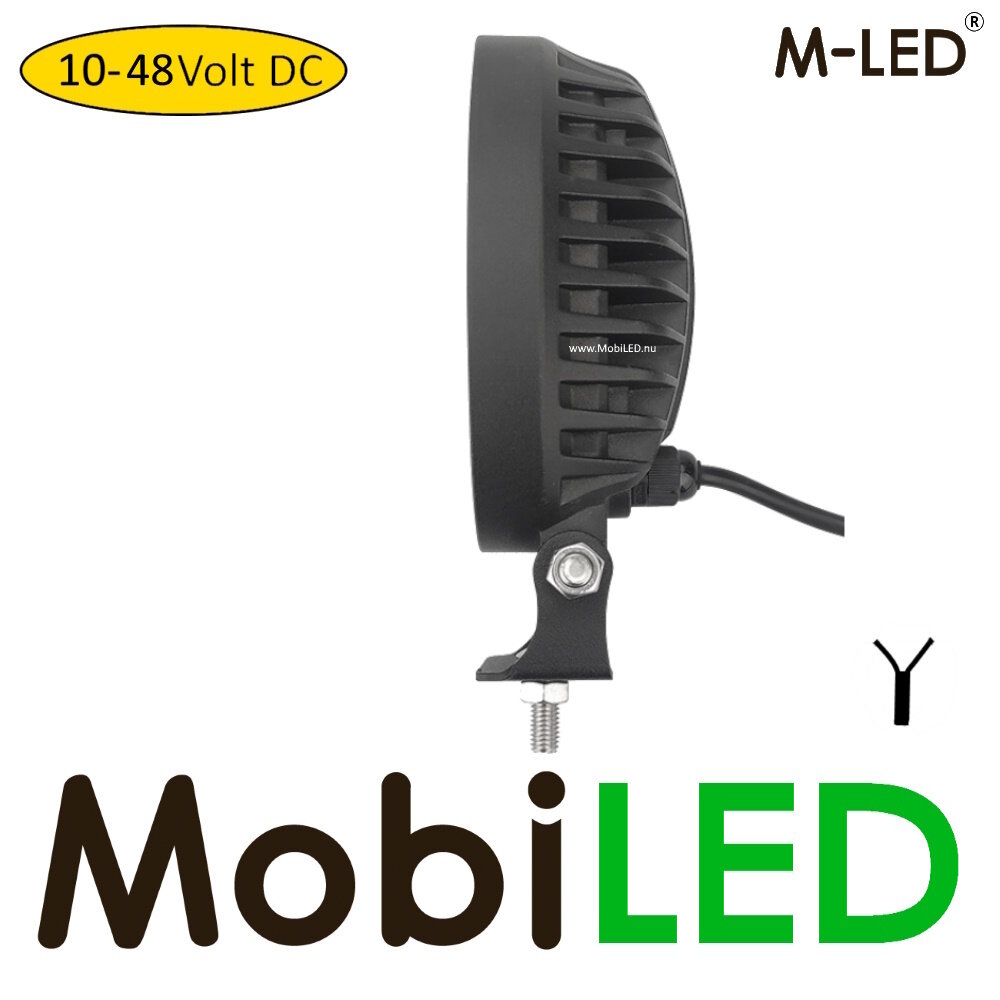

M-LED Forklift work lamp with turn signal and marker top 10-48V
Product description
High voltage floodlight of 36 watts with turn signal and marker light in one. LED lamp for forklift trucks and internal transport. This lamp can be used from 10-48 volts. The six 5 watts CREE LEDs provide an even light of 2800 lumens.
Connection diagram:
Black: Mass
Brown: work lamp
Blue: turn signal
Yellow/green: marker lights
...
High voltage floodlight of 36 watts with turn signal and marker light in one. LED lamp for forklift trucks and internal transport. This lamp can be used from 10-48 volts. The six 5 watts CREE LEDs provide an even light of 2800 lumens.
Connection diagram:
- Black: Mass
- Brown: work lamp
- Blue: turn signal
- Yellow/green: marker lights
Show more
Show less
Product specifications
- Article number
- WL309
- Length (cm)
- 9
- Height (cm)
- 14
- Height incl bracket (cm)
- 17,2
- Depth (cm)
- 6,8
- Shape
- Oval
- Tension
- 10-48V
- Power
- 36W
- Light image
- Combo
- Lumens
- 2800
- Light colour
- White / Amber
- LED Type
- CREE
- Number of LEDs
- 6 + 2
- Lens material
- PMMA
- Housing material
- Aluminum
- Mounting bracket material
- Stainless steel
- Mounting type
- Bolt / bracket
- Connection
- Cable
- Flush-mounted / surface-mounted
- Surface-mount
- IP rating
- IP67
- Packed per
- 1
