M-LED Danish lamp unit tricolor with turn signal Dark Look E-mark

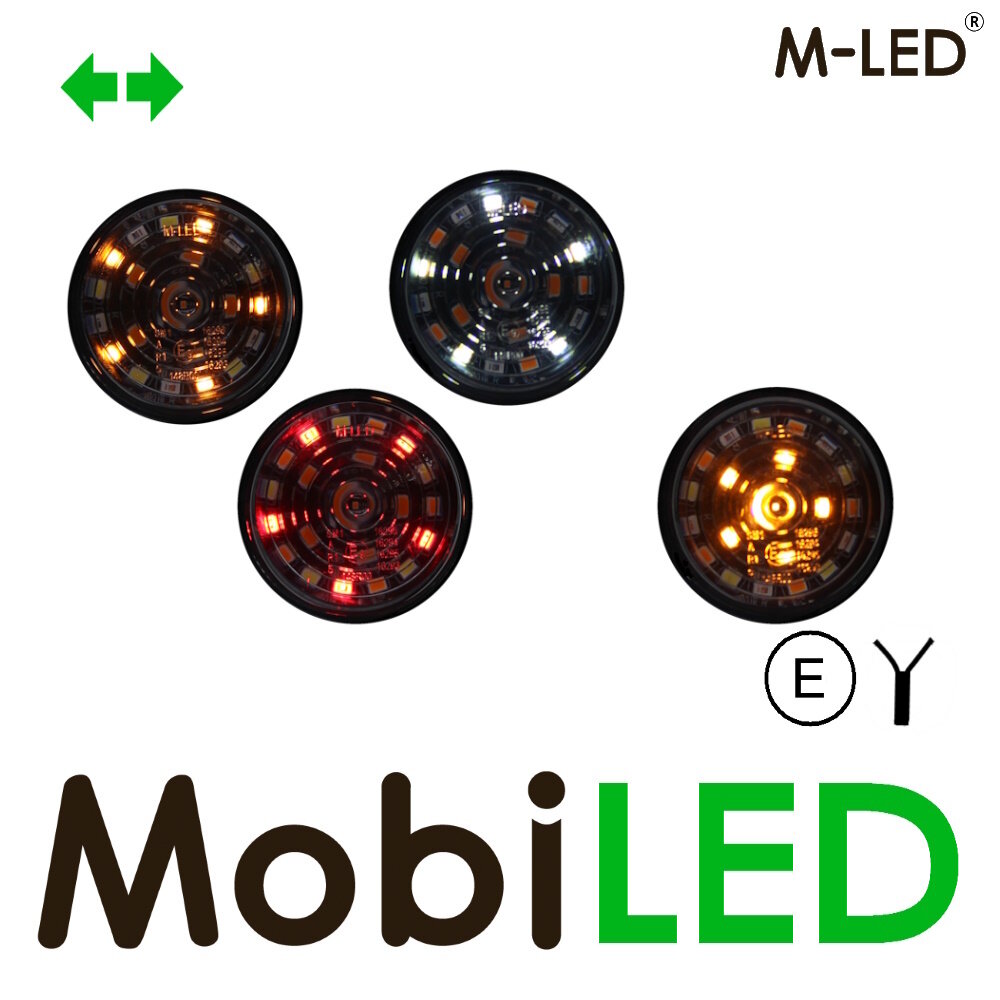

Four in one, Danish model width lamp unit from M-LED with unique features. A lamp that can burn red, amber or white as desired. Great if you want to switch from white to amber to clearly show your style.
In addition to the three colours, this lamp also has an approved indicator. As soon as the indicator is used, the position light goes out and comes back when it goes out. A unit with all the functions you could possibly want.

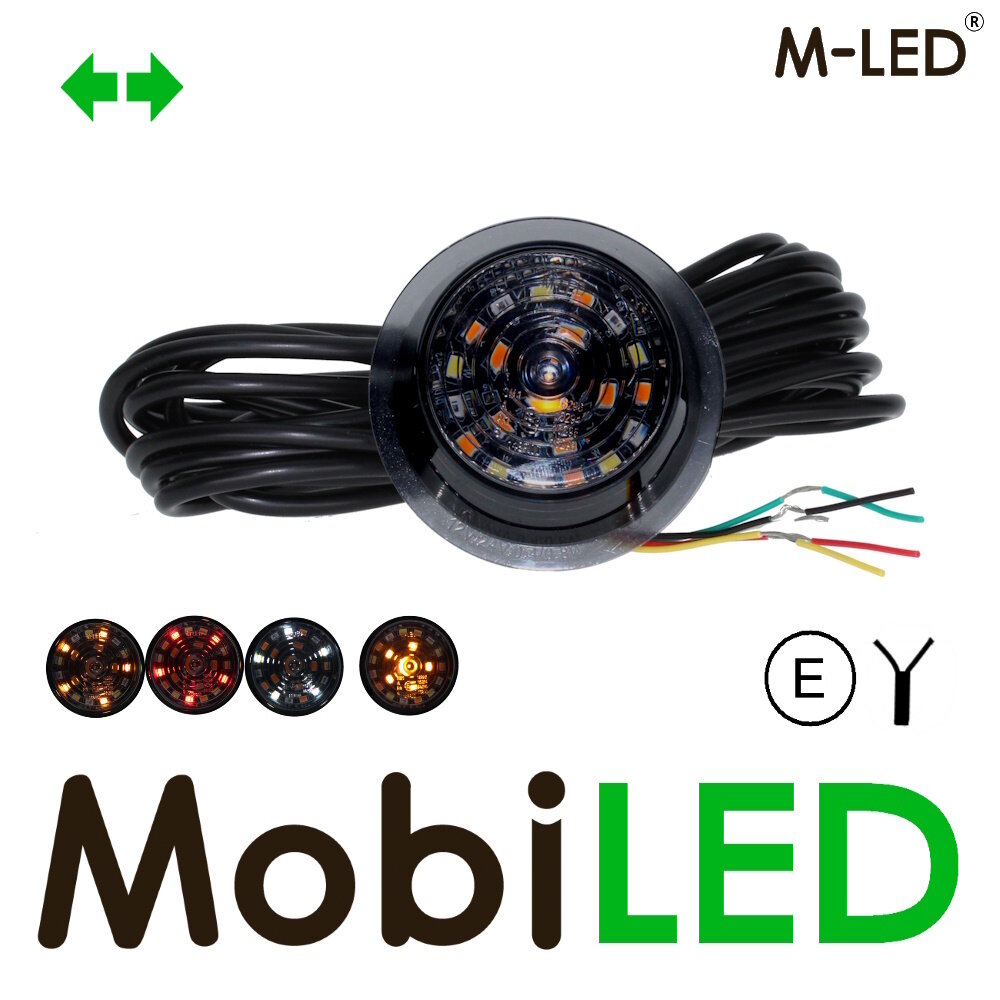

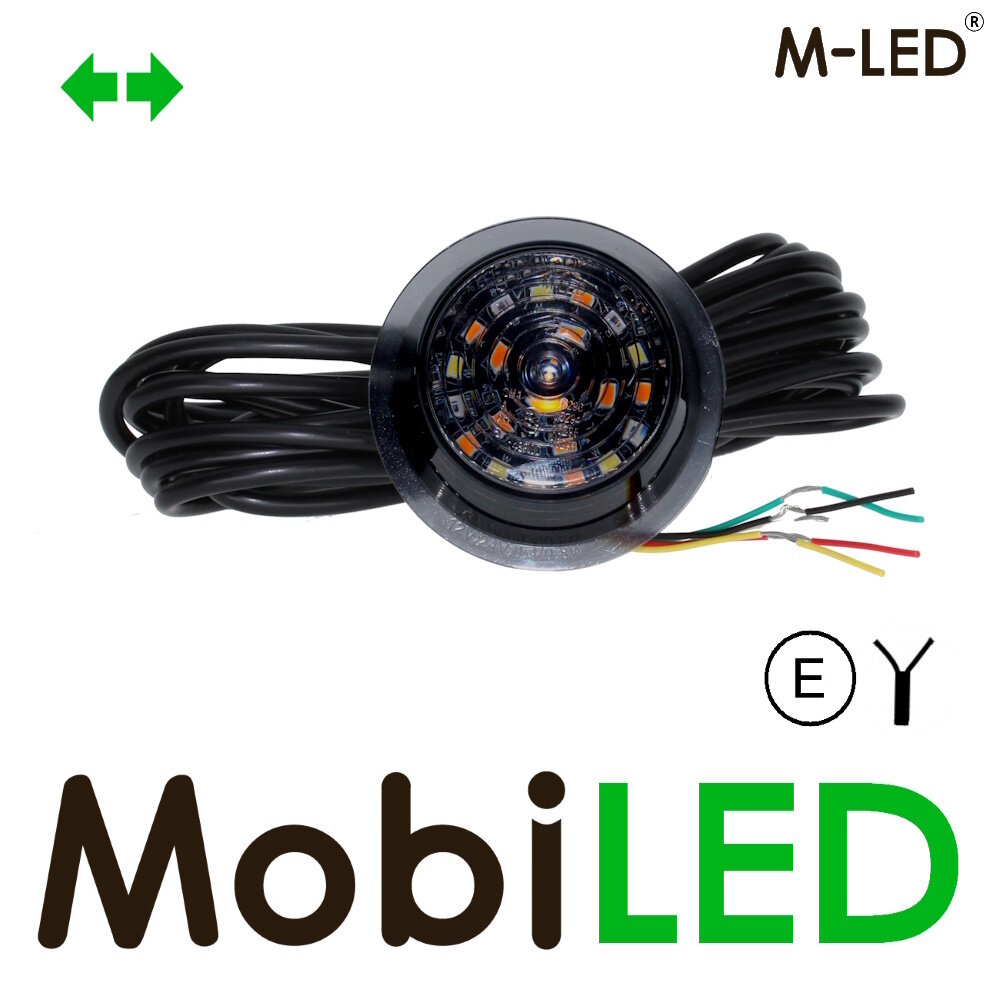

The four-in-one from M-LED comes with a 5 meters long connection cable and is available in two versions: Clear look and, like this one, in a Dark look version. The certification for all colours is R148, the turn signal has Cat 5. This lamp is multi-voltage, so it can be used in a wide range of applications.
The lamp fits perfectly in the rubber side posts of M-LED (PV157 or PV158), but also in the side posts of M-LED and other brands such as Gylle, WAS, Horpol, Tralert and Strands Viking.
Connection diagram:
- Black: ground
- White: white
- Red: red
- Yellow: indicator
- Green: amber
Product specifications
- Article number
- PV155

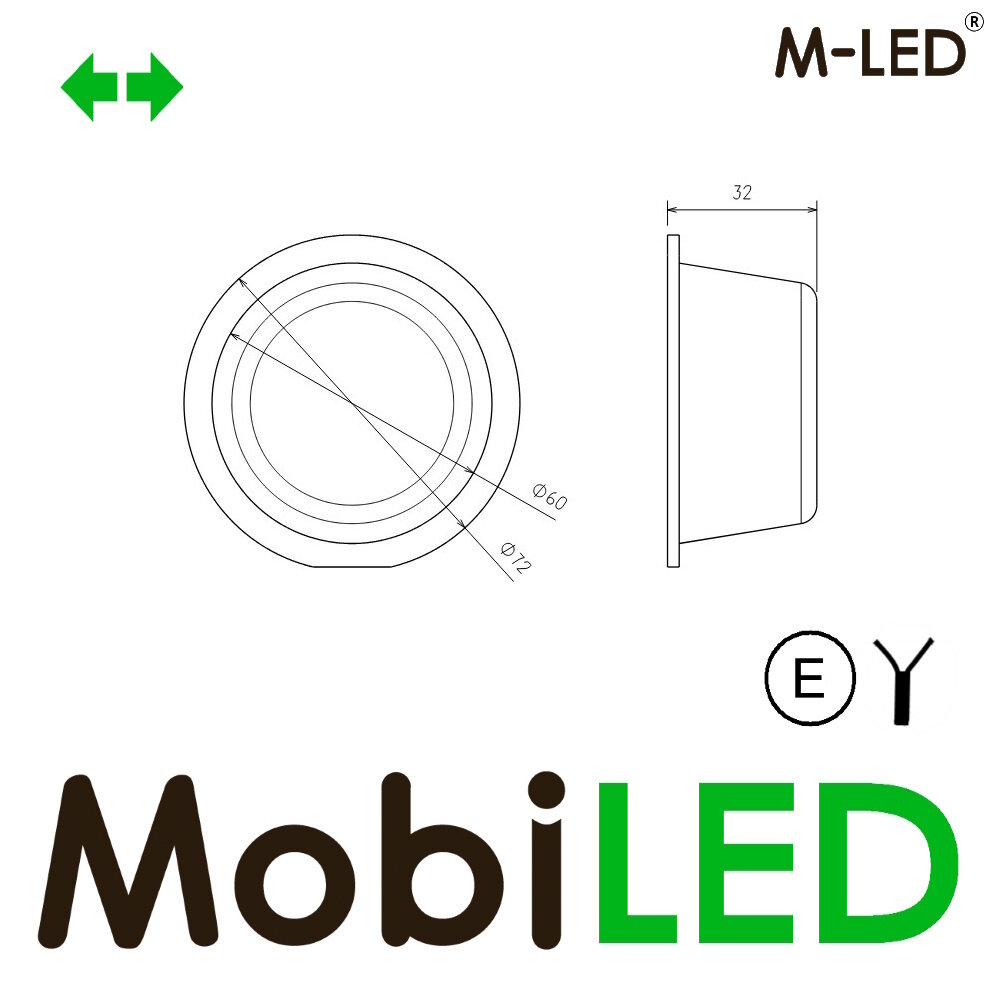

- Depth (cm)
- 3,2
- Shape
- Round
- Diameter (cm)
- 7,2/6

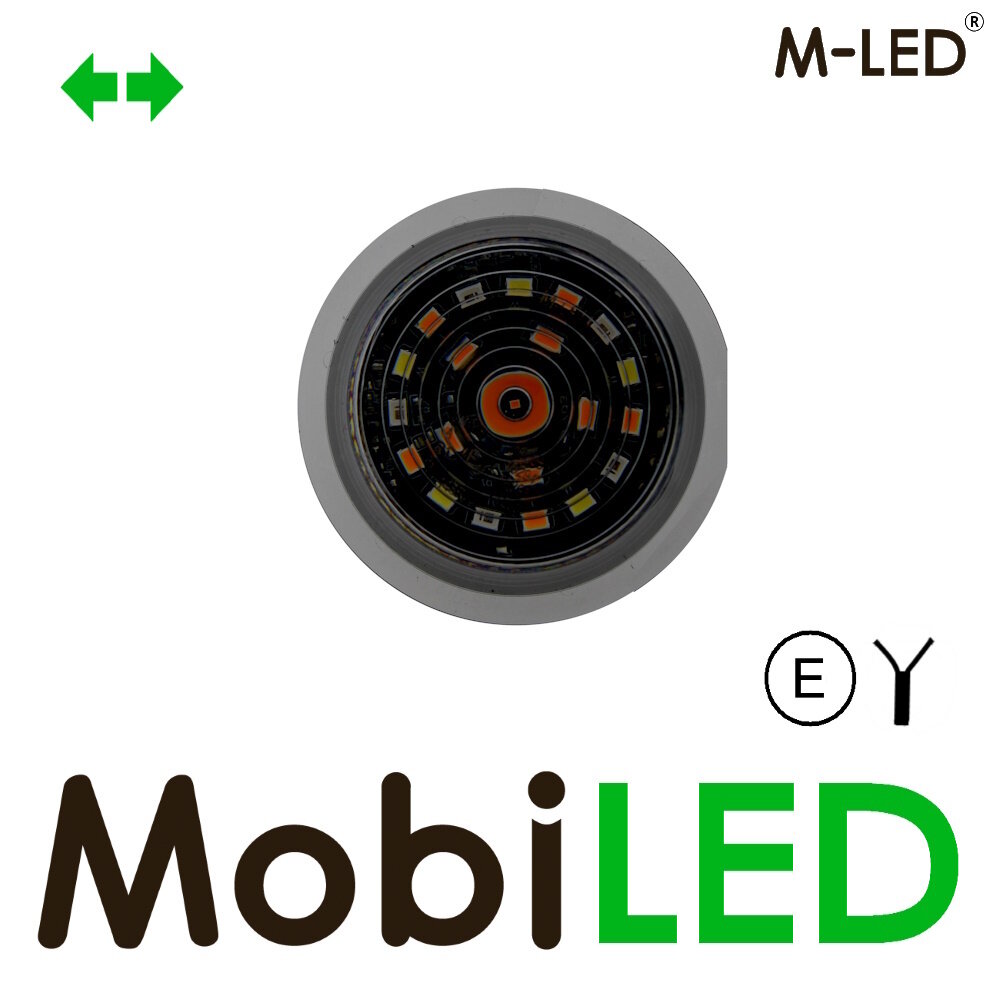

- Number of LEDs
- 21
- Housing colour
- Black
- Light colour
- Red / Amber/ White
- Lens colour
- Dark
- Tension
- 12-30V
- Connection
- Cable
- Number of wire cores
- 5
- Cable Length (cm)
- 500
- Certification
- R148, cat 5
- IP rating
- IP67
- Vehicle side
- Universal (L/R)
- Indicator function
- Yes
- Packed per
- 1
- Manufacturer article number
- VP30027-S1
