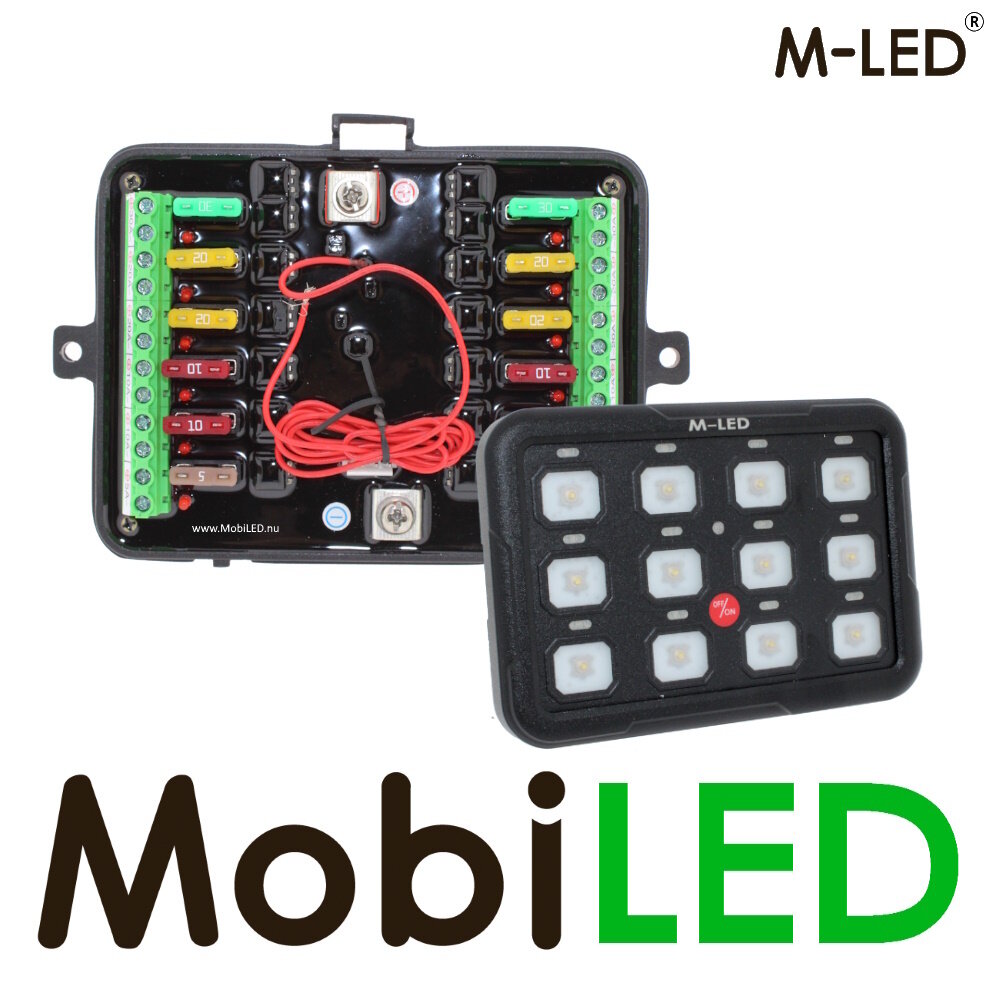

M-LED Control panel with power unit 12 buttons 12/24V

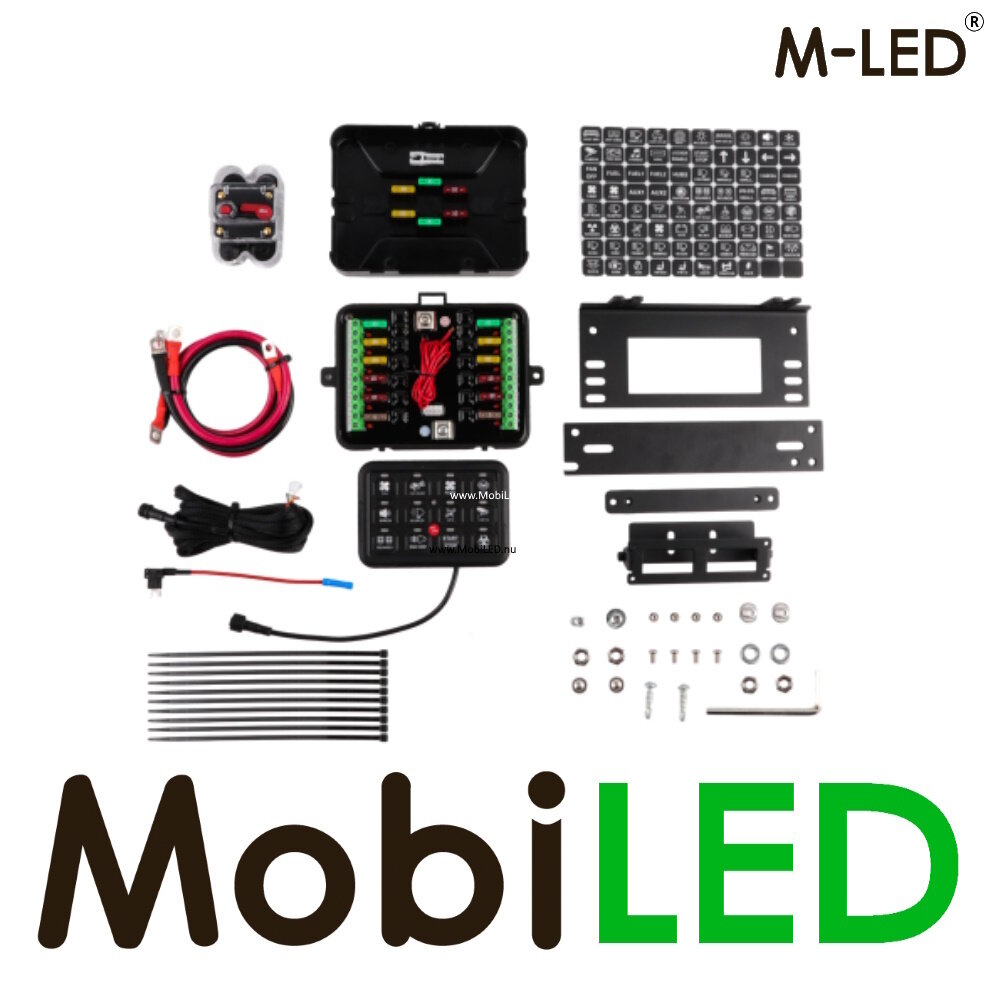

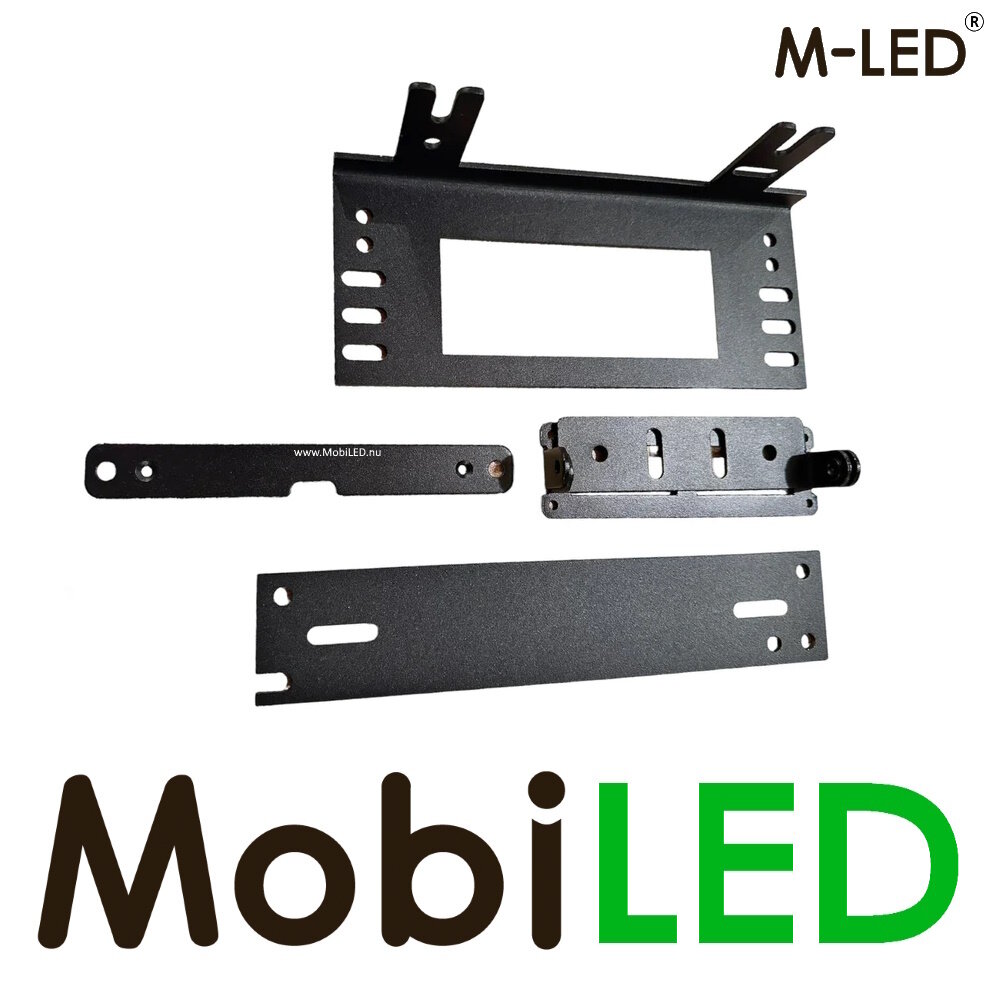

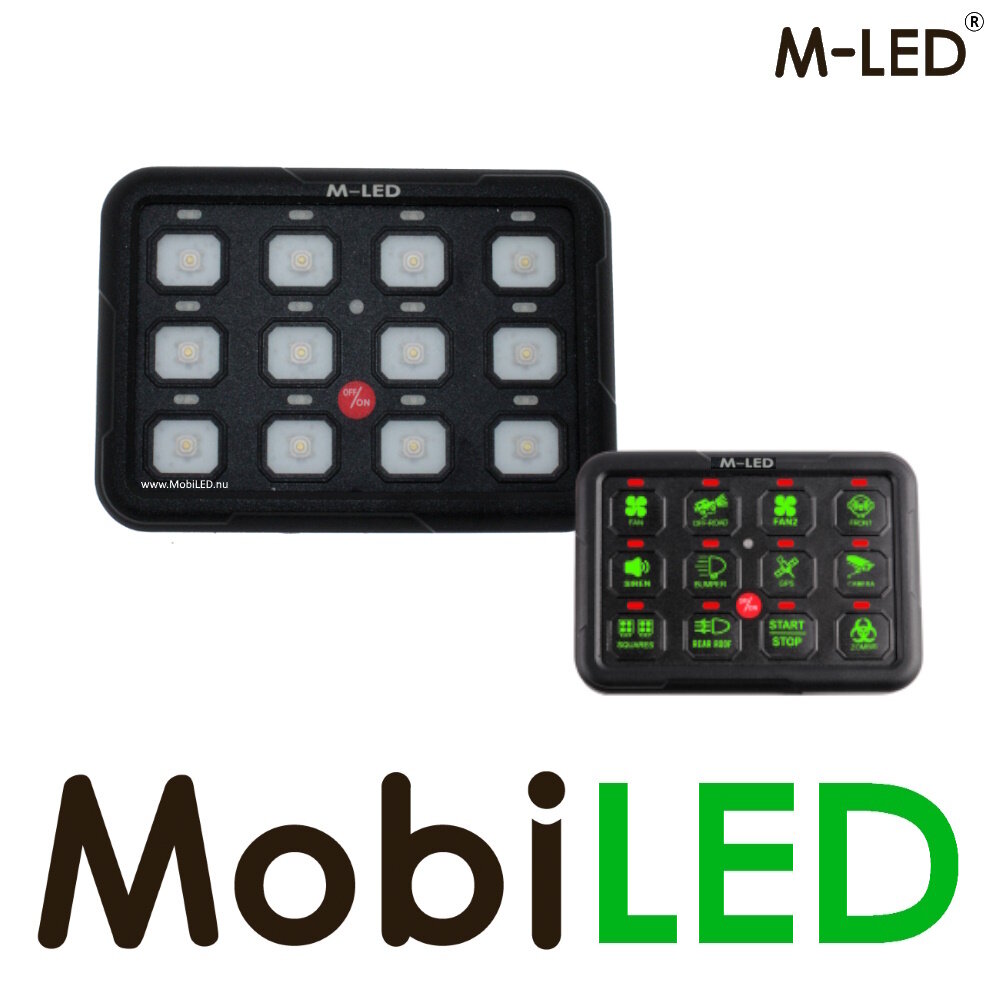

A complete set with control panel and power unit for connecting lighting, among other things. The panel has 12 buttons, each button can be set to 3 functions, on/off switch, pulse switch or strobe switch. The buttons can be illuminated in different colors and the intensity is automatically adjusted to the environment. Stickers are included for the buttons, 78 with various symbols and 2 without symbols. The panel can be mounted with the supplied bracket / mounting plate.

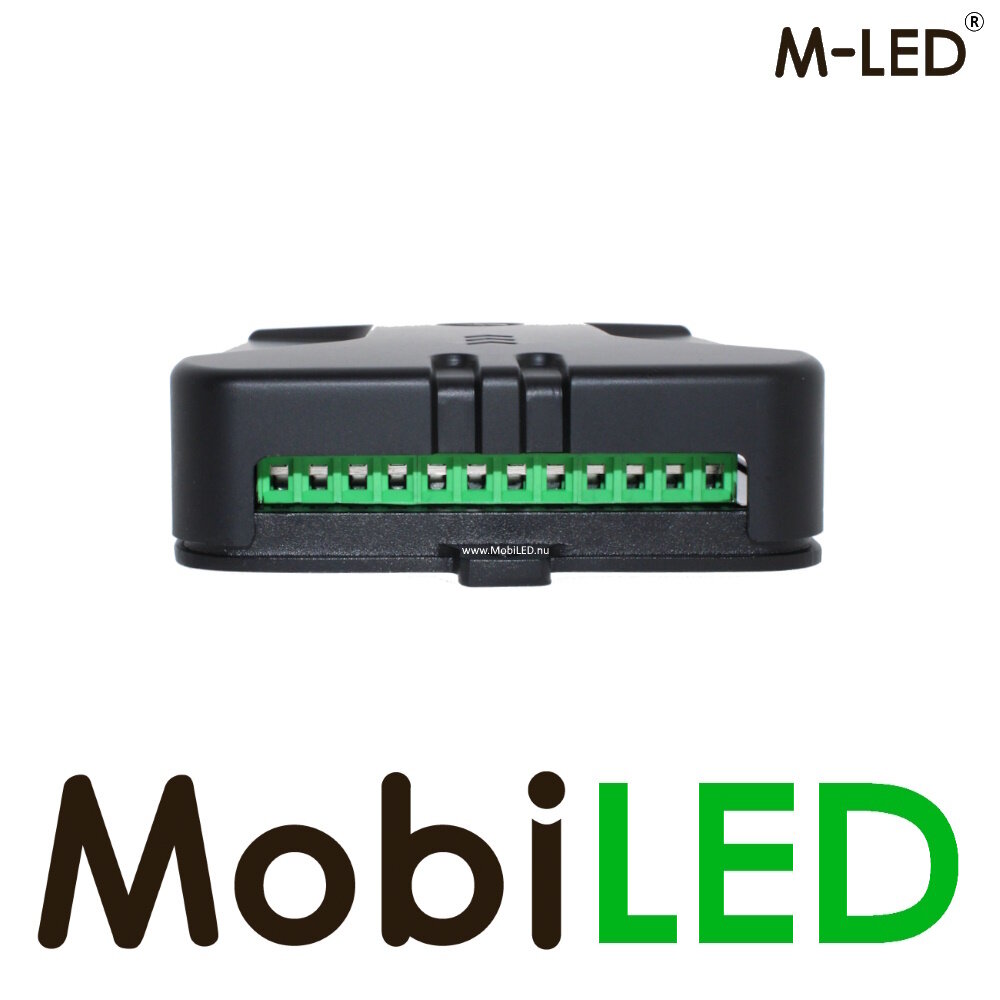

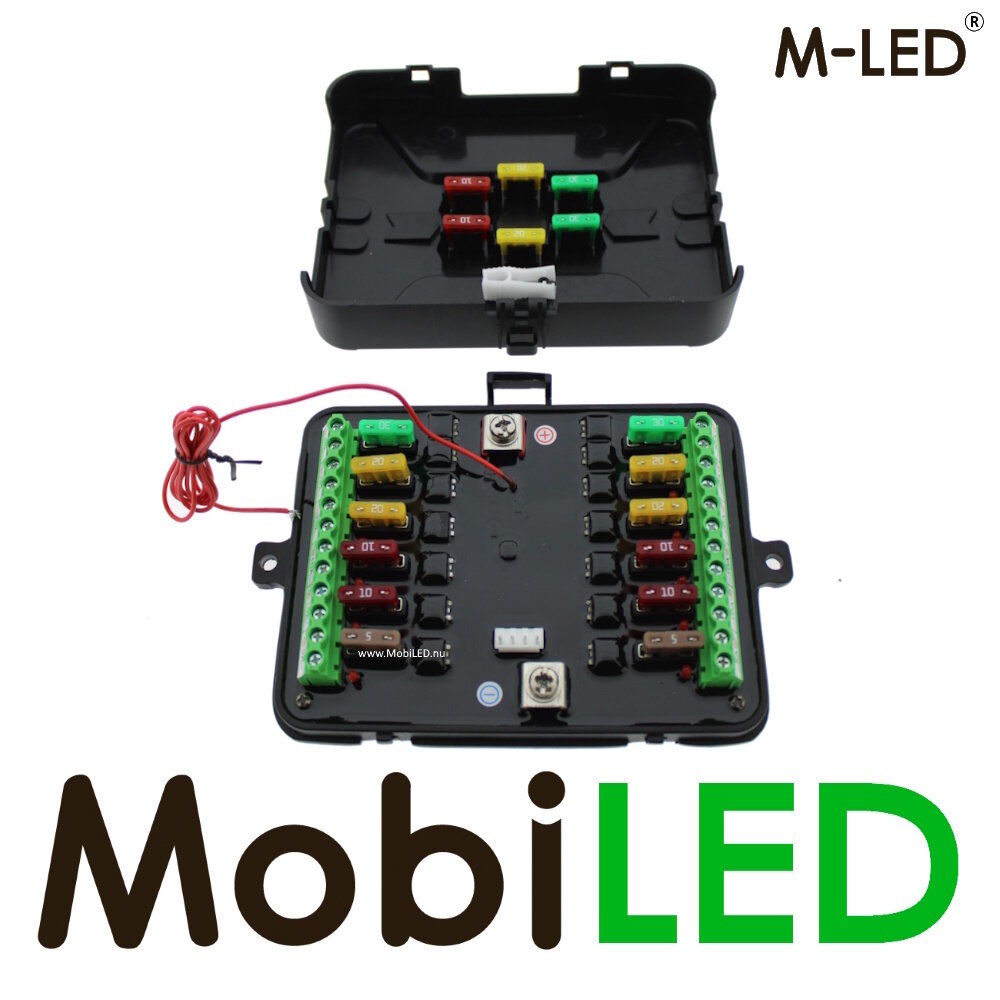

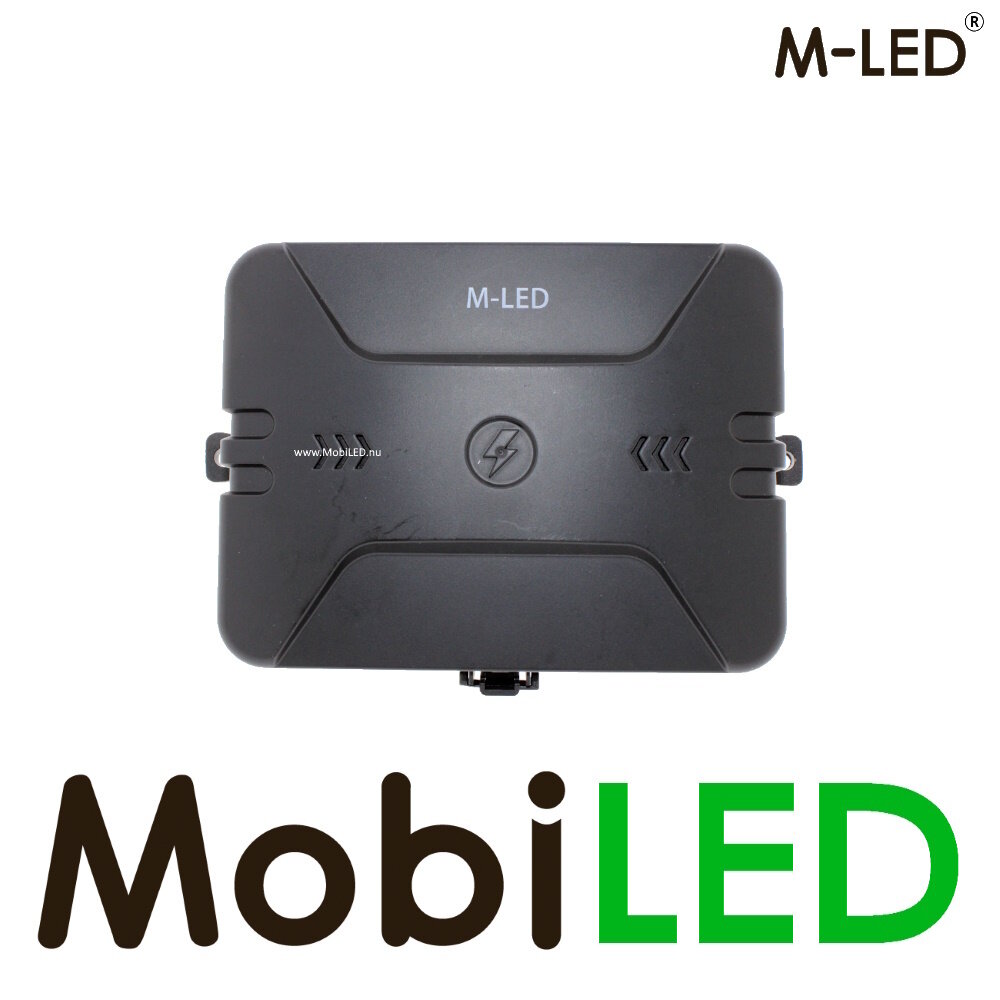

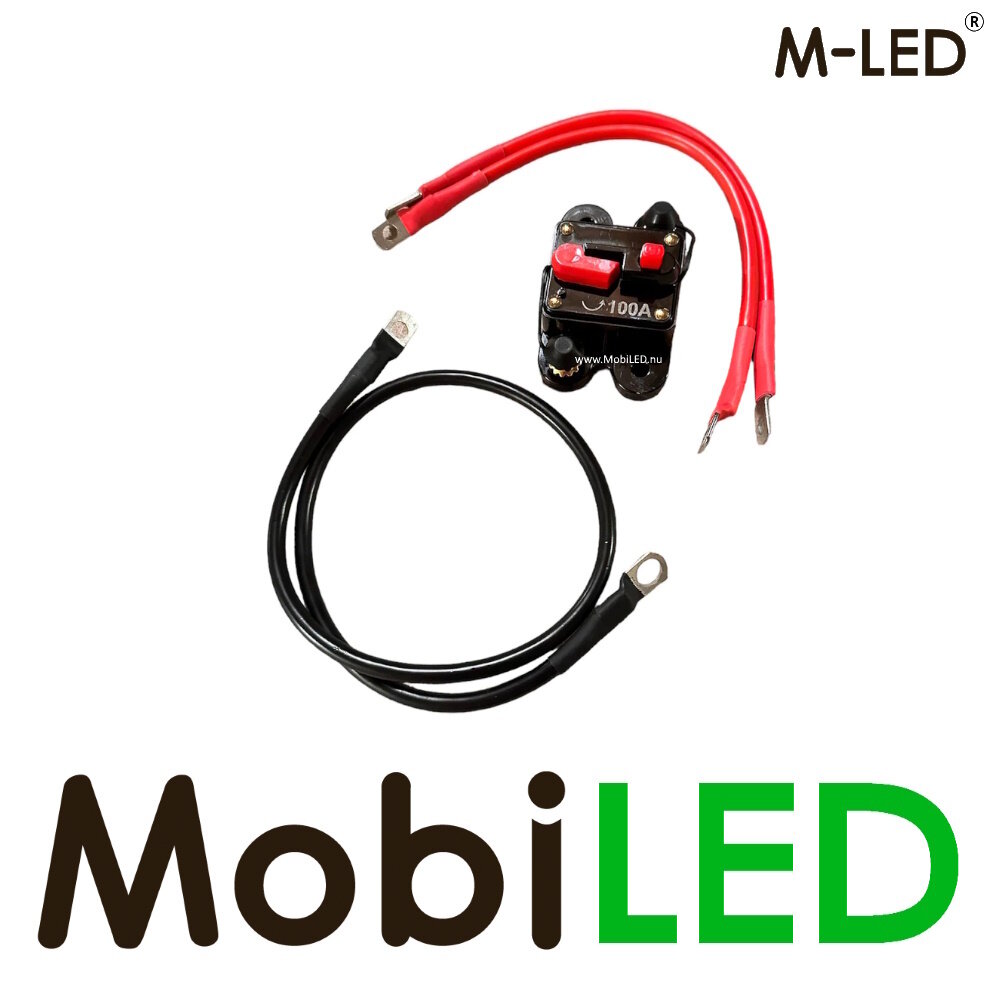

The set is equipped with a power unit with relays and fuses for all 12 connections, as standard it is supplied with 2x 5A, 4x 10A, 4x 20A and 2x 30A fuse. Some spare fuses are also included. The maximum input current is 80A, an automatic circuit breaker is included for this. Maximum output current is 1000W at 12V and 1500W at 24V. A 2.5 meter long cable connects the panel to the power unit.

Specifications:

• Input voltage: 12 or 24 V DC
• Maximum output power: 1000 W at 12 V, 1500 W at 24 V
• Maximum input current: 80 A
• Switch panel size: 127 X 90 x 15 mm
• Switch box dimensions: 165 X 125 x 37 mm
• Material: high-quality ABS and aluminum
• Automatically dimming background lighting
• Operating temperature: -40°C ~ +105°C
• DIY labels: 80 pieces reusable labels
• Overvoltage protection, overcurrent protection
• Reverse polarity protection and thermal protection
