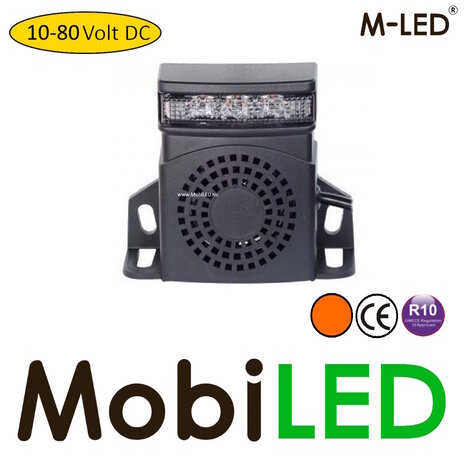

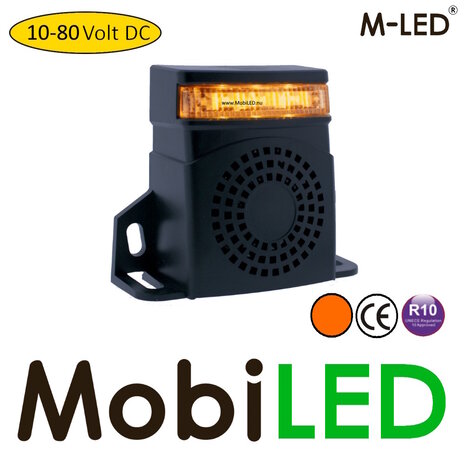

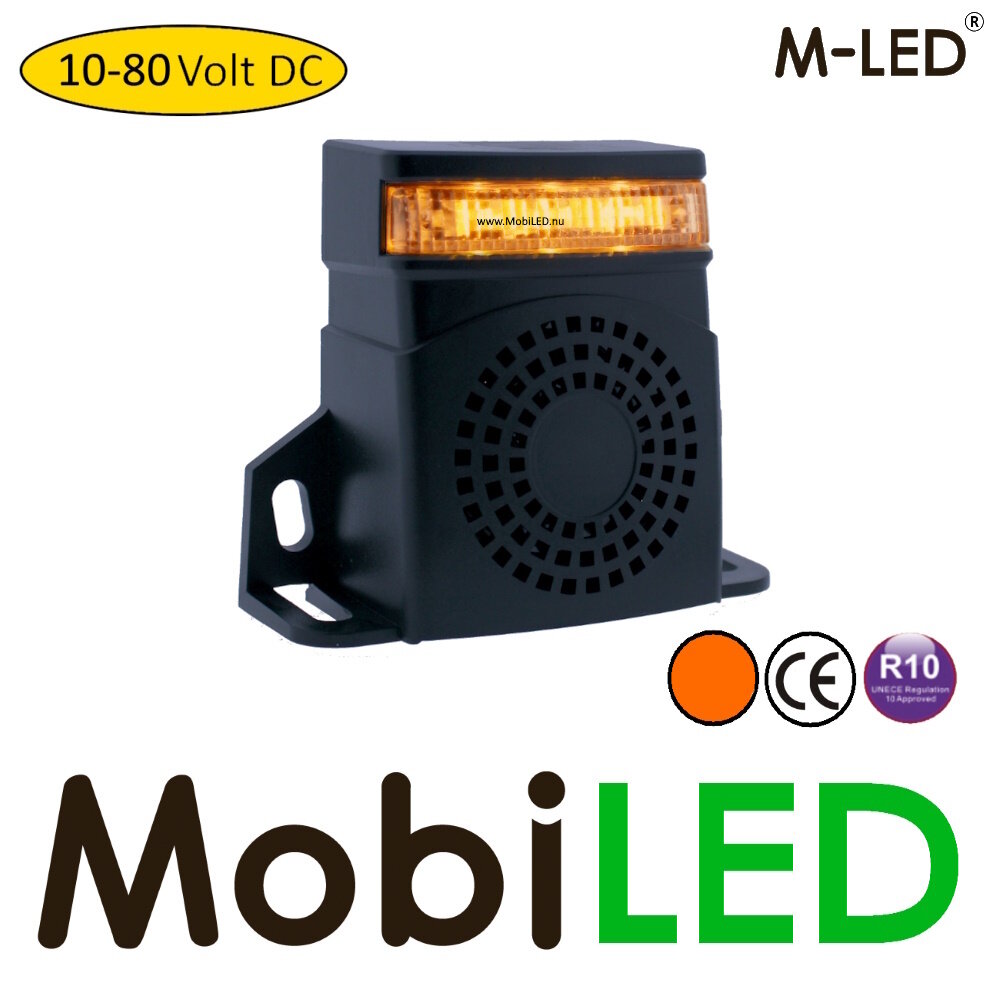

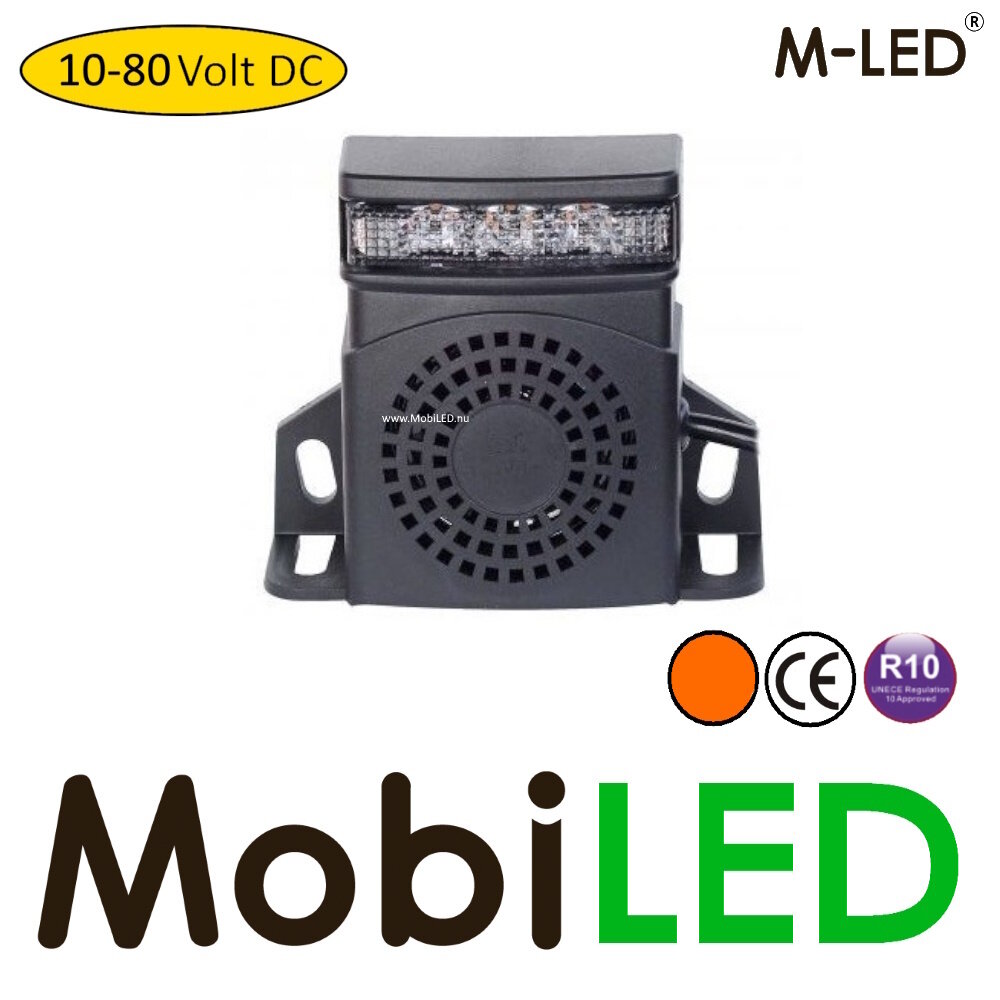

M-LED Reversing alarm with LED 10-80 VDC 92-107dB



Product description
A loud and clear alarm, no less than 92-107dB in combination with a powerful LED flash. The lamp/alarm has different modes in which it can be used. This lamp is supplied with clear instructions for connecting it.
Connection diagram:
Black: negative
Red: clear beep sound with flash
Gray: loud beeping noise and flash
Yellow: (along with red or...
A loud and clear alarm, no less than 92-107dB in combination with a powerful LED flash. The lamp/alarm has different modes in which it can be used. This lamp is supplied with clear instructions for connecting it.
Connection diagram:
- Black: negative
- Red: clear beep sound with flash
- Gray: loud beeping noise and flash
- Yellow: (along with red or gray) flash only, no sound
- White: (along with red or gray) only sound, no flash
Show more
Show less
Product specifications
- Article number
- FL381

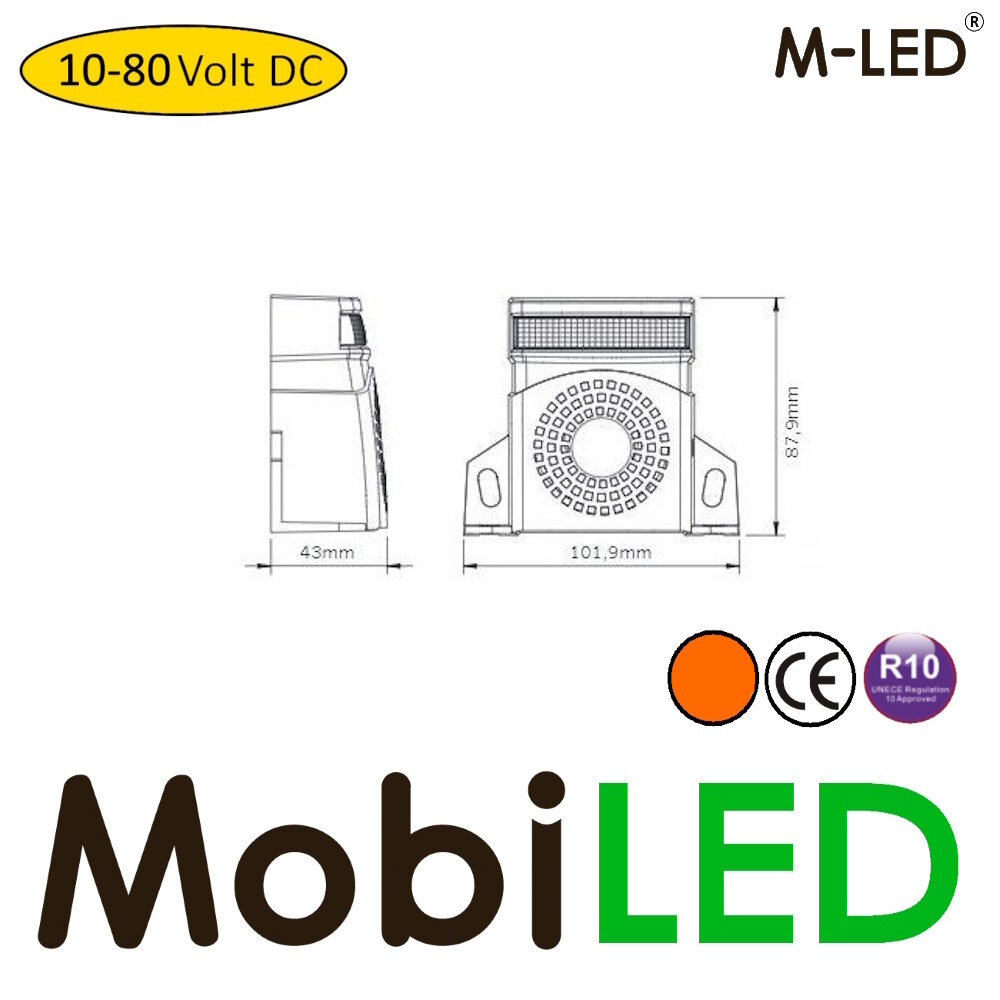

- Length (cm)
- 10,2
- Height (cm)
- 8,9
- Depth (cm)
- 4,3
- Number of LEDs
- 3
- Housing colour
- Black
- Light colour
- Amber
- Lens colour
- Transparant
- Tension
- 10-80V
- Power
- 3W
- Mounting type
- Flat mounting
- Mounting options
- Screw
- Flush-mounted / surface-mounted
- Surface-mounting
- Connection
- Cable
- Number of wire cores
- 5
- Certification
- ECE R10, CE
- IP rating
- IP67
- Vehicle side
- Universal (L/R)
- Indicator function
- No
- Position light function
- No
- Number of patterns
- 1
- Packed per
- 1
- Manufacturer article number
- YL-401-1280
