M-LED Headlight Left E-mark

Product description

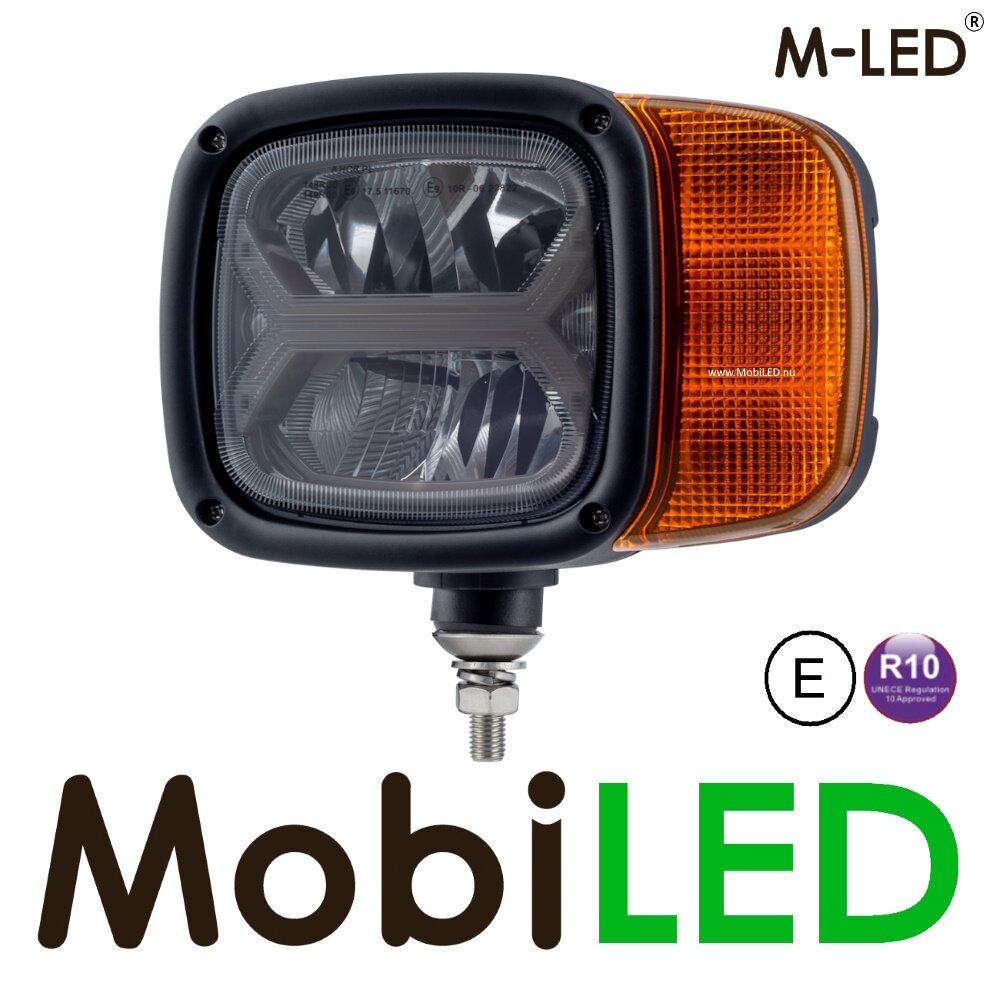

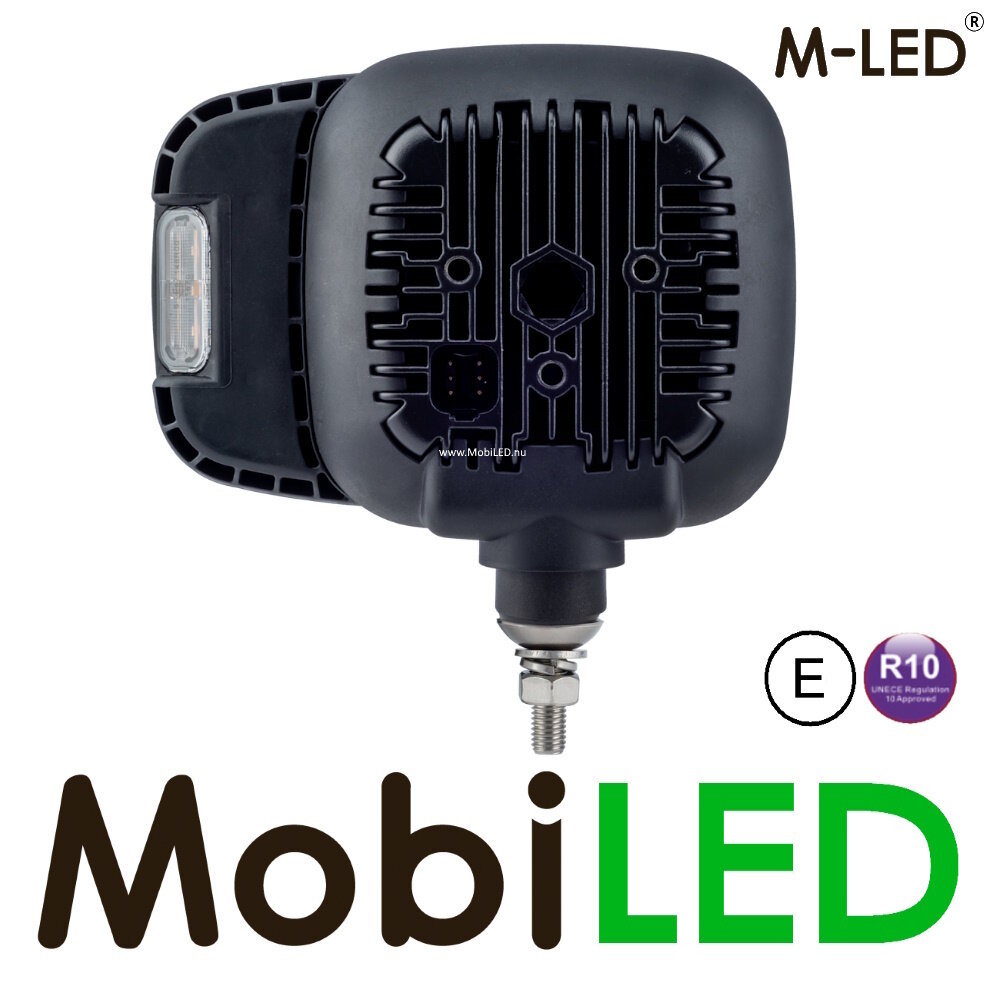

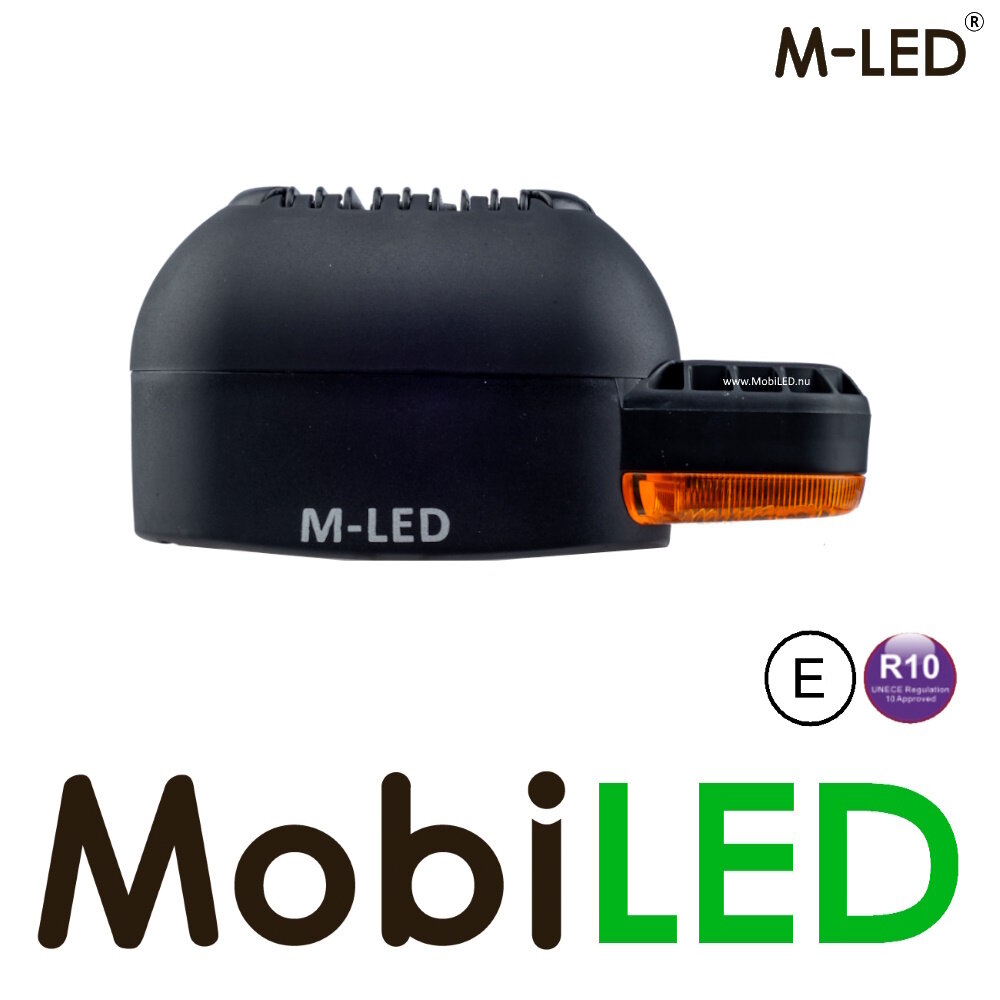

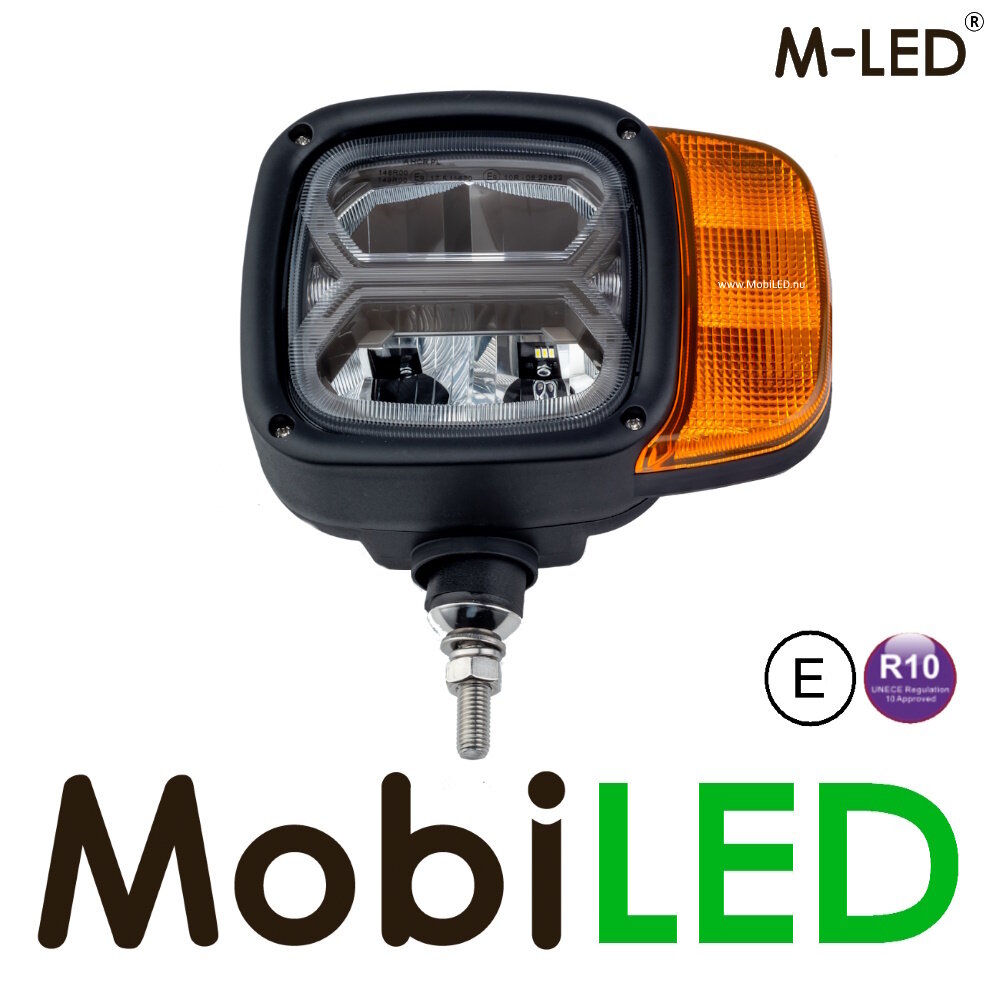

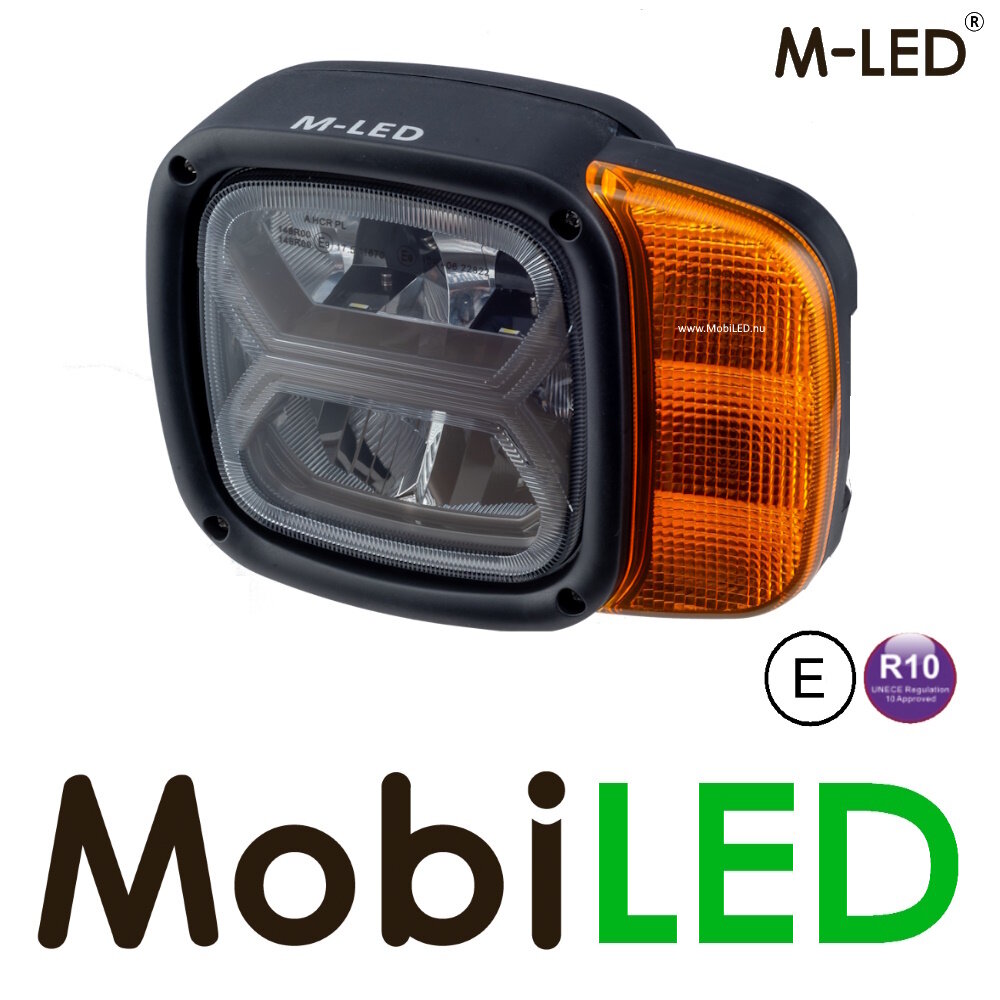

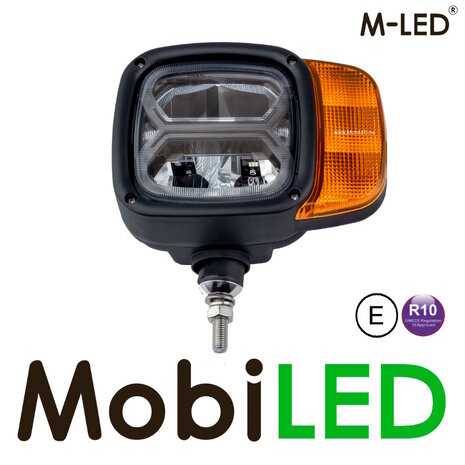

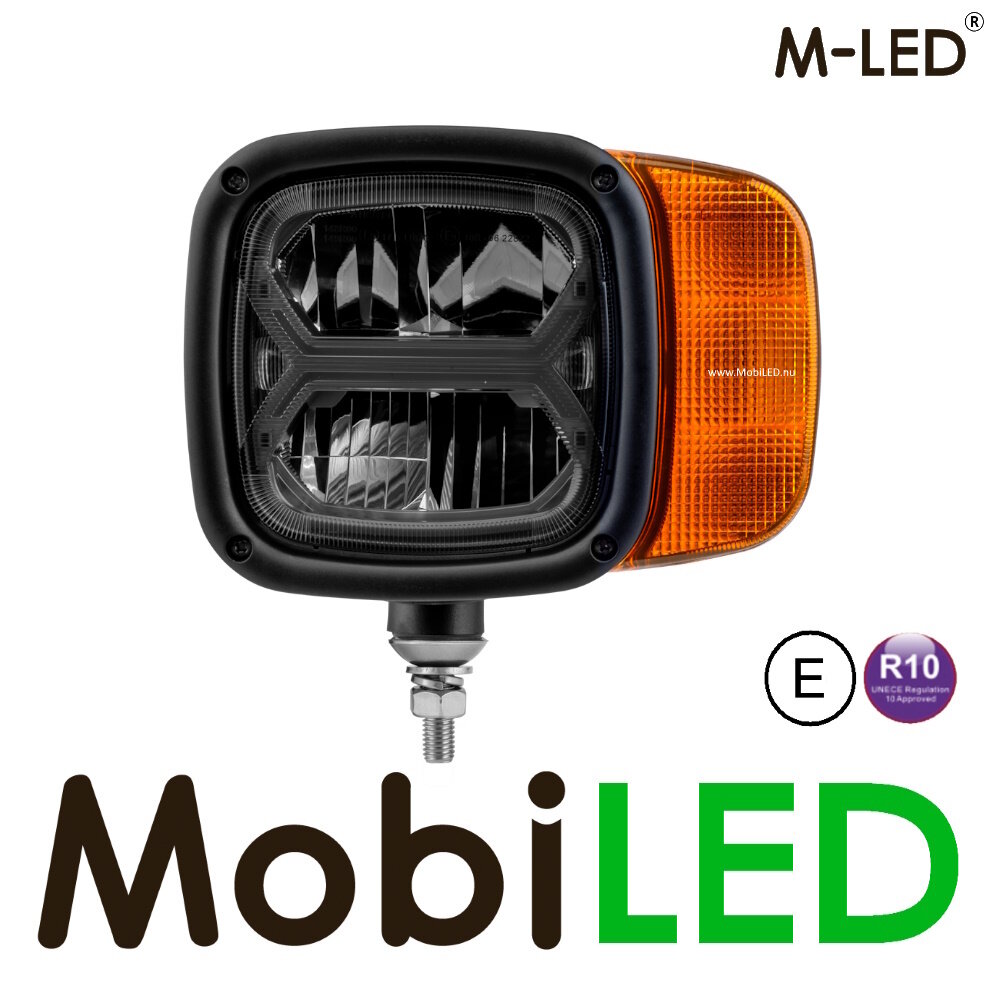

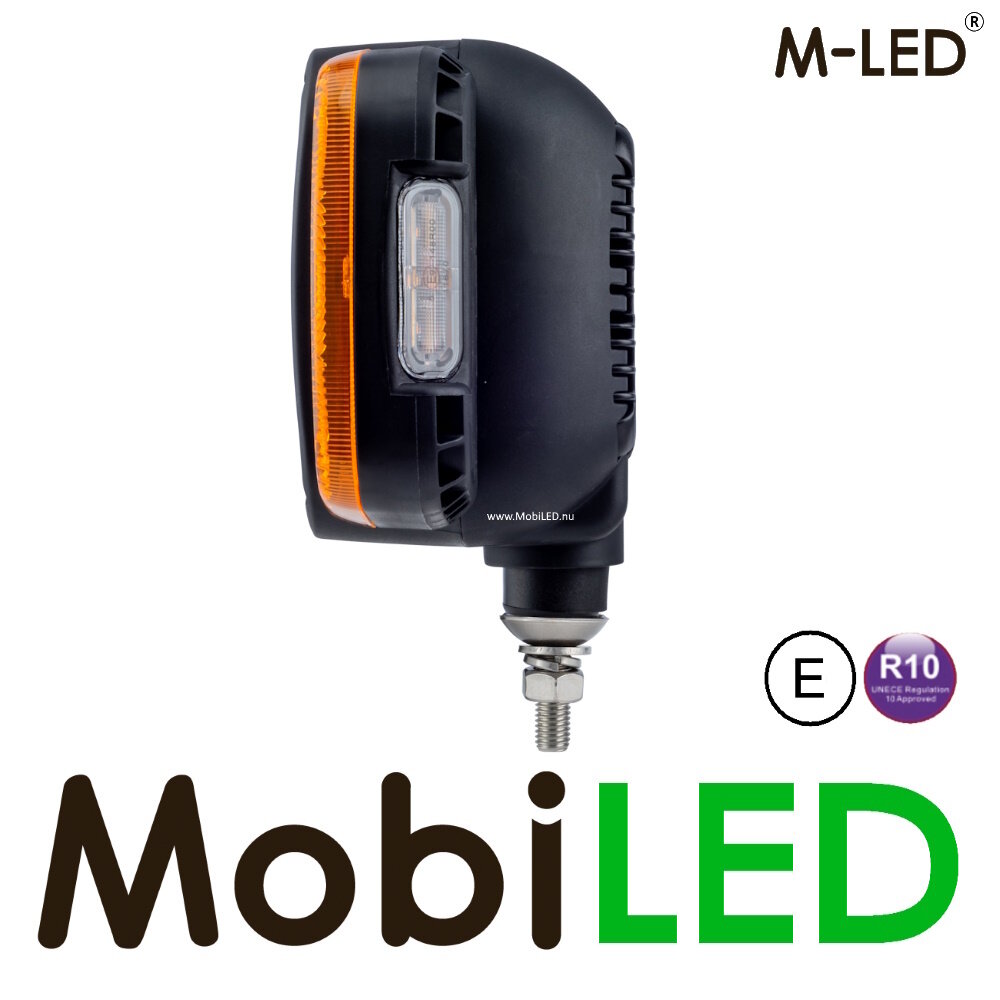

The HI-LO headlamp is an innovation for extreme weather. It is a driving light designed for maximum visibility and developed for the most demanding environments. The design is modern and, in combination with advanced technology, makes this the perfect choice for maximum visibility. This headlight is also equipped with heating. The lamp has fantast...

The HI-LO headlamp is an innovation for extreme weather. It is a driving light designed for maximum visibility and developed for the most demanding environments. The design is modern and, in combination with advanced technology, makes this the perfect choice for maximum visibility. This headlight is also equipped with heating.

The lamp has fantastic high and low beams, a direction indicator and position light in amber. The turn signal function is also visible behind the lamp. The DT connector is built into the housing, making installation easy. The lamp is fully E-approved.

Please note: the lamp is available in a left and a right version, this is the left.

Features:

  1. Low beam
  2. Great light
  3. Position light
  4. Turn signal

Specifications:

  • Voltage: 10-30 VDC
  • Power: low beam 31W, high beam 32W, direction indicator 22W, position light 11W
  • Consumption: low beam:2.60A@12V 1.1.3A@24V, high beam:2.67A@12V 1.33A@24V, turn signal:1.83A@12V 0.92A@24V, position light:0.92A@12V 0.46A@24V
  • Lumen: low beam 1700 (1100), high beam: 7000 (4000)
  • Light colour: 5700-6500K
  • Position light: amber
  • Housing: aluminum
  • Lens: PC
  • Bracket: stainless steel
  • Dimensions: 209 x 183 x 119 mm
  • Connection: DT-6
  • Water resistance: IP69
  • Certification: ECE R10, R148, R149, EMC CISPR25 Class 3

Connection diagram:

  • White: mass
  • Red: high beam
  • Blue: low beam
  • Yellow: direction indicator
  • Green: position light

Product specifications

Article number
KL135
