Ledson Orbix31+ LED bar with amber/white position light 135W E-mark
The Orbix position light ignites with a unique flowing motion that guides the light from one side of the beam to the other before lighting up. A dynamic sequence that sets you apart from the crowd and takes the appearance of your vehicle to a whole new level.
The beam is E-marked according to ECE R149 and features a Drive beam pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. Of course, you can choose to have your position light in a modern cool white or a rawer amber.

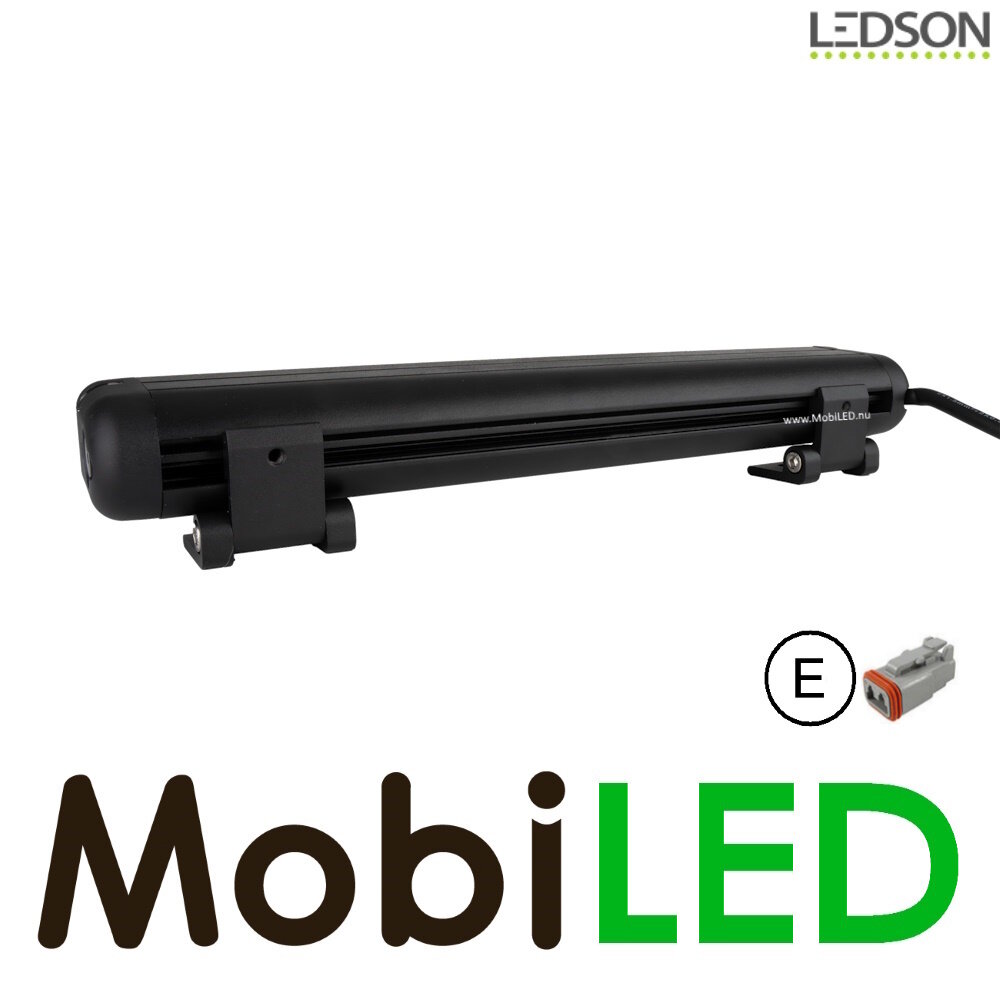

A high IP69K rating and aluminum housing with polycarbonate lens ensure that Orbix+ gives you a safer ride and a better look. The article comes with brackets for side and bottom mounting. With DT connector you can connect it quickly and easily.
Product specifications
- Article number
- LB417

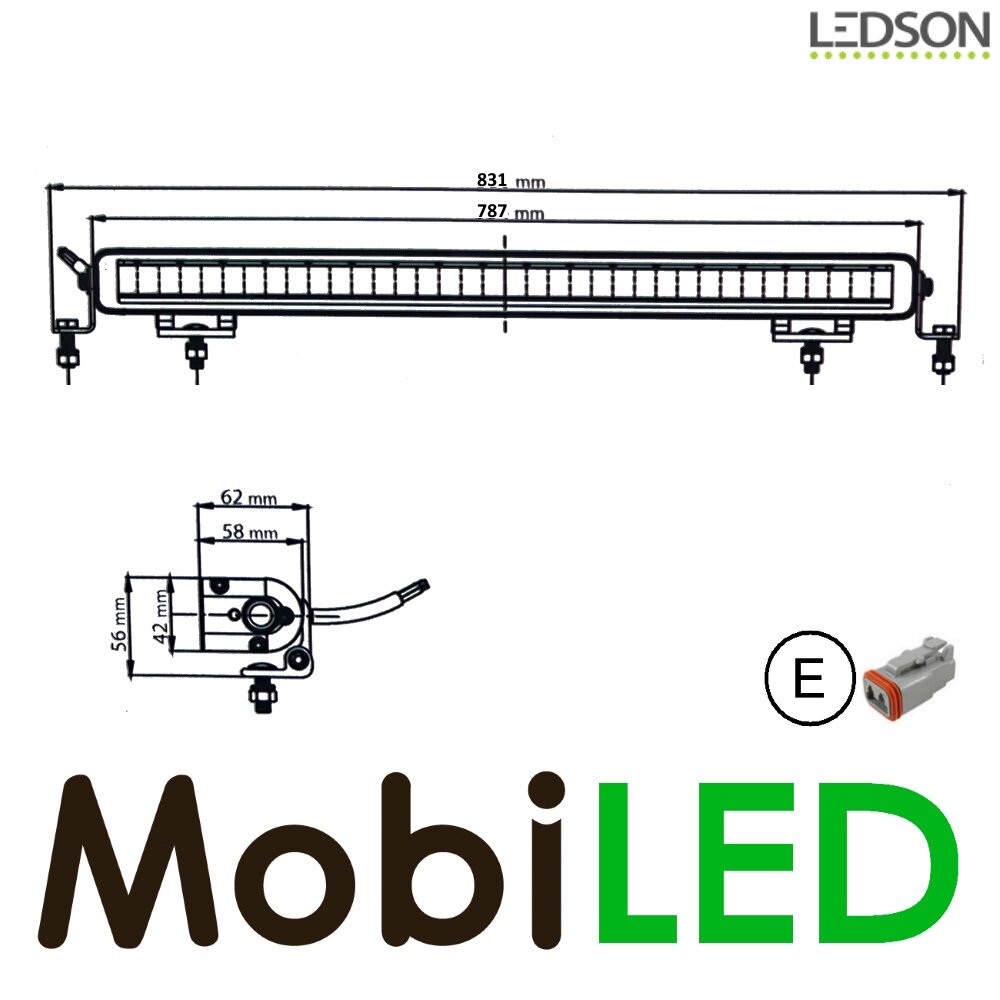

- Length (cm)
- 78,7
- Height (cm)
- 4,2
- Height incl bracket (cm)
- 5,6
- Depth (cm)
- 5,8
- Weight (gr)
- 2640
- Tension
- 10-32V
- Power
- 135W
- Lumens
- 11340 / 10125
- Light colour
- 5700
- Number of LEDs
- 27
- LED Type
- 5W
- Position light function
- Yes
- High beam function
- Yes
- Light image
- flood and spot
- Beam range
- 525 m (1 lux)
- Housing colour
- Black
- Housing material
- Aluminium
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Sides and below
- Connection
- DT connector
- IP rating
- IP69
- Certification
- ECE 149/R10
- Manufacturer article number
- 33502755
