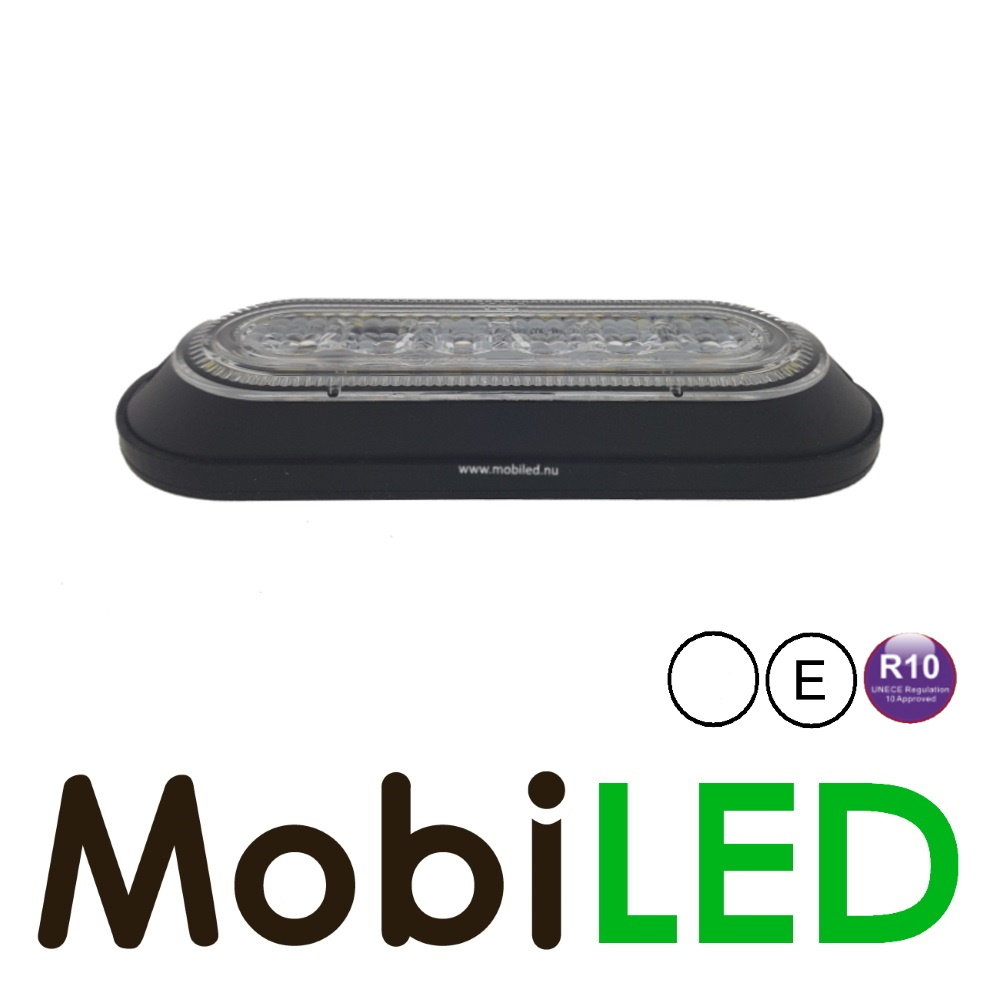

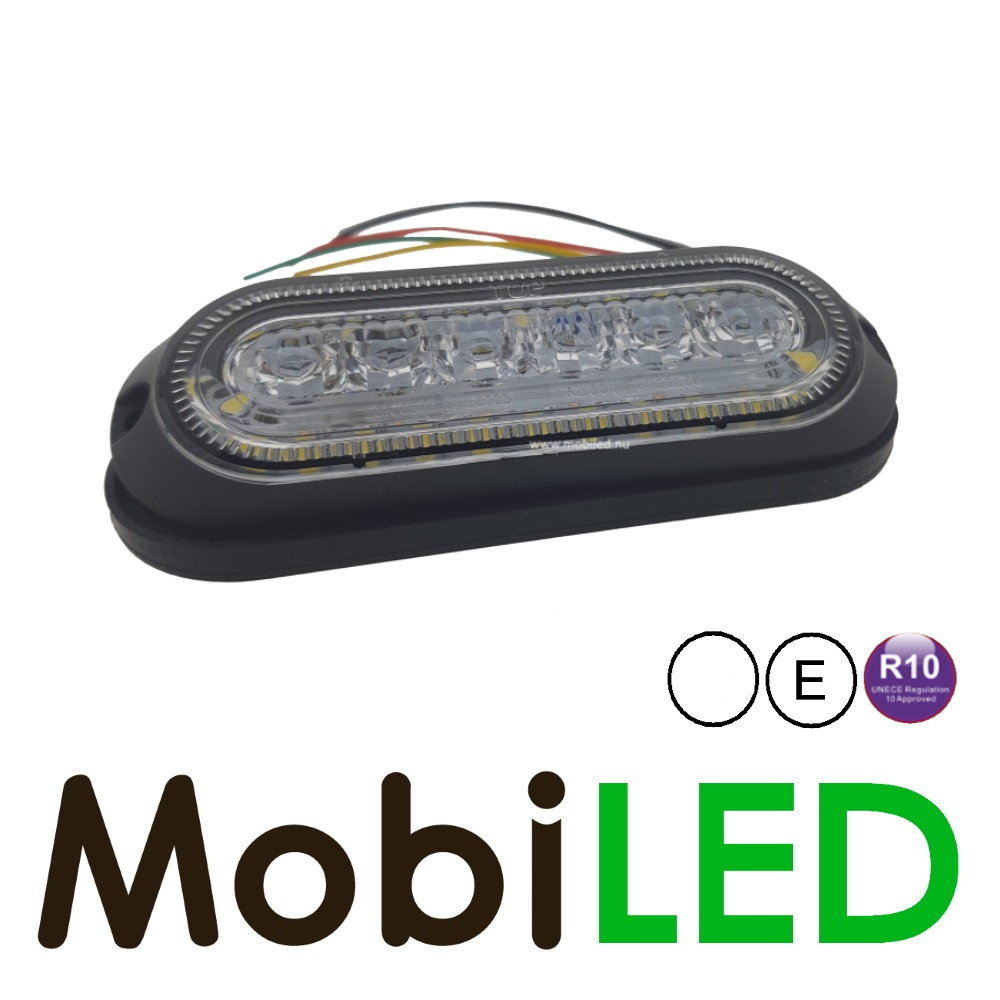

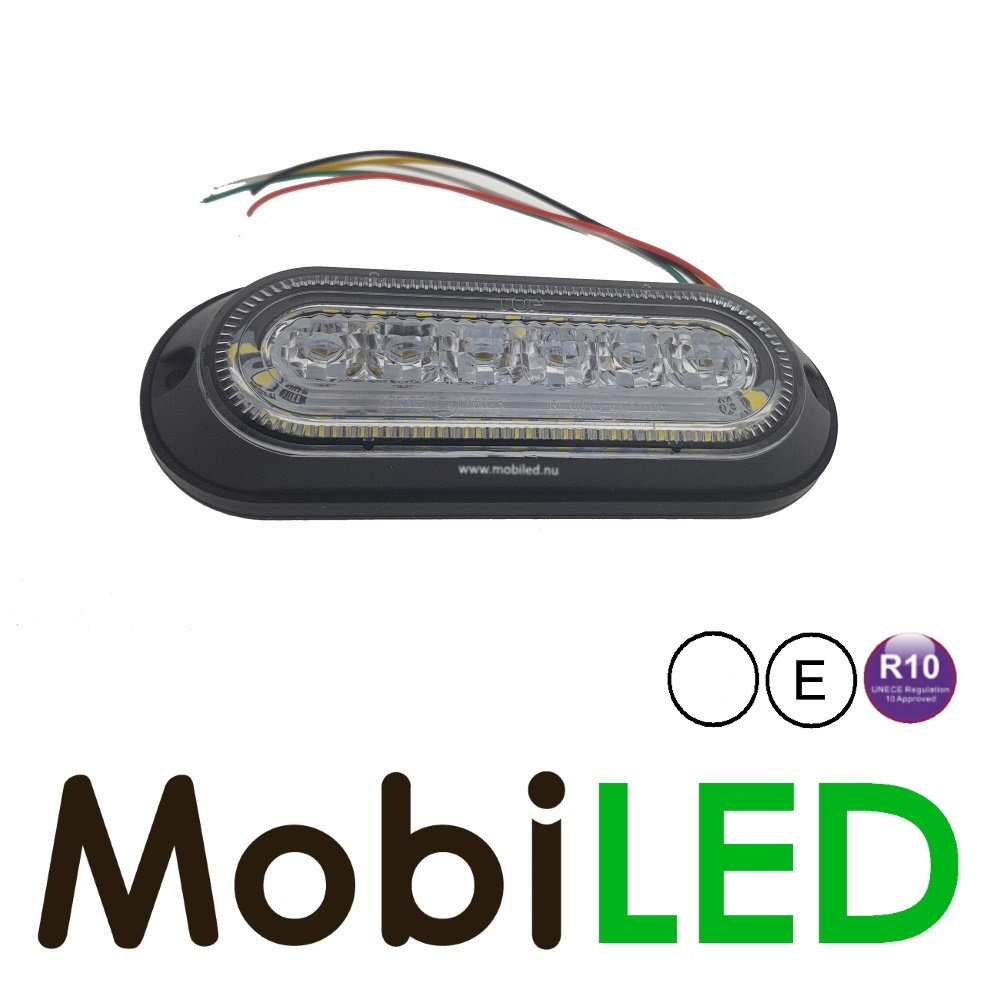

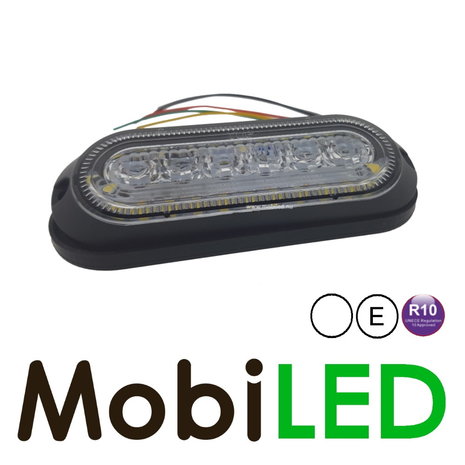

Clignotant white with DRL and white Halo-edge

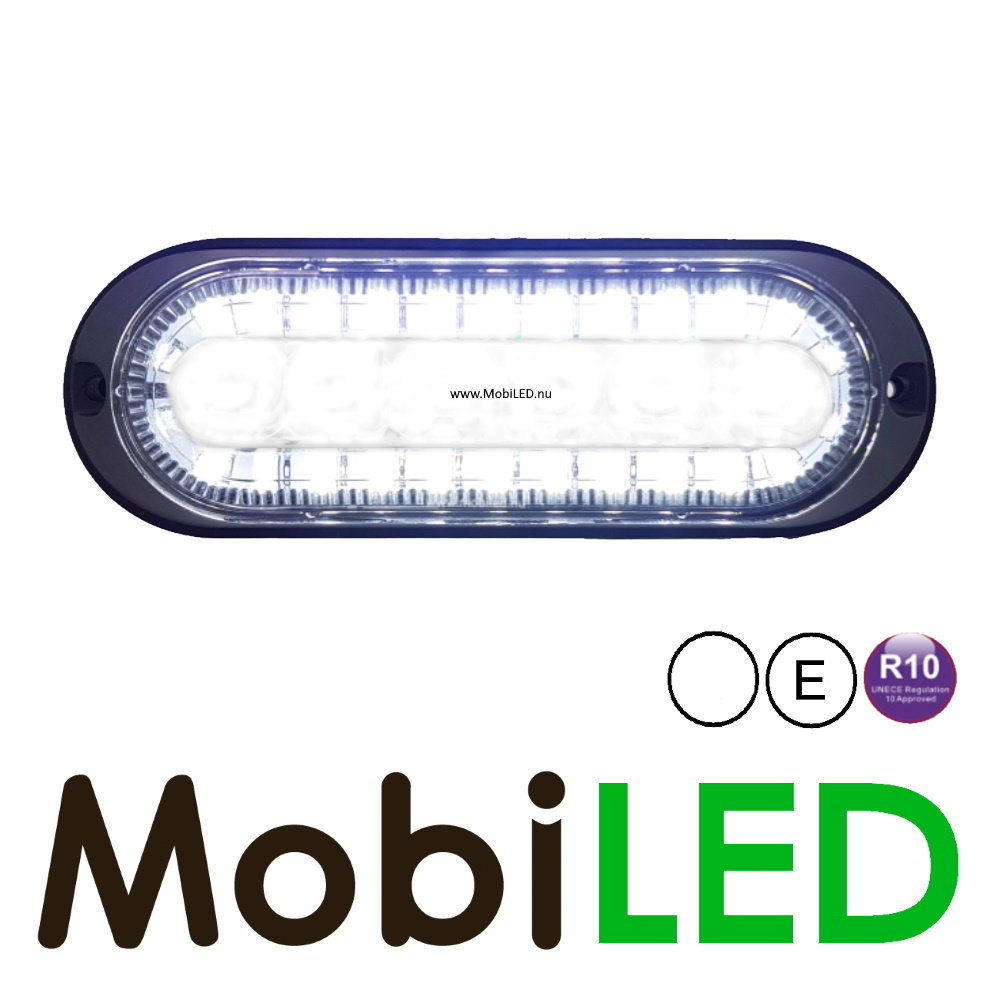

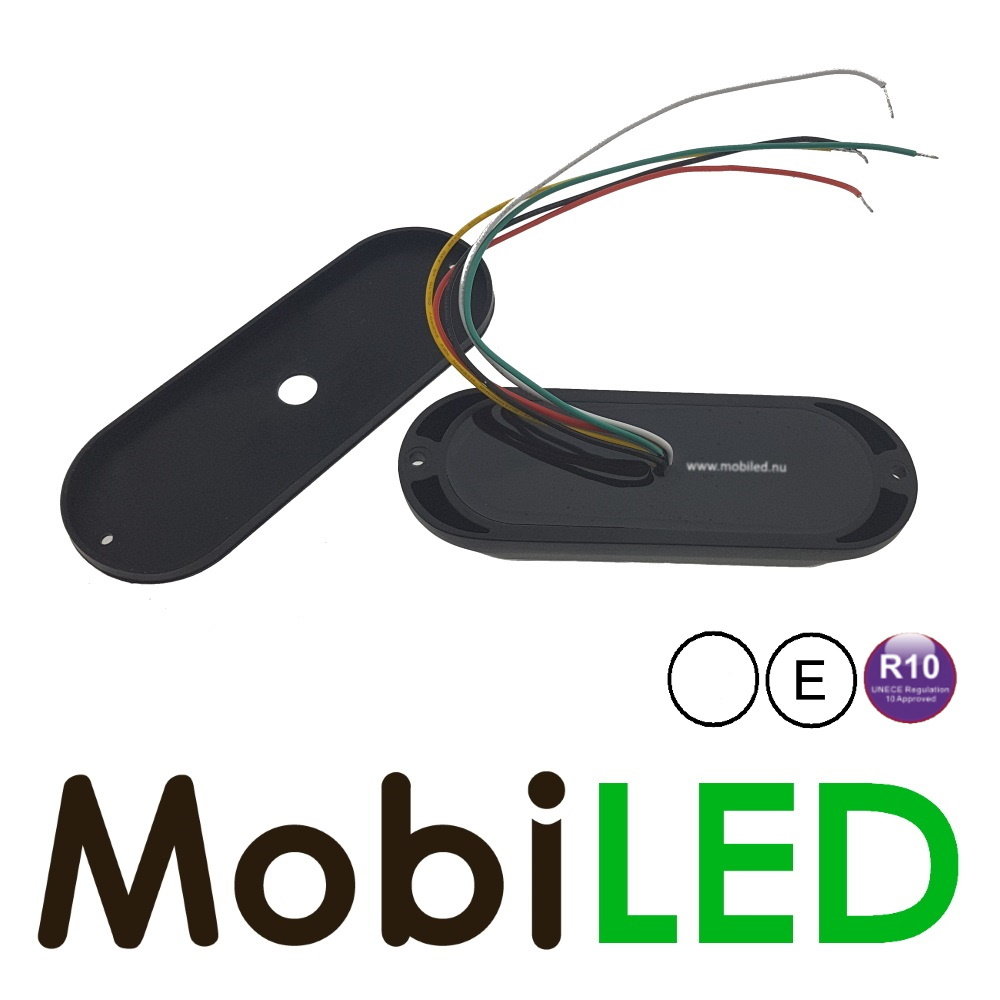

Multi-function flasher, daytime running lights. A bright white flasher in the center of the lamp surrounded by a white Halo border. The unit is durable, shockproof, waterproof and equipped with an aluminum plate for optimal cooling.
The flasher has different patterns and multiple flashes can be linked. Equipped with an ECE R10. The flasher and Halo ring can be switched separately. The combination makes the lamp special and therefore extremely suitable for mounting on trucks, work buses, service cars, tractors and excavators.

Versions:

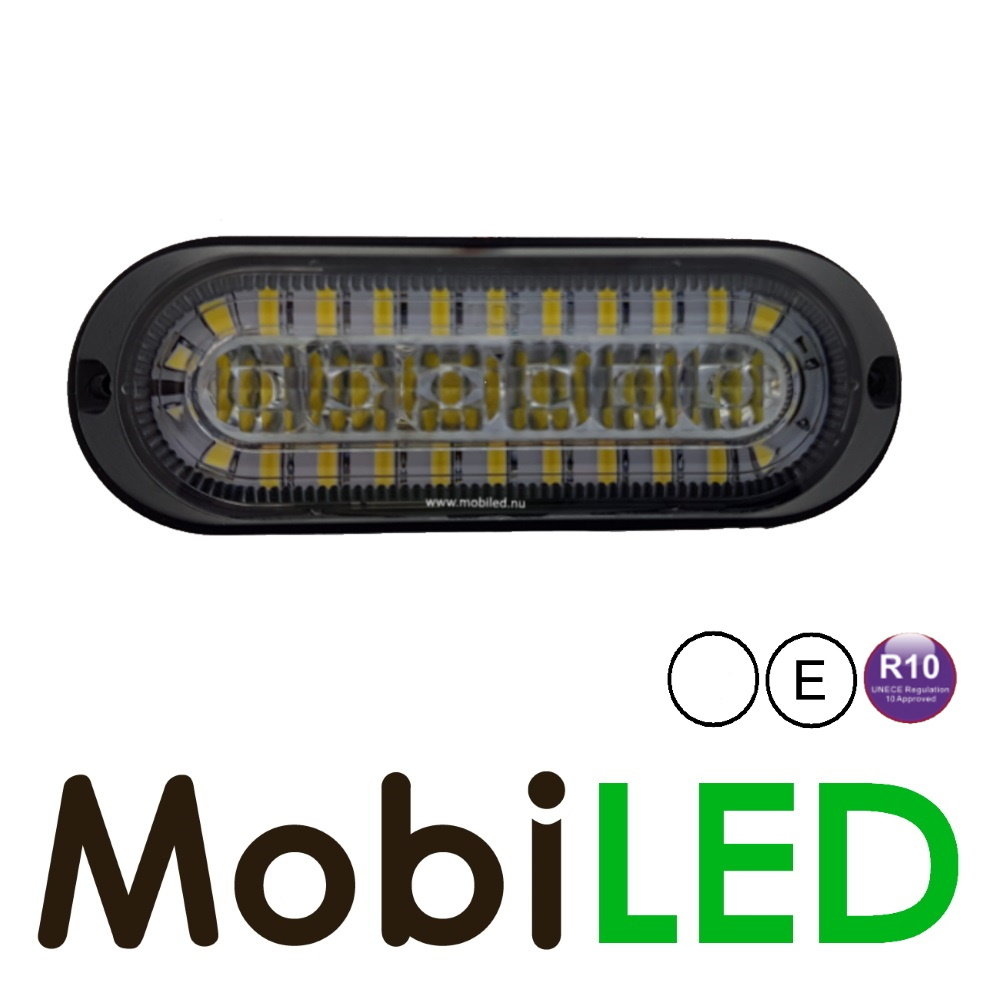

• Amber flasher with white Halo edge
• White flasher with white Halo edge

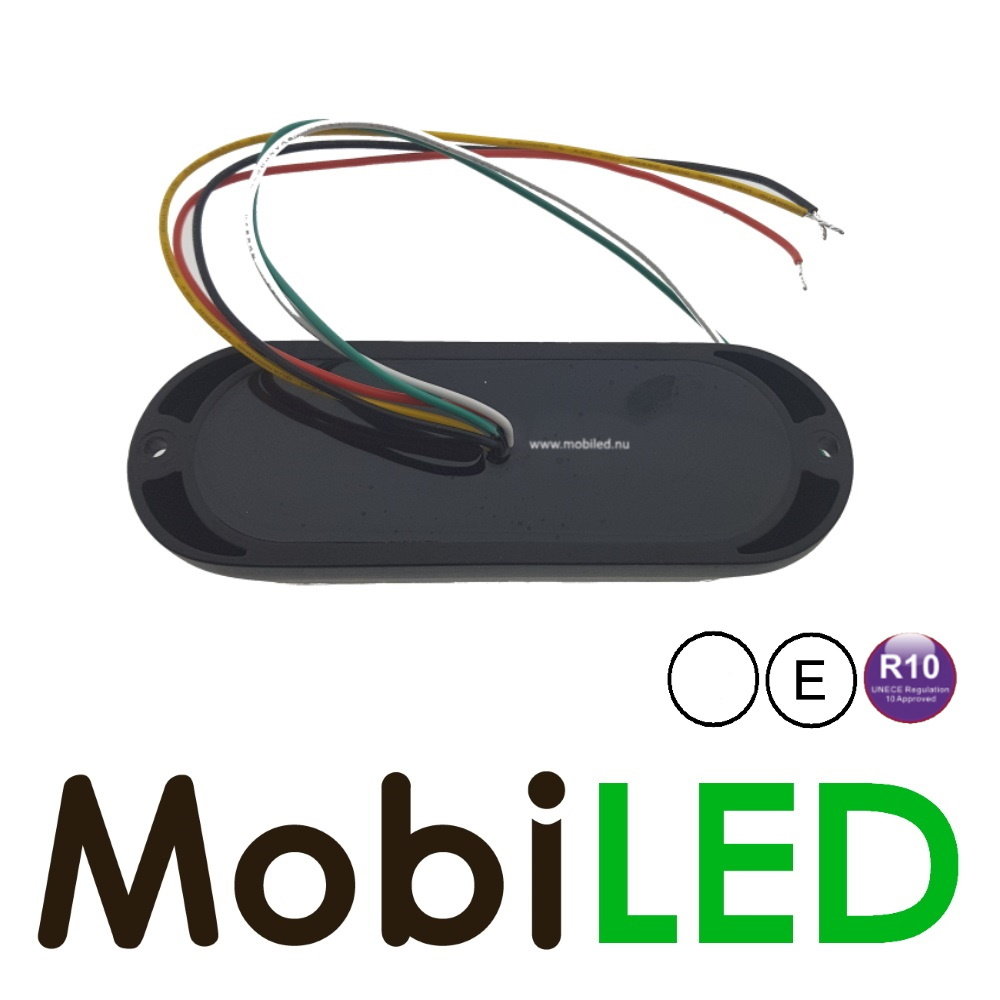

Connection diagram:

• Black: earth
• White: + DRL
• Red: + flash
• Yellow: connect briefly to red for pattern change, also synchronization with multiple flashers
• Green: with multiple flashers, connect to red for all flashers that need to flash asynchronously.
• Visual connection diagram
