Halo flasher white border, amber flasher

Halo flasher white border, amber flasher

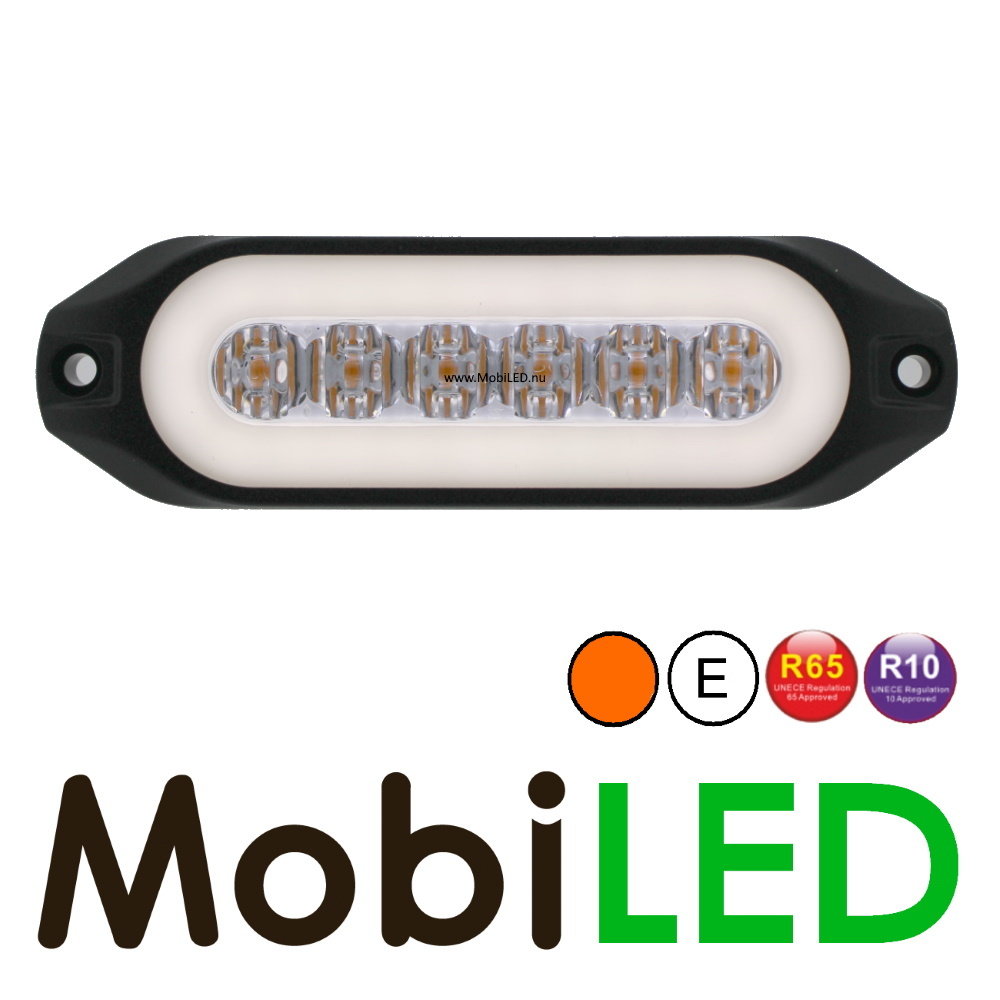

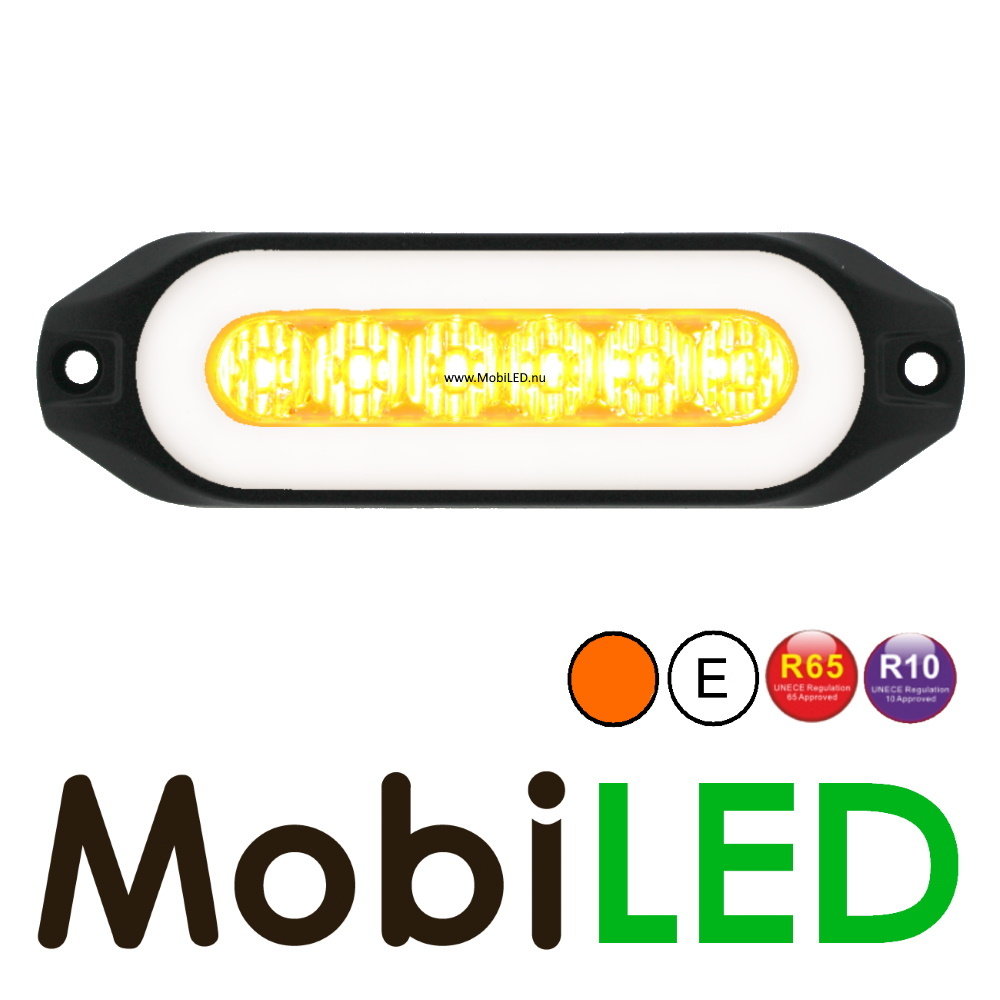

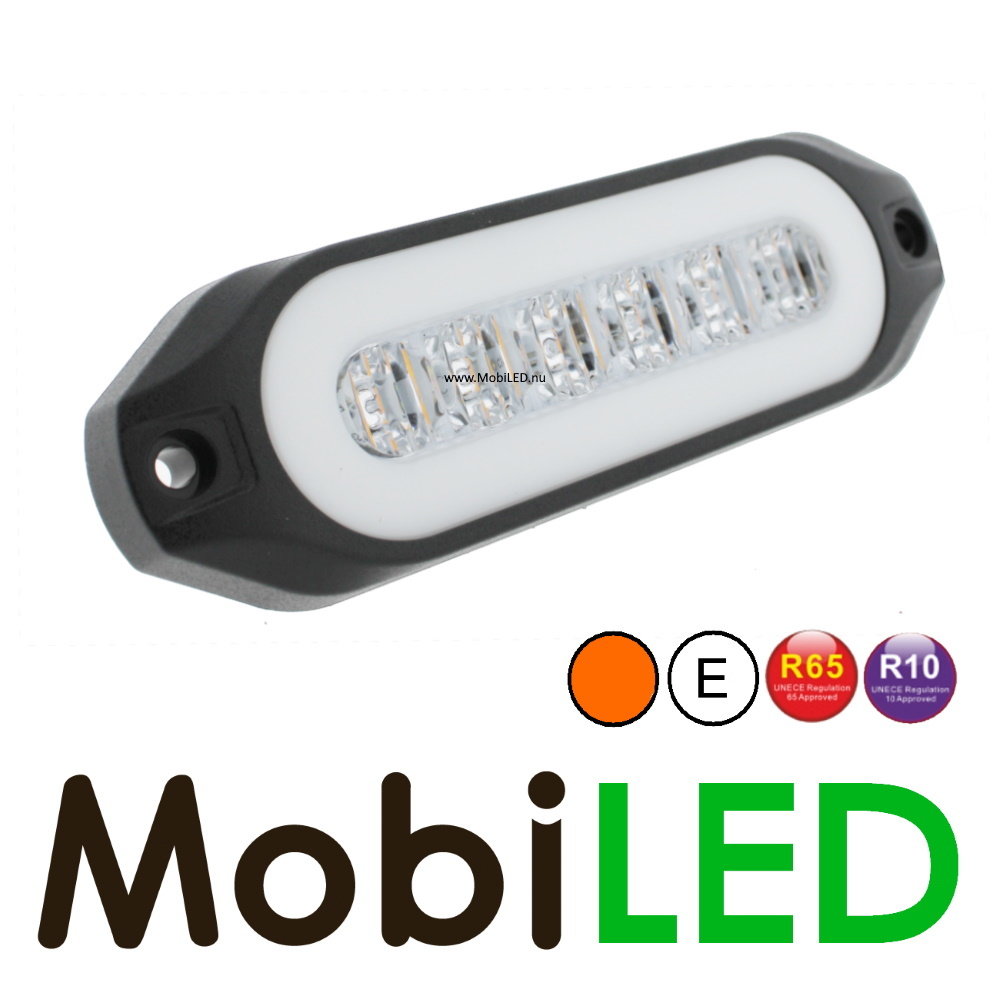

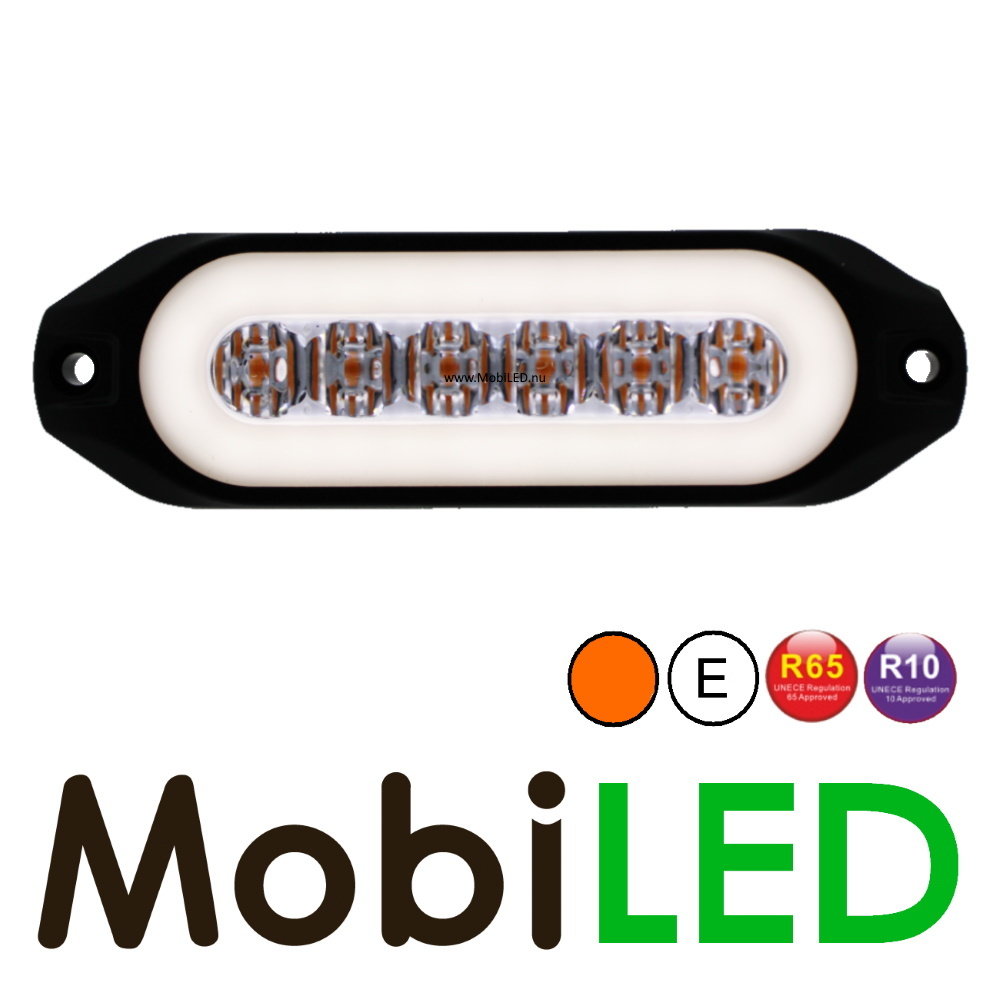

Multi-function flasher with a black aluminum housing and a PC lens. The halo border has a modern neon look. The halo border is white in color and in the middle is a bright amber colored flasher. Provided with all certifications: ECE R10, R65, R7, SAE.
The flasher has 10 different patterns and it is possible to link multiple flashers. The flasher and halo ring can be switched separately from each other. The combination makes the lamp special and therefore extremely suitable for mounting on trucks, work buses, service cars, tractors and excavators.
Suitable for both 12 and 24 volts.

Specifications:

• Voltage: 12-24 V
• Number of LEDs: border 24, flasher 6
• Power: border 1 W, flasher 9 W
• Color: border white, flasher amber
• Flash patterns: 10

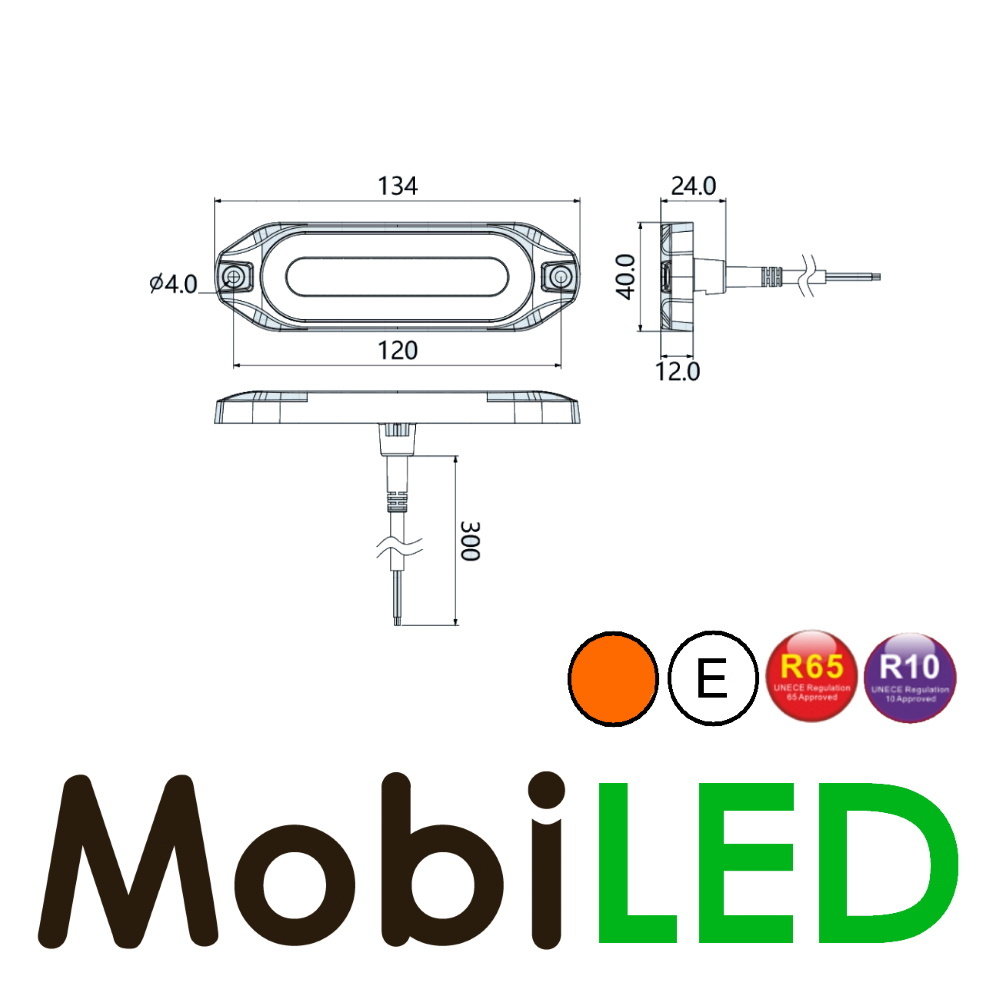

• Dimensions: 134 x 40 x 12 mm
• Water resistance: IP67
• Certification: ECE R10, R65, R7, SAE

Flash Patterns:

1. Daytime only (ECE SAE)
2. Night only (ECE SAE)
3. Single (CAT13)
4. Double
5. Triple
6. Quadruple
7. Single + double
8. Single + triple
9. Double + Triple
10. Continuous

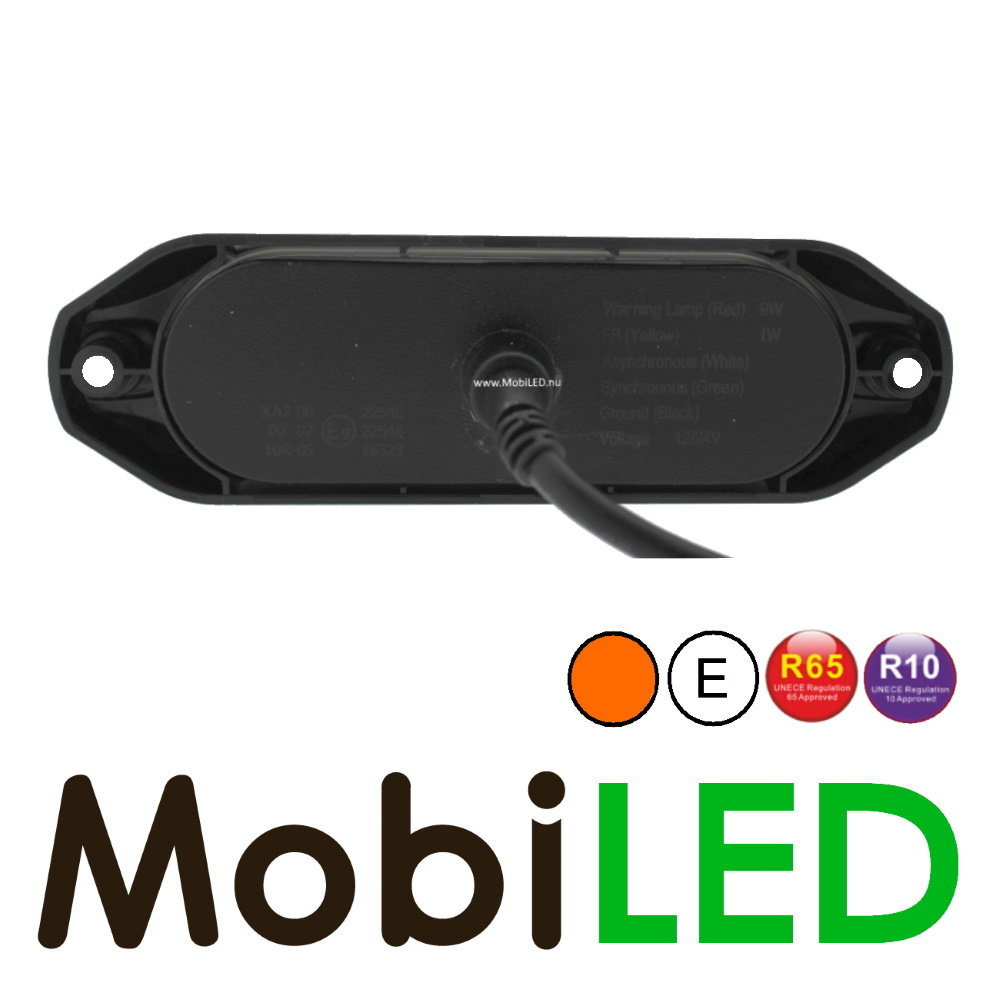

Connection diagram:

• Red: plus
• Black: mass
• White: asynchronous
• Yellow: halo ring
• Green: synchronous
• Green on red: set flash patterns
