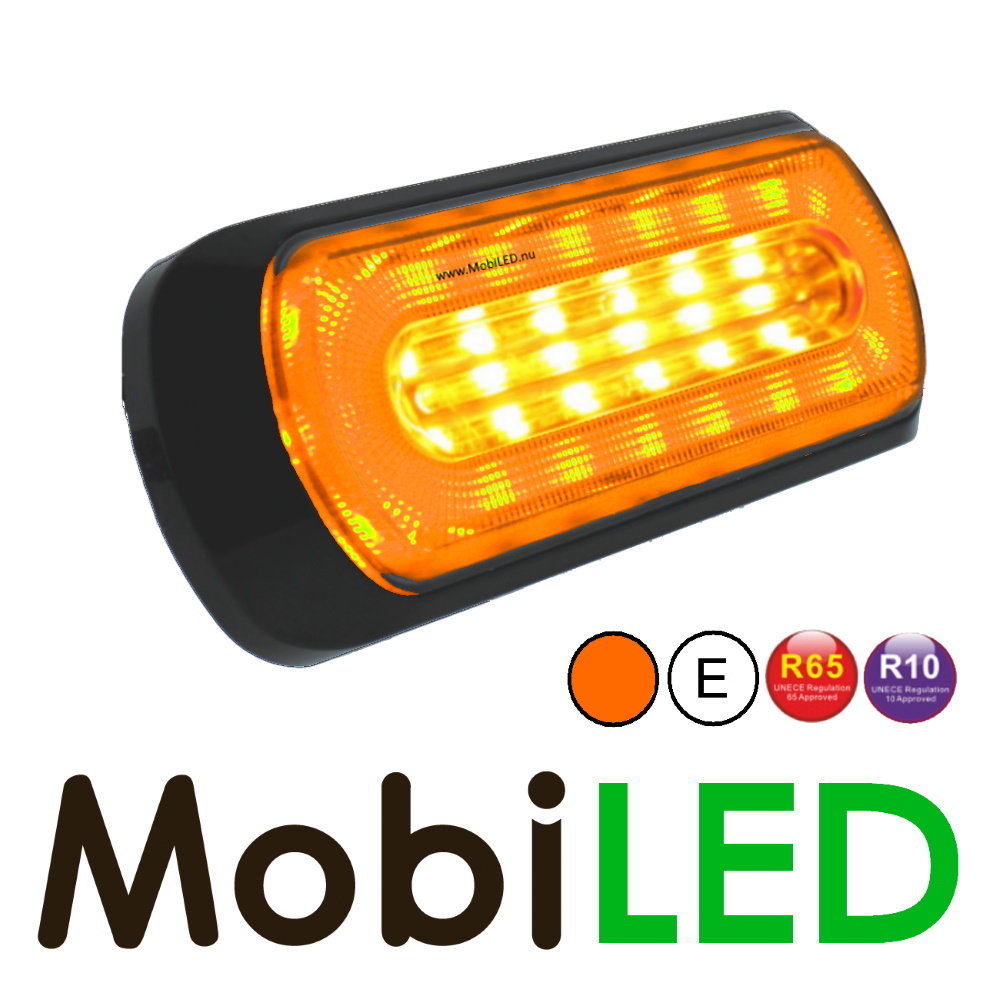

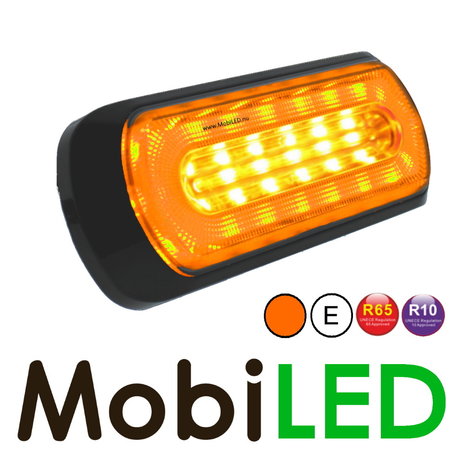

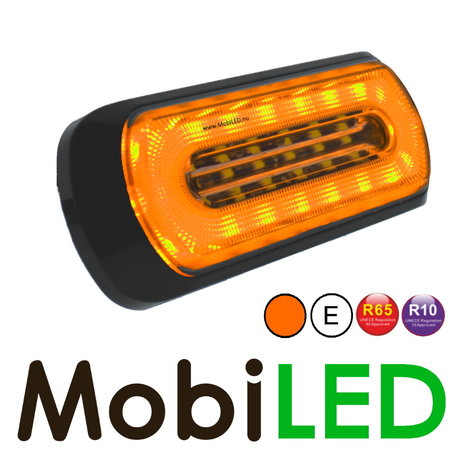

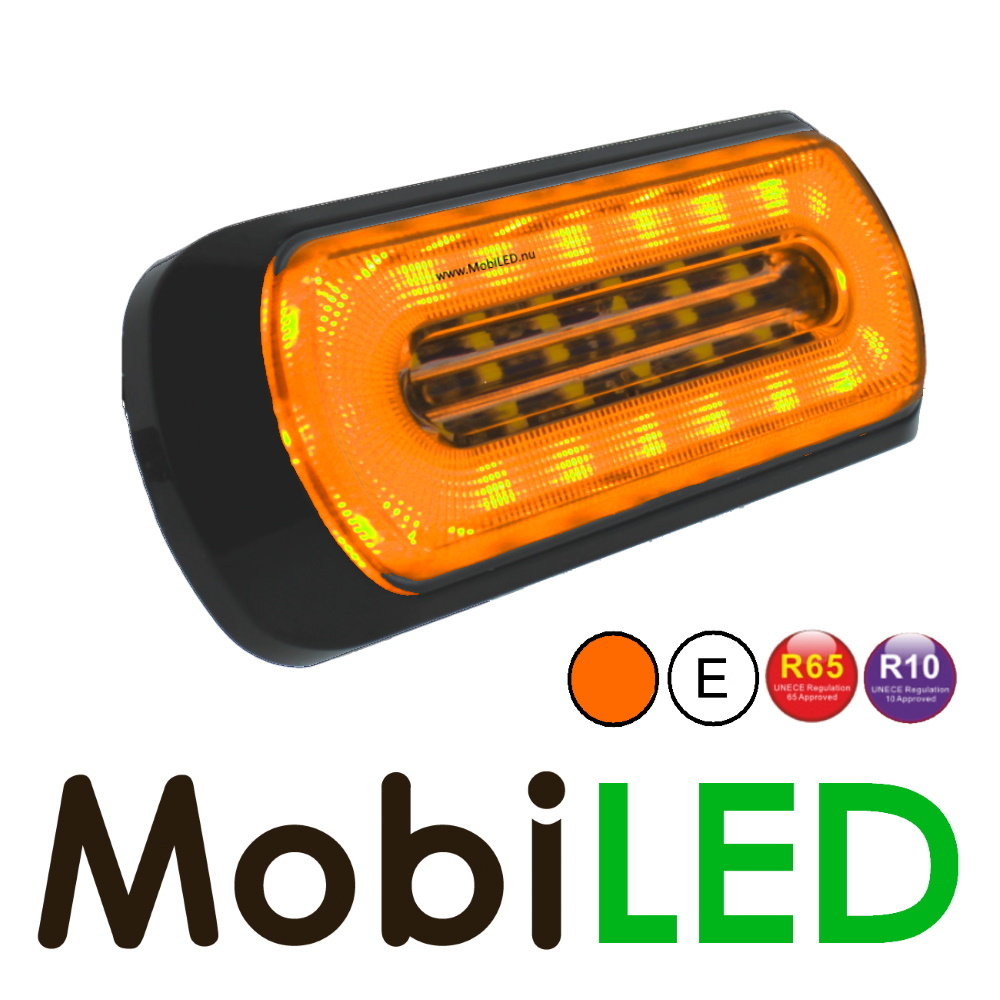

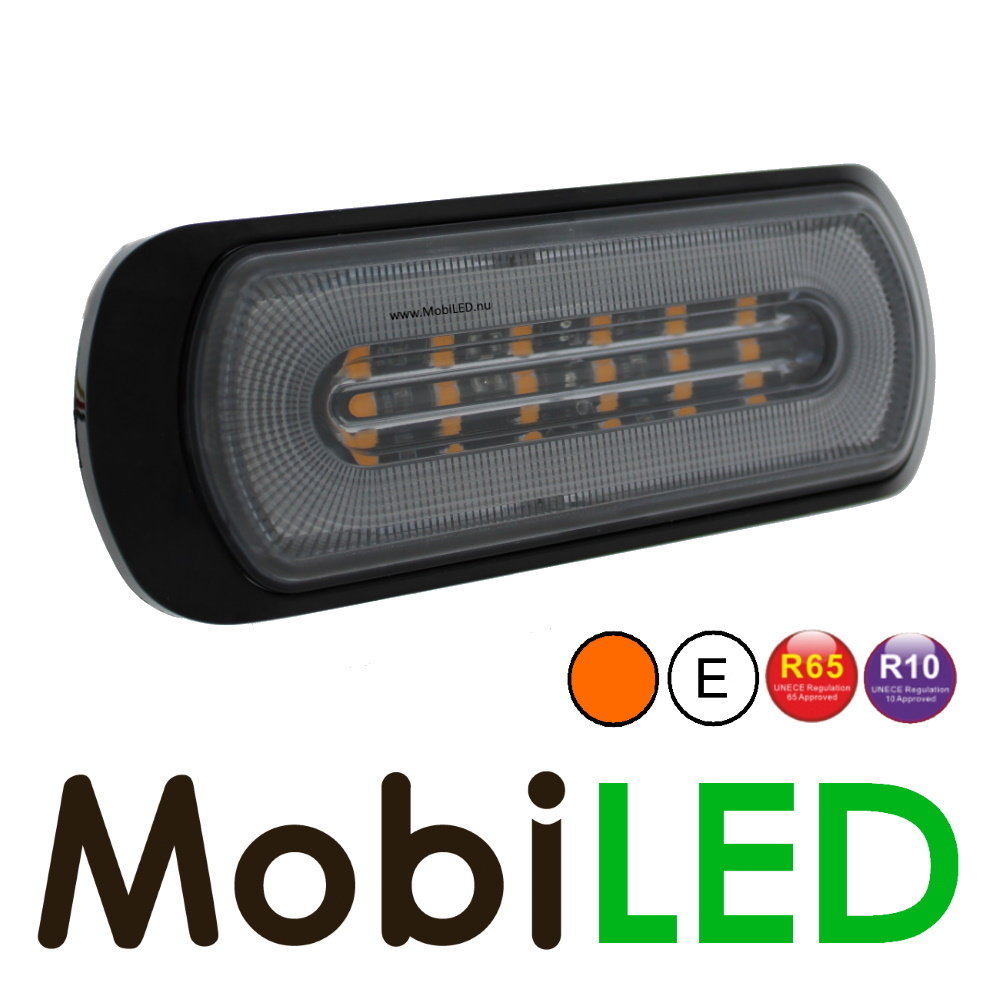

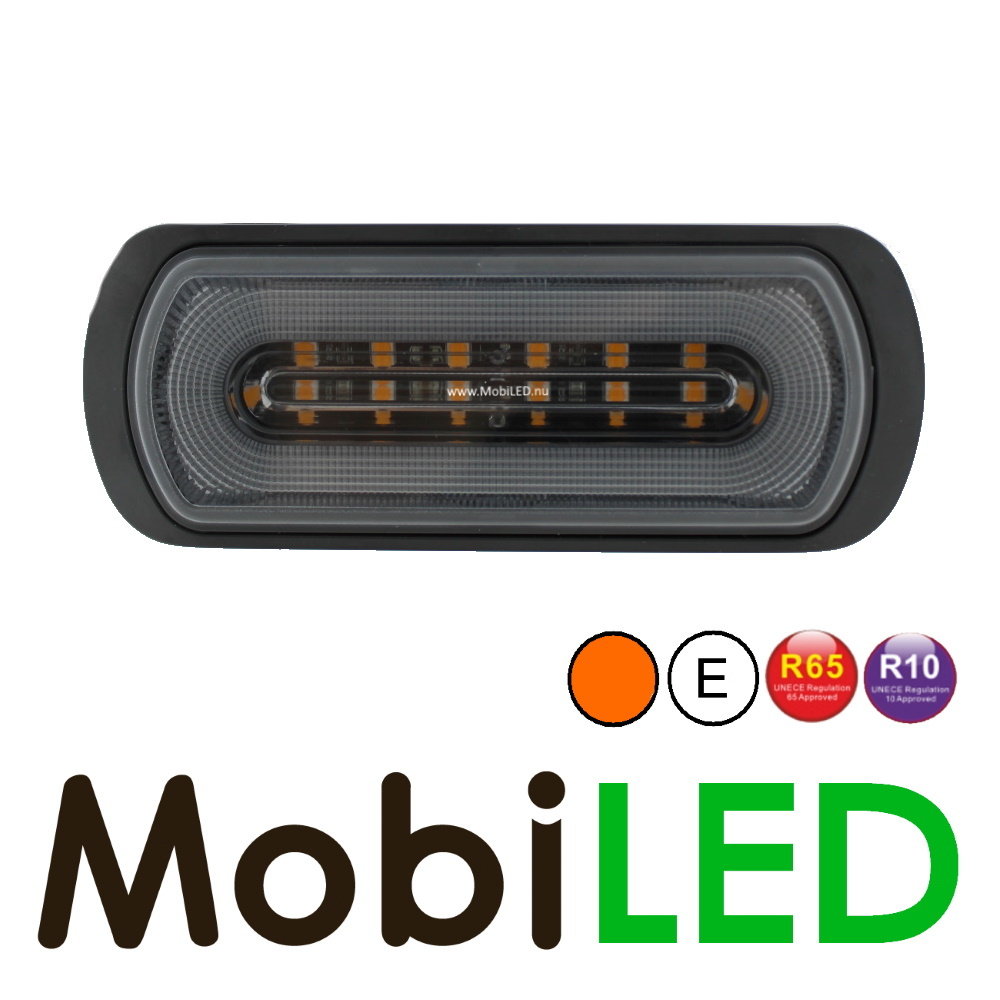

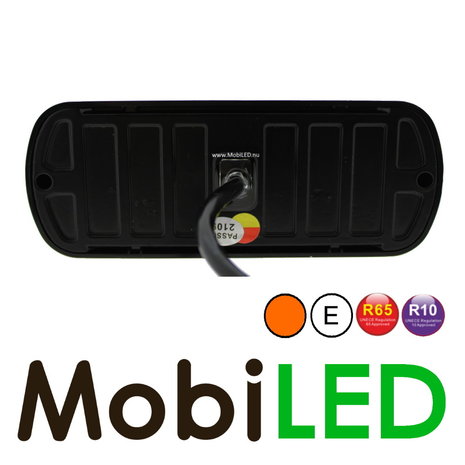

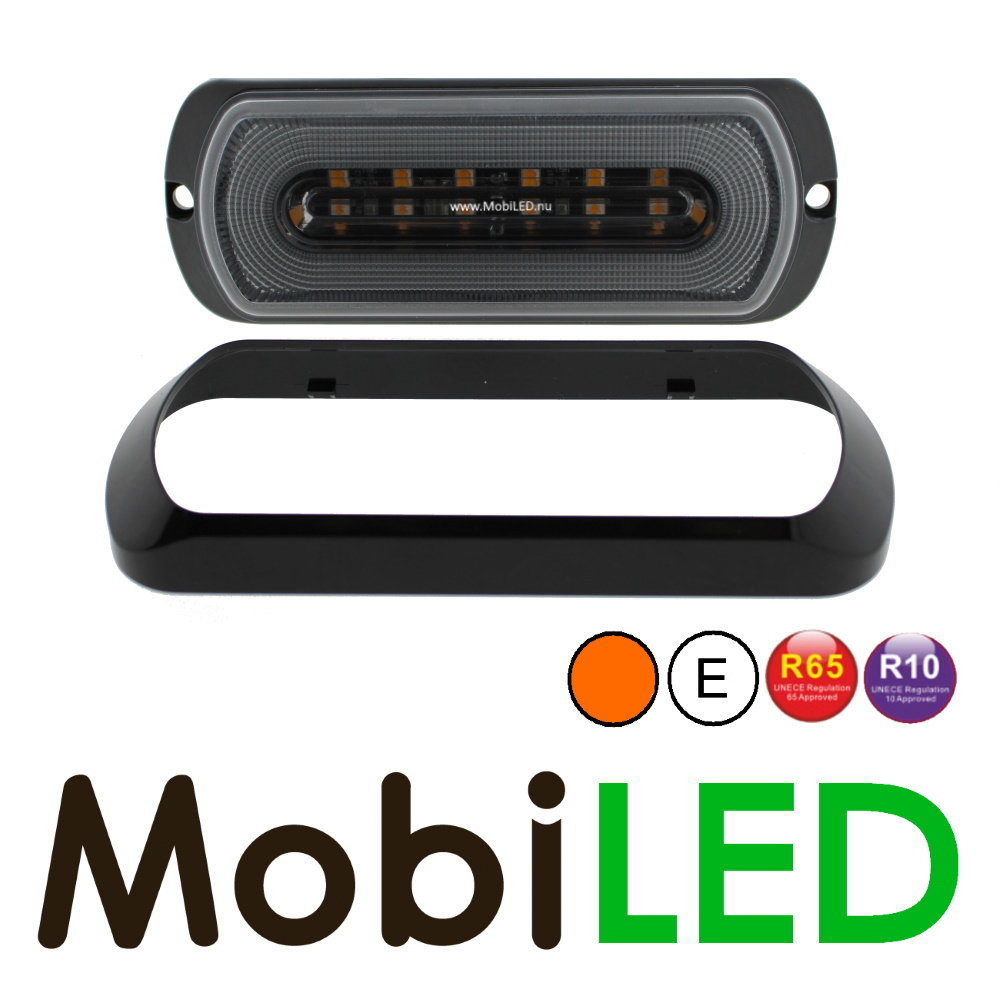

Halo flasher with direction indicator E-mark

Compact Halo flasher with turn signal

Compact flasher, which can also be used as a turn signal at the rear. A beautifully designed surface-mount model, a real addition to your vehicle.
The flasher is amber in color and ECE approved in R65 class 1.
The lamp has 22 different flash patterns including continuously on. It can be synchronized with up to 14 other flashers in two groups. Moreover, it is equipped with a memory function.

Specifications:

• Voltage: 12-24 V multi-voltage
• Flash patterns: 22
• Dimensions: 135 x 52 x 22 mm
• Bolt spacing: 12.6 mm
• Certification: E-mark R10, R65, R148-2a
• Rating: IP67/IP69K

Flash patterns:

1. Single
2. Single slow
3. Double
4. Double slow
5. Triple
6. Quadruple
7. Quadruple slow
8. Eightfold Fast
9. Eightfold slow
10. Twelvefold
11. Sixteen times
12. Single split
13. Double split
14. Quadruple split
15. Eight split
16. Single split accelerated
17. Double split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without alternation

Video:

Connection diagram:

• Black: mass
• Red: + VDC (control high intensity)
• Gray: + VDC (outer ring control)
• White: constant connection with black for low intensity
• Yellow: pattern selection and synchronization
