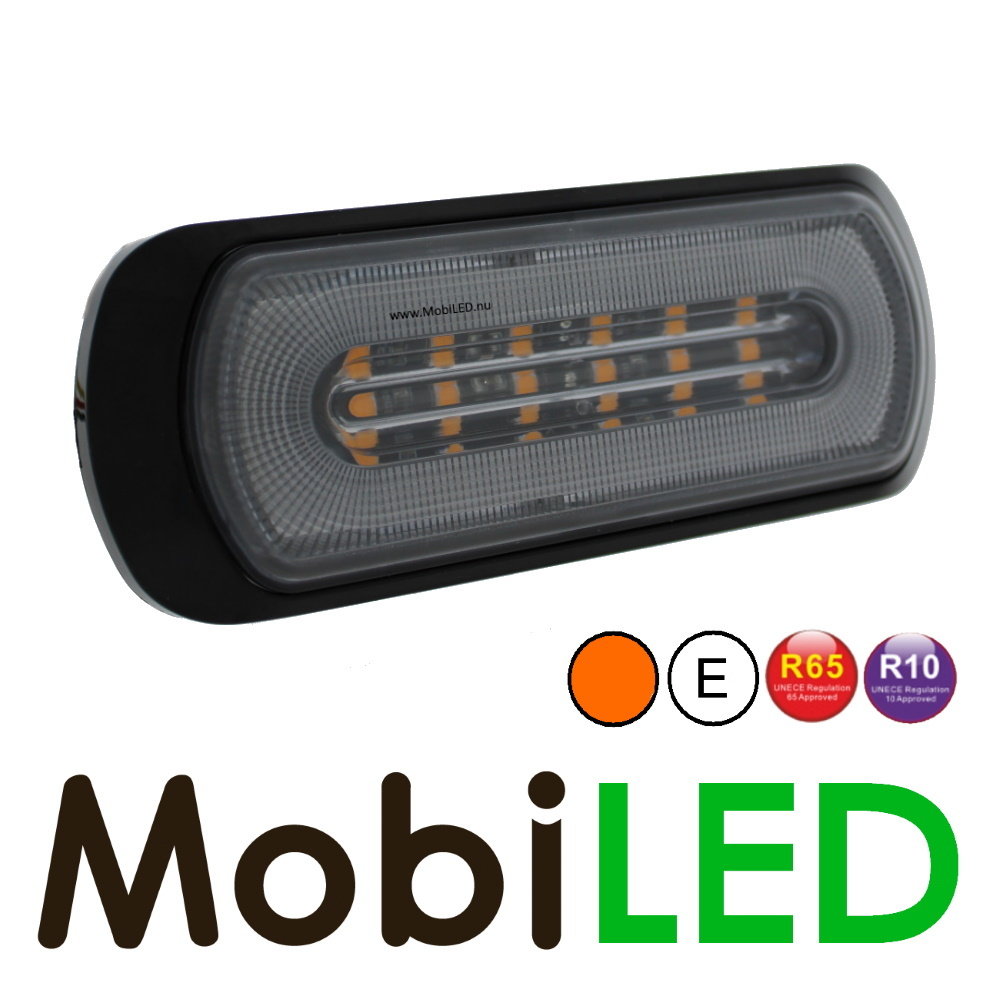

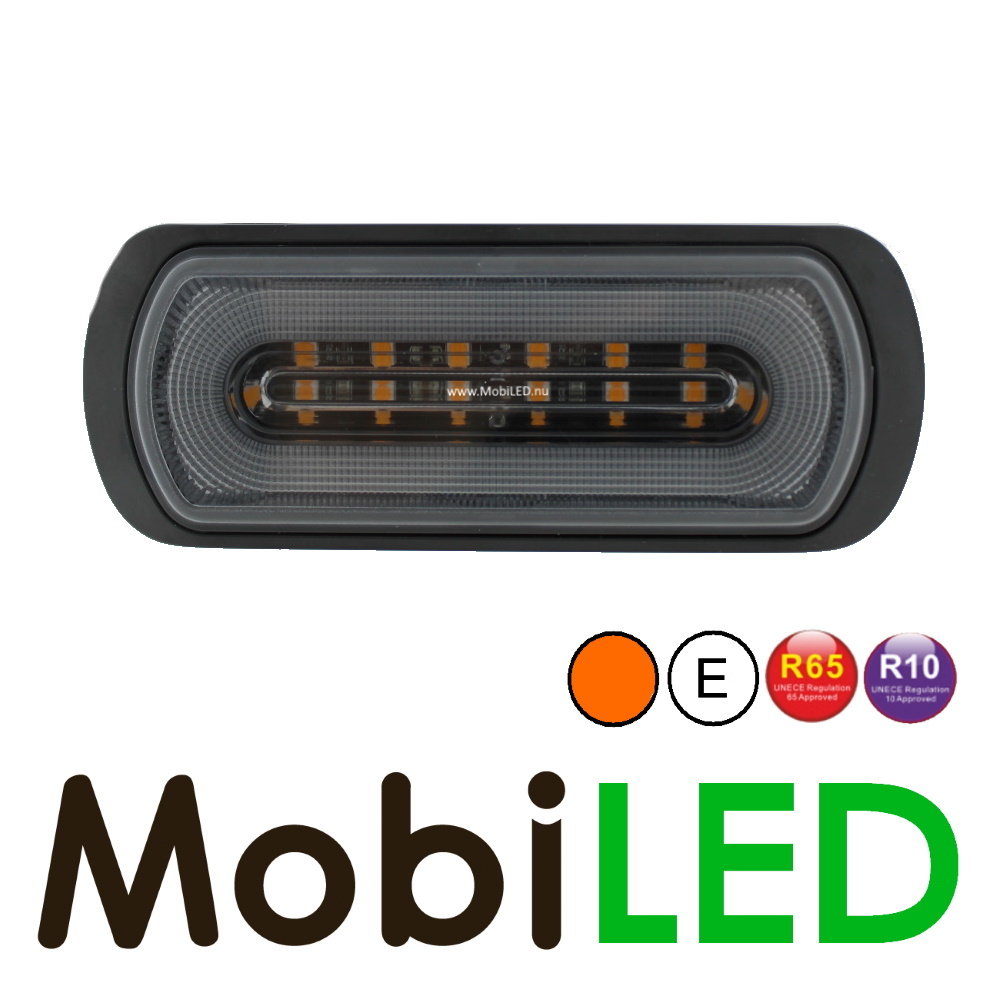

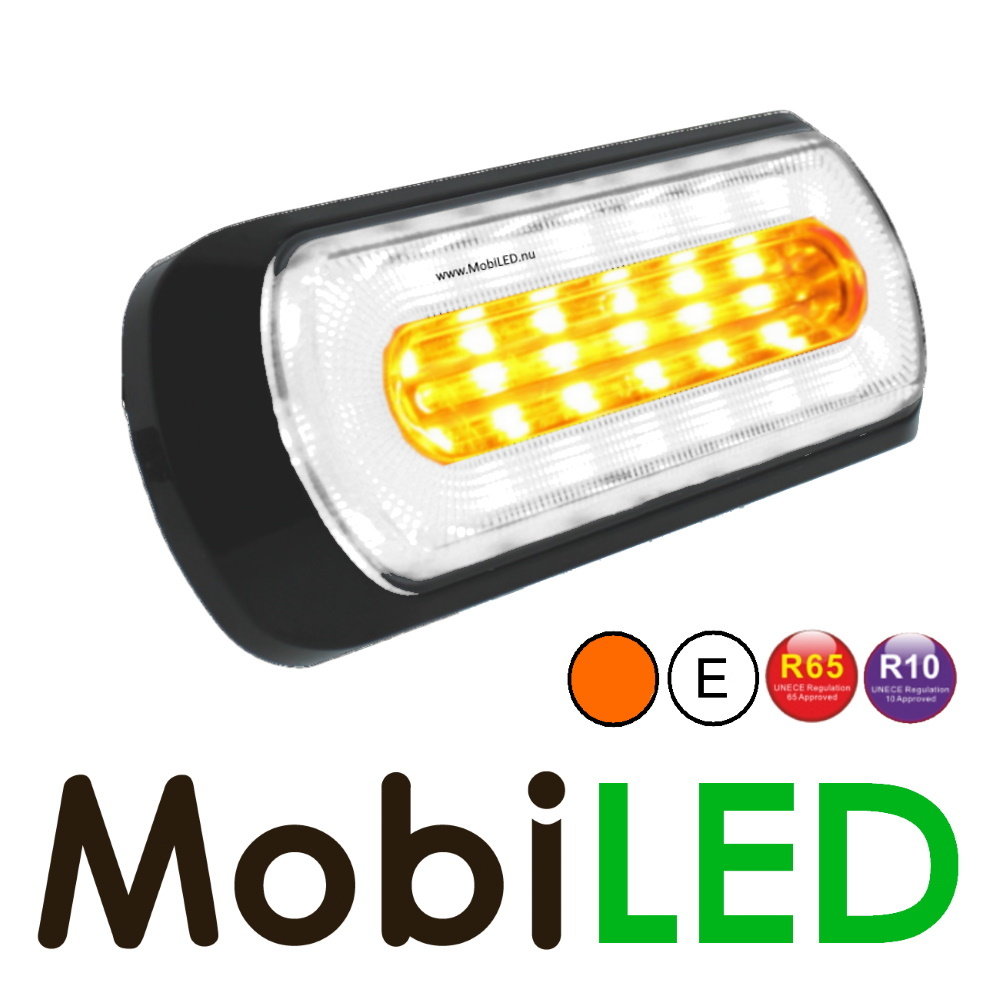

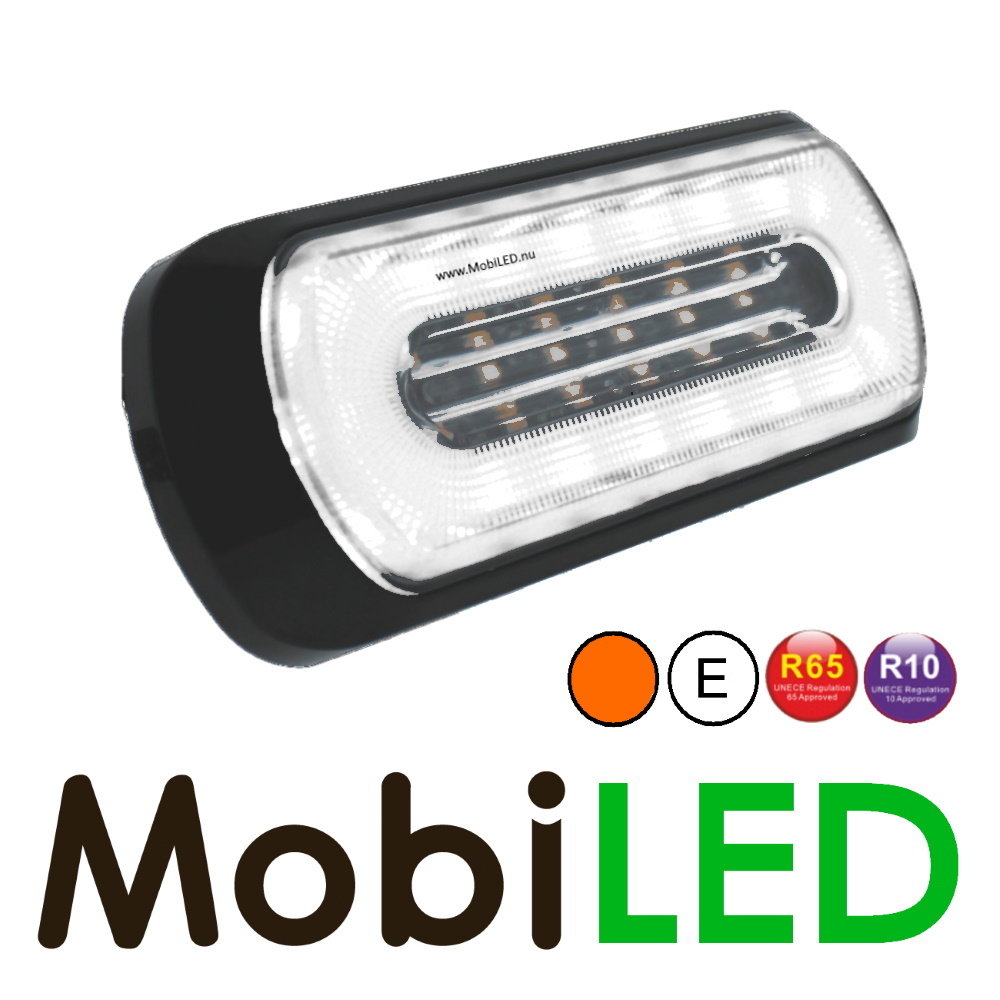

Halo flasher with reversing light E-mark

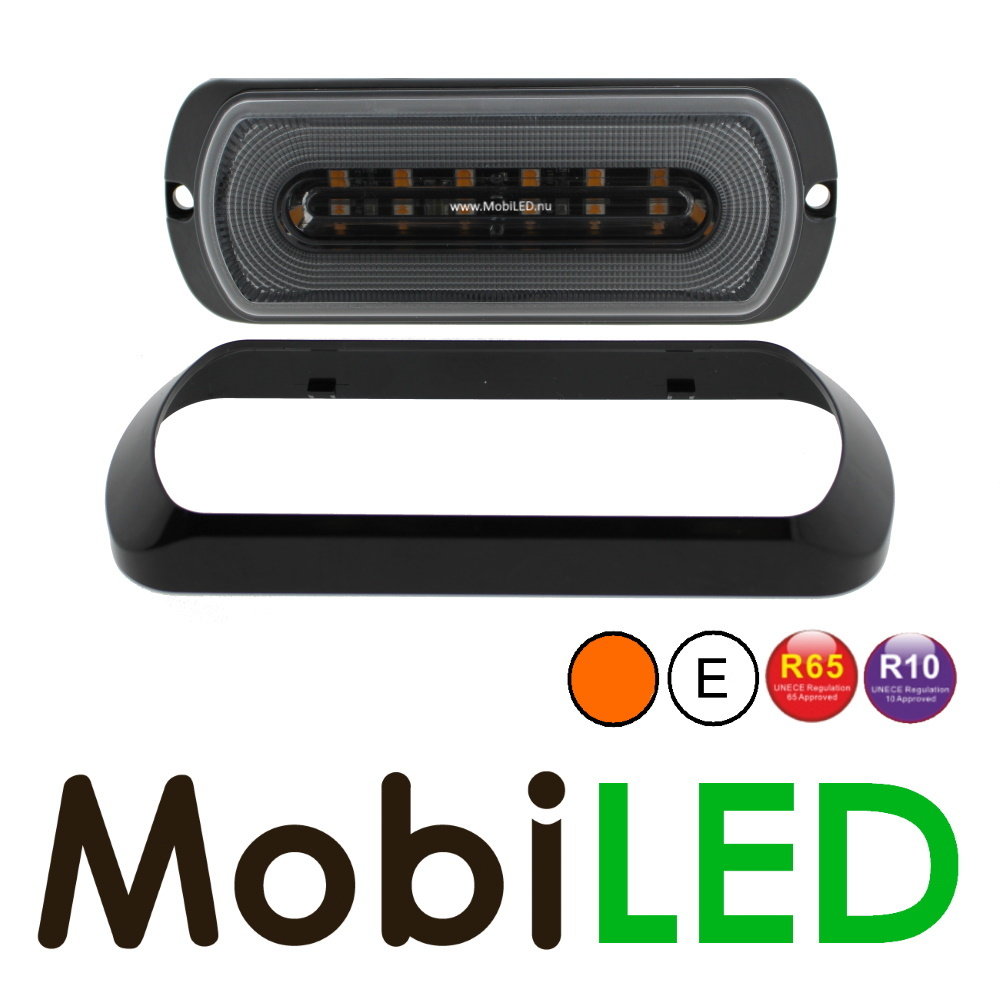

Compact flasher, which can also be used as a reversing light at the rear. A beautifully designed surface-mount model, a real addition to your vehicle.
The flasher is amber in color and ECE approved in R65 class 1.
The lamp has 22 different flash patterns including continuously on. It can be synchronized with up to 14 other flashers in two groups. Moreover, it is equipped with a memory function.

Flash patterns:

1. Single flash
2. Single flash slow
3. Double flash
4. Double flash slow
5. Triple flash
6. Quadruple flash
7. Quadruple flash slow
8. Eight-time flash fast
9. Eight-time flash slow
10. Twelve-time flash
11. Sixteen-time flash
12. Single flash split
13. Double flash split
14. Quadruple flash split
15. Eight-time flash split
16. Single flash split fast
17. Double flash split fast
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without change

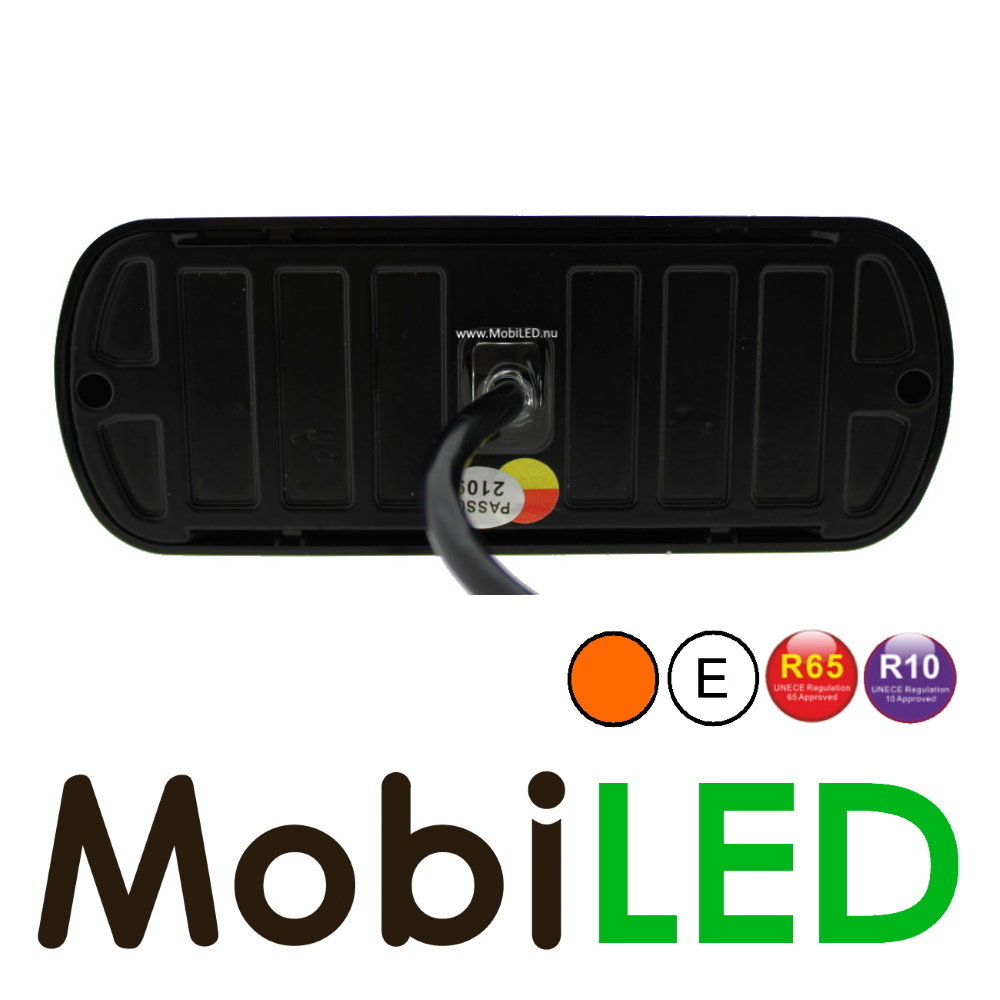

Connection diagram:

• Black: mass
• Red: + VDC (control high intensity)
• Gray: + VDC (outer ring control)
• White: constant connection with black for low intensity
• Yellow: pattern selection and synchronization
