Headlight left 6 functions

Headlight left 6 functions

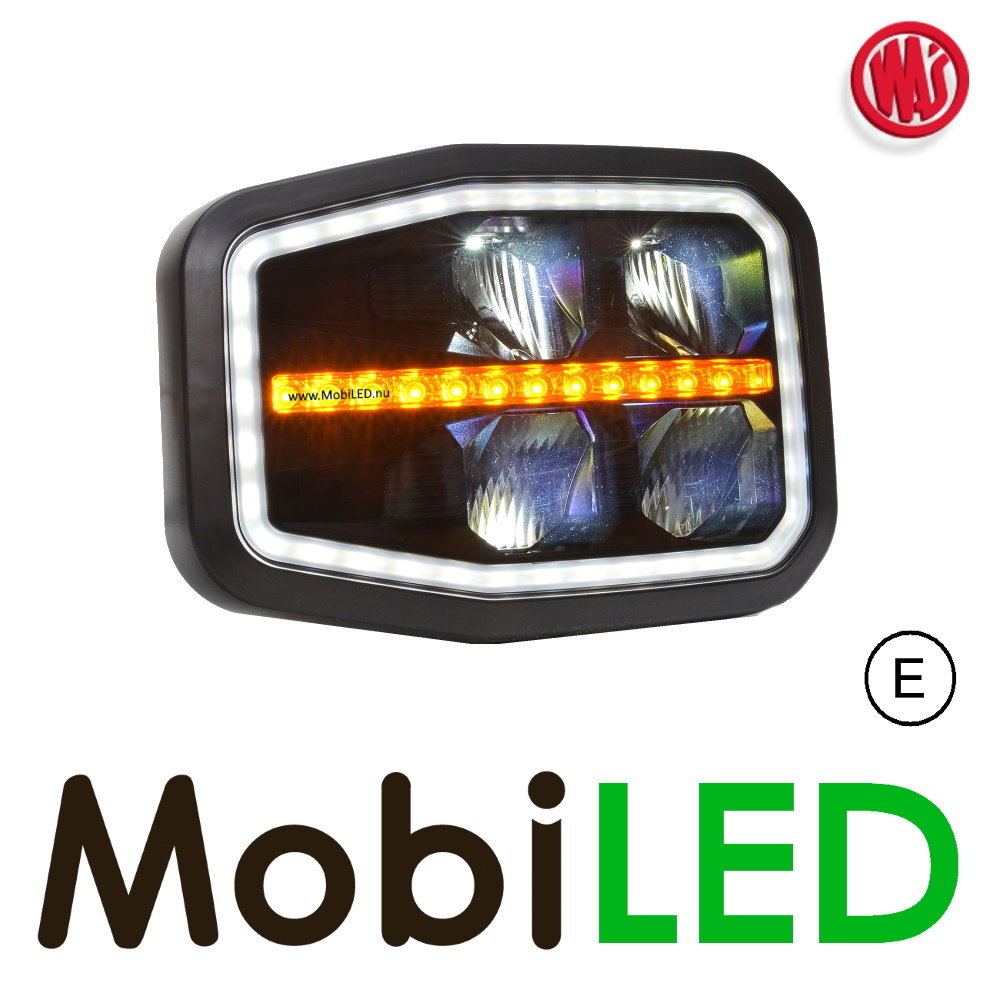

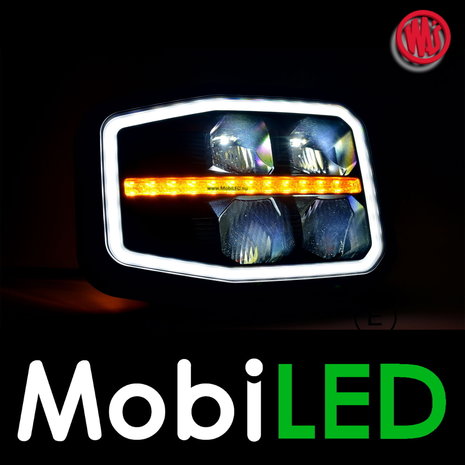

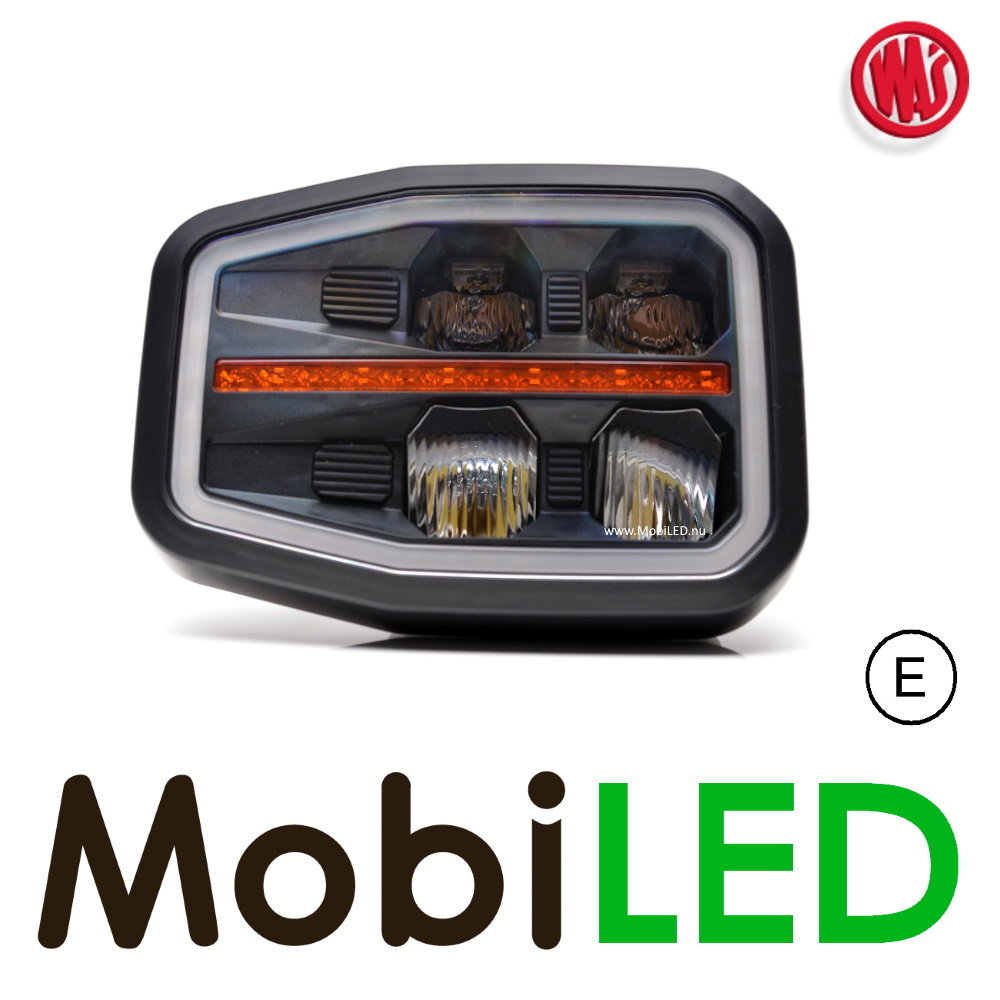

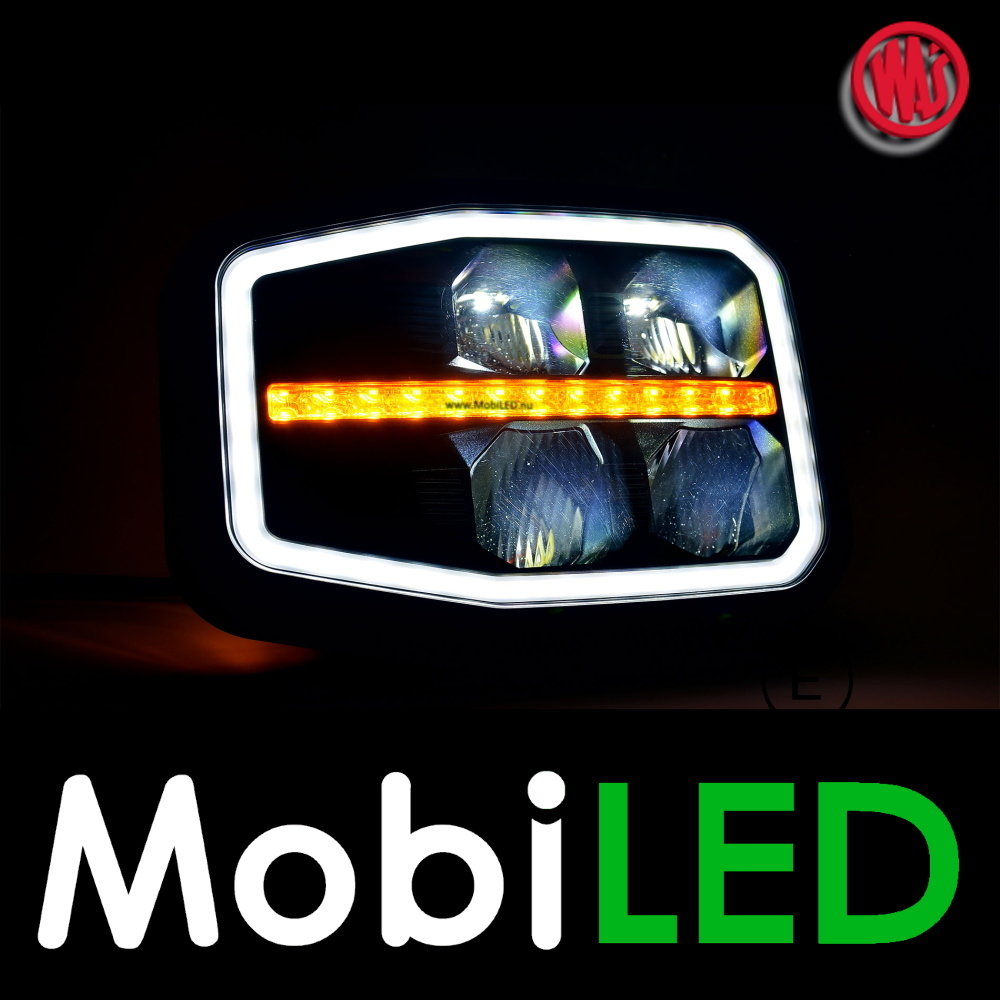

Multifunctional headlight with 6 functions. Suitable for 12V and 24V installations. Equipped with European homologation for all functions.

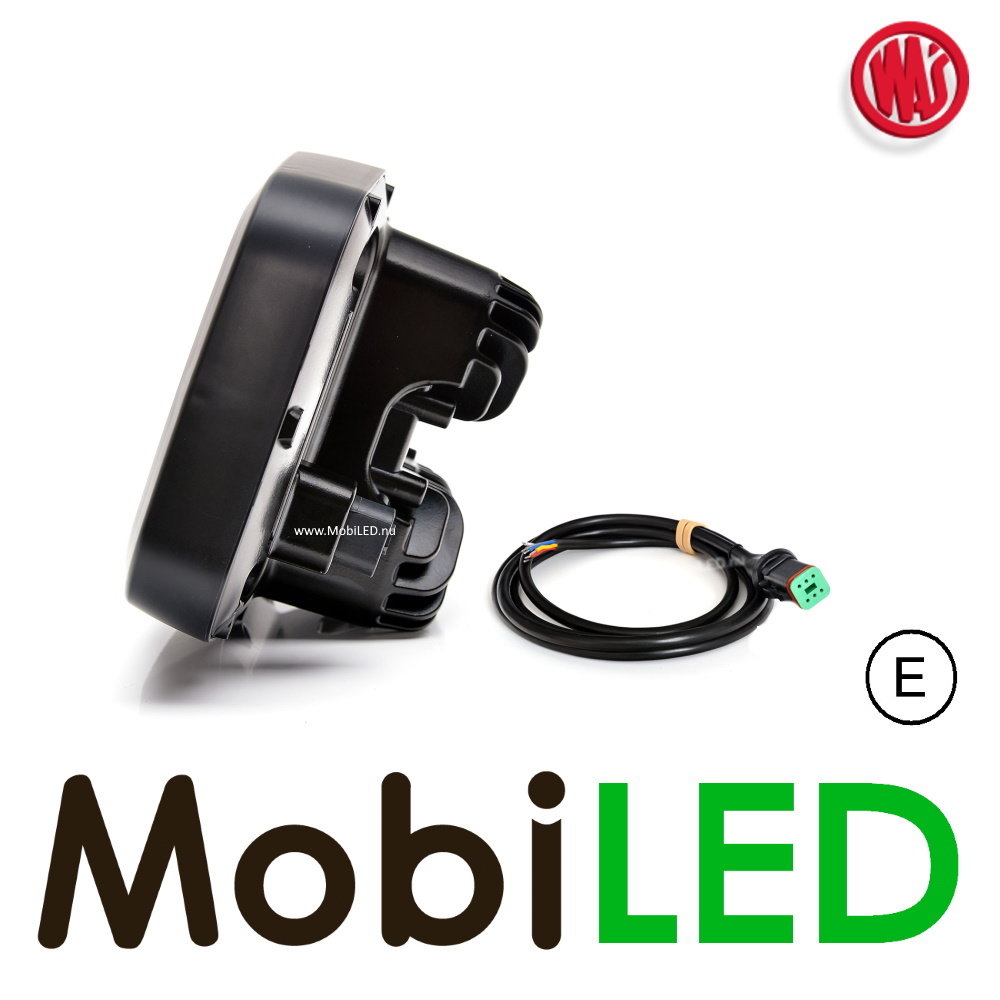

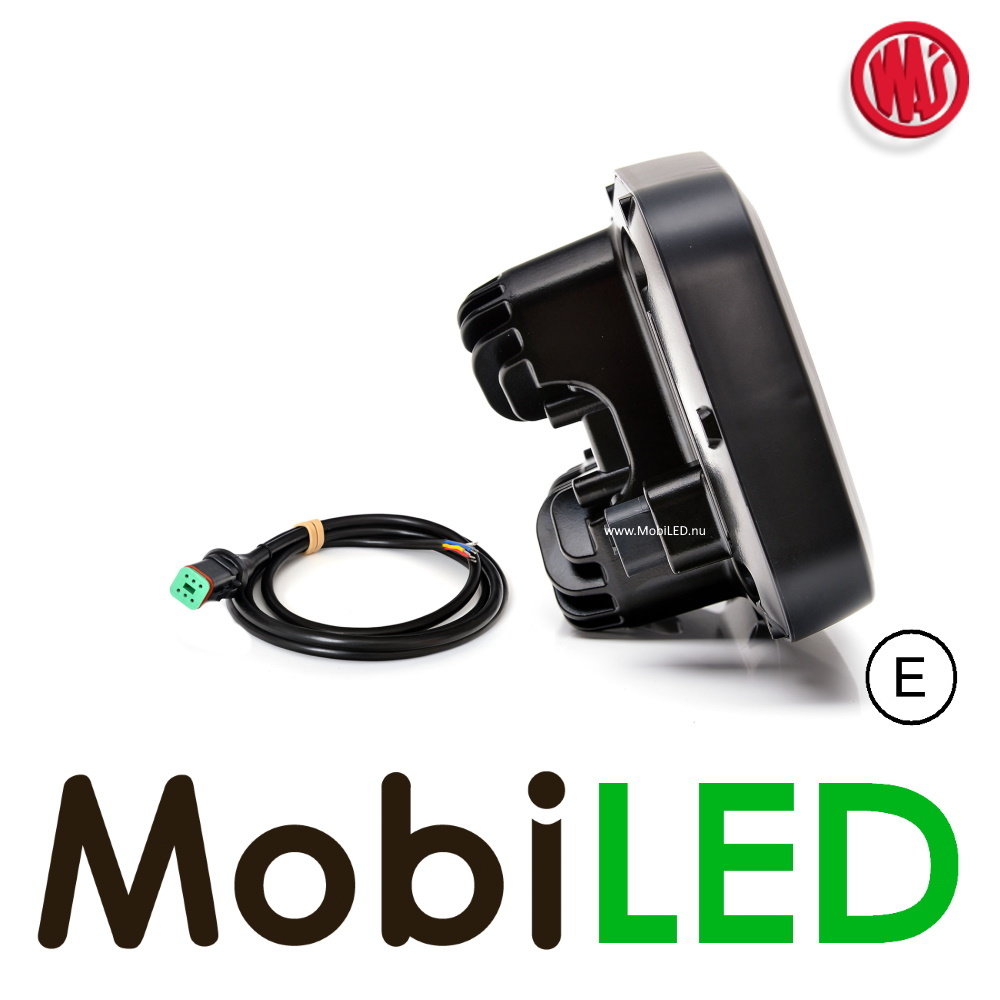

Tested in an independent laboratory and rated with IP6K9K, which means it is completely resistant to dust ingress and water jets. The lamp is operational in temperatures between -40°C and +50°C. It also uses a high-quality, renowned German connector, which protects against water ingress.

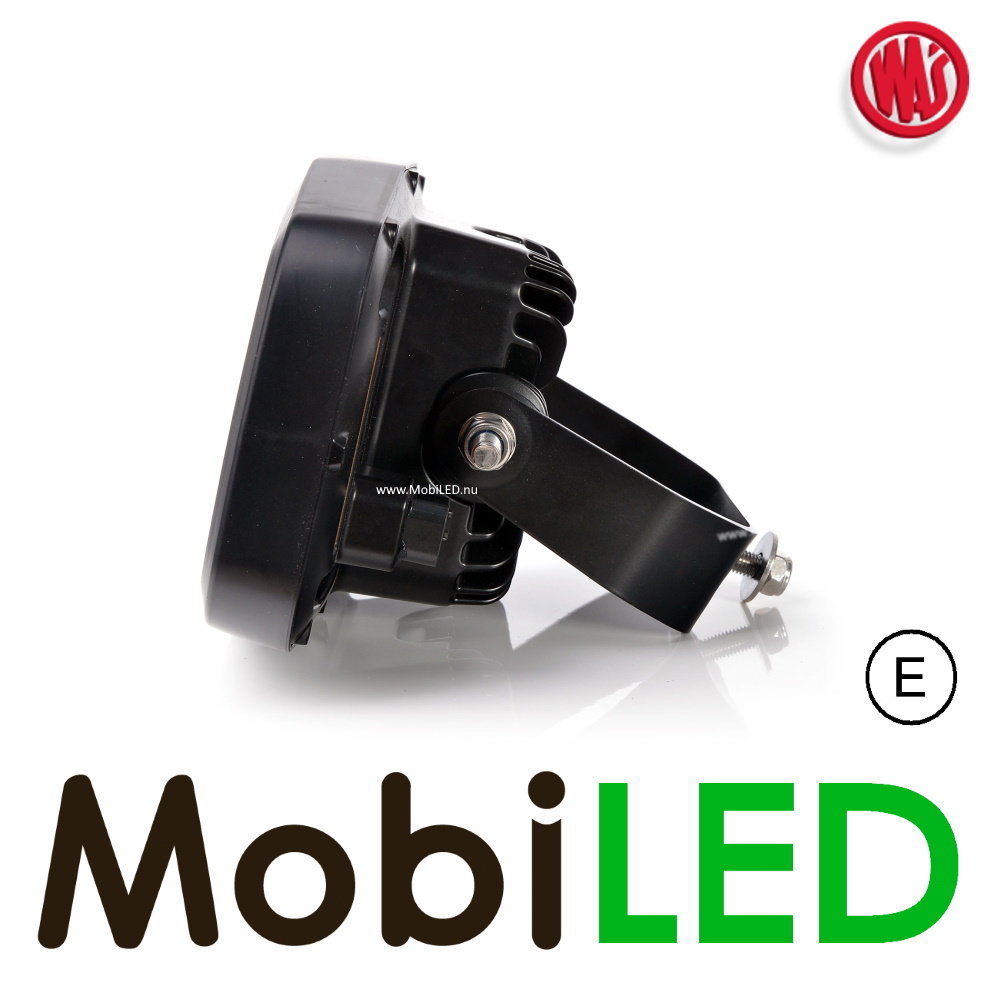

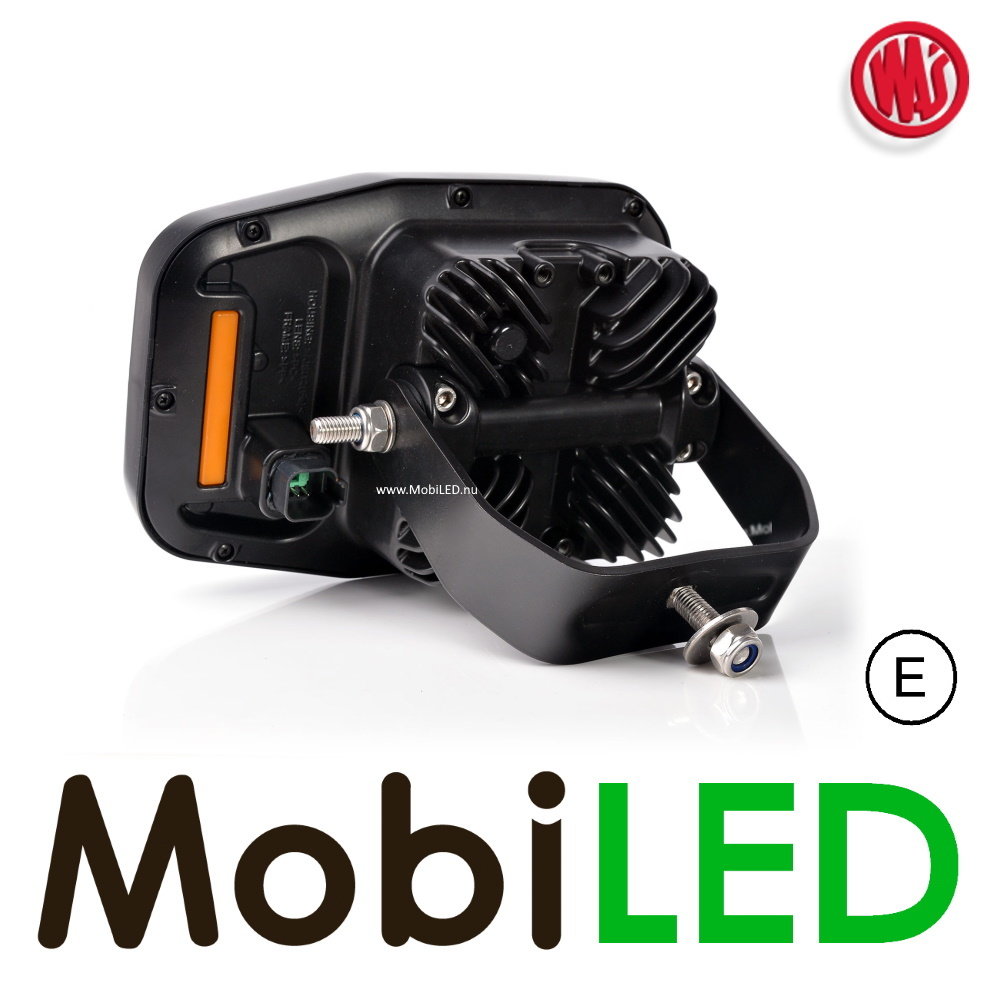

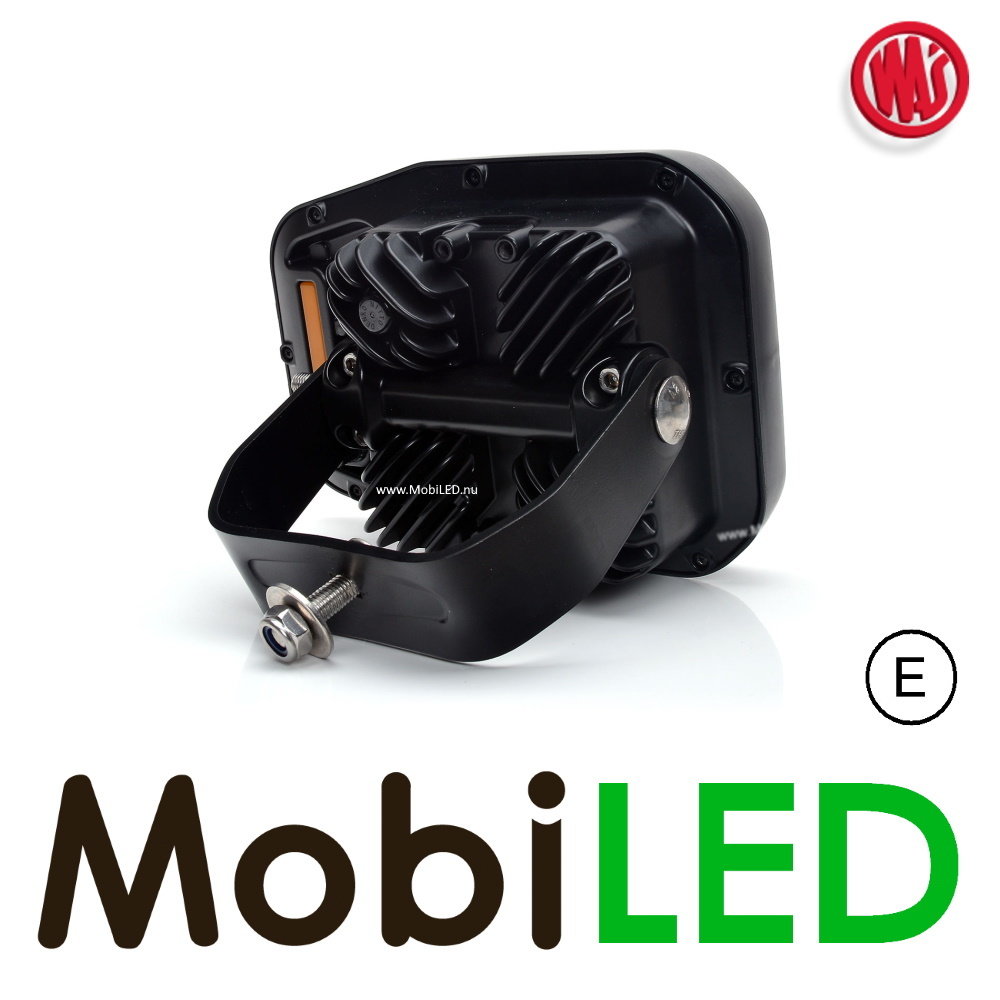

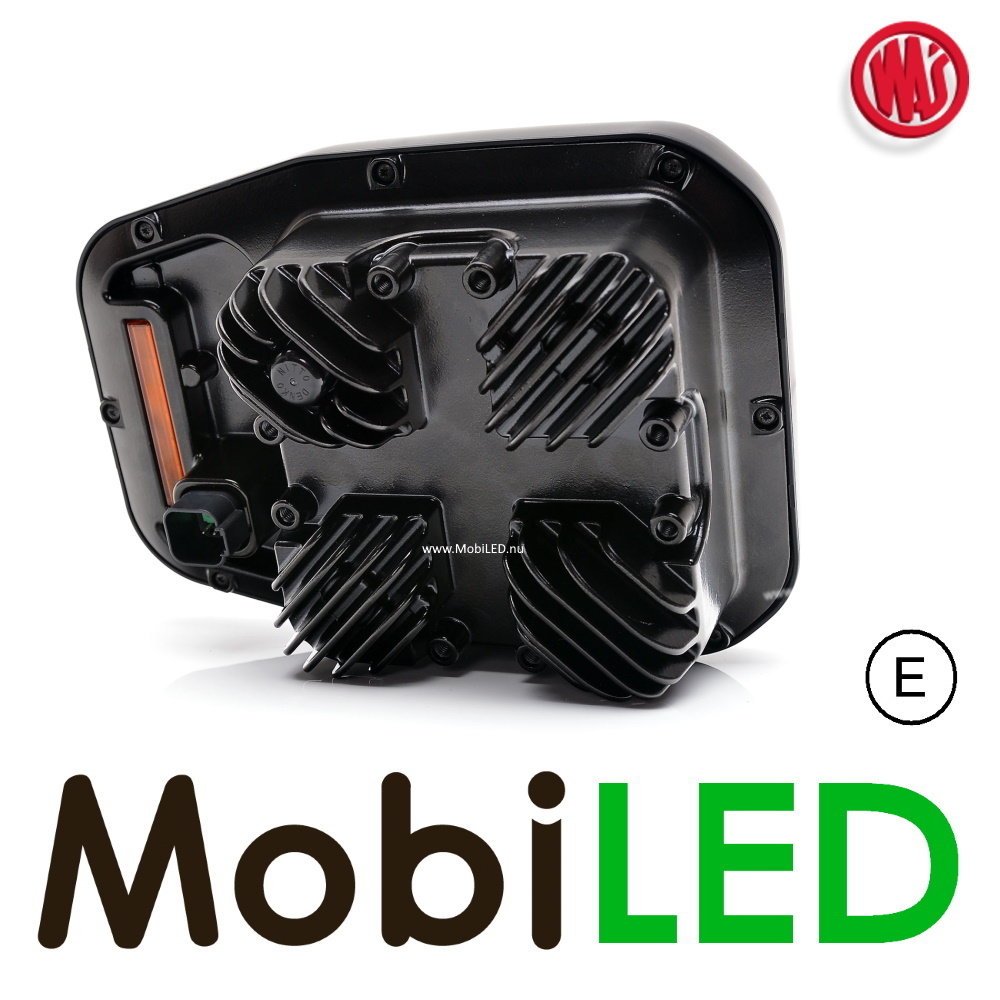

The shape of the lamp body and high quality aluminium used in production increases the discharge of heat and therefore extends the service life of the diodes. The entire body is protected against corrosion by a double layer, allowing it to be used for years without any problems. The lamp is fitted with a large fork-type bracket.

Functions:

1. Front position light
2. Low-beam
3. High-beam
4. Day-time running light
5. Front indicator
6. Side indicator

Specifications:

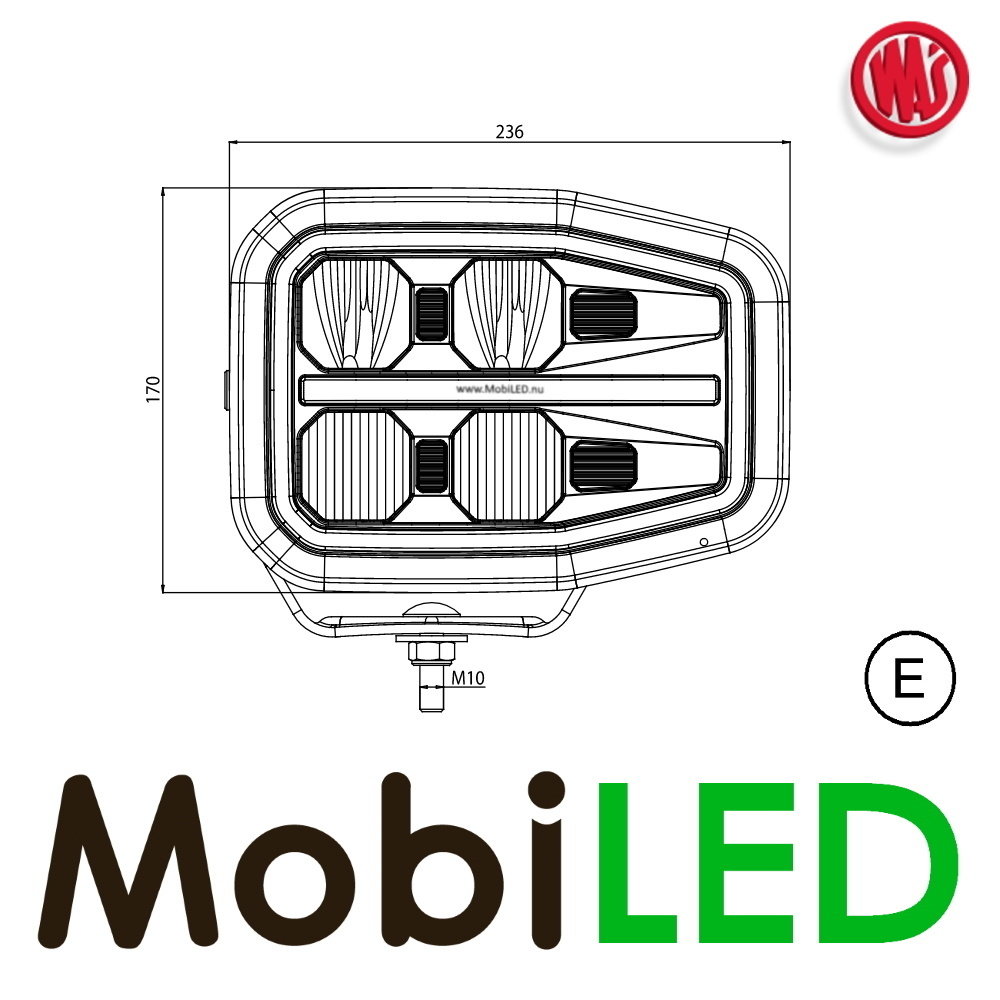

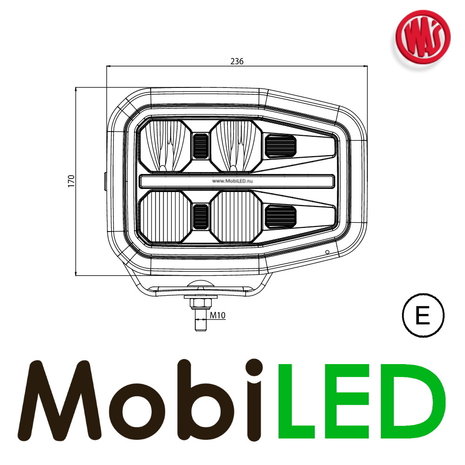

• Measurements: 236x170x105 mm.
• Bracket: 122 mm
• Tension: 12-24v
• Homologation: R6, R7, R87 and R112
• Operating temperature range: -40°C and +50°C
• Water/dust resistance: IP6K9K

Video:

Homologation:

• W188
