Headlight with DRL and turn signal left E-mark

Headlight with DRL and turn signal left

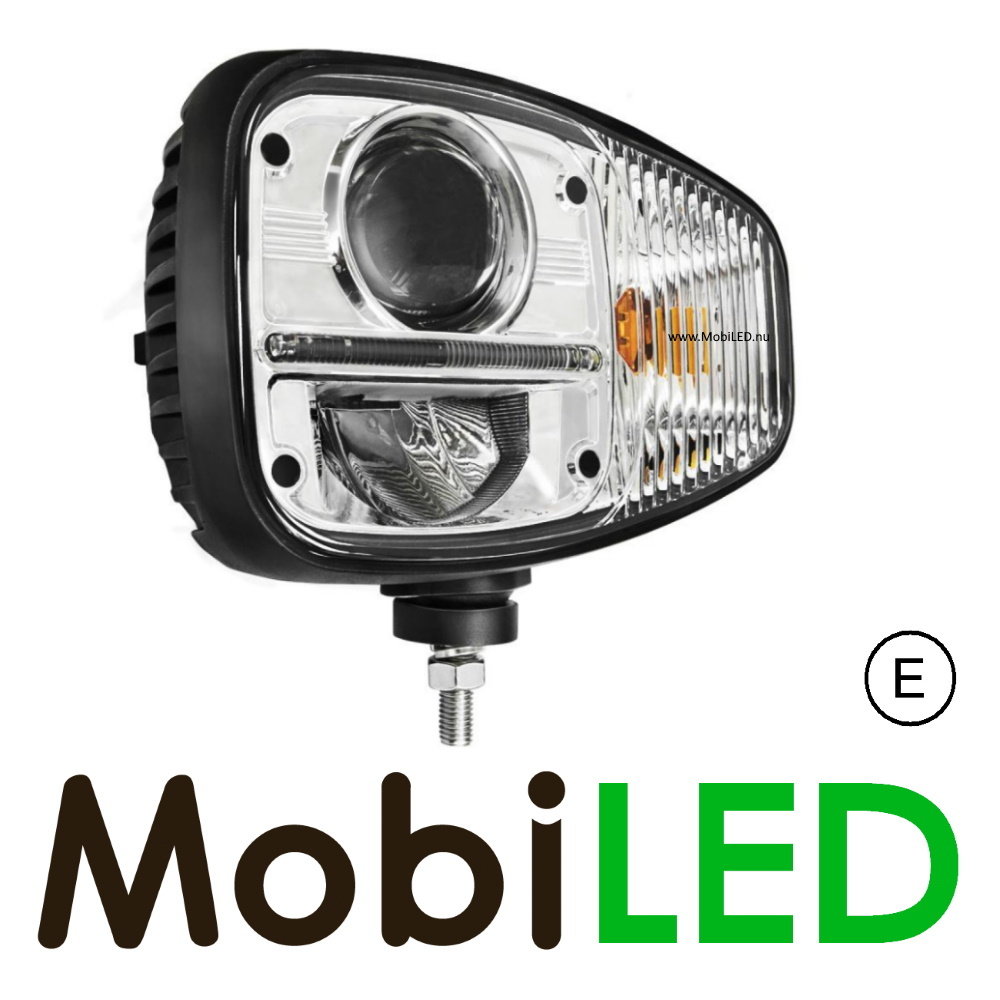

Headlight for all your work vehicles. Low beam, High beam and turn signal which is also visible at the rear. The design corresponds to the classic halogen headlights that are often fitted as standard. An upgrade to LED results in a much higher light output, less maintenance and a contemporary look.

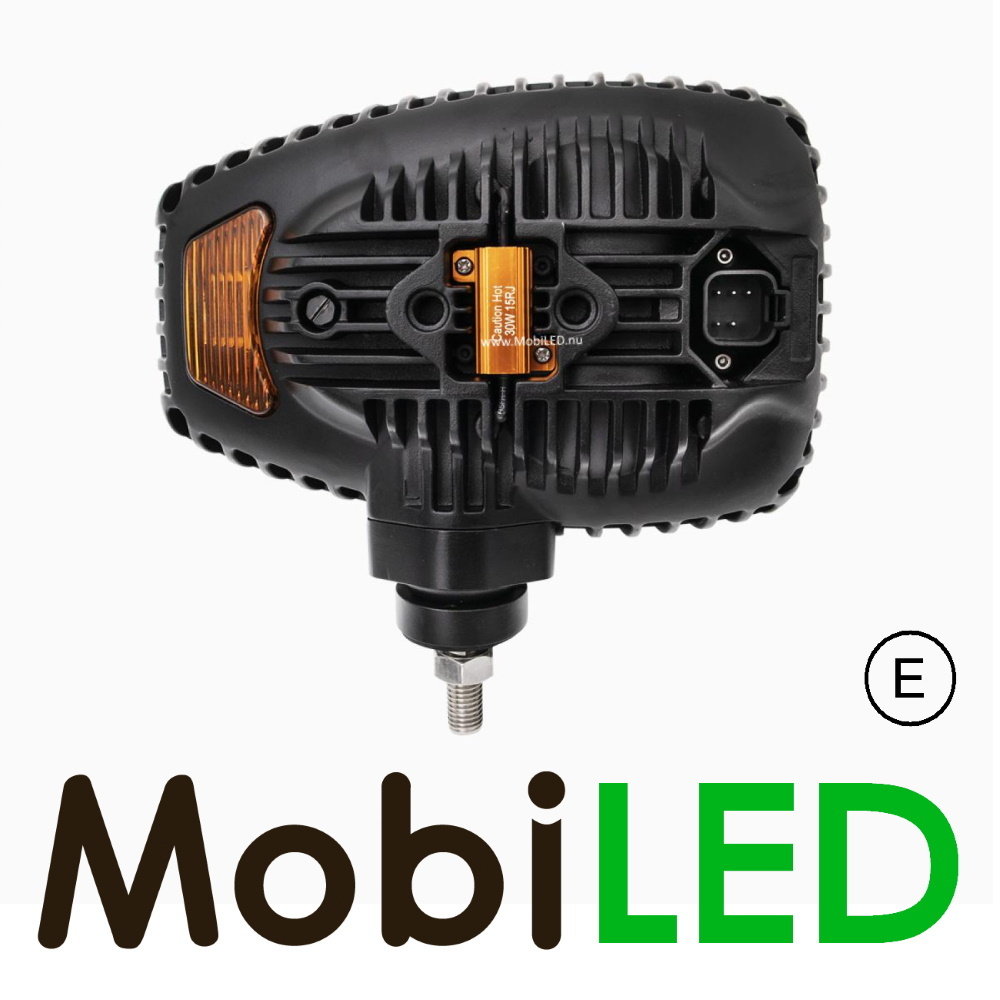

It has mounting possibilities on the underside as well as the rear side. The aluminum housing guarantees good protection and heat conduction. The lamp comes with a plug-in connection.

Note when ordering: The combination LED headlight is available in left and right.

Specifications:

• Power: 82 watts
• Voltage: 12-24 volts
• Number of LEDs: 16
• Functions: high beam, low beam, position light, turn signal (front/rear).
• Lumen: high 2696lm, low 1348lm, drl 500lm

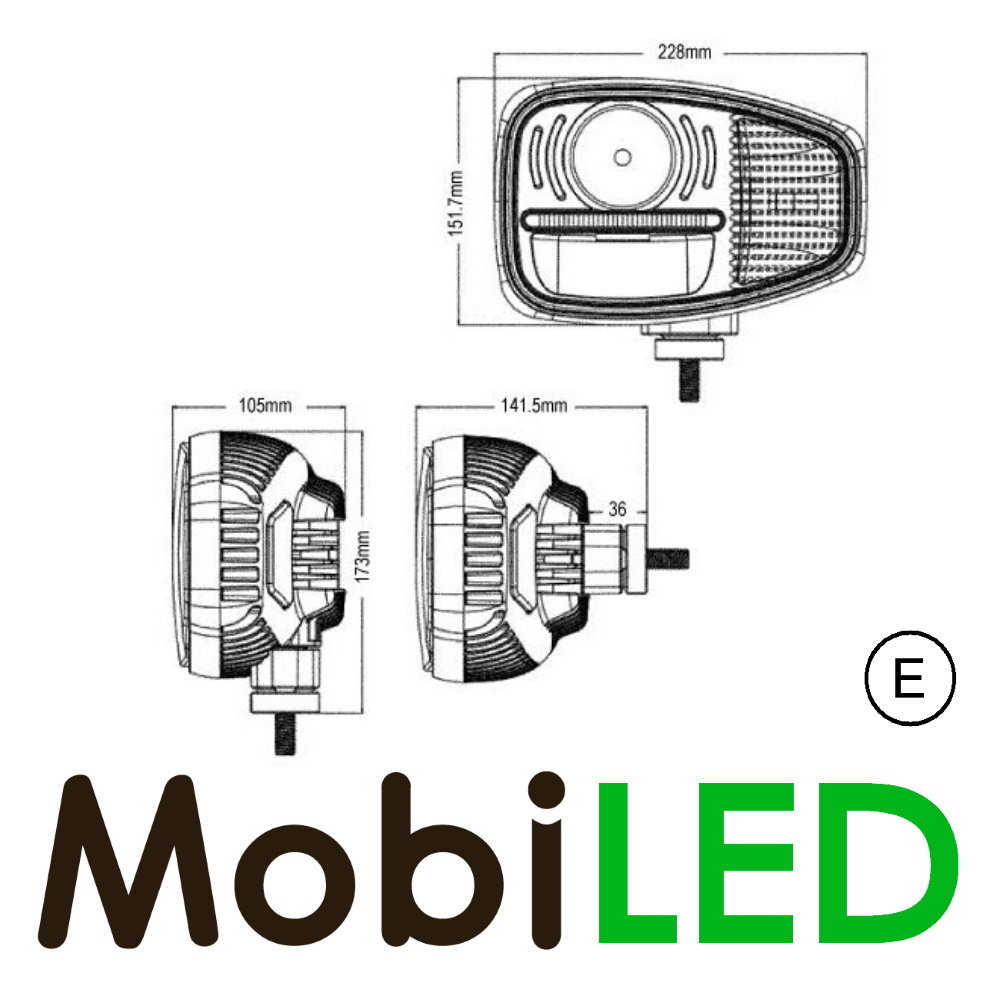

• Dimensions: 228 x 173 x 106 mm
• Housing: aluminum
• Lens: polycarbonate
• Mounting bracket: stainless steel
• Cable length: 200 mm
• Connection: plugin
• Light range: 269 m
• Temperature: -40 to +60 C
• Consumption: 12V - 3.5A (high), 1.8A (low), 0.5A (DRL), 0.5A (indicator)
   24 V - 1.7A (high), 0.9A (low), 0.3 A (DRL), 0.3A (indicator)
• Certification: ECE Reg 6, Reg 10, Reg 87, Reg 112

Connection diagram:

• Black: mass
• White: position light
• Blue: direction indicator
• Brown: high beam
• Red: low beam
