Headlight with positionslight and turn signal right E-mark

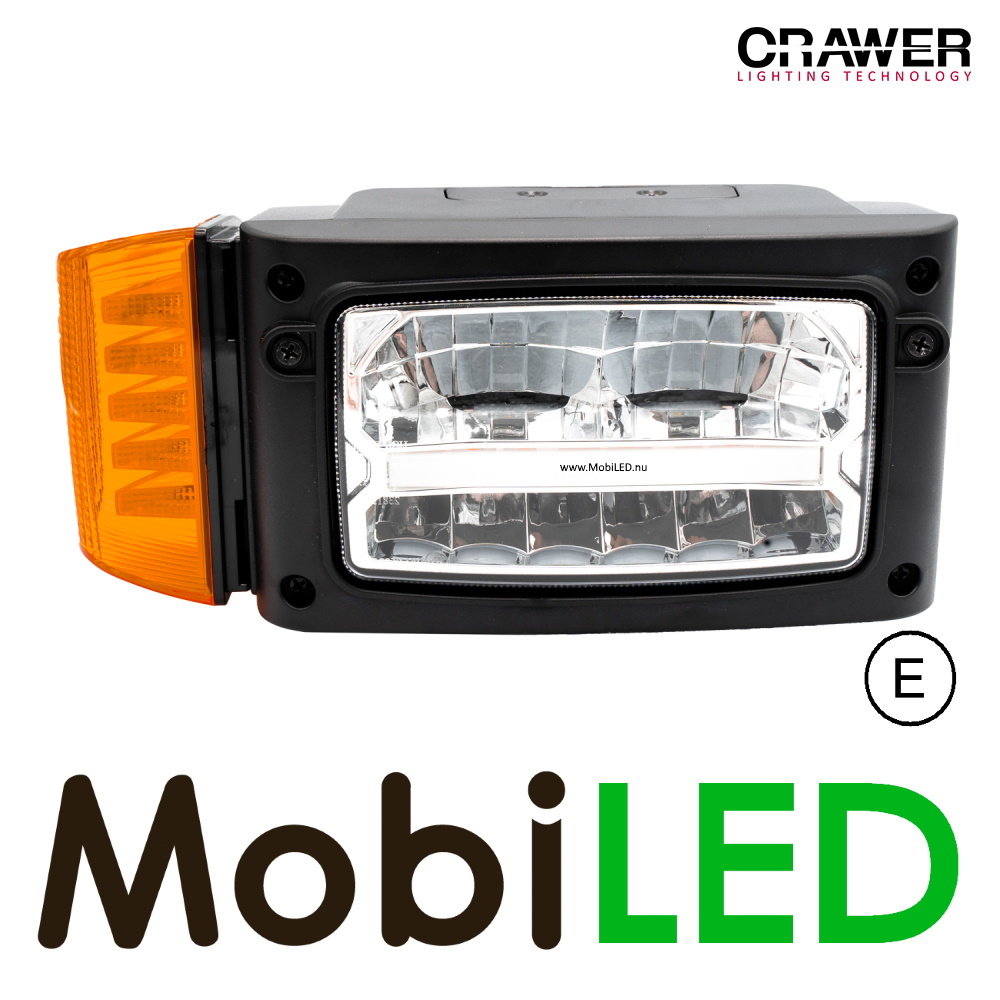

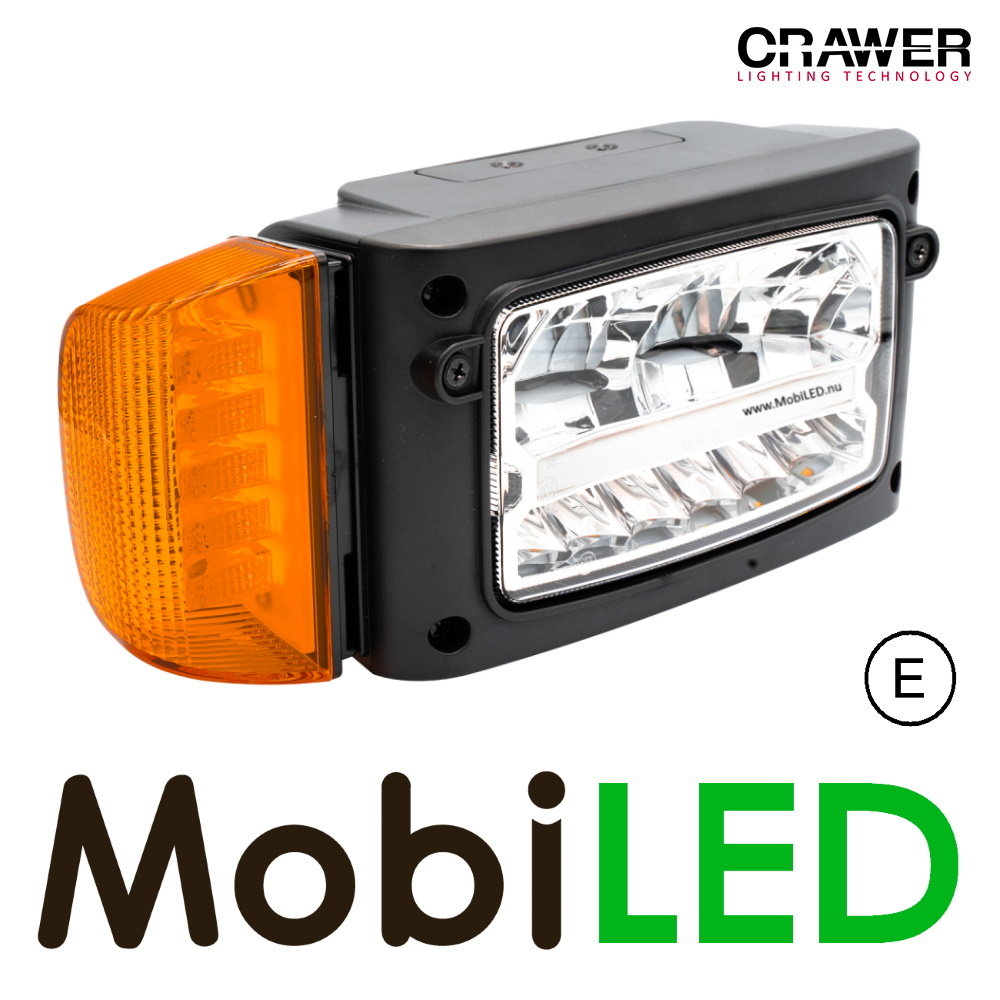

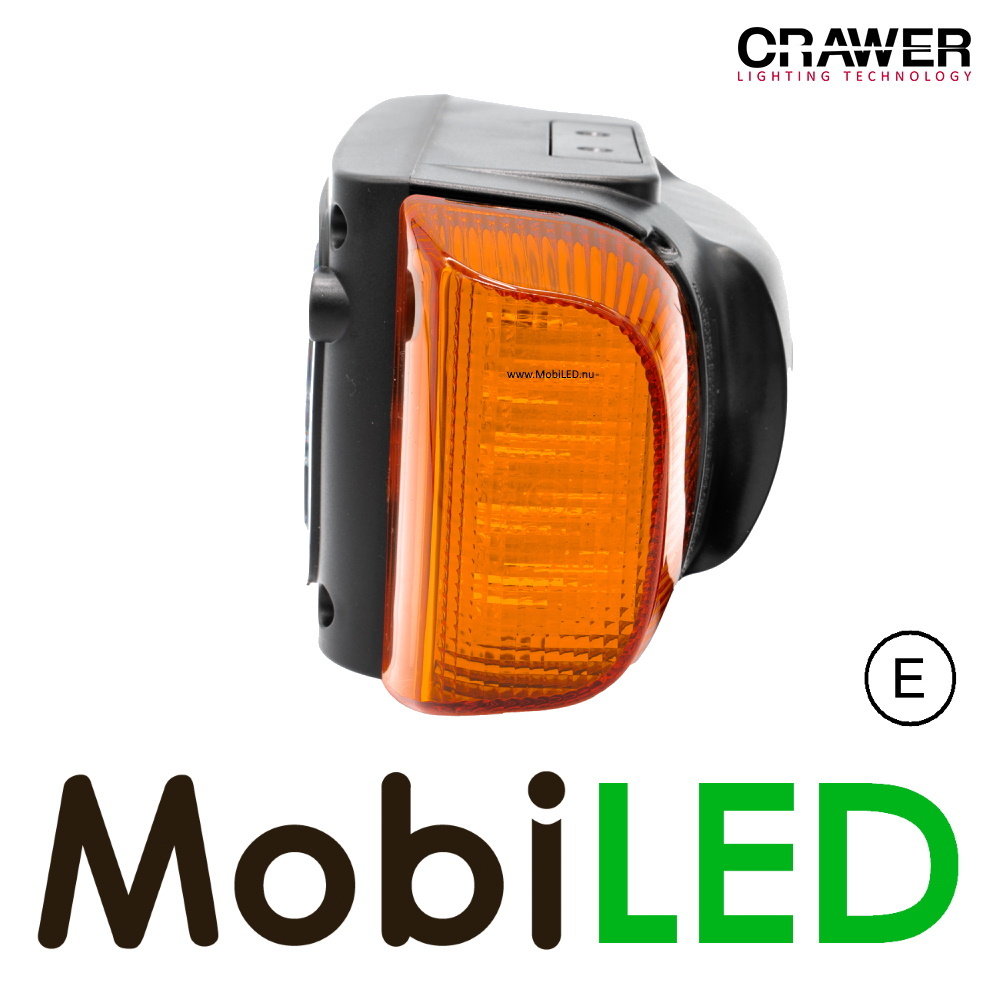

Headlight with position light and turn signal right

Low beam, high beam, position light and turn signal, this headlamp has it all. A real all-rounder with the great advantage that the turn signal is integrated, and it is also very robust.

The lamp is multi-voltage and provided with all quality marks: EMC CISPR class 4 and ECE R112, R10, R7, R6. Easy to connect with the supplied 2 meter cable with Deutsch DT 6 pin connector.

Note when ordering: The combination LED headlight is available in left and right.

Specifications:

• Power: 30W high beam, 18W low beam, 4W position light, 5W turn signal
• Voltage: 9-32 volts

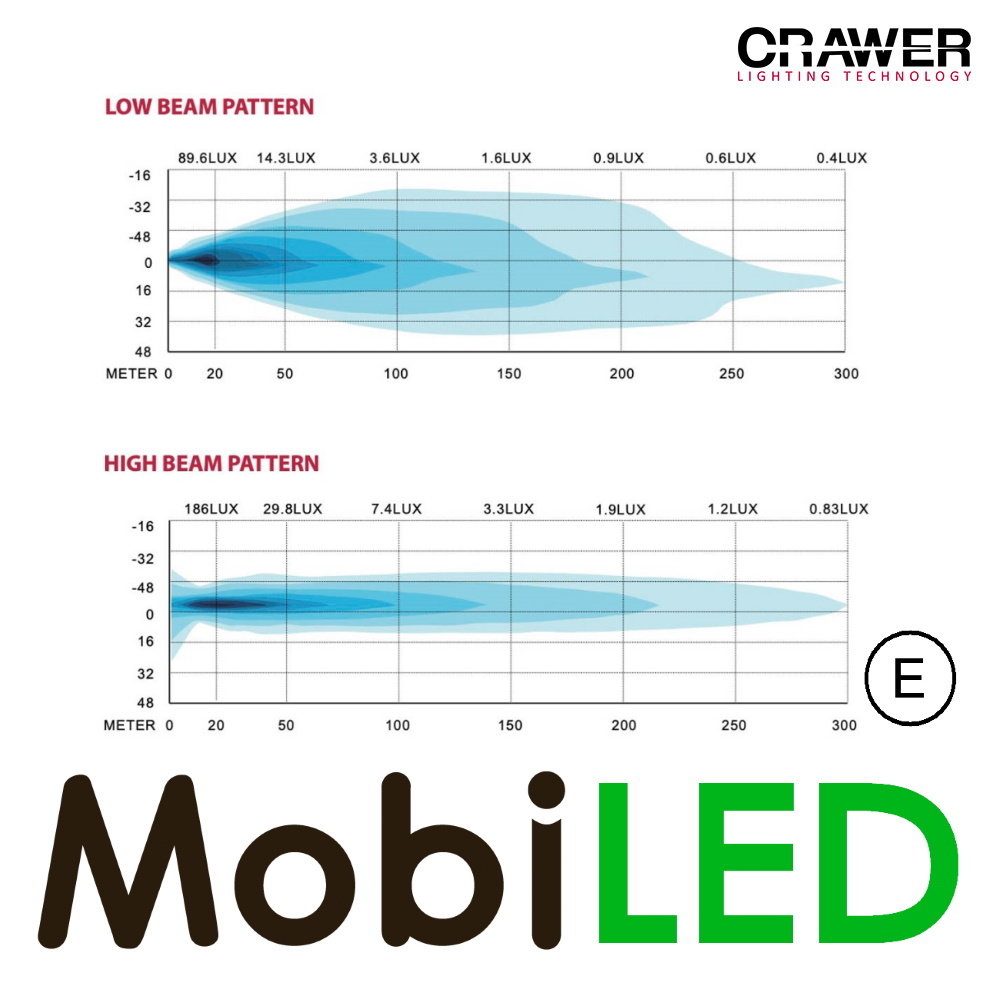

• Lumen: 1510 high beam, 1120 low beam, 112 position light, 231 turn signal
• Light color: 6000K

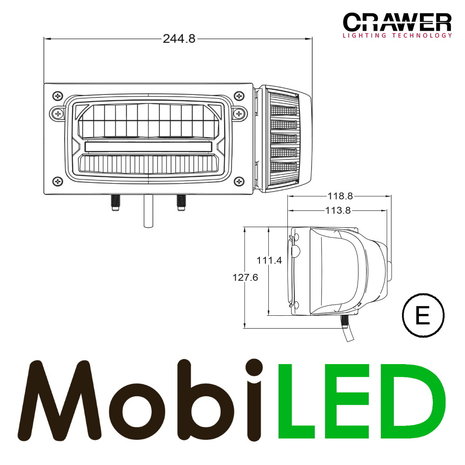

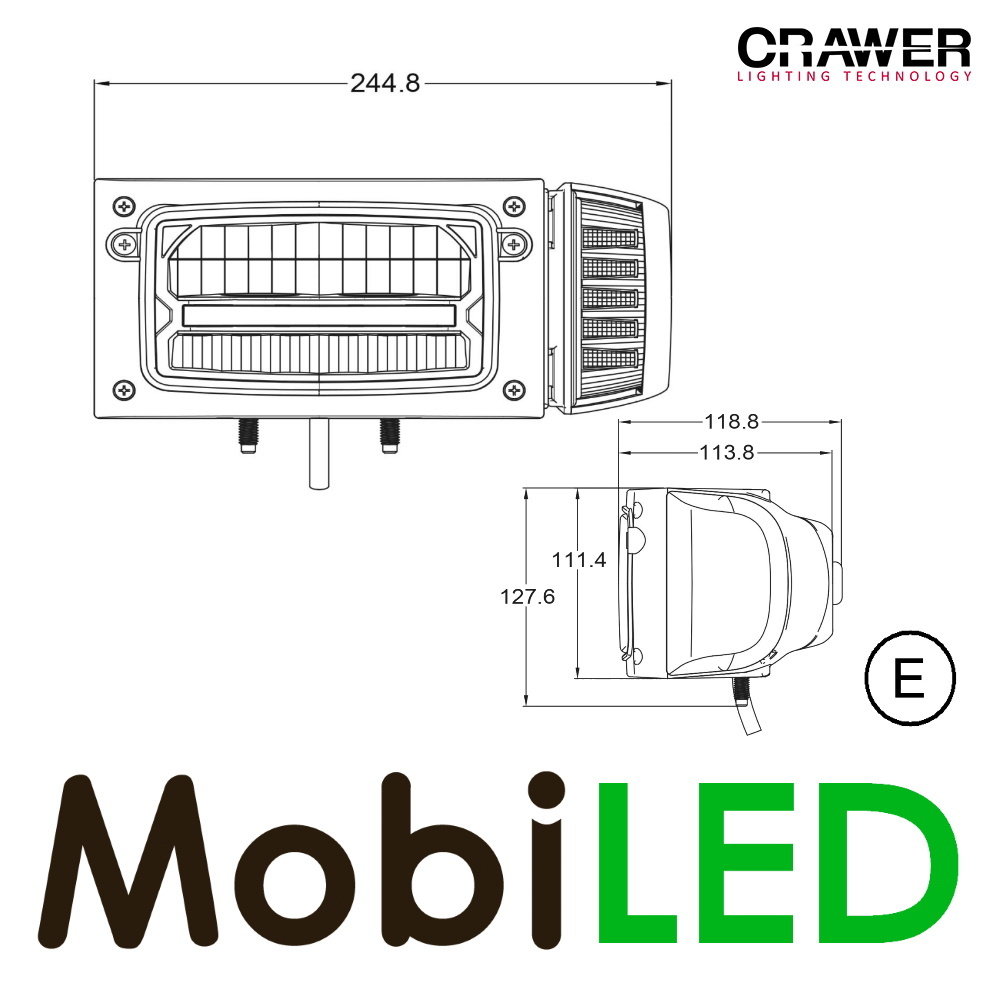

• Dimensions: 244.8 x 111.4 x 118.8 mm
• Housing: aluminum
• Lens: polycarbonate

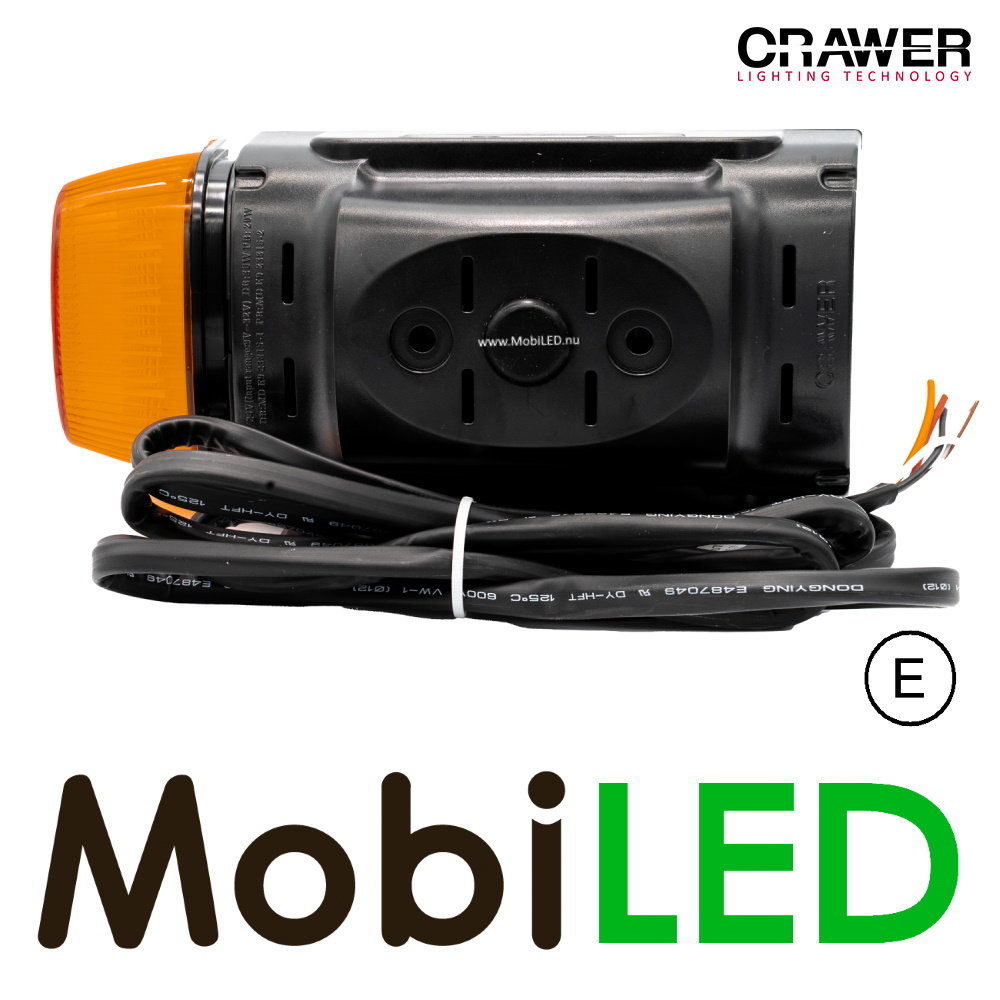

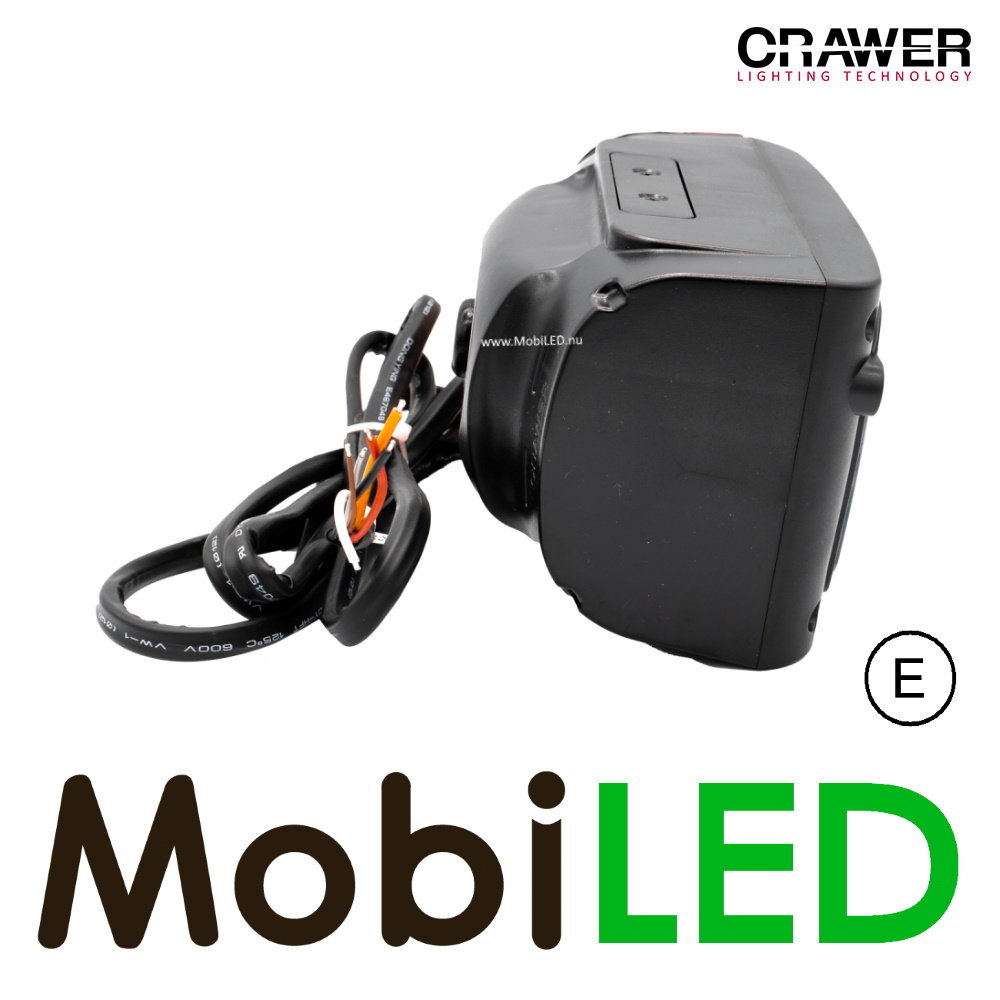

• Connection: 6-pin cable, Deutsch DT 6 pin connector is included separately
• Cable length: 2 m
• Water resistance: IP67
• Certification: EMC CISPR Class 4 and ECE R112, R10, R7, R6

Connection diagram:

• Black: Negative
• Red: Positive high beam
• White: Positive low beam
• Yellow: Positive city light
• Brown: Positive turn signal
• Gray: Negative turn signal
