Heavy duty heated headlight

Heavy duty headlight heated

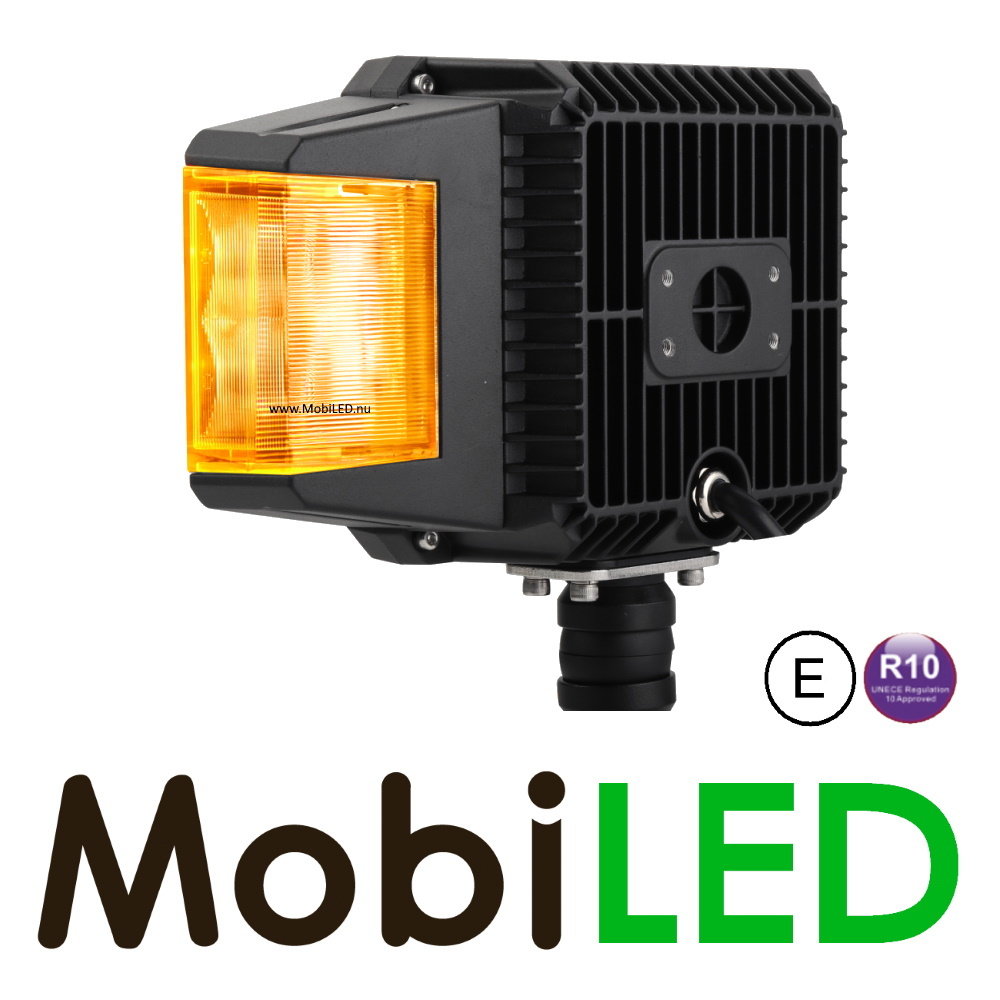

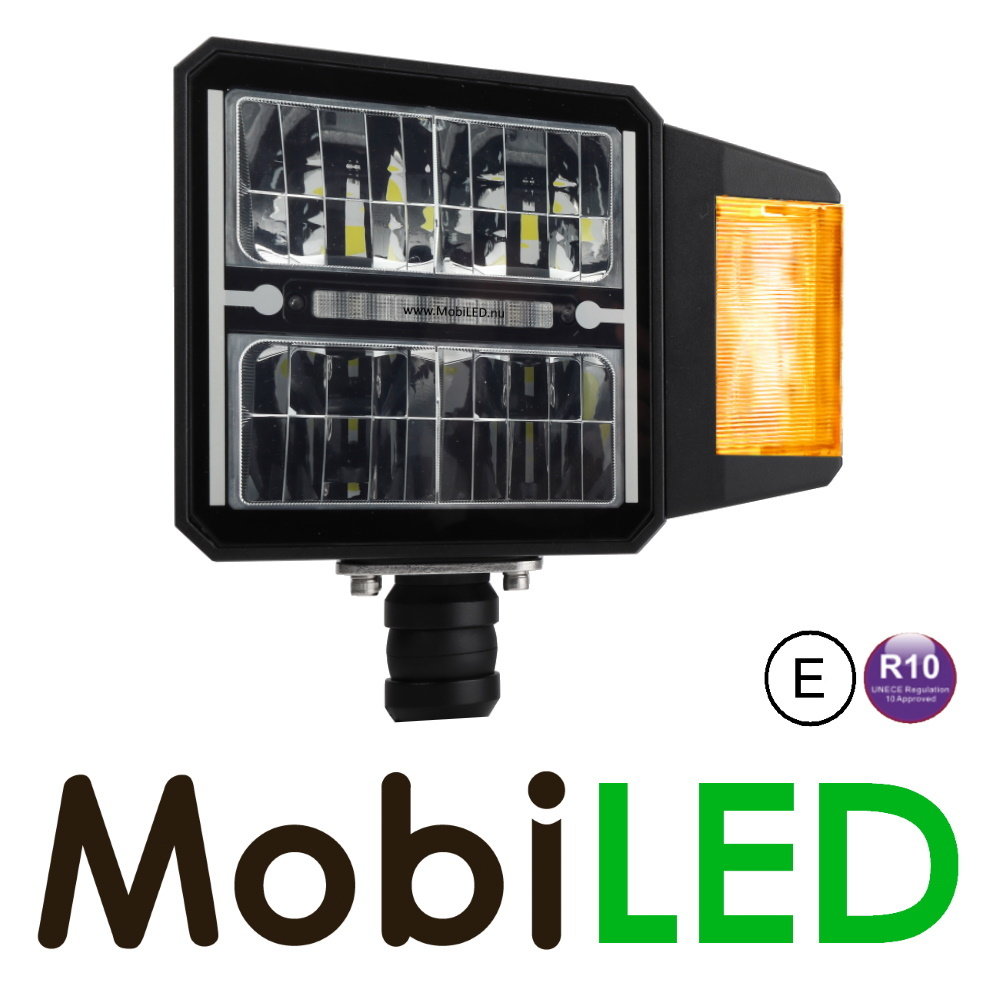

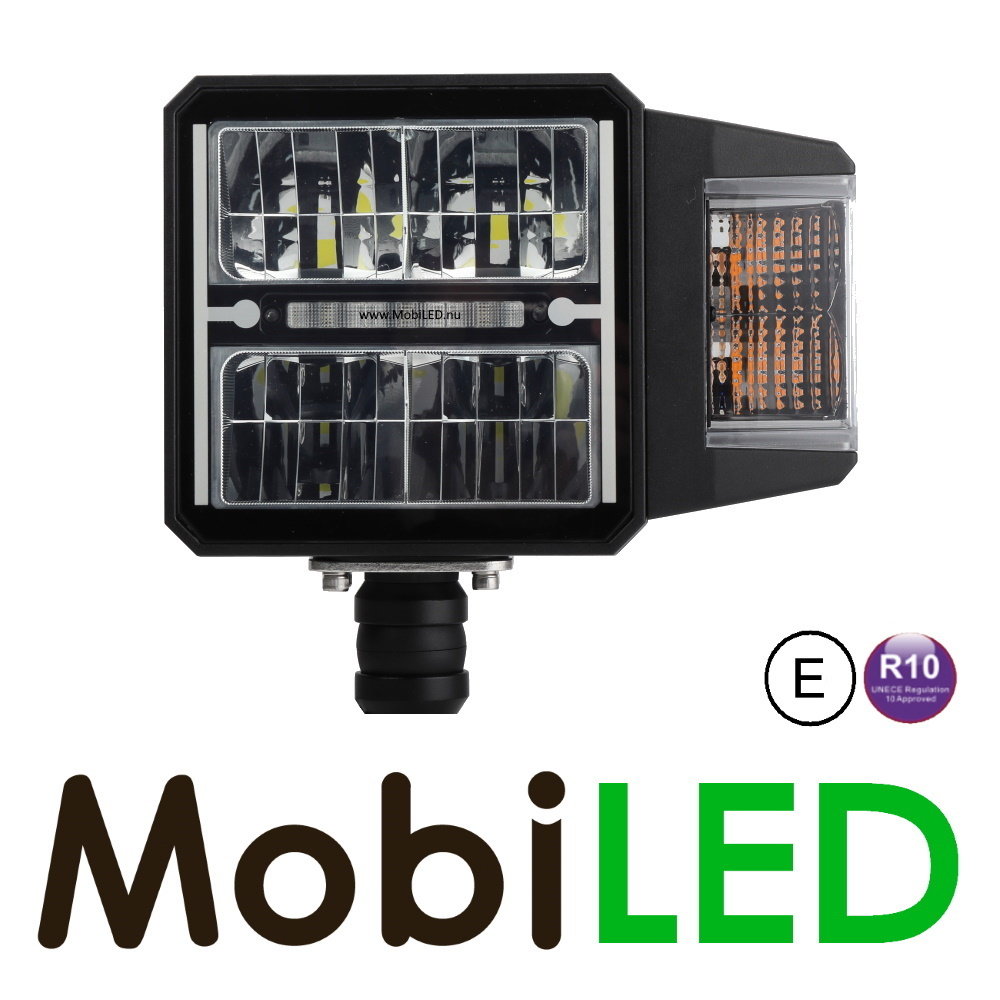

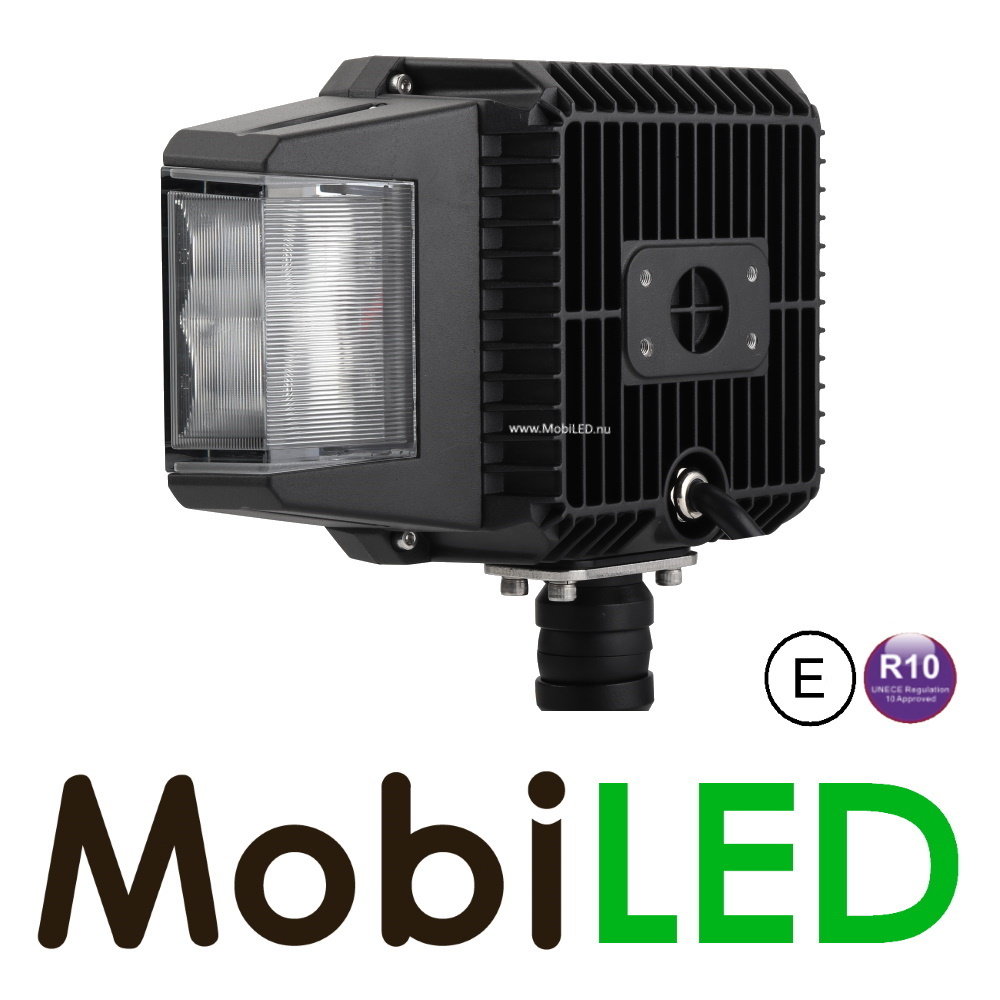

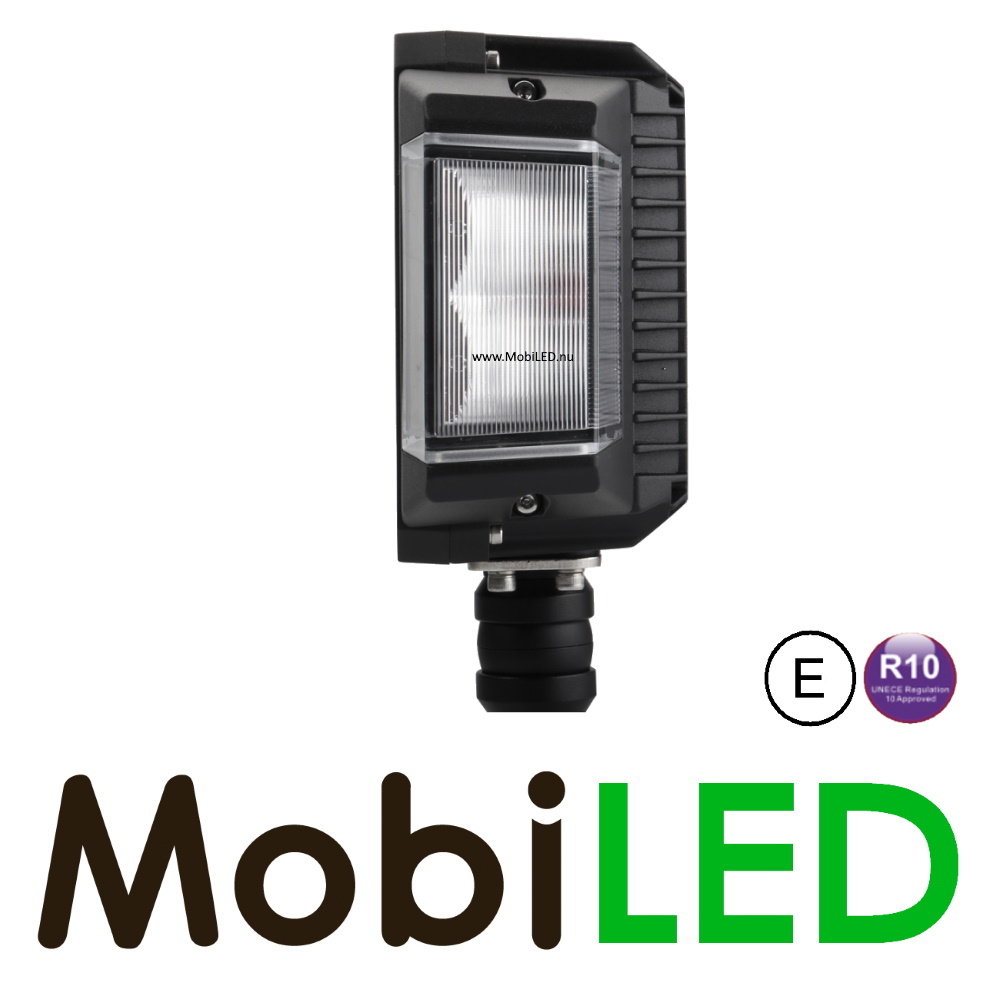

A headlight unit for tough work on, for example, snow plows, excavators or trucks. Sturdy die-cast aluminum housing and built-in heating function and IP68/69 water resistance rating for all-weather use.

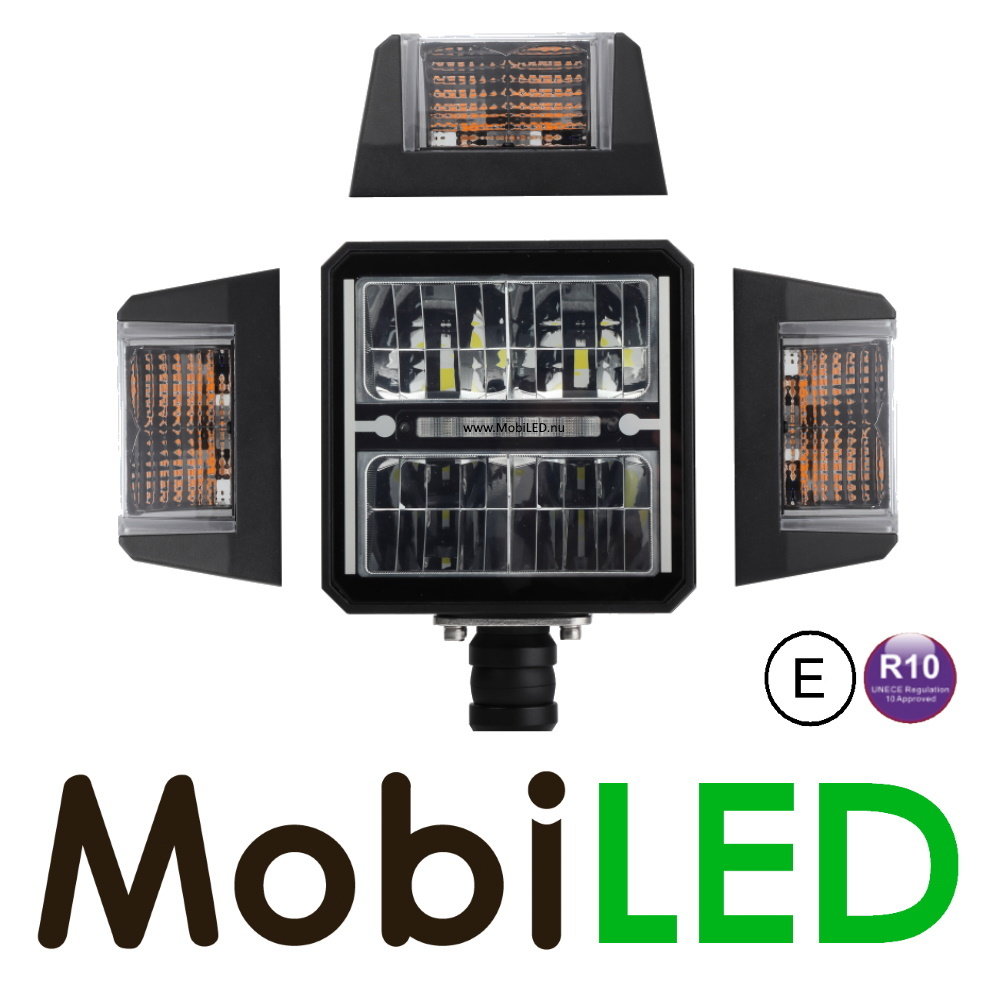

The indicatorunit can be mounted on the left, right or above the lamp or can be omitted completely. The high-quality LEDs in combination with the reflector-facing technology provide more light with less power.

The heating function is activated automatically when the light is on and stops automatically when the temperature reaches 40 degrees celcius. The mounting pole can be fitted underneath or on the back of the lamp.

The lamp comes with an already connected 6-pin deutsch connector and approximately 40 cm cable.

Features:

1. Low beam
2. Great light
3. Daytime running lights
4. Flashing light
5. Headlight heater

Specifications:

• Voltage: 10-30 Volt DC
• Dimensions: 215 x 150 x 85 mm
• Lumen: low beam 1800, high beam: 3600, direction indicator 220, daytime running light 160
• Light colour: 5700K
• Water resistance: IP68/69
• Housing: die-cast aluminum alloy
• Lens: tempered glass
• Reflector: PC
• Certification: ECE R112/R7/R6, R10, DOT, CE, RoHS

Connection diagram:

• Black: mass
• Red: high beam
• Yellow: low beam
• Gray: direction indicator
• Green: daytime running lights
