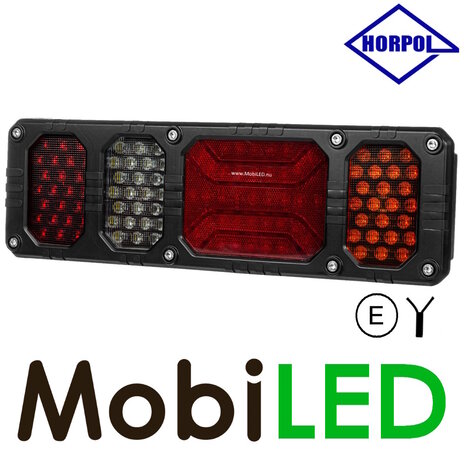

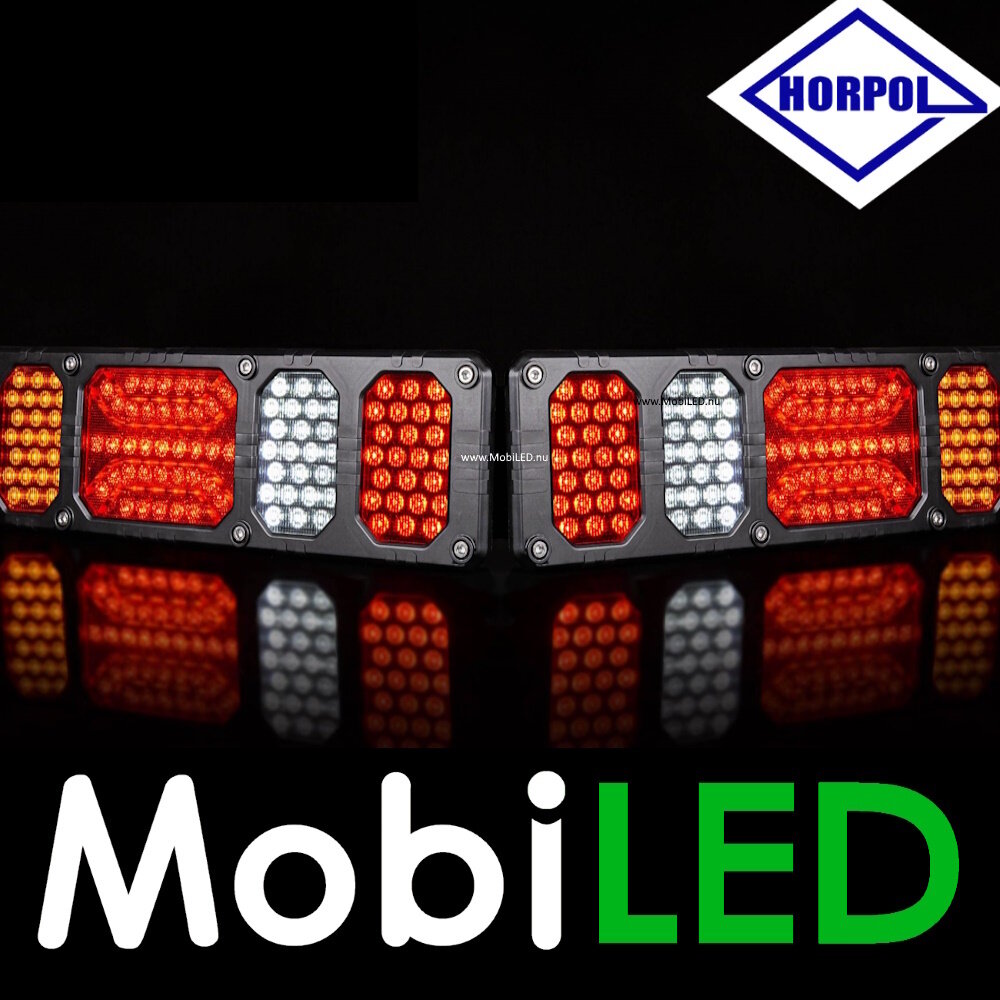

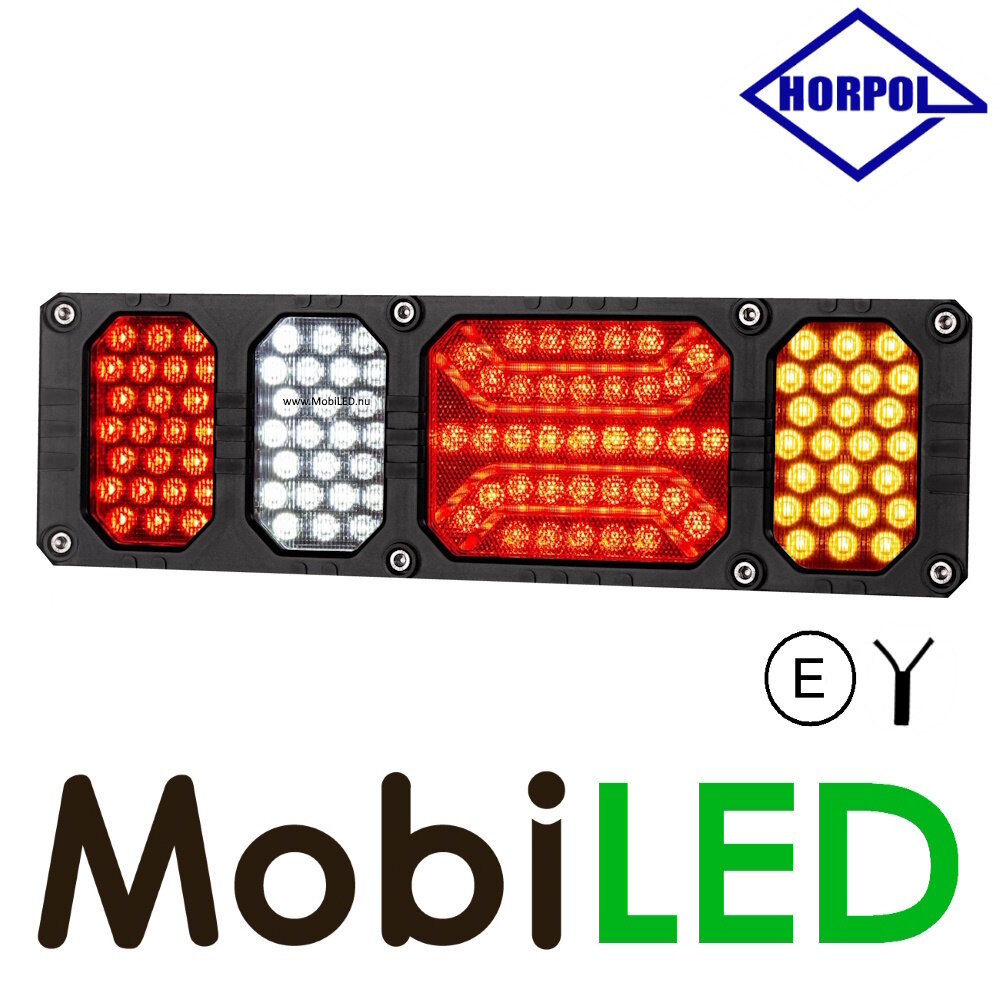

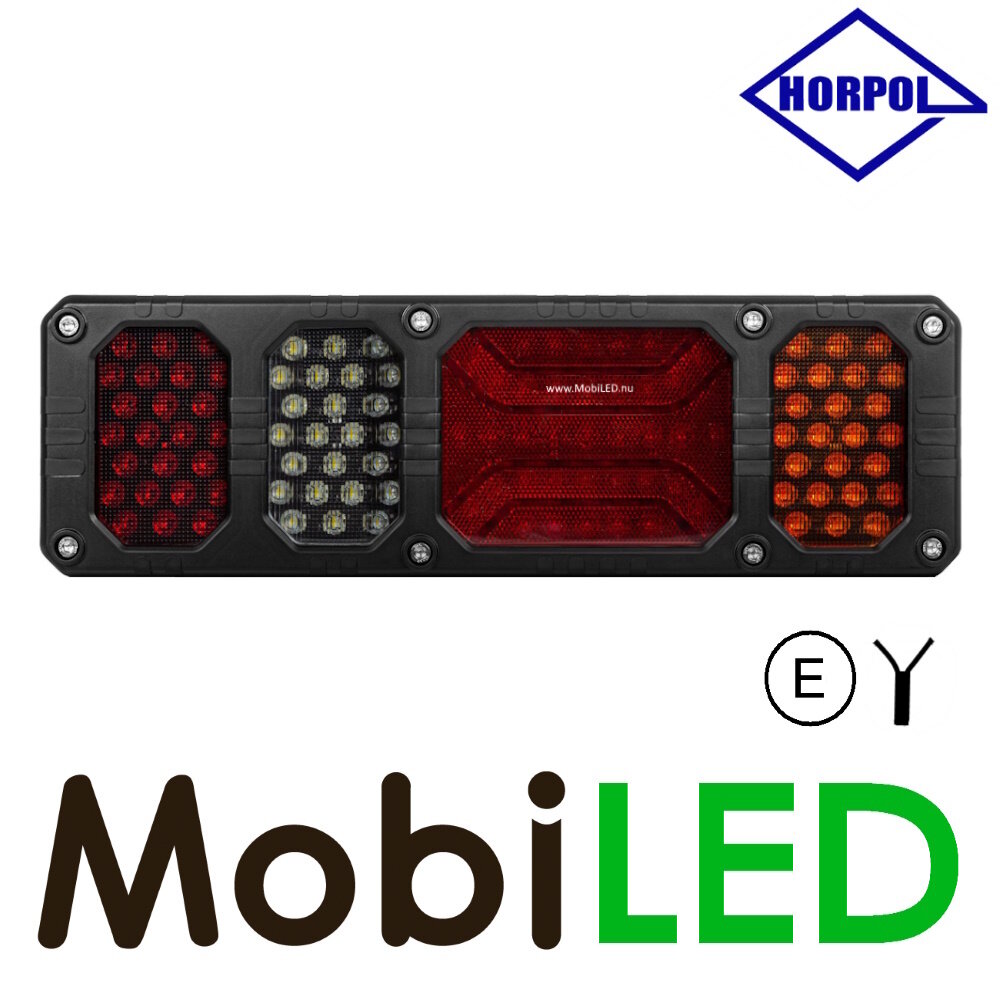

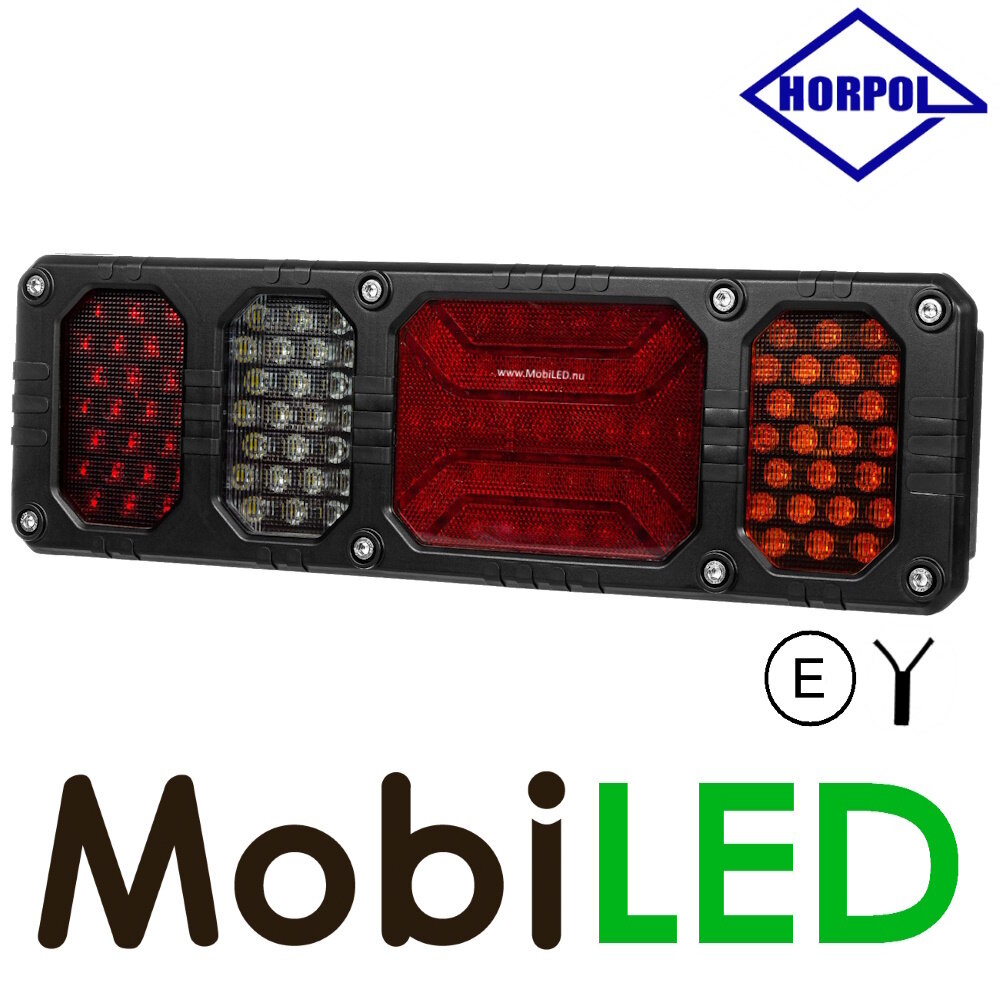

Heavy duty rear light with interchangeable modules and reflector 24V Right
![HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right](https://cdn.webshopapp.com/shops/73605/files/458304538/78x78x2/horpol-heavy-duty-rear-light-with-interchangeable.jpg)
![HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right](https://cdn.webshopapp.com/shops/73605/files/458304292/78x78x2/horpol-heavy-duty-rear-light-with-interchangeable.jpg)
![HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right](https://cdn.webshopapp.com/shops/73605/files/458304295/78x78x2/horpol-heavy-duty-rear-light-with-interchangeable.jpg)
![HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right](https://cdn.webshopapp.com/shops/73605/files/458304284/78x78x2/horpol-heavy-duty-rear-light-with-interchangeable.jpg)
![HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right HORPOL Heavy duty rear light with interchangeable modules and reflector 24V Right](https://cdn.webshopapp.com/shops/73605/files/458304287/78x78x2/horpol-heavy-duty-rear-light-with-interchangeable.jpg)
This heavy duty rear light unit is designed with durability and efficiency in mind. Equipped with replaceable LED modules, this lamp offers 139 light-emitting diodes and operates with a supply voltage of 24V, providing strong and bright light. It also has a reflector, providing extended lighting for tractors, trucks, vans, agricultural and specialist vehicles and tow trucks.
In addition, the lamp modules have a high density class of IP68 and an operating temperature range of -30 to +50 degrees, making them ideal for use in various weather conditions. In addition, it ensures EMC electromagnetic compatibility, which is an additional advantage of the lamp.
Please note: there is a difference between the left and right lamp, take this into account when ordering. This is the right variant.
Features:
- Position light
- Brake light
- Turn signal
- Reversing light
- Fog light
Connection diagram:
- White: ground
- Black: position light
- Red: brake light
- Yellow: turn signal
- Grey: reversing light
- Blue: fog light
Product specifications
- Article number
- AL635
- Tension
- 24V
- Number of LEDs
- 139

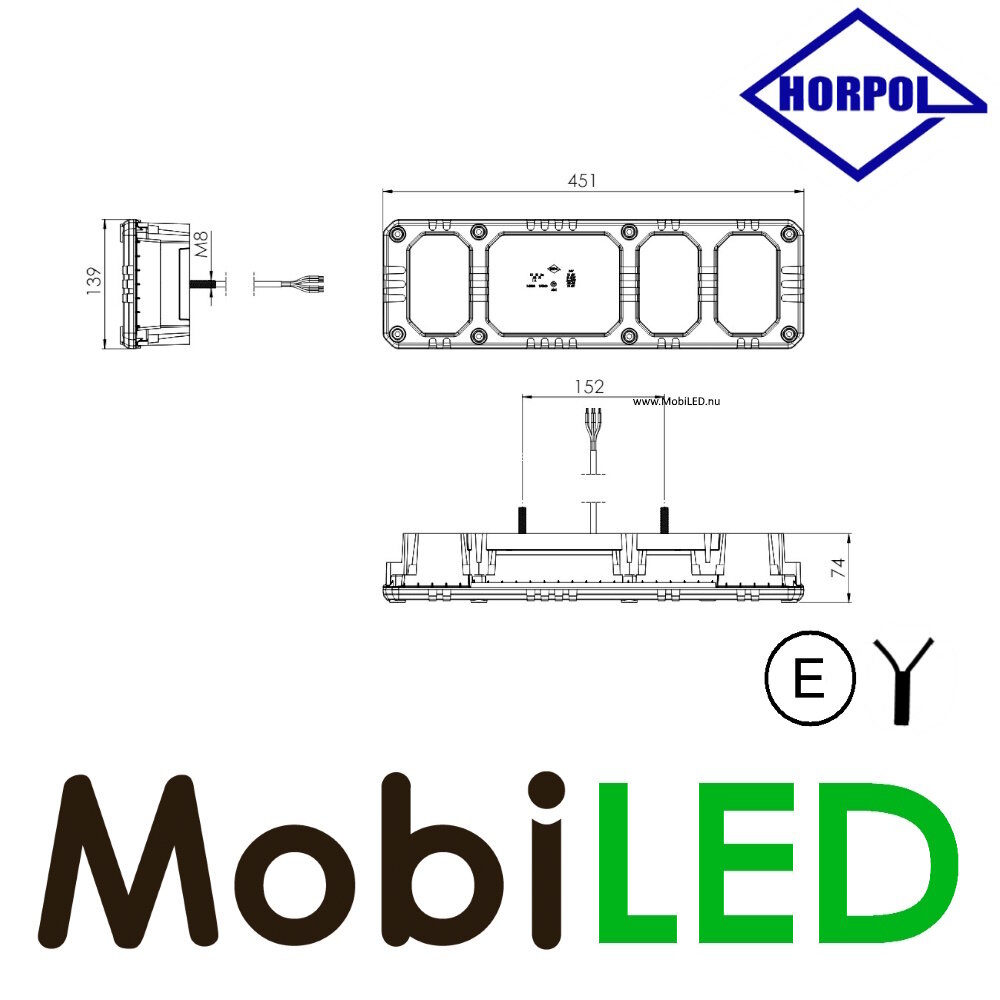

- Length (cm)
- 45,1
- Height (cm)
- 13,9
- Depth (cm)
- 7,4
- Flush-mounted / surface-mounted
- Surface-mounted
- Bolt spacing / bolt size (cm)
- 15,2
- Connection
- Cable
- Cable Length (cm)
- 150
- Wire diameter (mm²)
- 0,5mm2
- Number of wire cores
- 6
- IP rating
- IP68
- Certification
- R148, R149, R10
- Shape
- Elongated
- Vehicle side
- Right
- Tail light function
- Yes
- Brake light function
- Yes
- Reversing light function
- Yes
- Fog light function
- Yes
- Indicator function
- Yes
- Reflector
- Yes
- Manufacturer article number
- LZD 2855
