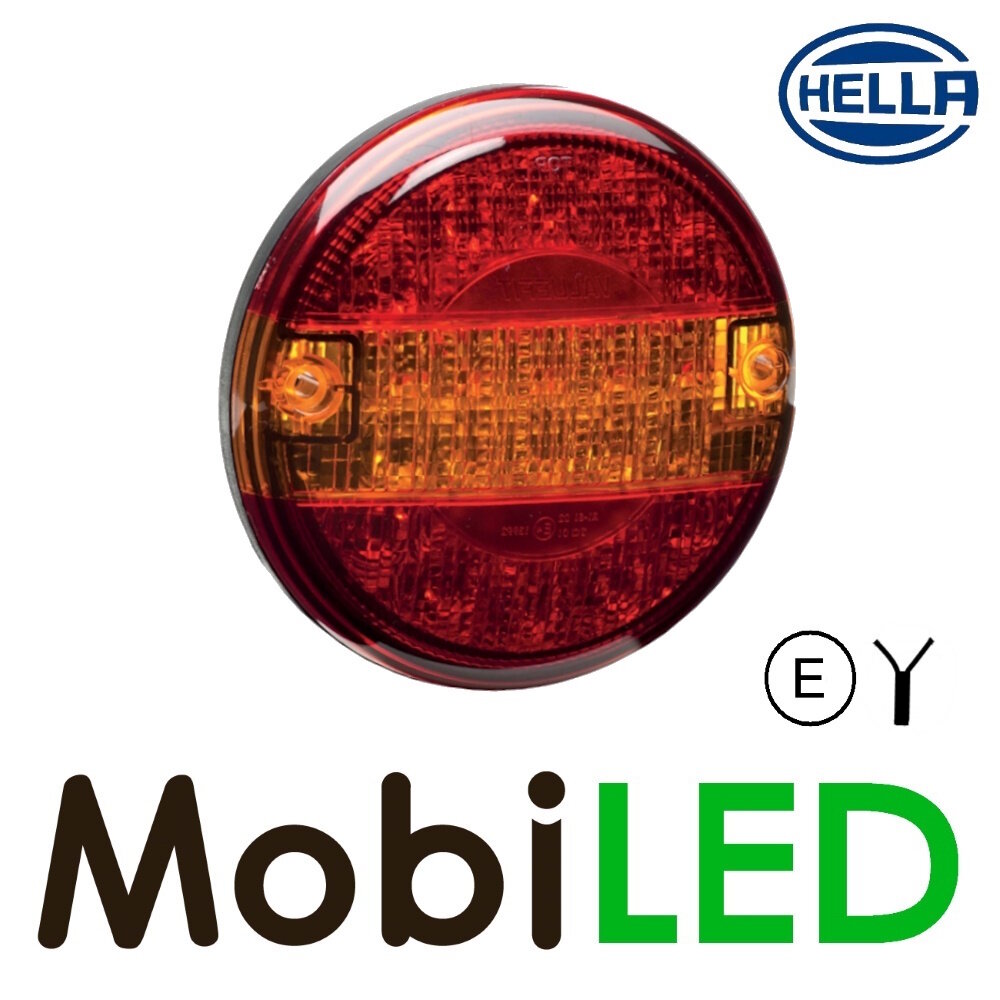

Hella rear light round

Hella rear light round

Modern look in a solid version. A beautiful lamp that gives your vehicle or trailer a nice upgrade in the trusted quality of Hella. This lamp is suitable for 12-24 volts and can therefore be widely used. Of course also equipped with E-mark. This lamp has 3 functions. The brake light is brighter than the rear light.

Functions:

1. Rear light

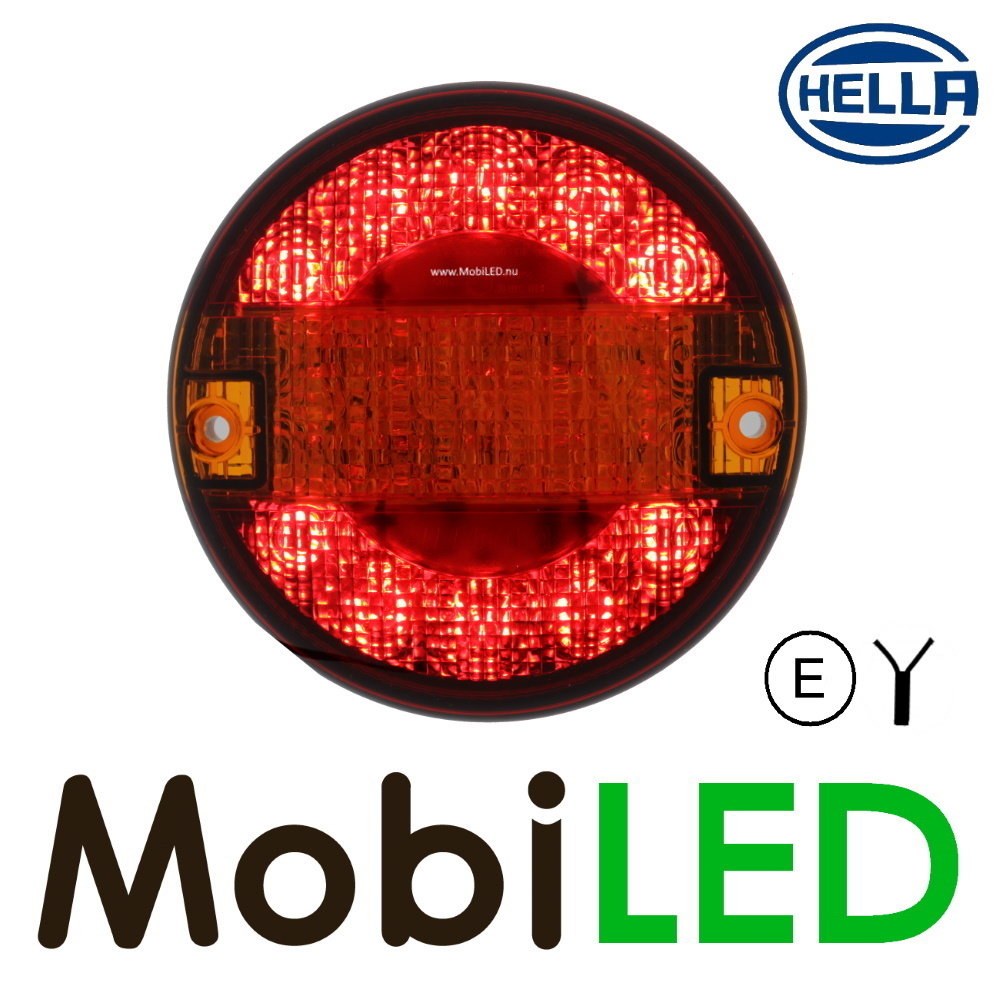

2. Brake light

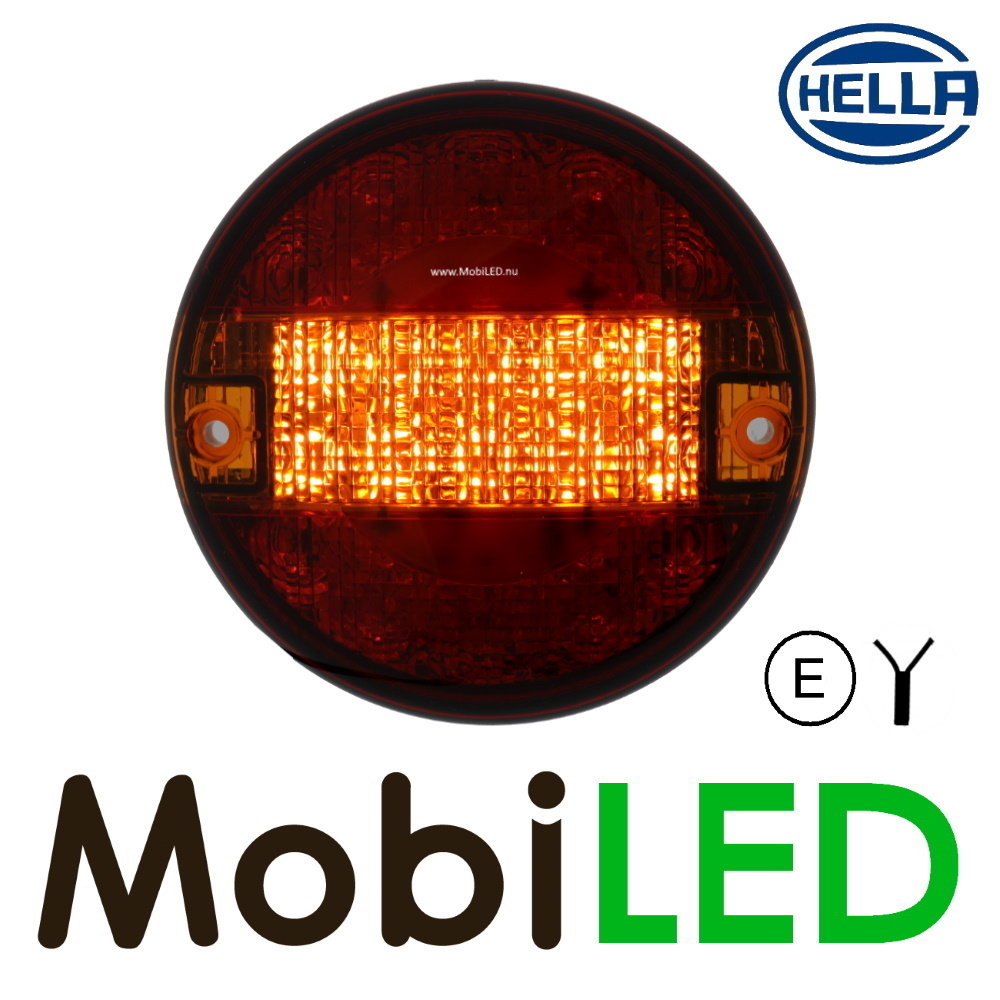

3. Turn signal

Specifications:

• Voltage: 12-24 volts

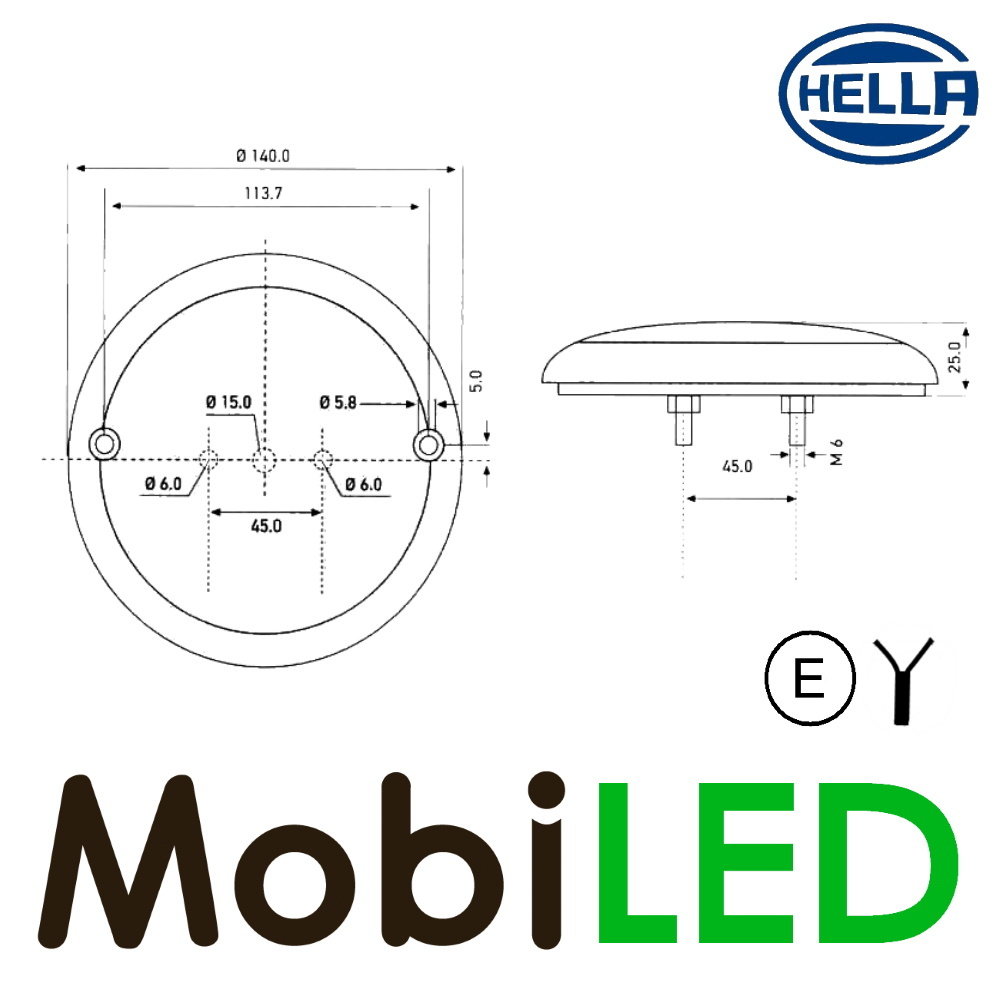

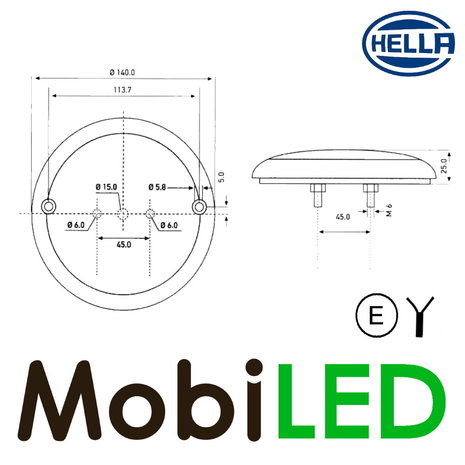

• Dimensions: 140 x 25 mm
• Bolt distance 113.7 mm
• Number of functions: 3
• Cable length: 200 mm

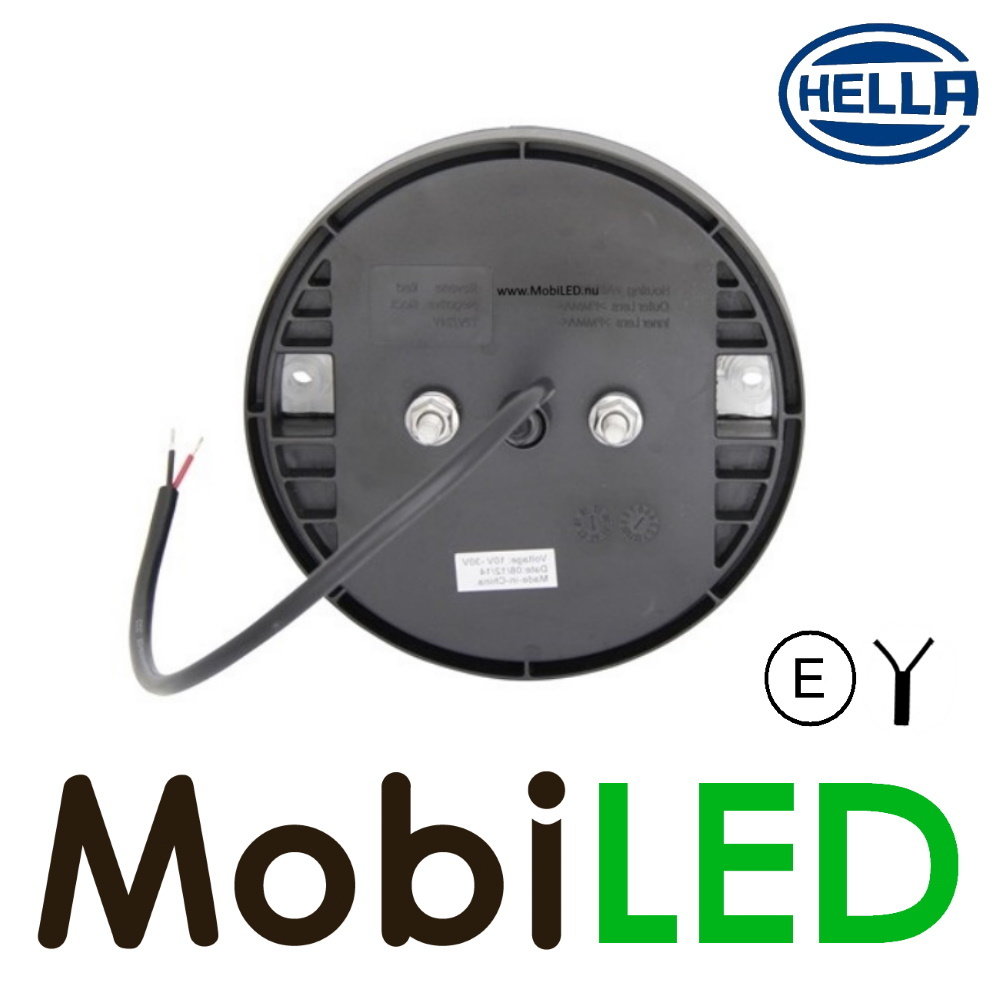

Connection diagram:

• White: mass
• Green: rear light
• Red: brake light
• Blue: turn signal
