Product description
The Linear-12 standard has a great light output in a super-slim design. Despite its small size, the bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs las...
The Linear-12 standard has a great light output in a super-slim design. Despite its small size, the bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs last longer.
The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

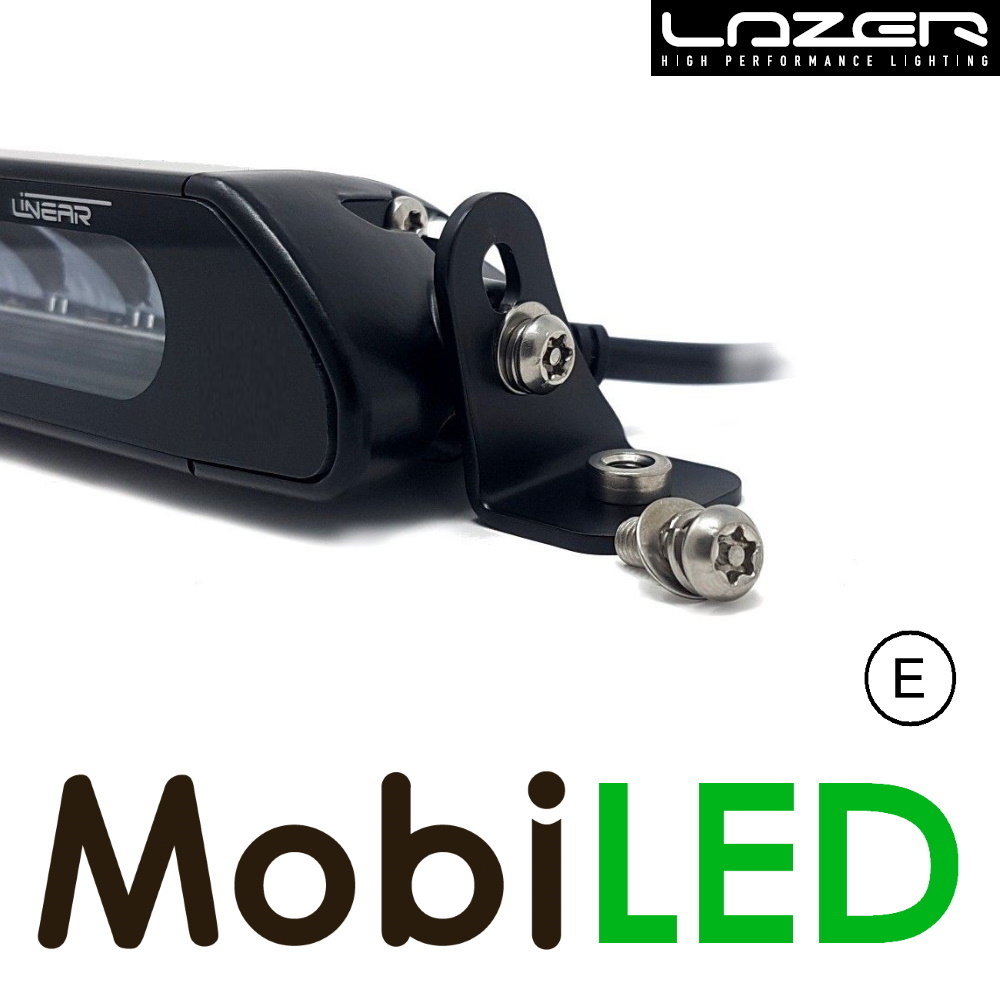

The LED bar comes with low-profile side mounting brackets and male/female 2-pin superseal connectors.
The Linear-12 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
The LED bar comes with low-profile side mounting brackets and male/female 2-pin superseal connectors.
The Linear-12 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
Video:
Show more
Show less
Product specifications
- Article number
- LB338

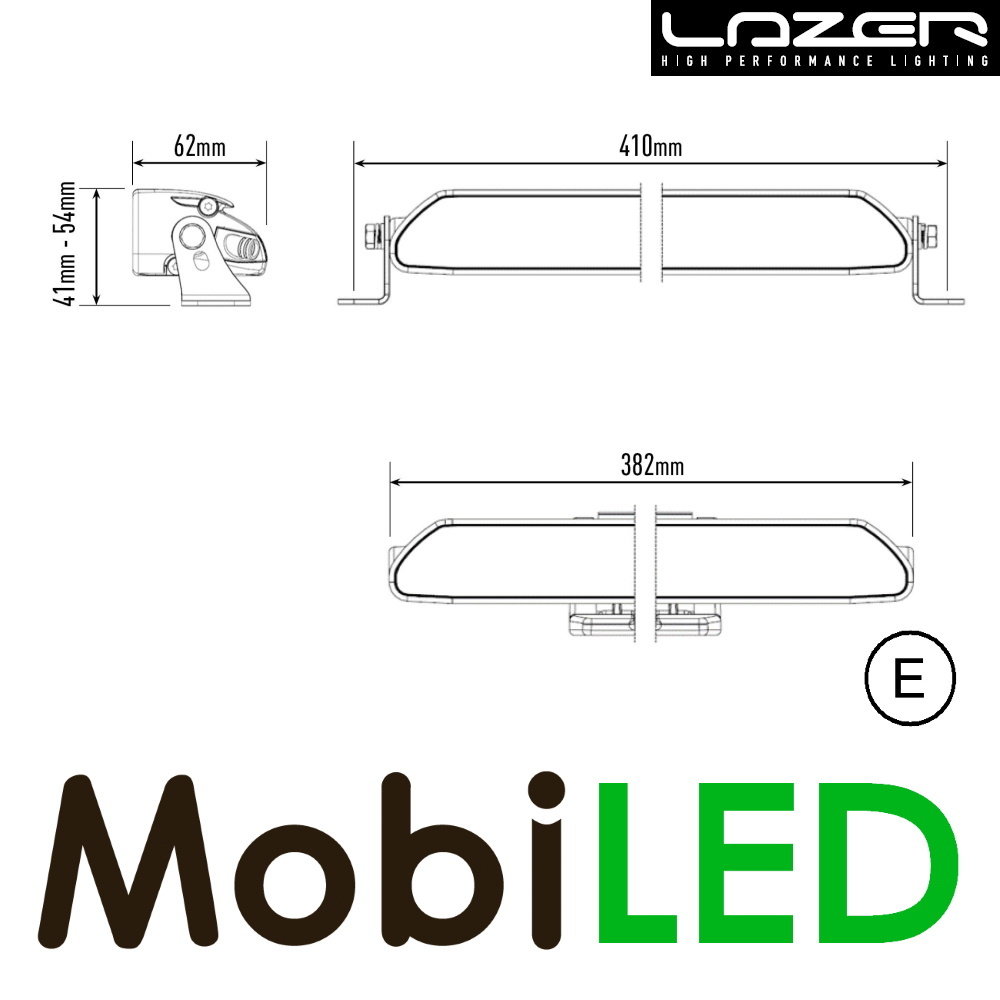

- Length (cm)
- 38,2 (41)
- Height (cm)
- 4,1
- Height incl bracket (cm)
- 5,4
- Depth (cm)
- 6,2
- Weight (gr)
- 800
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 42W
- Lumens
- 4500 theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 12
- Position light function
- No
- High beam function
- Yes
- Light image
- Flood

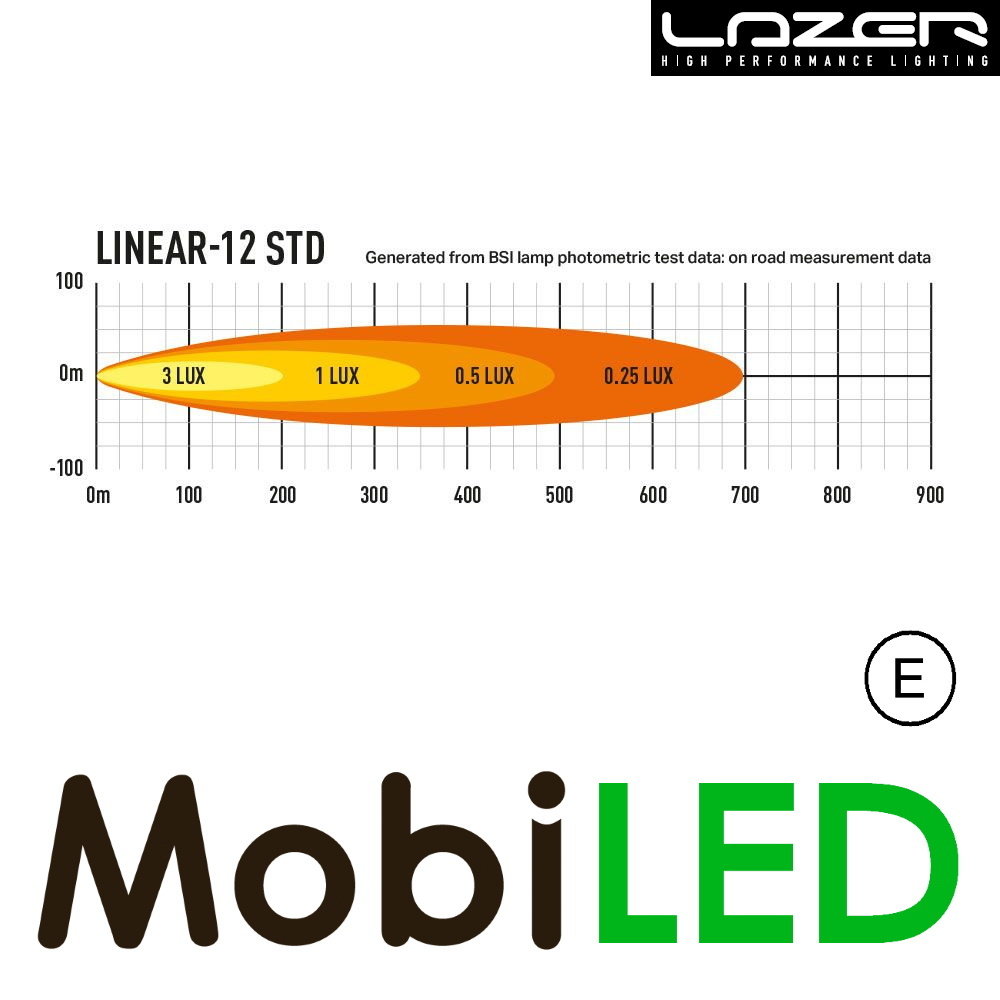

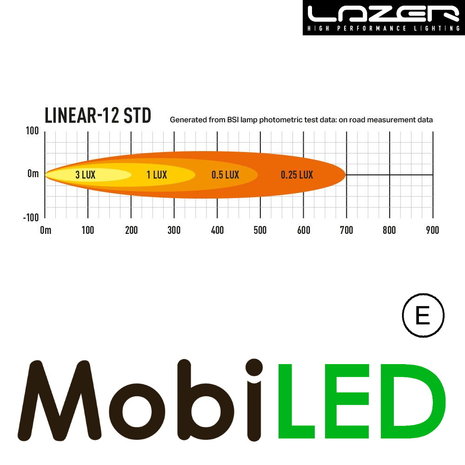

- Beam range
- 1 lux@349 m / 0,25 lux@698 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- Superseal connector
- IP rating
- IP67
- Certification
- R10, R112 B
- Packed per
- 1
- Manufacturer article number
- 0L12-LNR
