Lazer Linear 18 elite plus 532 mm
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445681077/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445507727/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445497700/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445507755/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445497695/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445507759/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445507758/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
![LAZER Lazer Linear 18 elite plus 532 mm LAZER Lazer Linear 18 elite plus 532 mm](https://cdn.webshopapp.com/shops/73605/files/445497702/78x78x2/lazer-lazer-linear-18-elite-plus-532-mm.jpg)
The LAZER Linear 18 has an enormous light output. Thanks to an advanced electronic design, the light consists of a combination of 36 white LEDs and 18 yellow LEDs. Those yellow LEDs can be combined with the already superior white light high beam function for awe-inspiring night vision. You have the option to control the yellow LEDs individually, with the light directed slightly downwards and to the sides of the road, making this function ideal in snow, fog or dust.
There are 4 lighting modes that are controlled via a momentary switch. A memory function in the lamp ensures that the previously selected mode is in effect when your car is restarted. Moreover, if you press and hold the switch for 2 seconds, the light will immediately jump to E-mark mode.
Lighting modes:
- Boost (white only)
- Snow/Fog/Dust mode (yellow only)
- Combo (white + yellow)
- E-marking (white only; street legal at reduced output per UNECE Regulation 149)
The electronic thermal management system optimizes light output, making the LEDs last longer. The aluminum housing is anodized and powder-coated which provides protection against corrosion and chemicals. The lens is made of practically unbreakable polycarbonate with hardcoat lacquer.

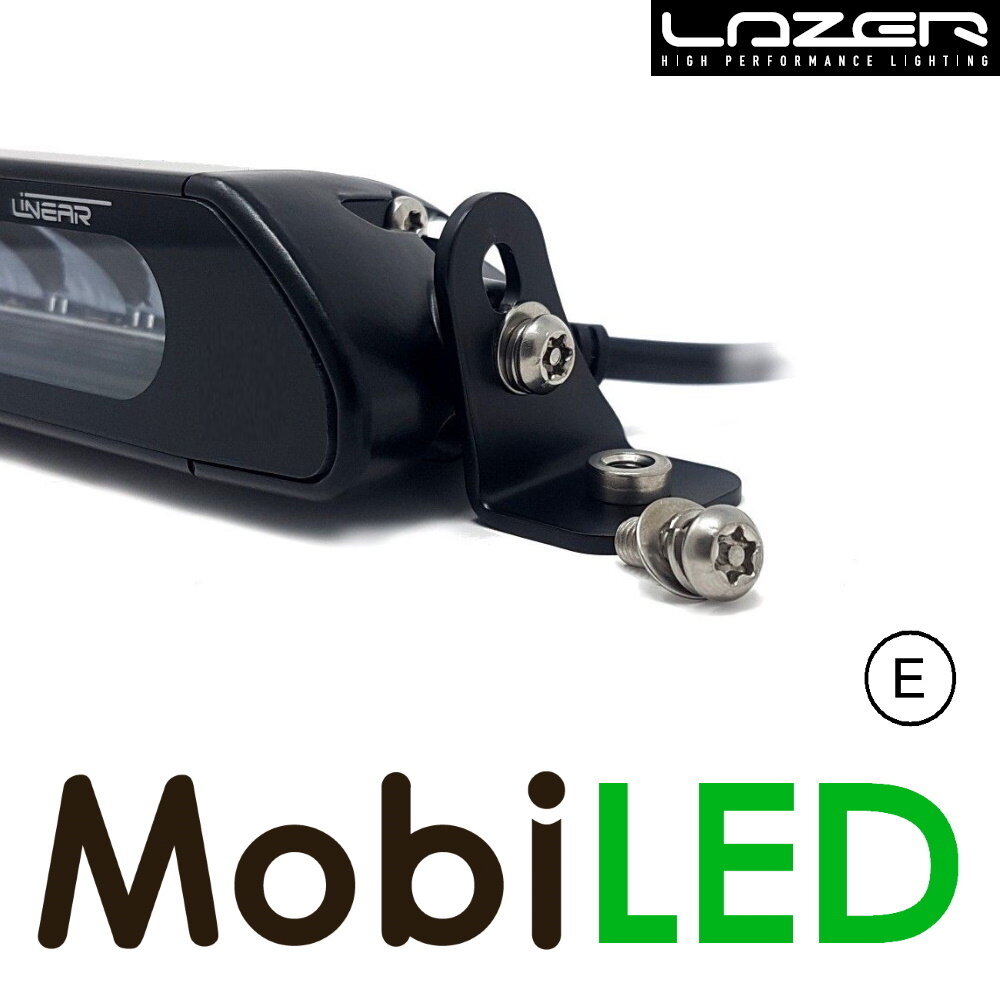

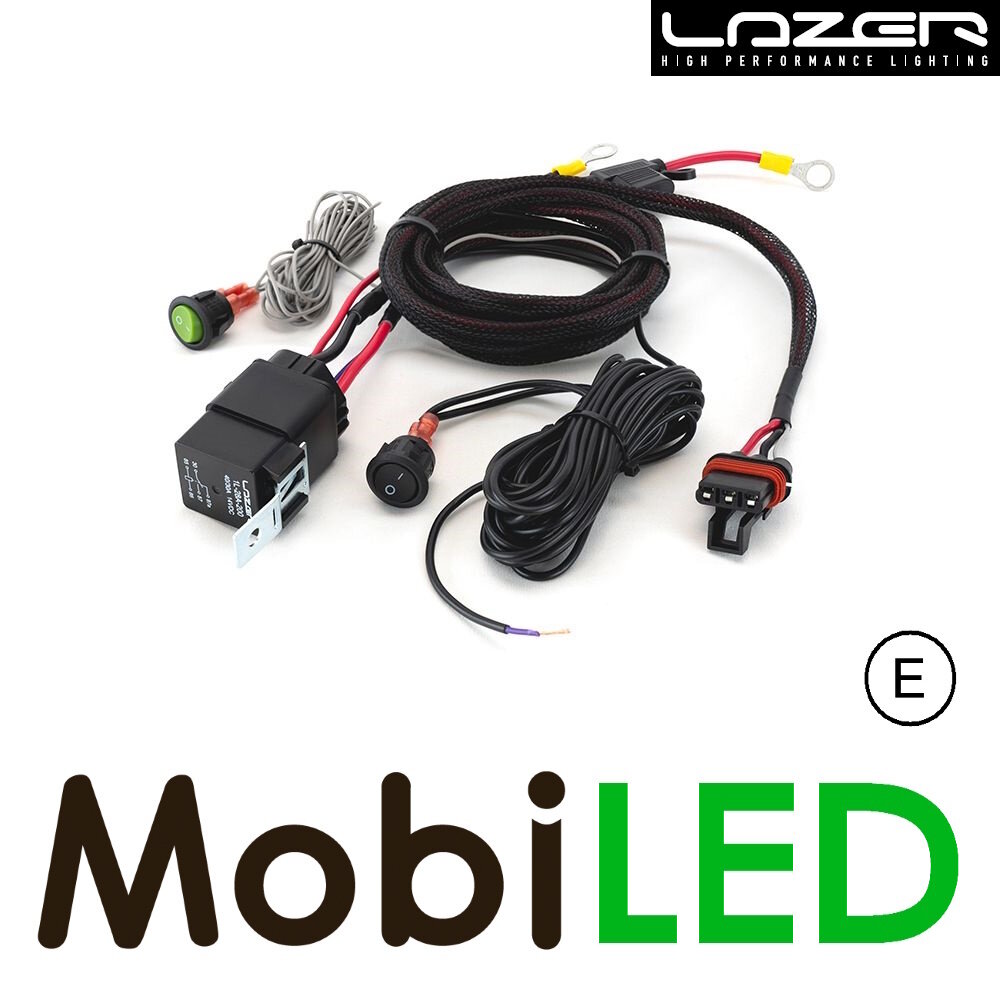

The LED bar can be mounted securely with the included anti-theft side mounting brackets. It comes with a complete connection set.
Discreet structure during the day but dominant in the dark.
(In the specifications, the values in boost, snow and combo mode are shown in brackets.)
View the different mounting brackets available to install your lamp.
Video:
Product specifications
- Article number
- LB379

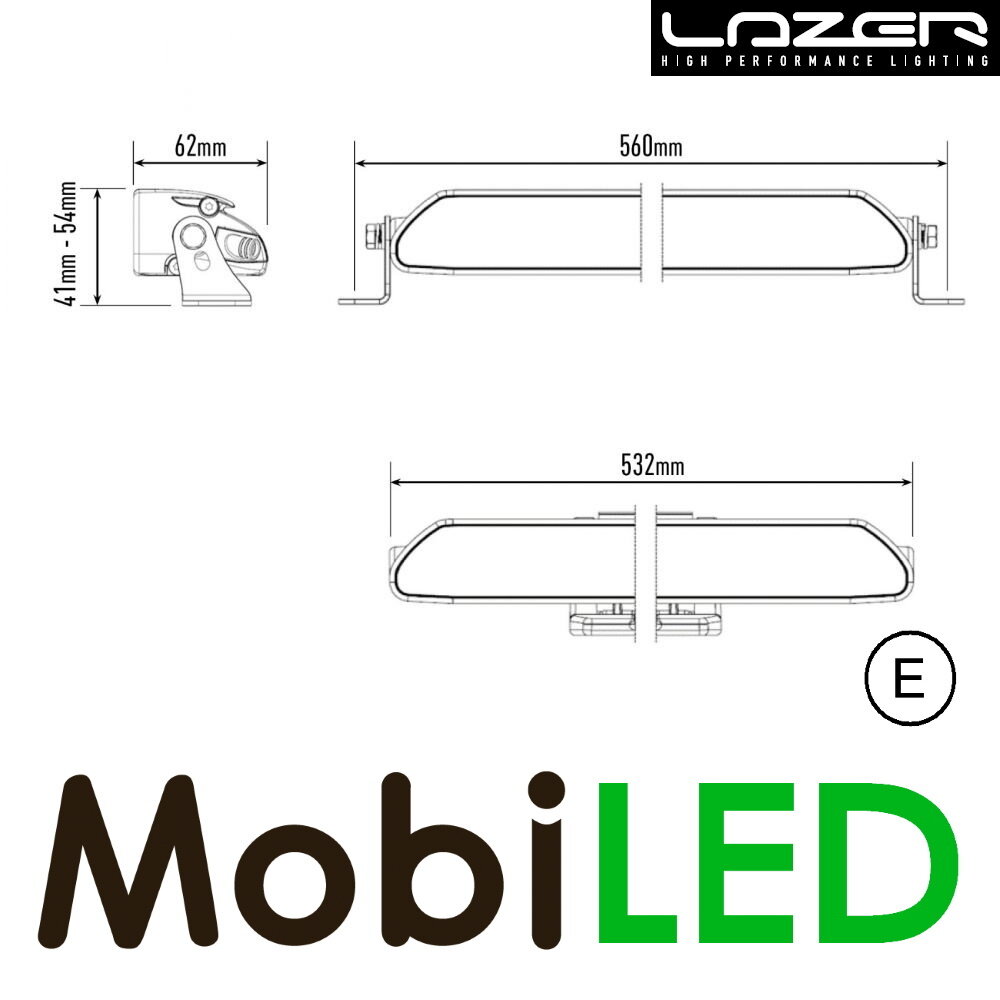

- Length (cm)
- 53,2
- Height (cm)
- 4
- Depth (cm)
- 6,2
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 39W (134W, 56W,190W)
- Current draw
- 14,4V: 2,7A (9,9A, 4,1A, 14,1A)
- Lumens
- 3172 (10573, 3737, 14284)
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 36 + 18
- High beam function
- Yes
- Beam range

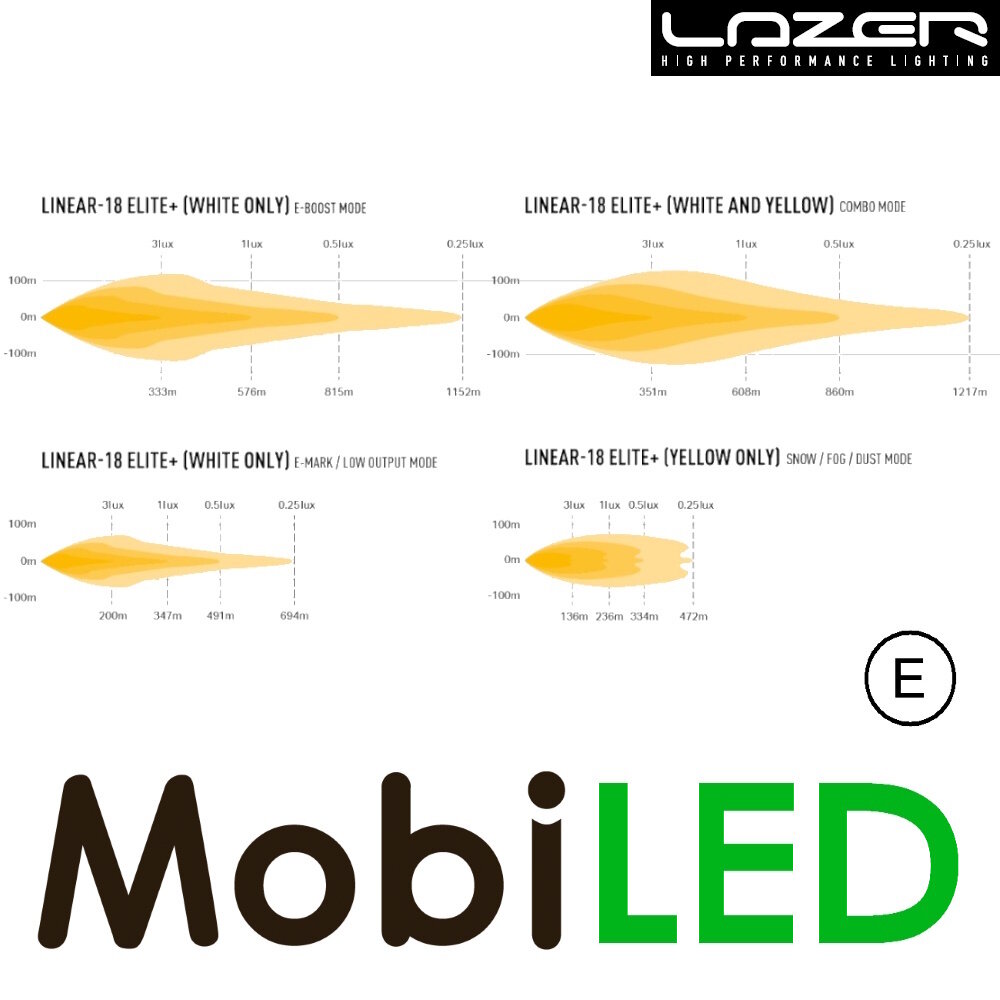

- 1 lux@347 m (576 m, 236 m, 608 m)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bracket with bolt
- Connection
- Superseal connector
- IP rating
- IP68
- Certification
- ECE R149
- Packed per
- 1
- Manufacturer article number
- 0L18-PLUS-LNR
