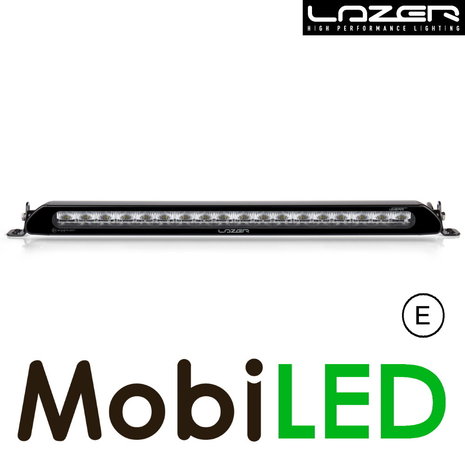

Lazer Linear 18 elite with position light 532 mm 126W
Product description

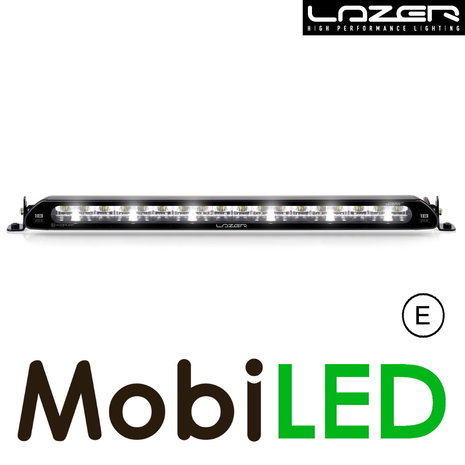

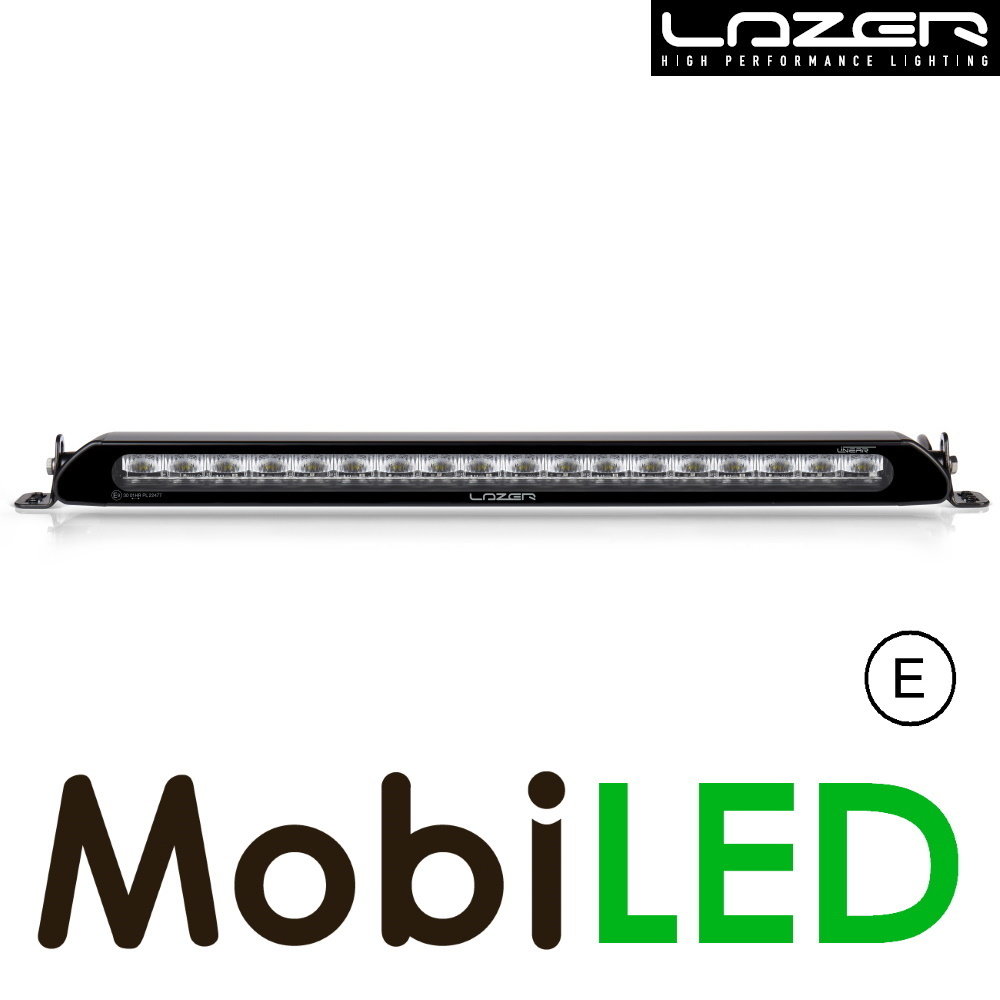

The Linear-18 elite has a super-slim design and double light output compared to the standard version. A special feature of this LED bar is the integrated position light function that offers extra safety. Despite its small size, the LED bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vac...
The Linear-18 elite has a super-slim design and double light output compared to the standard version. A special feature of this LED bar is the integrated position light function that offers extra safety. Despite its small size, the LED bar contains innovative solutions that prolong its service life and maximise performance.

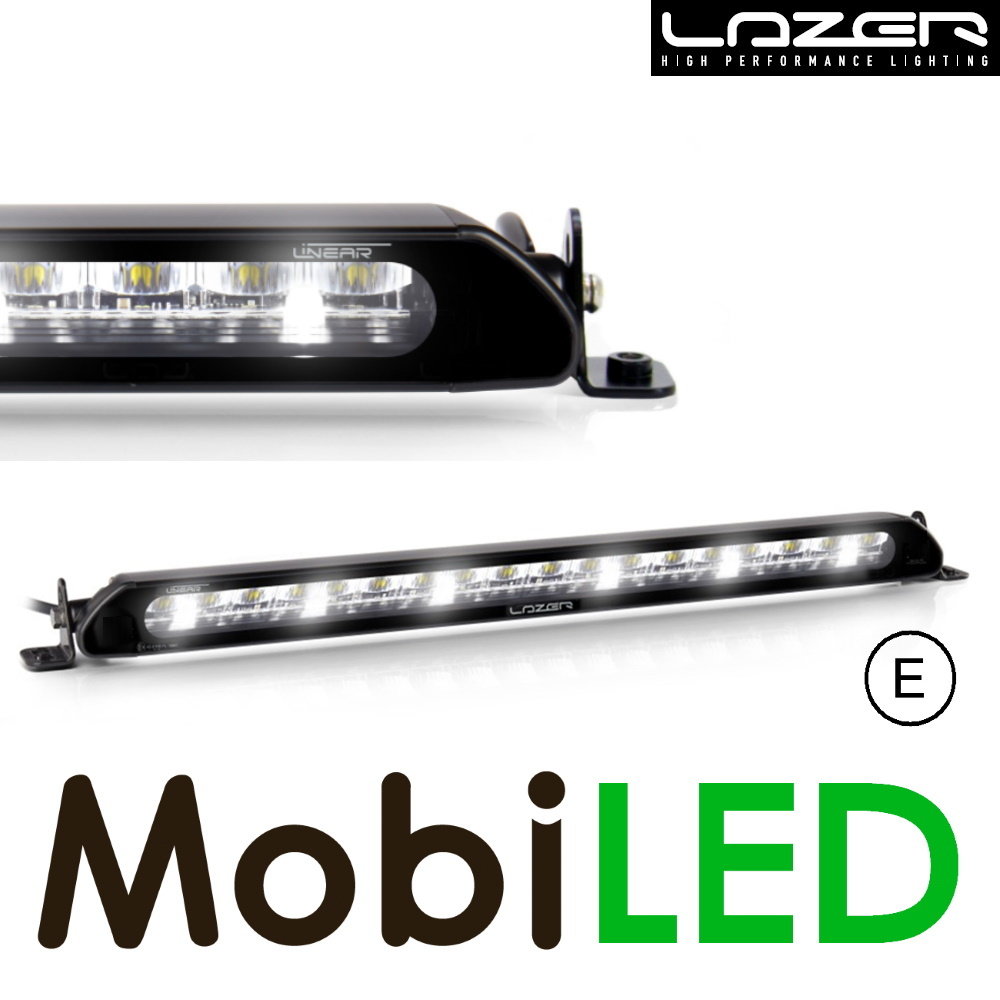

The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs last longer.

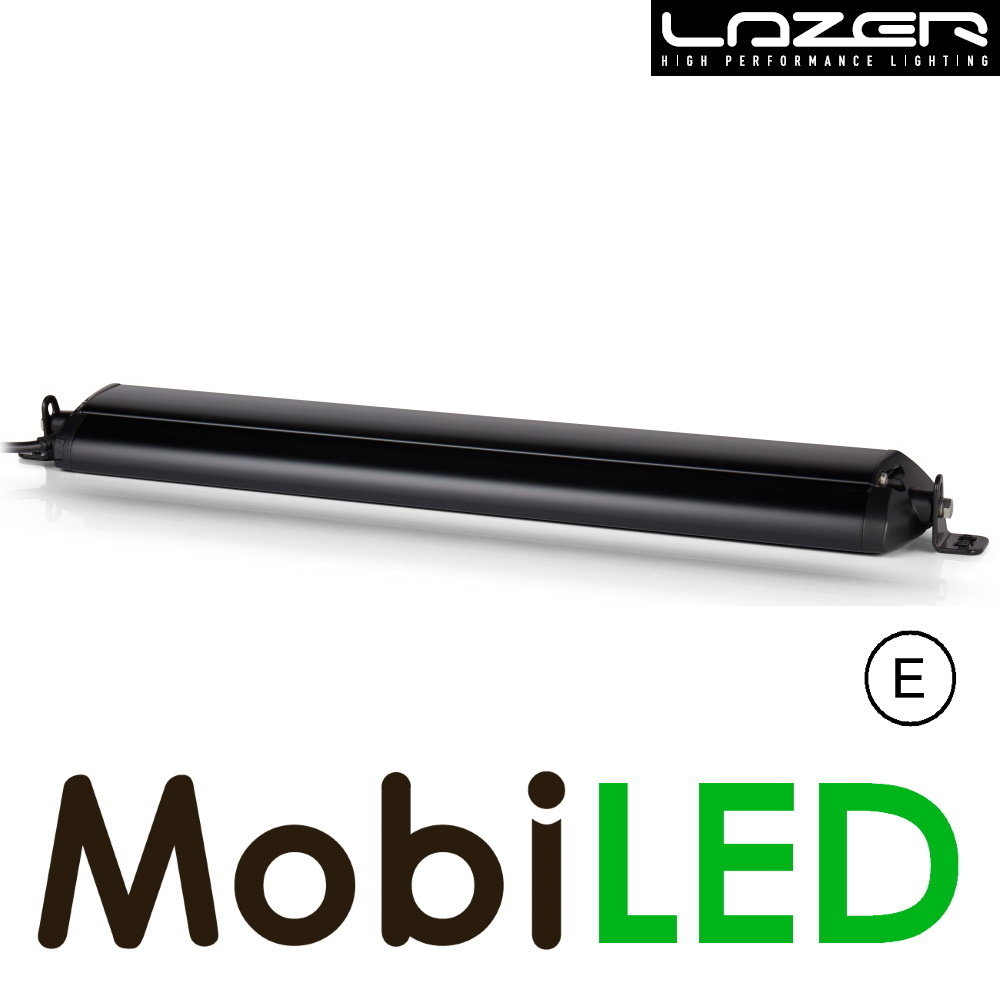

The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

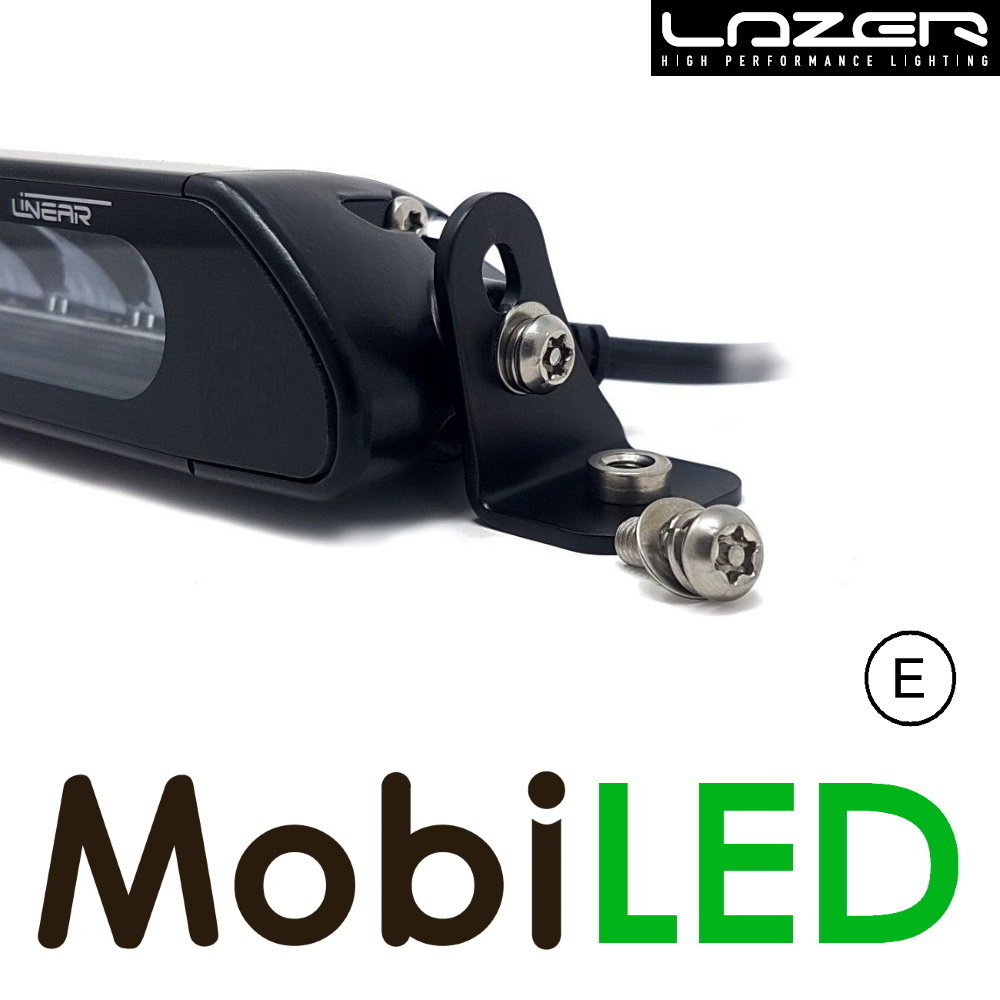

The LED bar can be safely mounted with the supplied anti-theft side mounting brackets. It is supplied with male/female 2-pin superseal connectors.
The Linear-18 elite with position light is R10, R112 class B and R7 certified for on-road high beam and position light function.

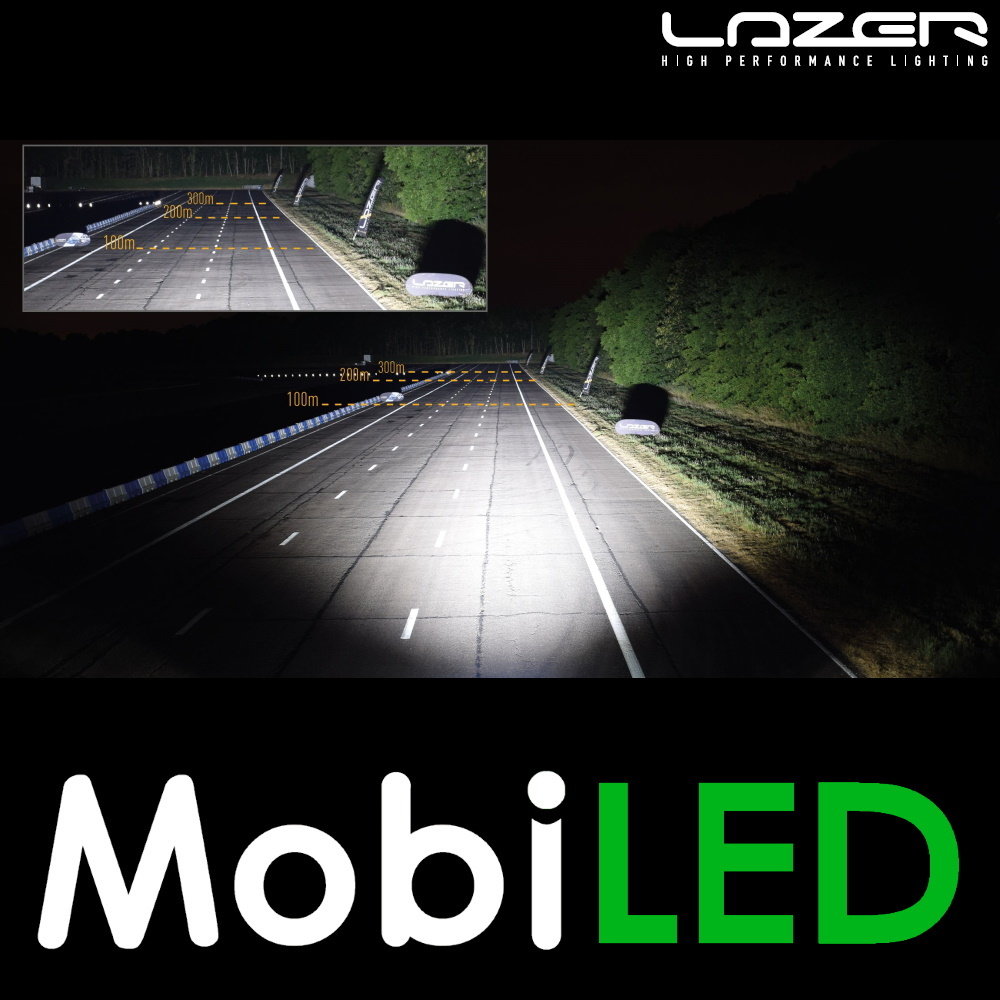

A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
The LED bar can be safely mounted with the supplied anti-theft side mounting brackets. It is supplied with male/female 2-pin superseal connectors.
The Linear-18 elite with position light is R10, R112 class B and R7 certified for on-road high beam and position light function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
Video:
Show more
Show less
Product specifications
- Article number
- LB333

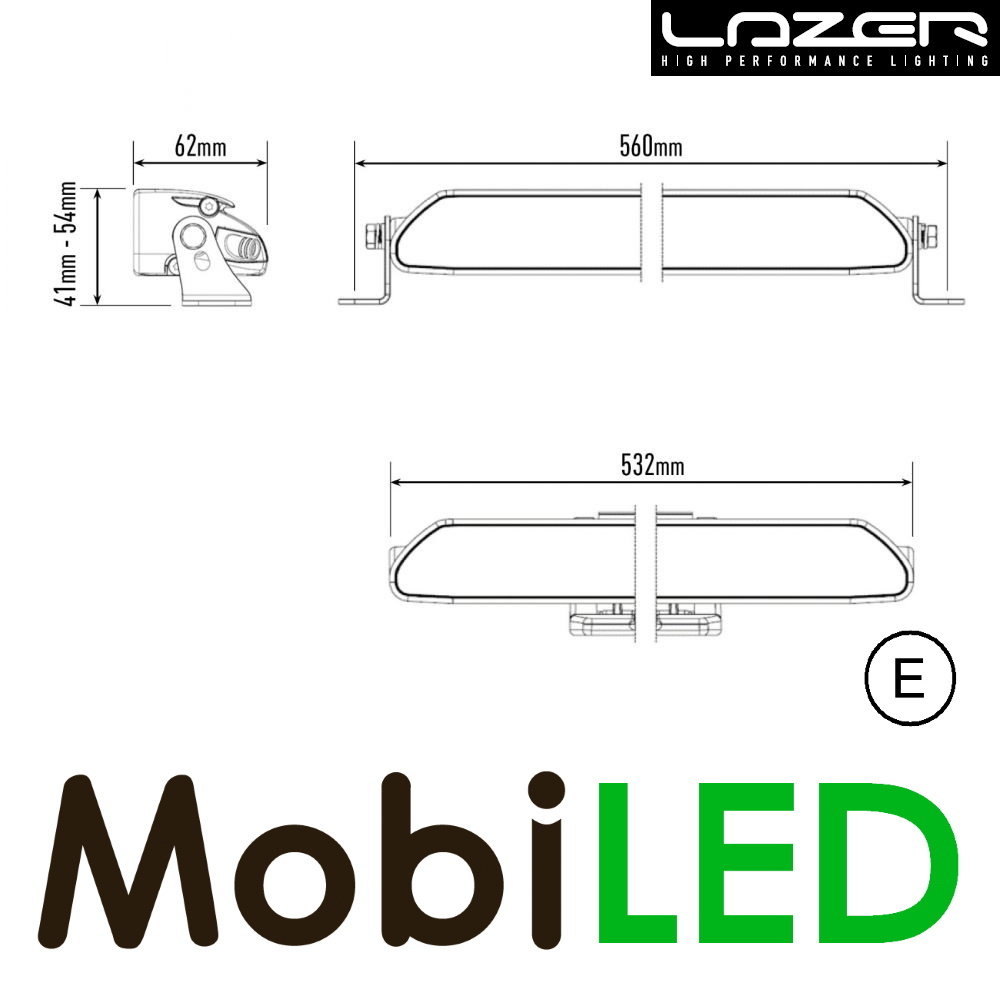

- Length (cm)
- 53,2 (56)
- Height (cm)
- 4,1
- Height incl bracket (cm)
- 5,4
- Depth (cm)
- 6,2
- Weight (gr)
- 1090
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 126W
- Current draw
- 14,4V: 8,8A
- Lumens
- 12150 theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 36
- Position light function
- Yes
- High beam function
- Yes
- Light image
- Flood

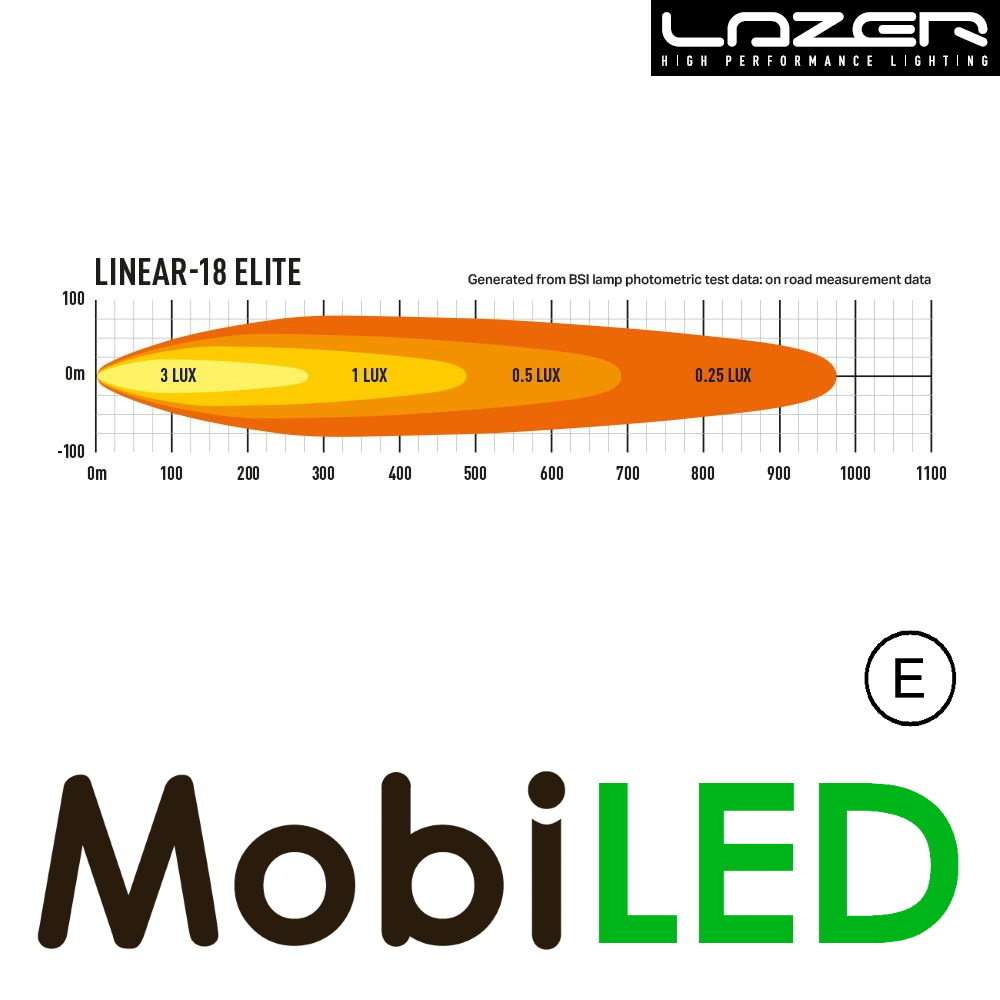

- Beam range
- 1 lux @ 488 m / 0,25 lux @ 975 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- Superseal connector
- IP rating
- IP67
- Certification
- R10, R112 B, R7
- Packed per
- 1
- Manufacturer article number
- 0L18-PL-LNR
