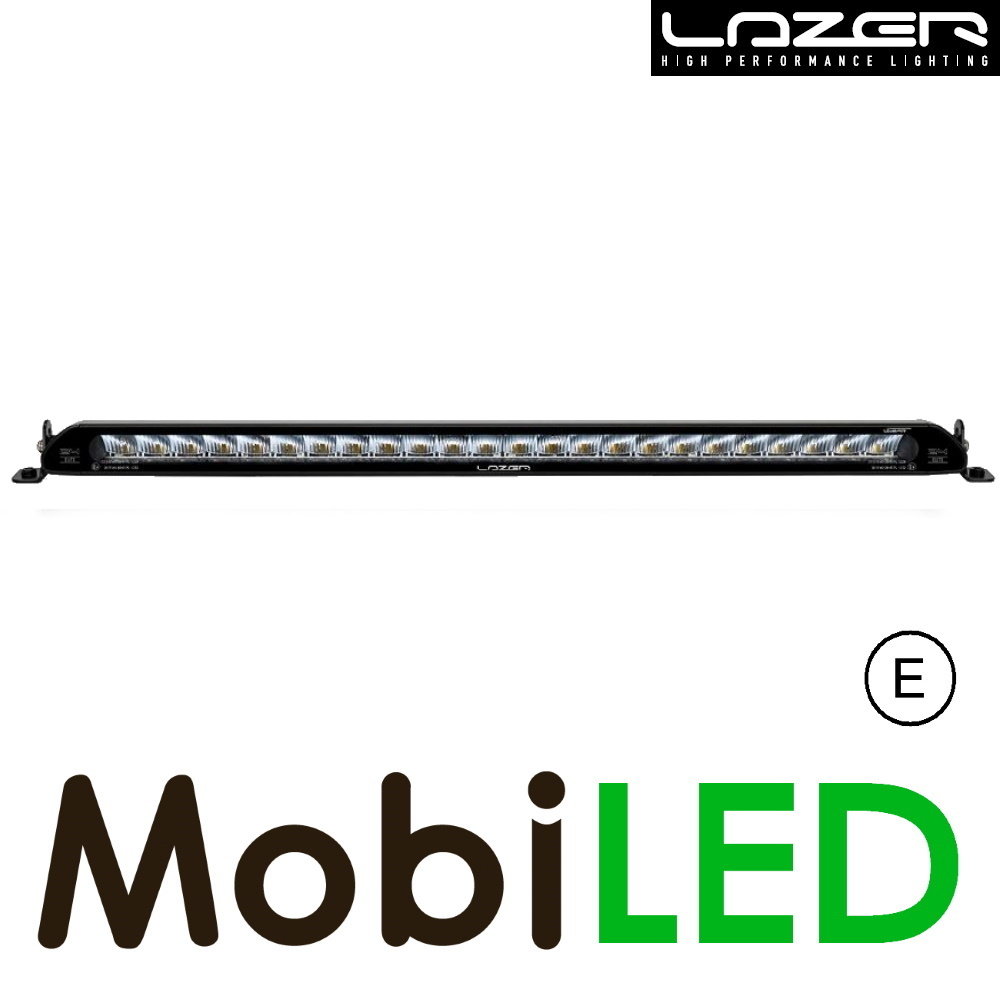

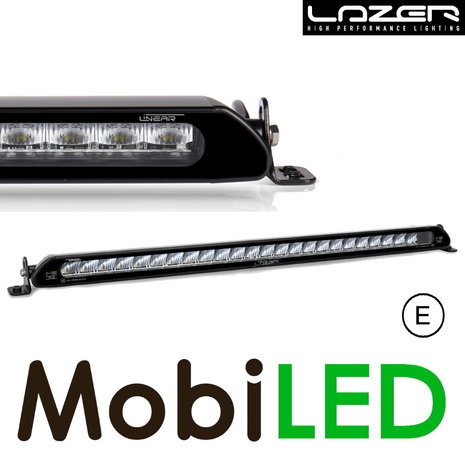

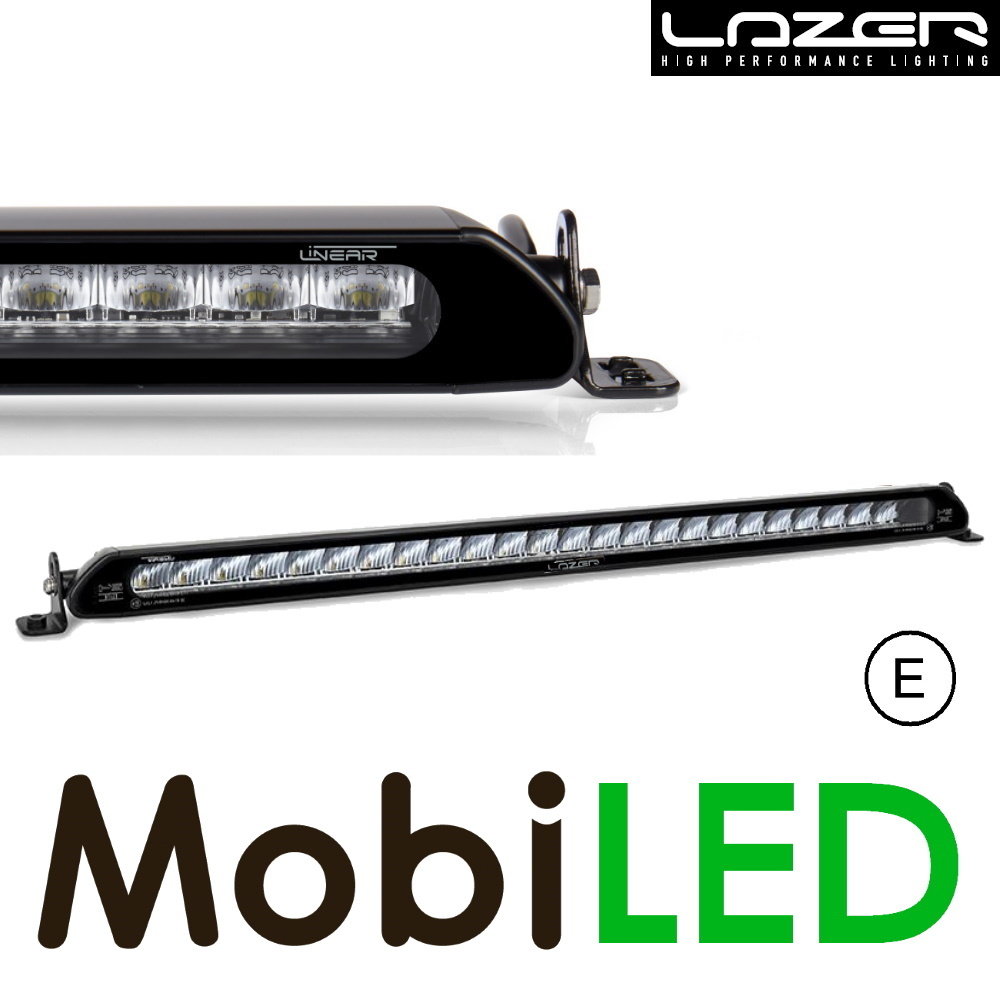

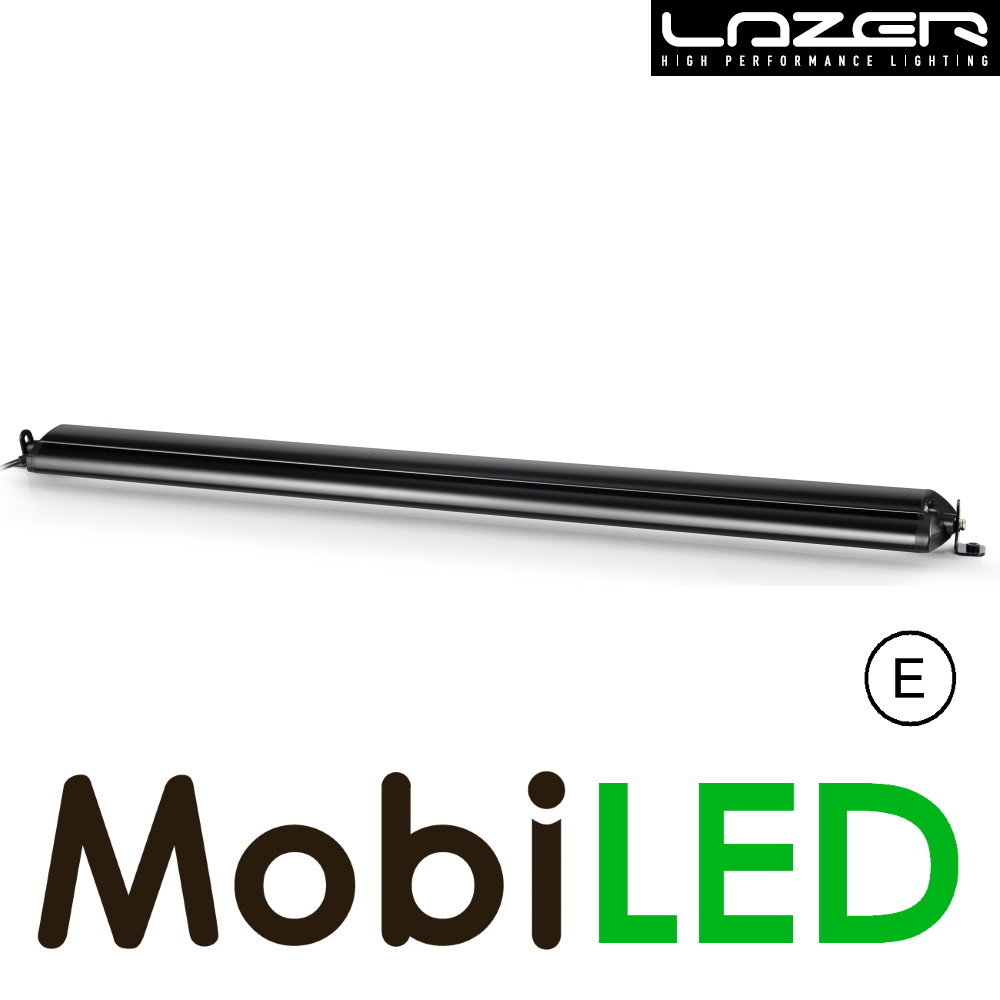

Lazer Linear 24 elite double E-mark 682 mm 188W
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407690500/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407688013/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407688015/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407686633/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407686636/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407688016/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
![LAZER Lazer Linear 24 elite double E-mark 682 mm 188W LAZER Lazer Linear 24 elite double E-mark 682 mm 188W](https://cdn.webshopapp.com/shops/73605/files/407688018/78x78x2/lazer-lazer-linear-24-elite-double-e-mark-682-mm-1.jpg)
The Linear-24 elite has a super narrow design and a large light output. Despite its small dimensions, it contains innovative solutions that extend the lifespan and take the light output to a higher level. The 3W LEDs and the vacuum metallic lens provide a wide beam of light. The electronic heat management system optimizes the light output for longer LED life.
The aluminum housing is anodized and powder coated to protect against corrosion and chemicals. The lens is made of practically unbreakable polycarbonate with hardcoat lacquer.

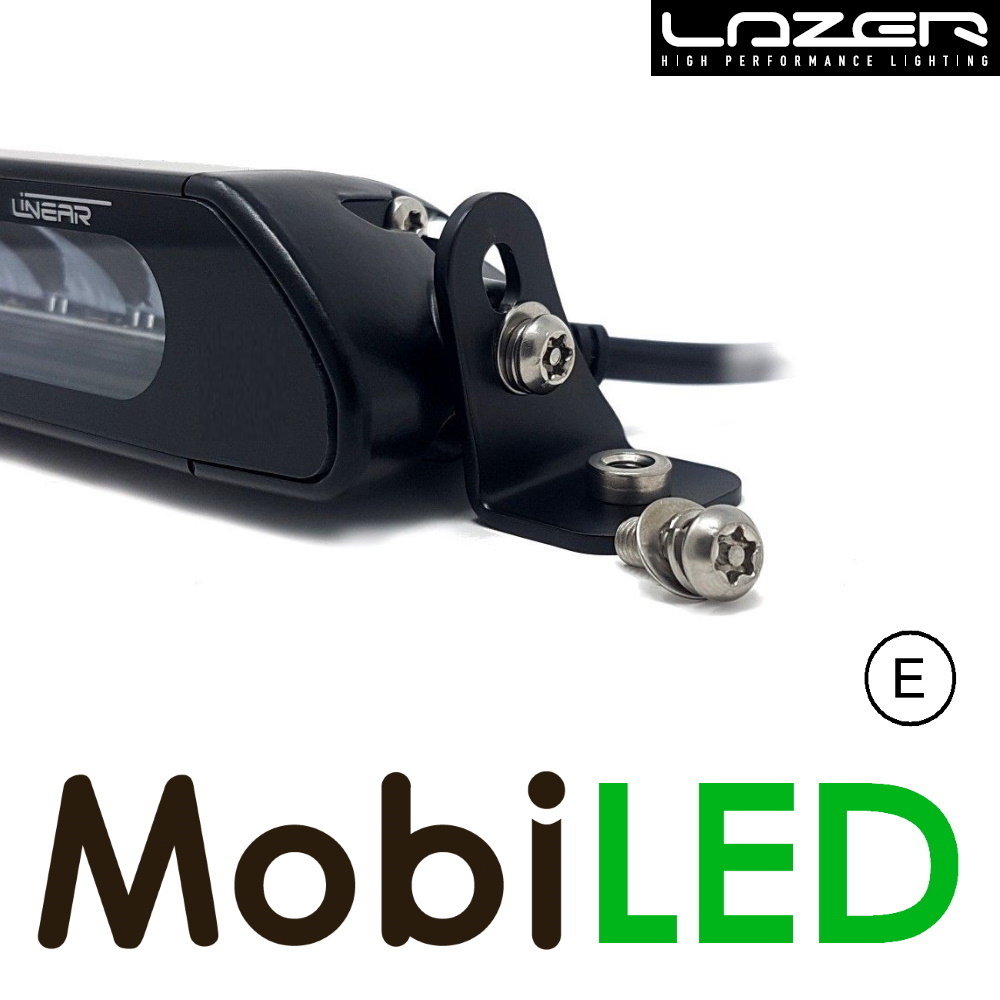

The LED bar can be mounted securely with the included anti-theft side mounting brackets. It comes with male/female 2-pin superseal connectors.
The Linear-24 elite is R112 certified for road use.
A discrete structure during the day but dominantly present in the dark.
See also the different mounting brackets available to install your lamp.
Video:
Product specifications
- Article number
- LB356

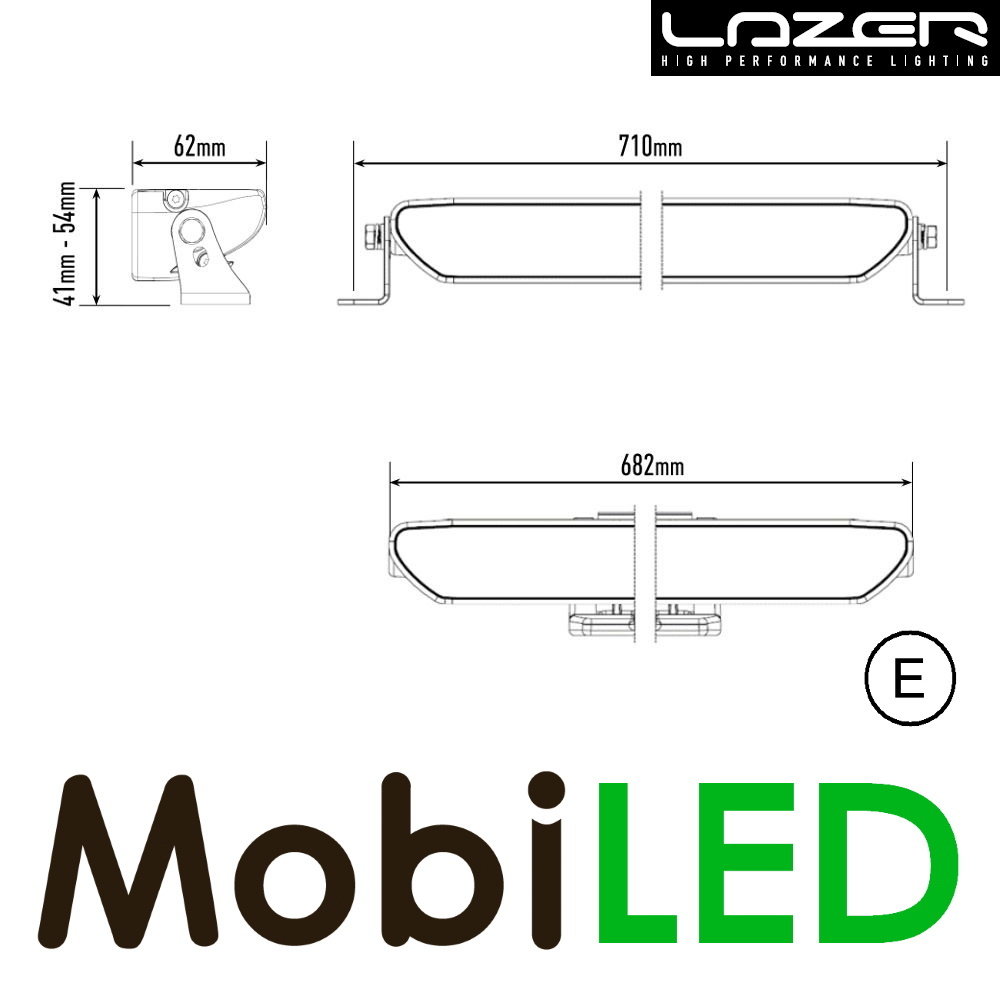

- Length (cm)
- 68,2 (71)
- Height (cm)
- 4,1
- Height incl bracket (cm)
- 5,4
- Depth (cm)
- 6,2
- Weight (gr)
- 1500
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 188W
- Current draw
- 14,4V: 14,4A
- Lumens
- 18000 theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 48
- Position light function
- No
- High beam function
- Yes
- Light image
- Flood

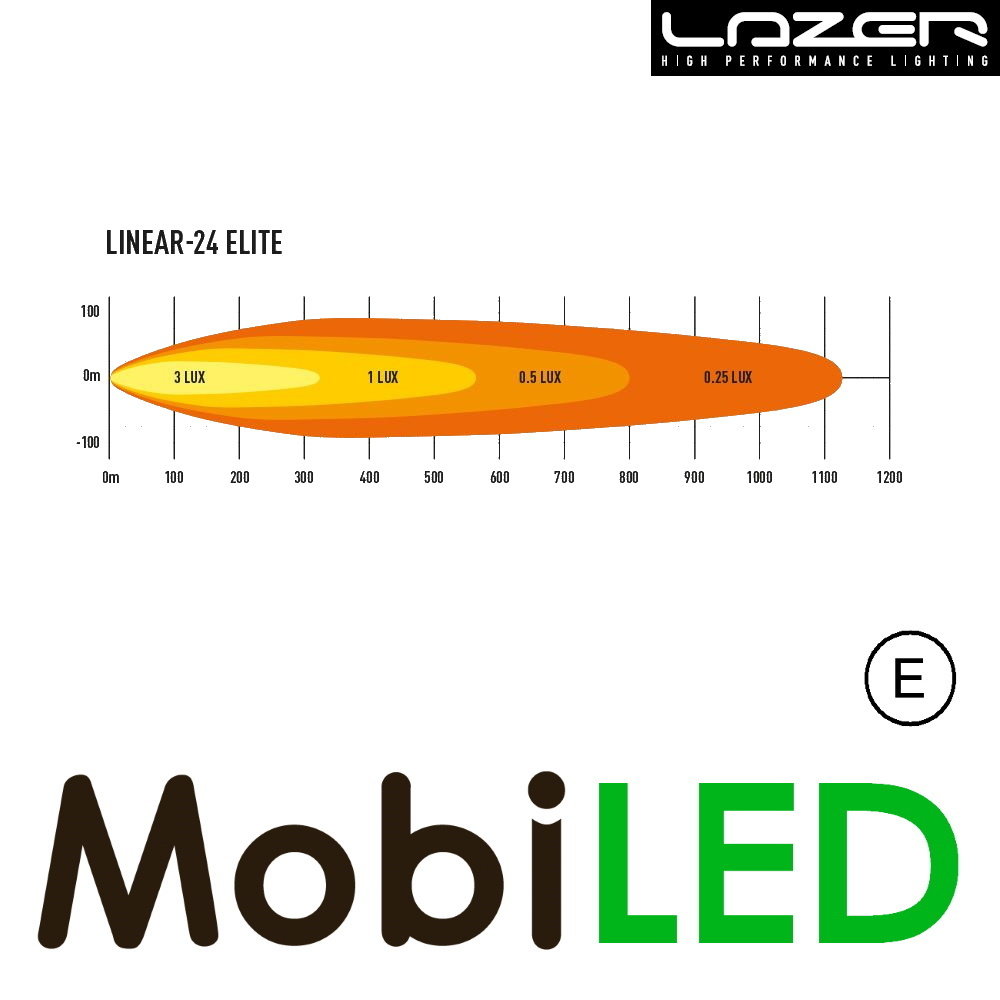

- Beam range
- 1 lux@563 m/0,25 lux@1126 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- Superseal connector
- IP rating
- IP68
- Certification
- R112 double
- Packed per
- 1
- Manufacturer article number
- 0L24-DBL-EL-LNR
