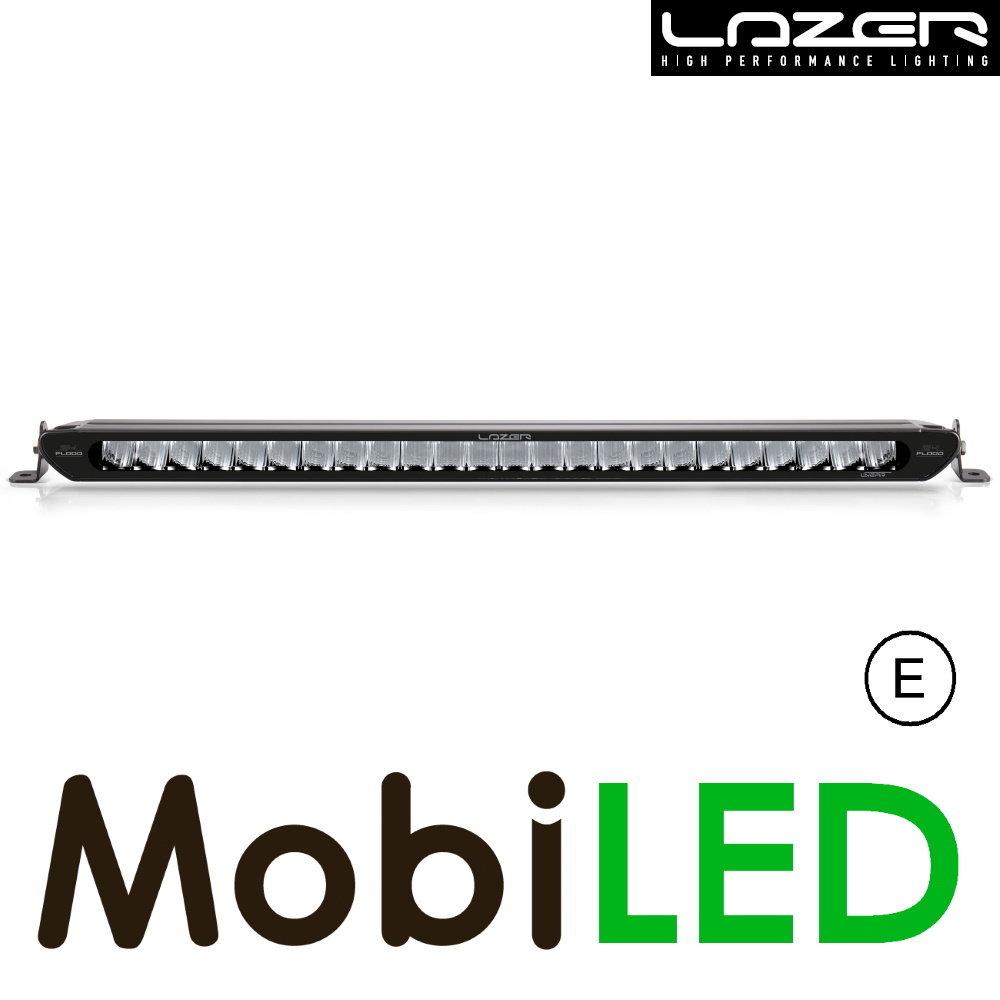

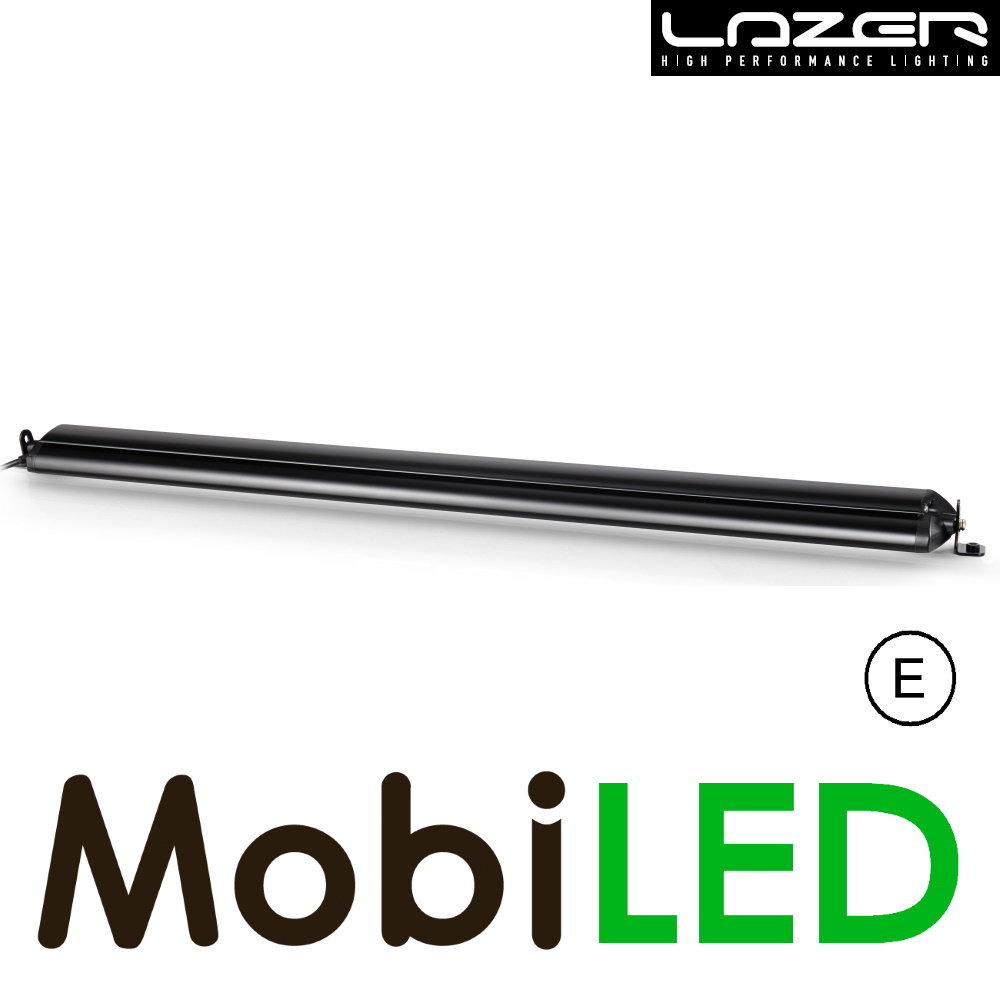

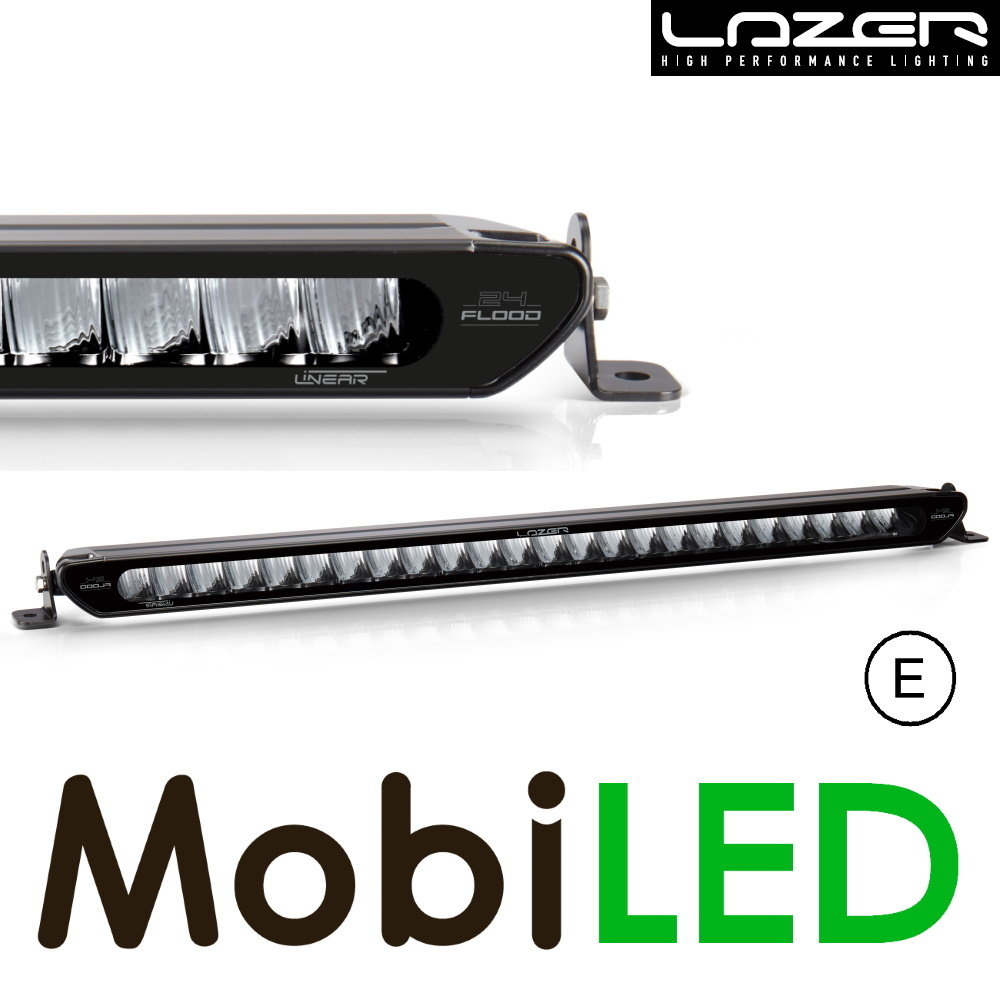

Lazer Linear 24 flood 682 mm 168W
The Linear-24 Flood light is designed and engineered specifically for industrial sectors.
The LED working light offers high intensity lighting optimised for heavy machinery whether mining or construction, forestry or agriculture. The LED lamp produces 16,200 raw lumen. Due to a customised assembly of ultra-reflective, vacuum-metallised optics, it delivers ‘zonal’ lighting perfectly aligned to work cabs. It illuminates the immediate area in front of the cab, while the length of the light bar itself enables a spread of light to the sides which makes for a safer and more productive work environment.
The Linear-24 Flood light is R10 certified. It comes with male/female 2-pin Deutsch connectors.
Due to the high quality and extensive testing of the Linear-24 Flood, LAZER gives a 2-year warranty (5 years for applications in cars or commercial fleets). In short, it is a worklight you can rely on year after year.

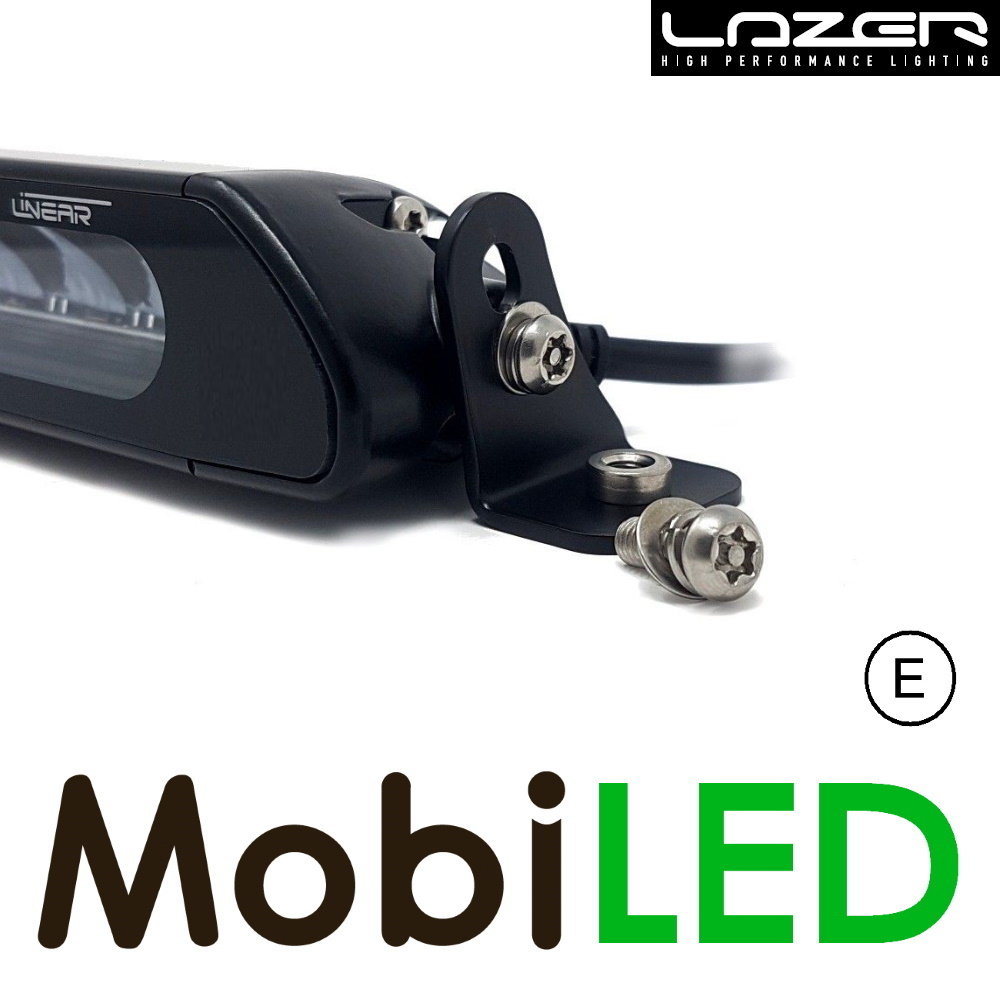

Check out the different mounting brackets available to install your lamp.
Video:
Product specifications
- Article number
- LB331

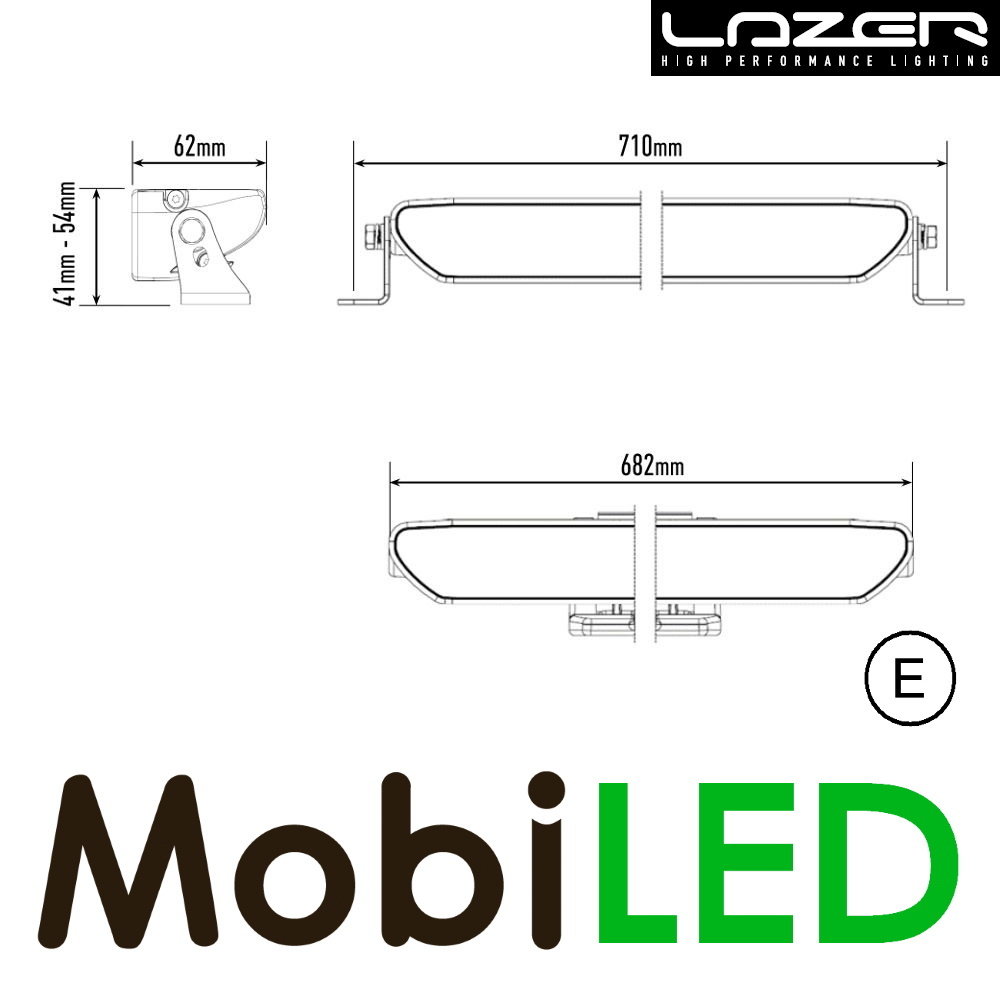

- Length (cm)
- 68,2 / 71
- Height (cm)
- 4,1
- Height incl bracket (cm)
- 5,4
- Depth (cm)
- 6,2
- Weight (gr)
- 1090
- Shape
- Elongated
- Tension
- 9-32V
- Power
- 168W
- Current draw
- 14,4V: 11,7A
- Lumens
- 16200
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 48
- Position light function
- No
- High beam function
- No
- Light image
- Flood

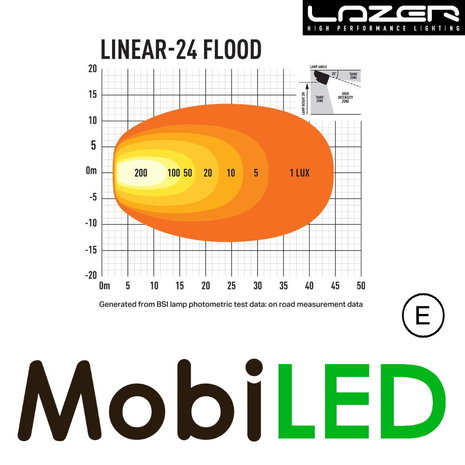

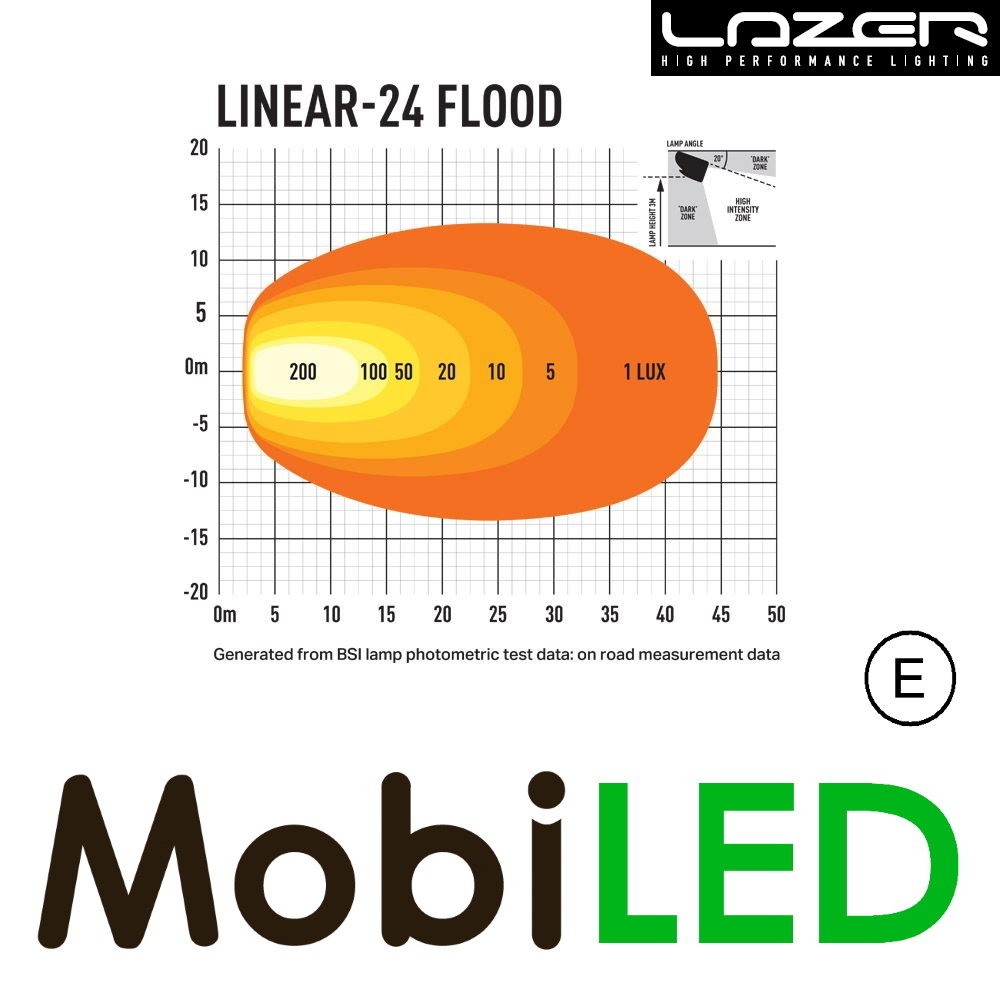

- Beam range
- 1 lux @ 44 m/20 lux @ 23 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- DT-2 connector
- IP rating
- IP69K
- Certification
- ECE R10
- Packed per
- 1
- Manufacturer article number
- 5060404992887 / 0L24-FL-LNR
