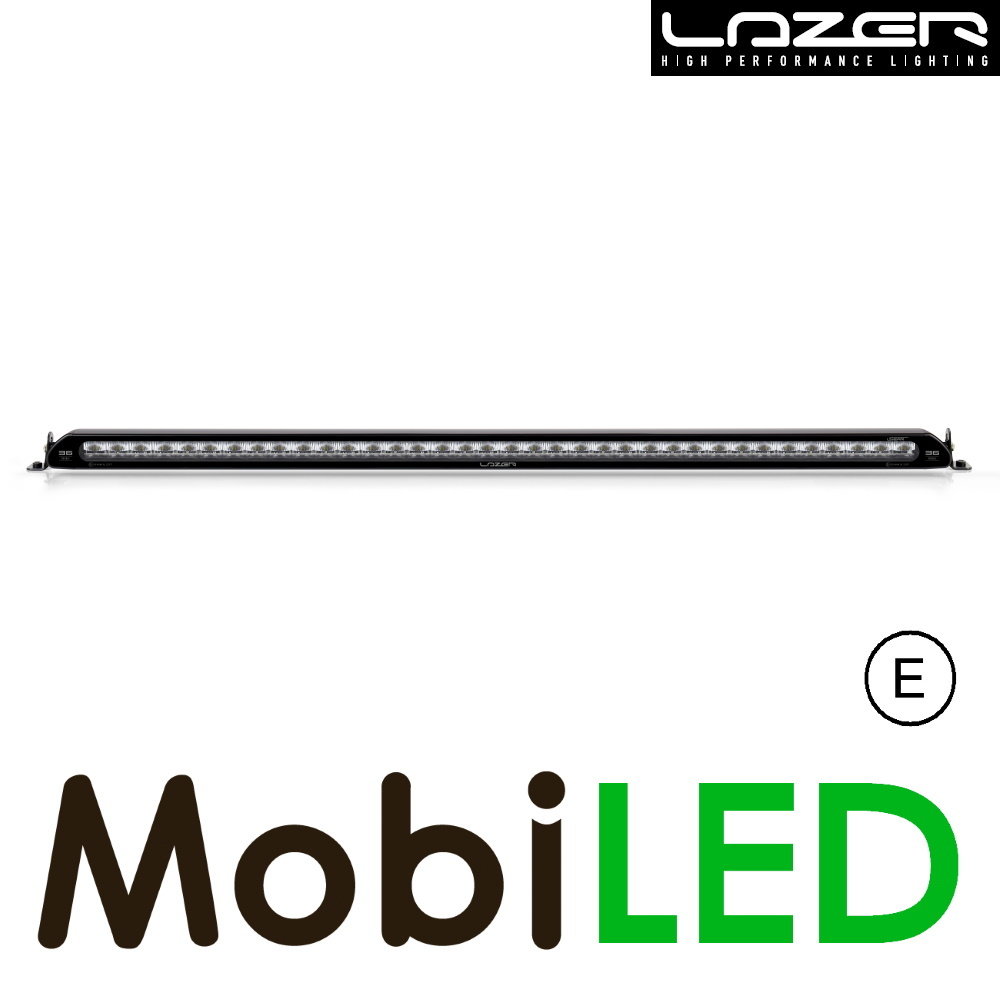

Lazer Linear 36 standard 982 mm 126W







Product description

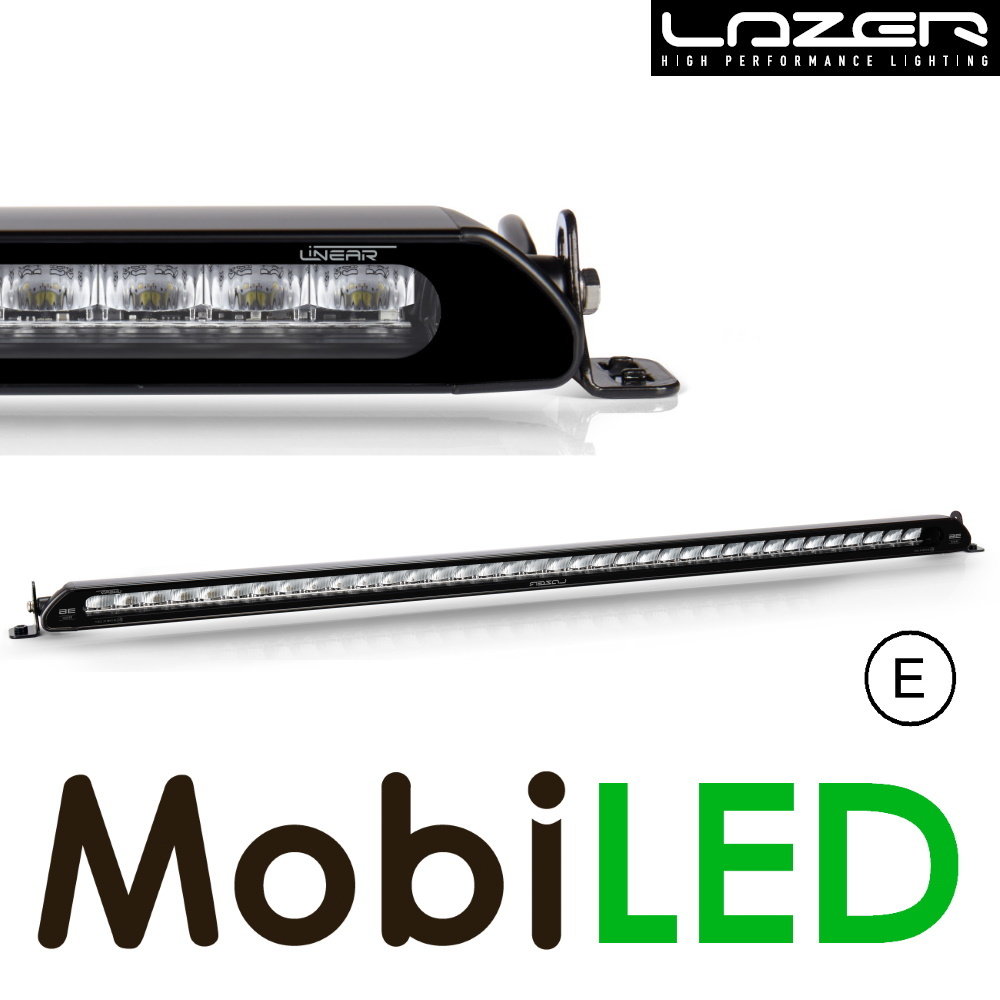

The Linear-36 standard has a great light output in a super-slim design. Despite its small size, the LED bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs...
The Linear-36 standard has a great light output in a super-slim design. Despite its small size, the LED bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs last longer.

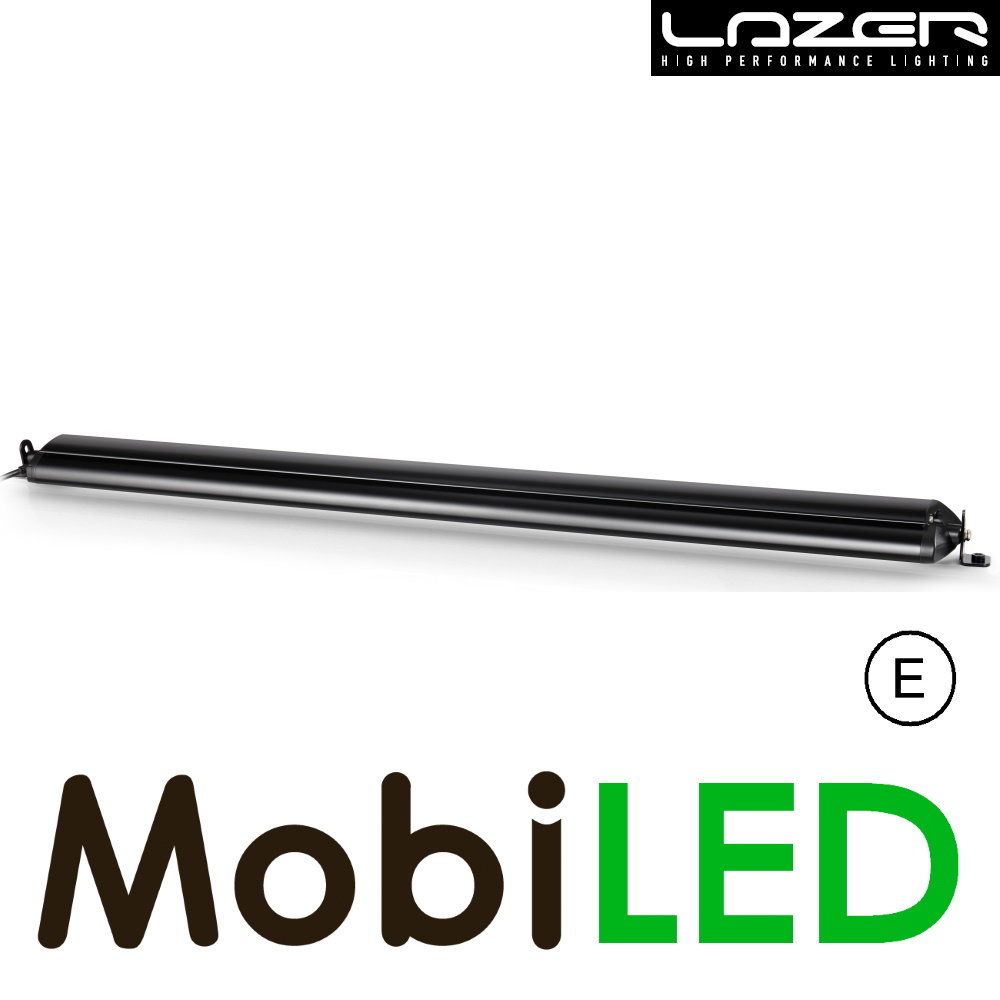

The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

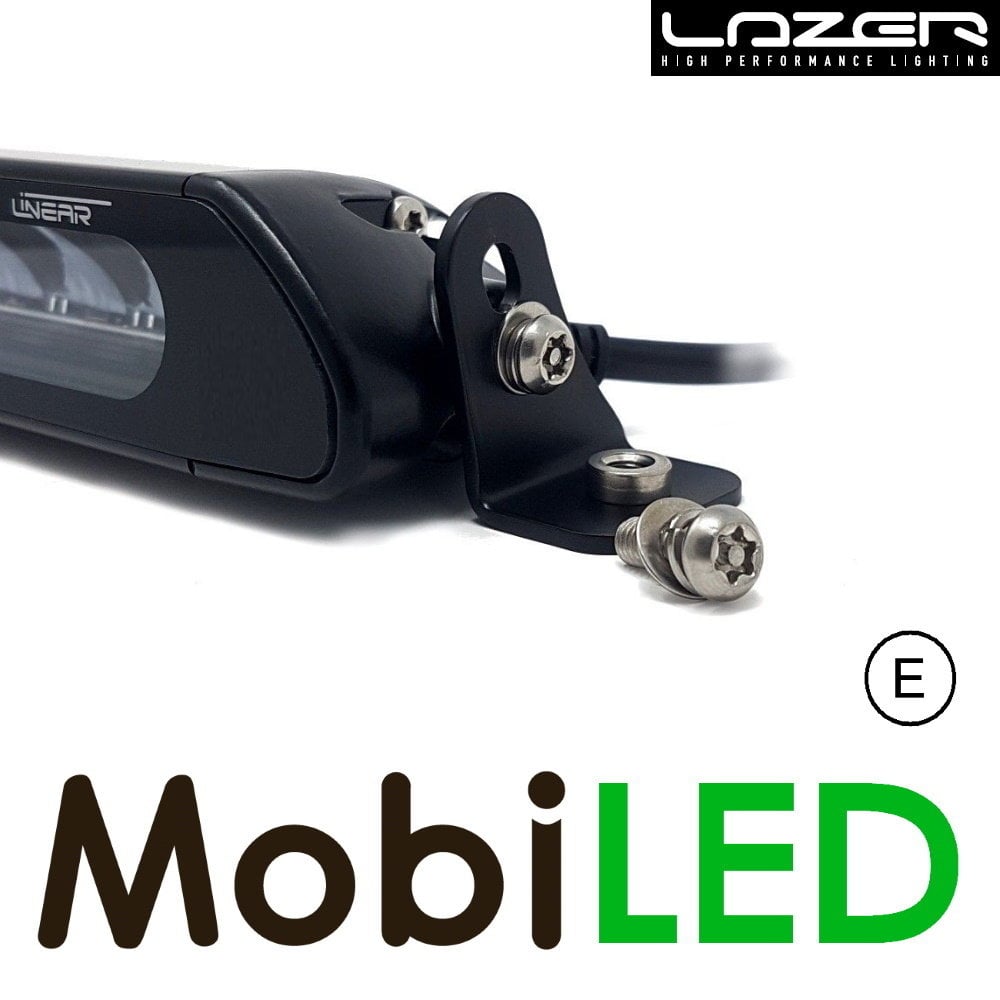

The LED bar can be safely mounted with the supplied anti-theft side mounting brackets. It is supplied with male/female 2-pin superseal connectors.
The Linear-36 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
Video:
The LED bar can be safely mounted with the supplied anti-theft side mounting brackets. It is supplied with male/female 2-pin superseal connectors.
The Linear-36 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
Video:
Show more
Show less
Product specifications
- Article number
- LB330

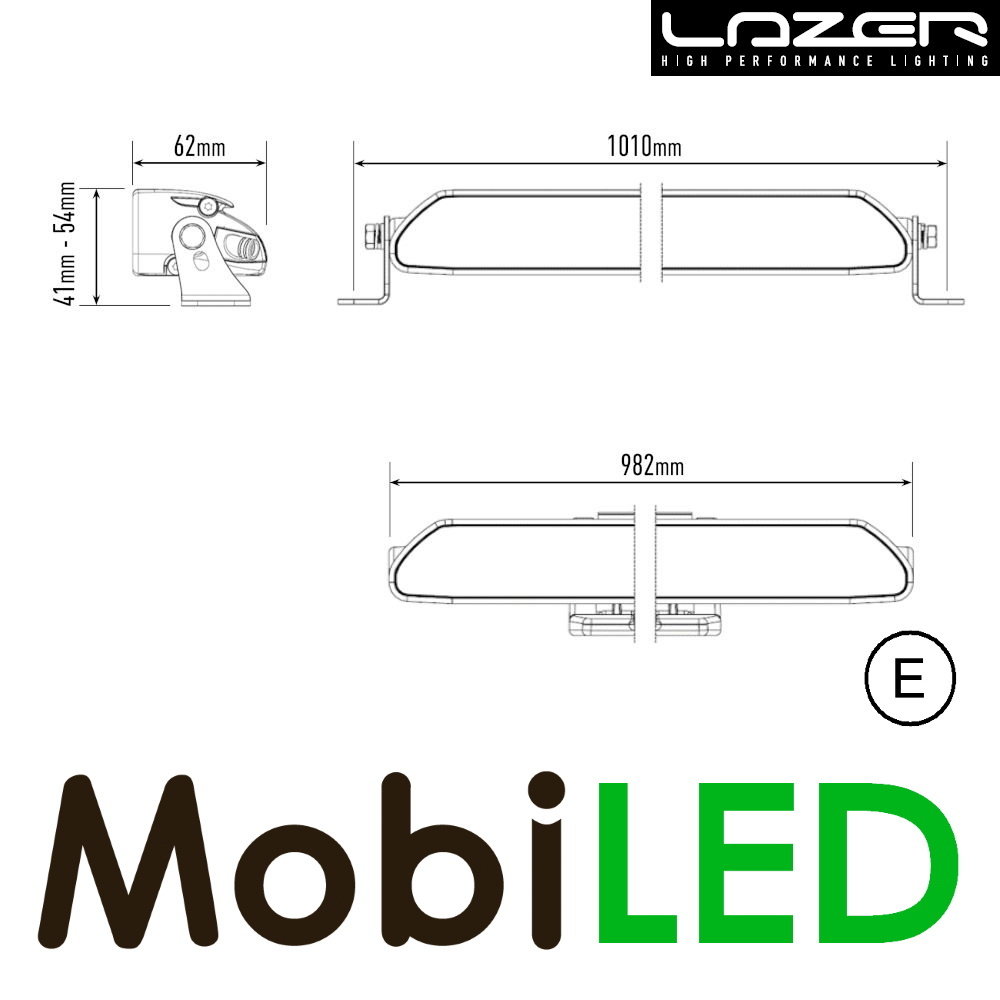

- Length (cm)
- 98,2 / 101
- Height (cm)
- 41
- Height incl bracket (cm)
- 54
- Depth (cm)
- 6,2
- Weight (gr)
- 2700
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 126W
- Current draw
- 14,4V: 8,8A
- Lumens
- 9612 theoretical, 13500 practical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 36
- Position light function
- No
- High beam function
- Yes
- Light image
- Spot

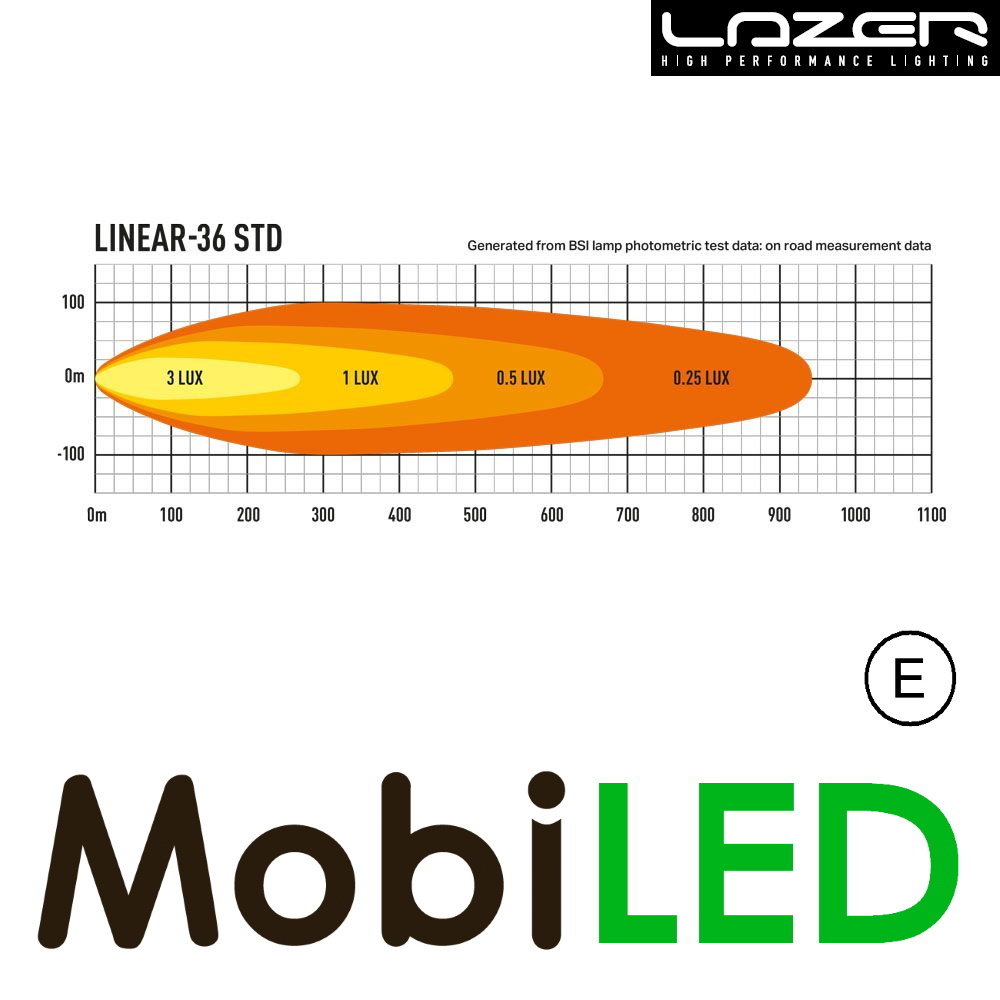

- Beam range
- 1 lux@470m/0,25lux@940m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- Superseal connector
- IP rating
- IP67K
- Certification
- R10, R112 B
- Packed per
- 1
- Manufacturer article number
- 0L36-LNR
