Lazer Linear 6 standard 232 mm 21W
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396191416/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396191418/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396191420/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396188701/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396188703/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396191575/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
![LAZER Lazer Linear 6 standard 232 mm 21W LAZER Lazer Linear 6 standard 232 mm 21W](https://cdn.webshopapp.com/shops/73605/files/396191577/78x78x2/lazer-lazer-linear-6-standard-232-mm-21w.jpg)
Product description

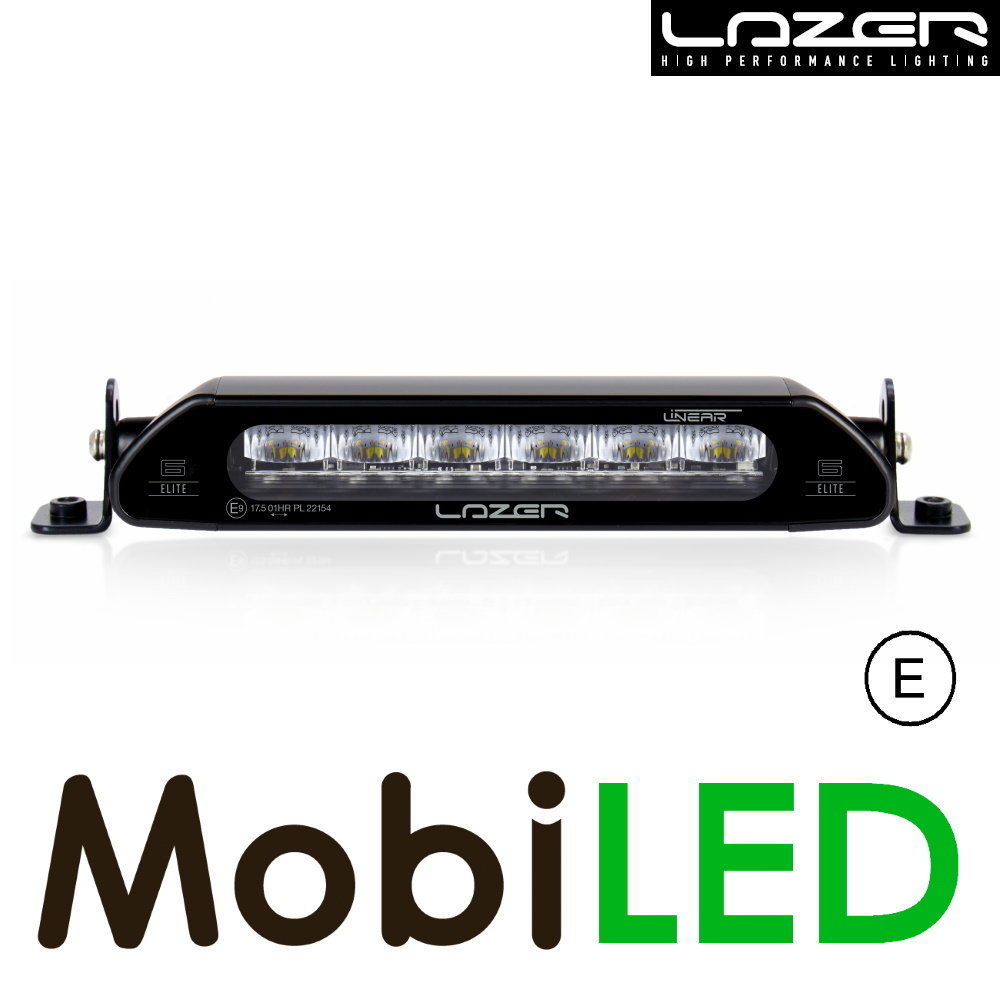

The Linear-6 standard has a great light output in a super-slim design. Despite its small size, the bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs last...
The Linear-6 standard has a great light output in a super-slim design. Despite its small size, the bar contains innovative solutions that prolong its service life and maximise performance.
The 3W LEDs and the vacuum-metallised optics provide a wide beam of light. The electronic thermal management system optimises light output, making the LEDs last longer.
The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.

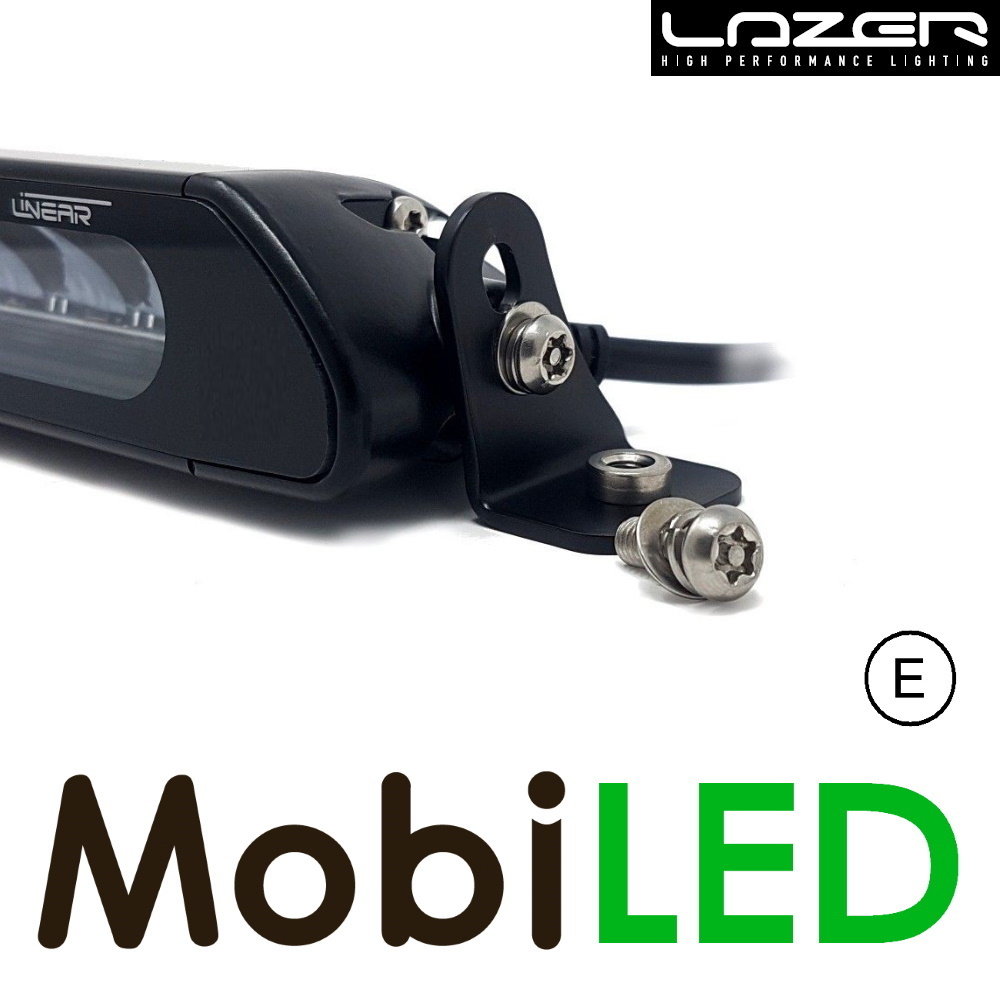

The LED bar comes with low-profile side mounting brackets and male/female 2-pin superseal connectors.
The Linear-6 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
The LED bar comes with low-profile side mounting brackets and male/female 2-pin superseal connectors.
The Linear-6 standard is R10 and R112 class B certified for on-road high beam function.
A discreet installation by day, but a noticeable presence in the dark.
Check out the different mounting brackets available to install your lamp.
Video:
Show more
Show less
Product specifications
- Article number
- LB340

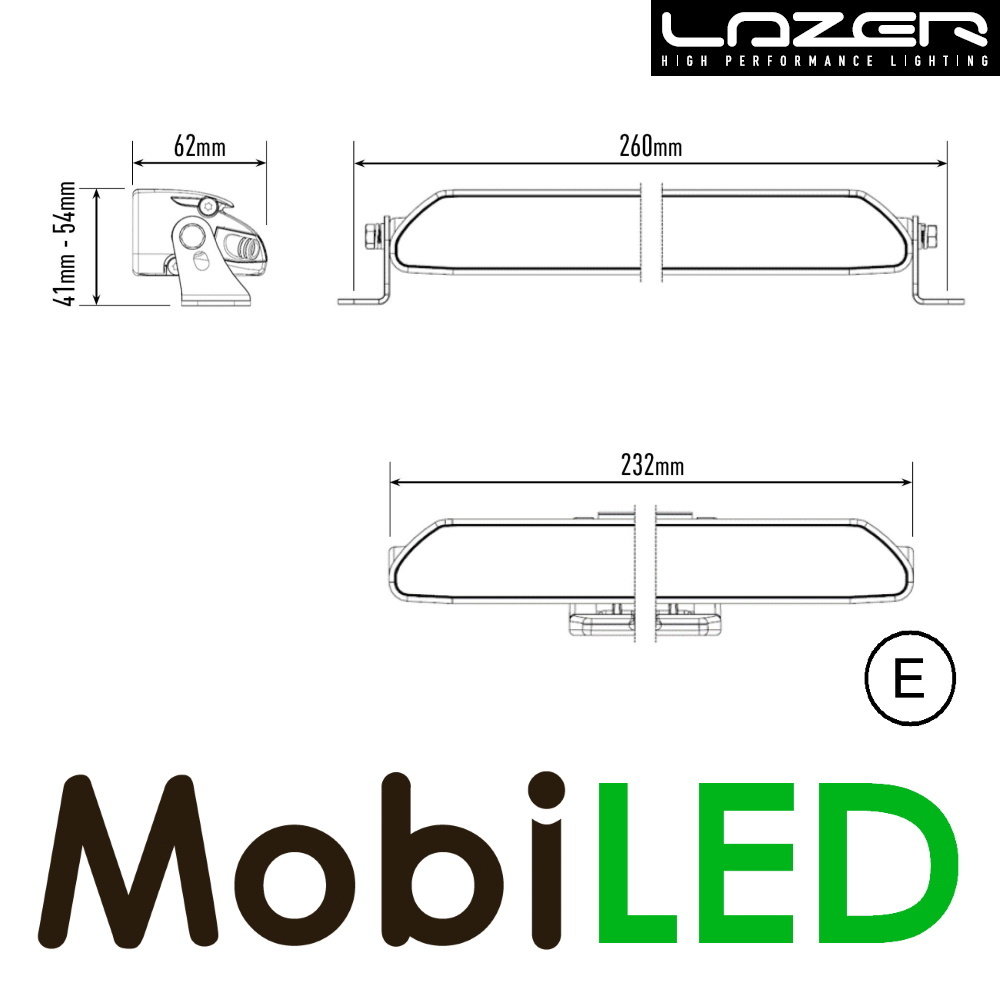

- Length (cm)
- 23,2 (26)
- Height (cm)
- 4,1
- Height incl bracket (cm)
- 5,4
- Depth (cm)
- 6,2
- Weight (gr)
- 495
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 21W
- Current draw
- 14,4V: 1,5A
- Lumens
- 2250 theoretical
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 6
- Light image
- Flood

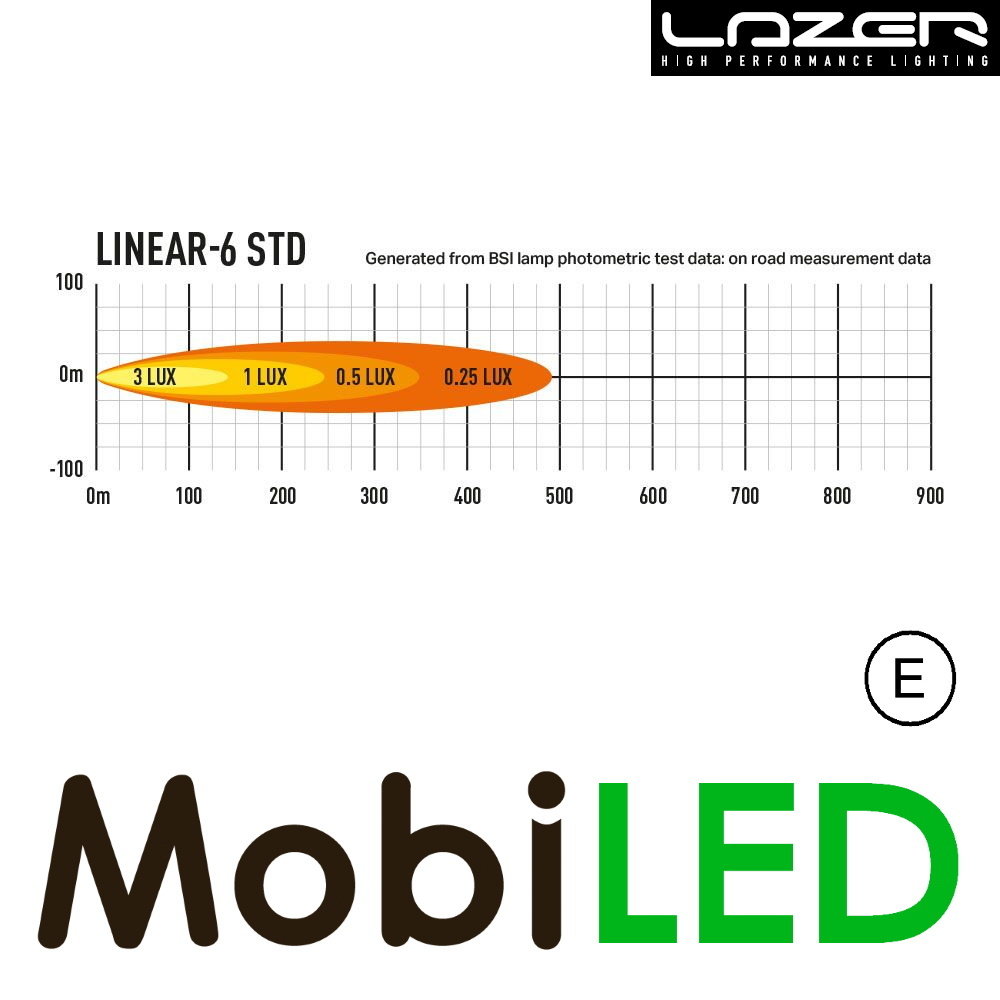

- Beam range
- 1 lux@247m / 0,25 lux@494 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Side mounting
- Connection
- Superseal connector
- IP rating
- IP67
- Certification
- R10, R112 B
- Packed per
- 1
- Manufacturer article number
- 0L06-LNR
