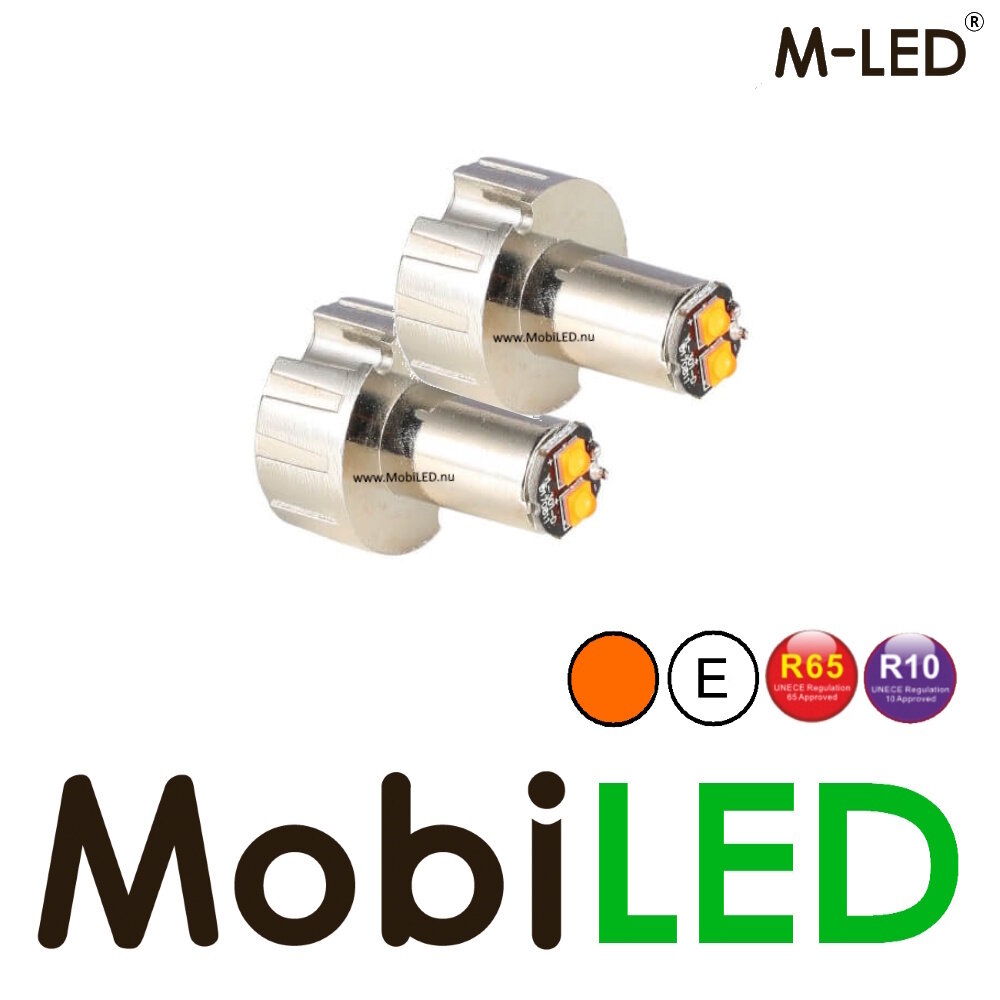

M-LED 2 Undercover recessed/surface-mounting flashers amber E-mark





This compact flasher is suitable for recessed and surface mounting. The round flasher can be mounted unobtrusively in the headlight housing of your vehicle. The 2 LEDs in this flasher provide a striking light image in all directions.

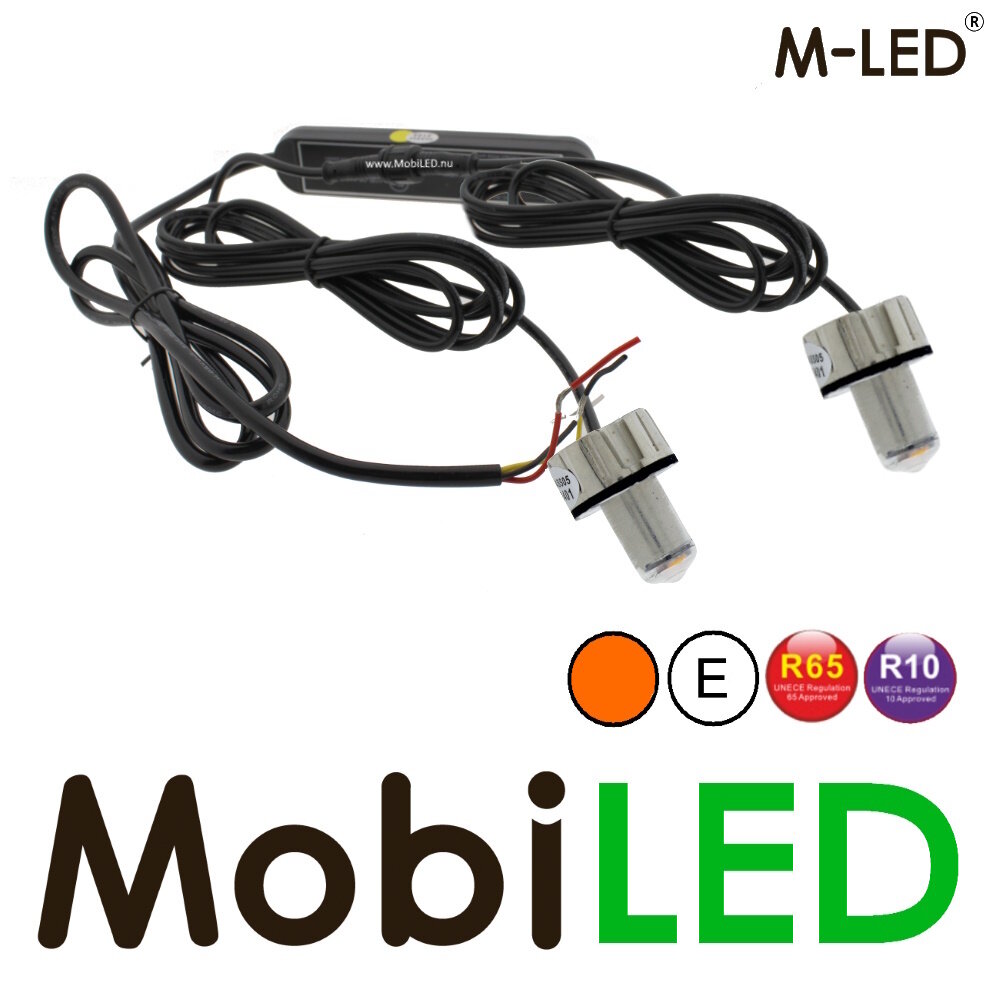

Control of the flasher is incorporated in the cable. There is a choice of 26 flash patterns. The flasher remembers the last selected pattern.
Of course this light is multi-voltage and equipped with all certificates.
Flash Patterns:
- Single flash
- Single flash slow
- Double flash
- Double flash slow
- Triple flash
- Quadruple flash fast
- Quadruple flash slow
- Eightfold flash fast
- Eightfold flash slow
- Twelvefold flash
- Sixteenfold flash
- Single flash alternating
- Double flash alternating
- Triple flash alternating
- Quadruple flash alternating
- Eightfold flash alternating
- Single flash split
- Double flash split
- Quadruple flash split
- Eightfold flash split
- Single flash split accelerated
- Double flash split accelerated
- SOS flash
- Cycle (1,8,3,9,4,18)
- Cycle (2,7,9,11,19,21)
- Constantly on
Connection diagram:
- Red: plus
- Black: minus mass
- Yellow: set flash pattern
- White: sync
Product specifications
- Article number
- FL396
- Shape
- Round
- Number of LEDs
- 2
- Housing colour
- Metallic
- Light colour
- Amber
- Lens colour
- Transparant
- Tension
- 12-24V
- Flush-mounted / surface-mounted
- Surface-mounting or flush-mounting

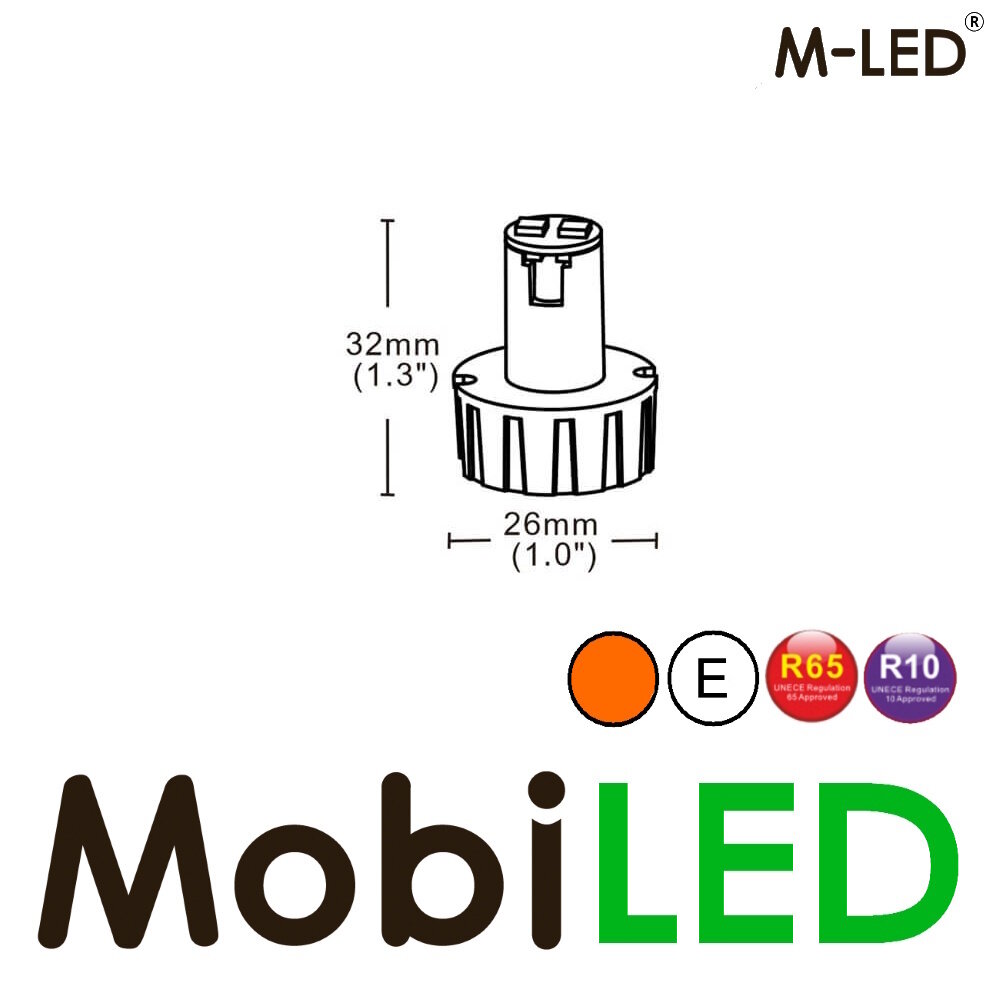

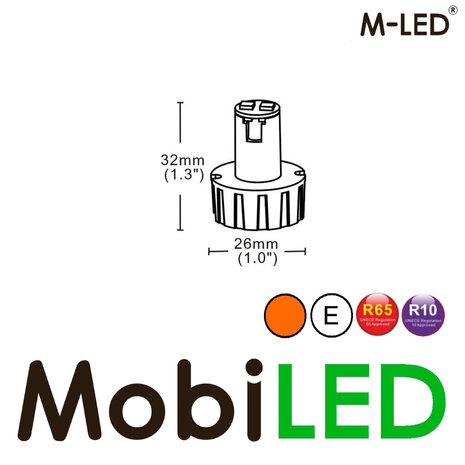

- Bolt spacing / bolt size (cm)
- / 24,5
- Connection
- Cable
- Number of wire cores
- 4
- Cable Length (cm)
- 2x 100
- Certification
- CE, ECE R10, CISPR 25 Class 3, ECE R65(XA1/XB1)
- IP rating
- IP67
- Vehicle side
- Universal (L/R)
- Indicator function
- No
- Position light function
- No
- Number of patterns
- 26
- Synchronisation possible
- Yes
- Packed per
- 2
