M-LED Cruiser 9 inch position light dual color 120 W

M-LED Cruiser follows the new trend towards a dark look. Just like the M-LED Touring, this lamp has the dark appearance that you also see in the Strands "Siberia" and the Ledson "sarox" and the Ledson "Orion".

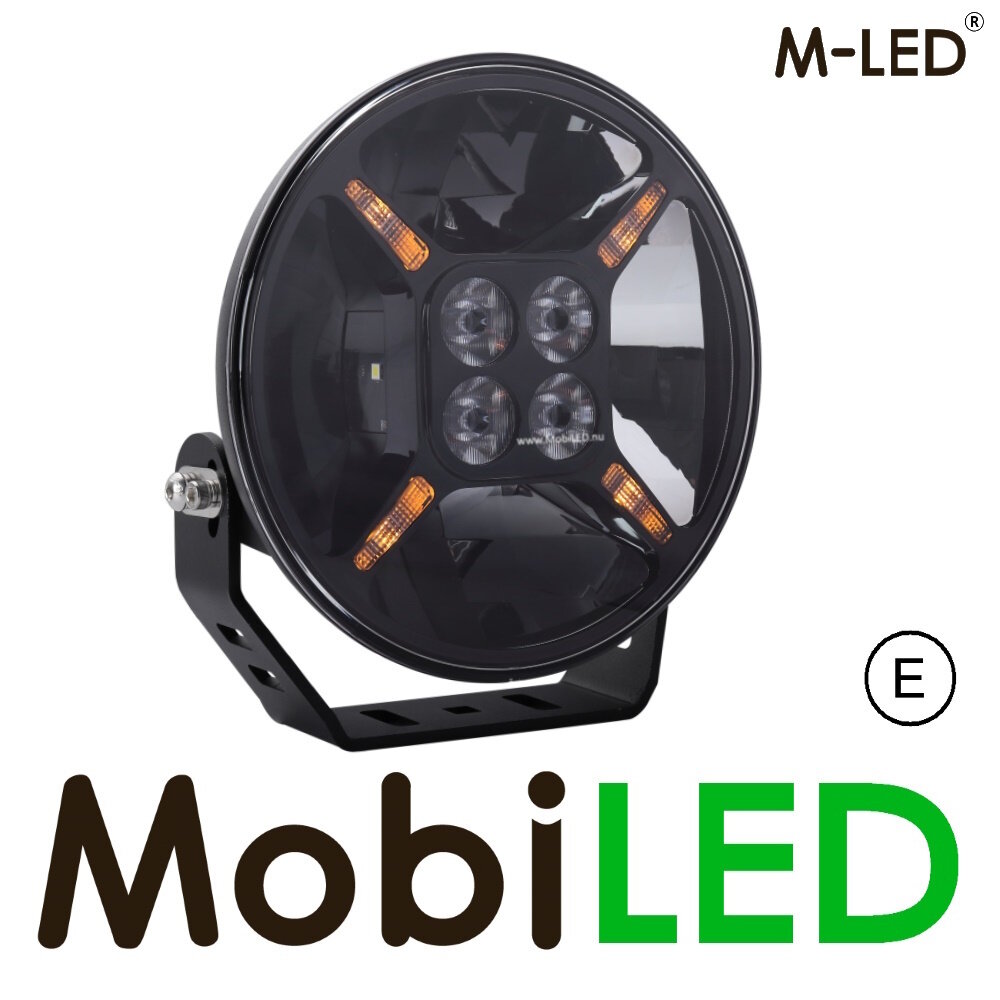

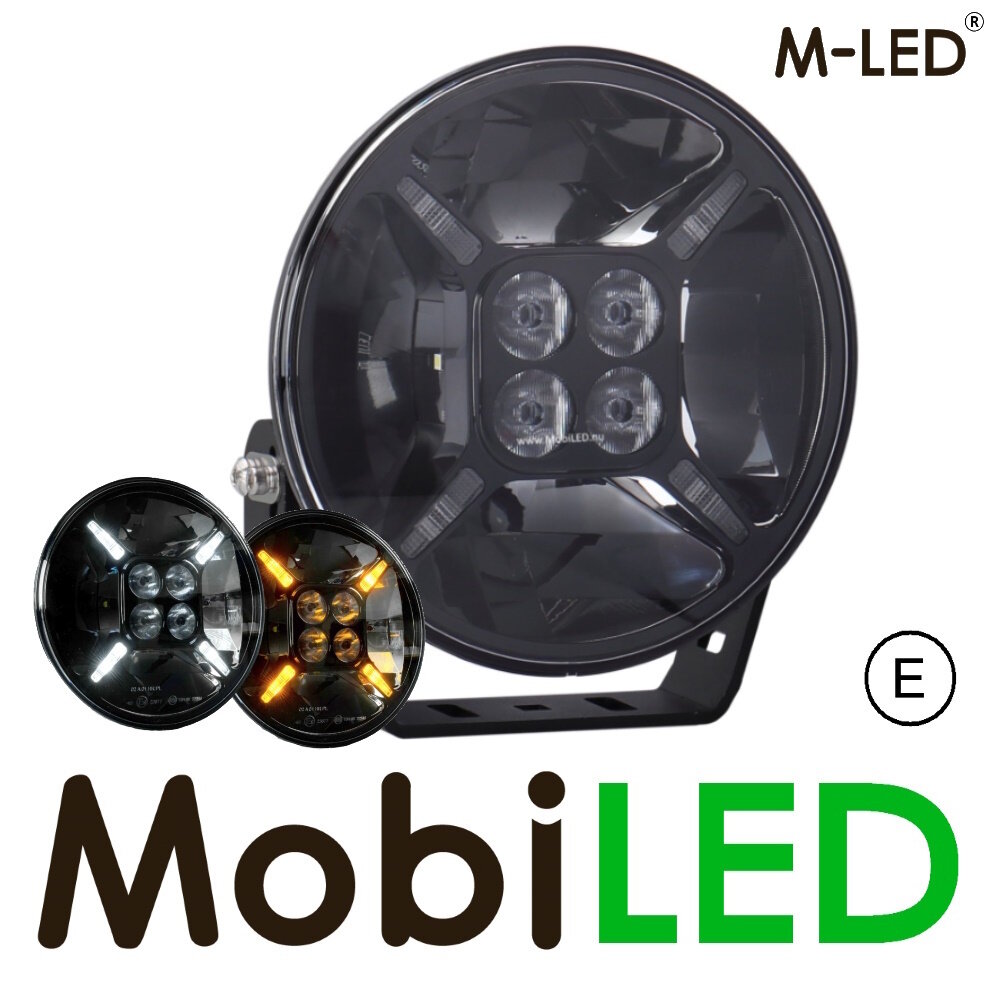

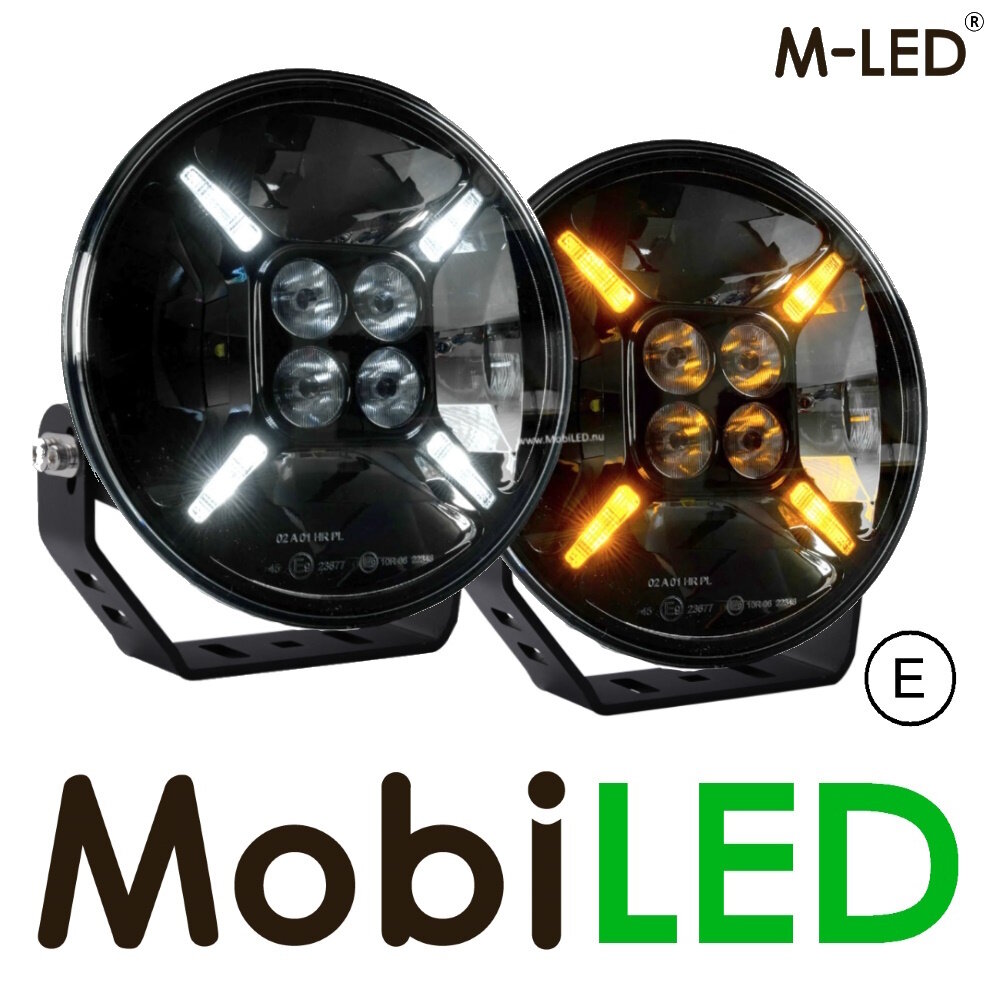

The contemporary spotlight is equipped with an amber and white position light.

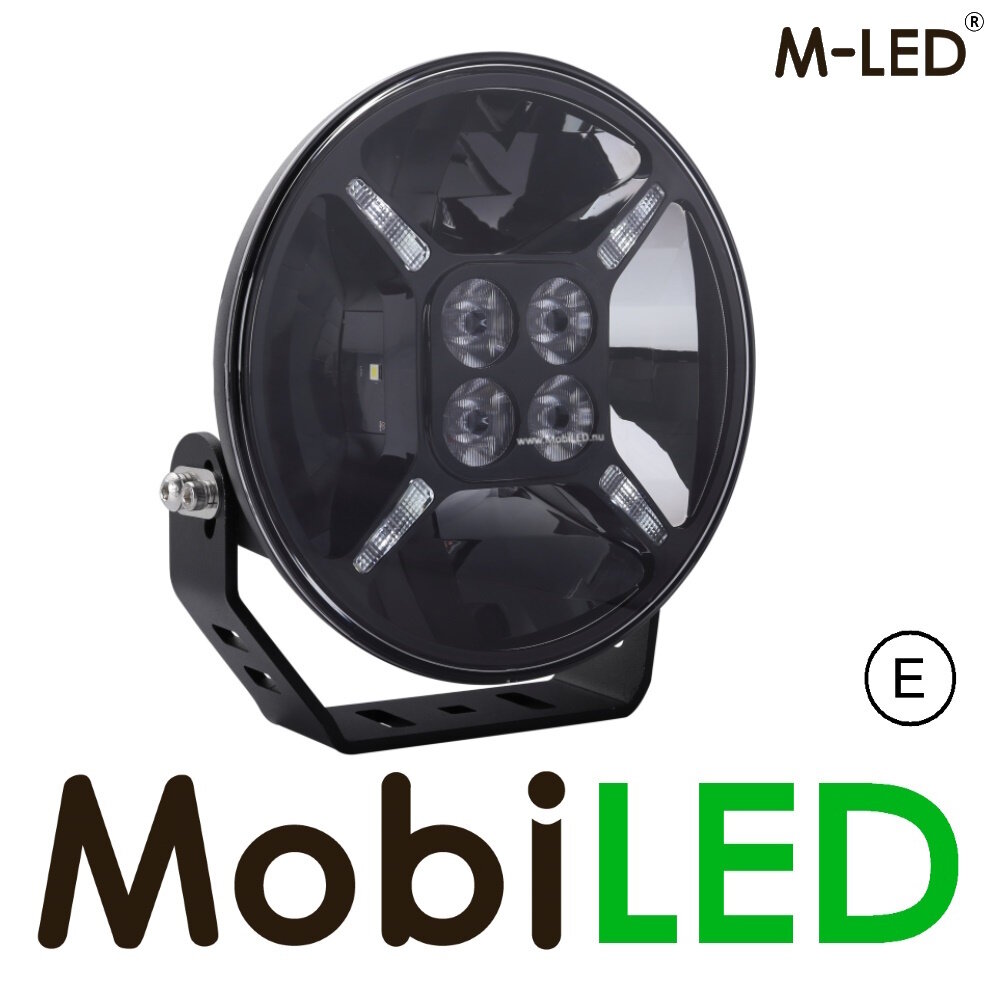

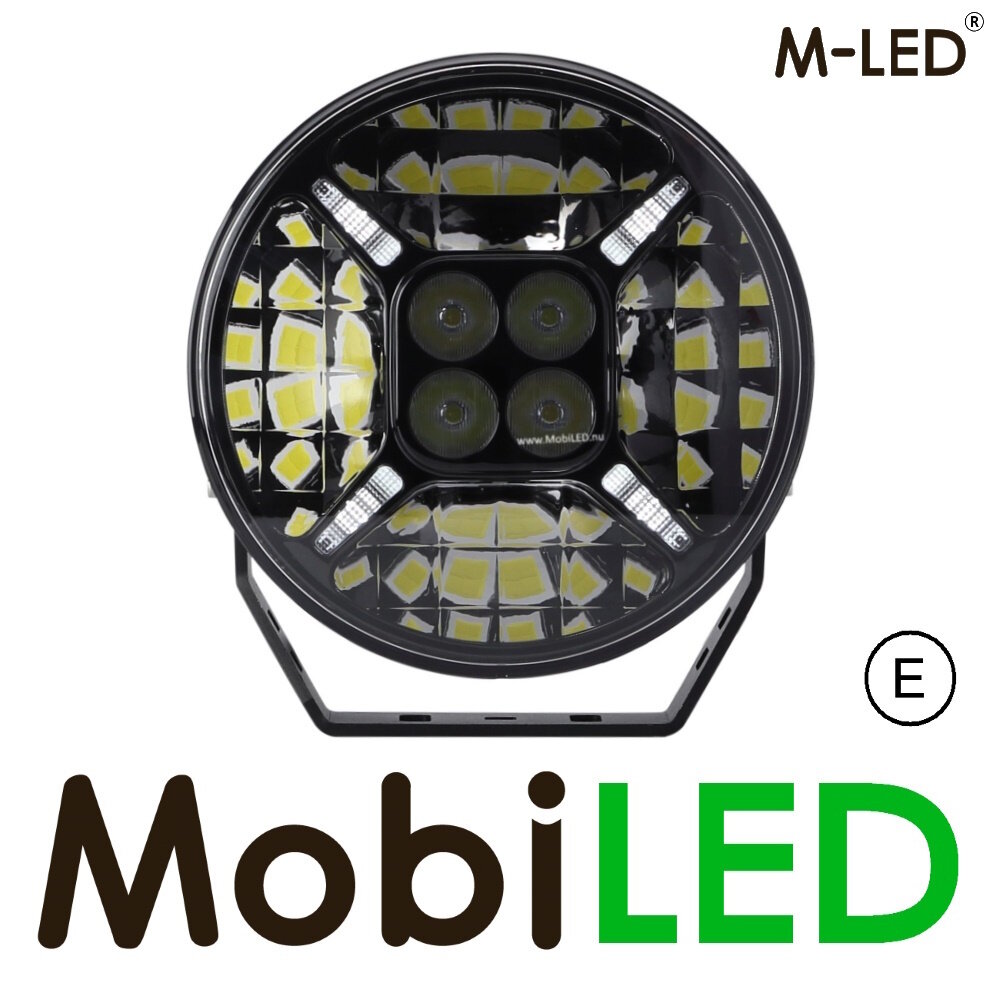

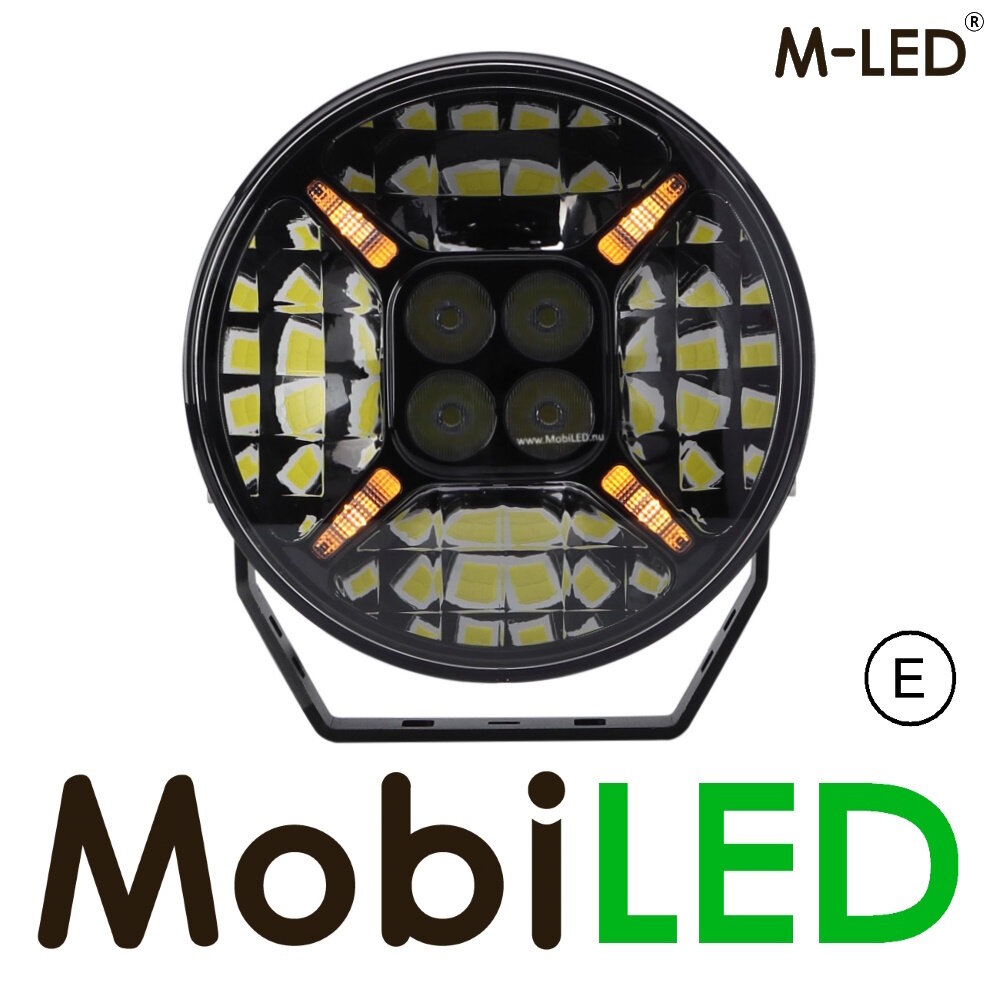

The outer edge is a directional reflector for optimal results. In the middle are 4 powerful spots with lenses with a TIR objective. TIR stands for "Total-Inner-Reflection". A technique that ensures that the light is effectively reflected and directed, without loss, from the lens.

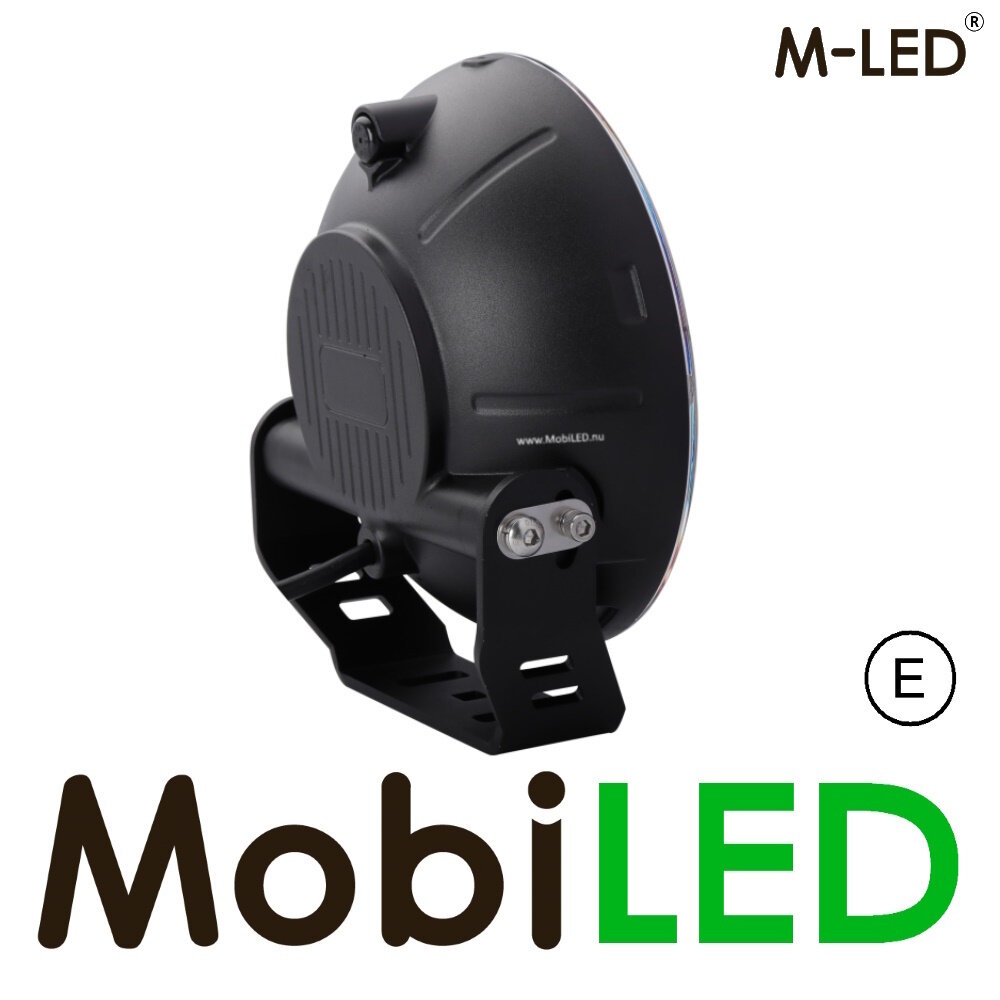

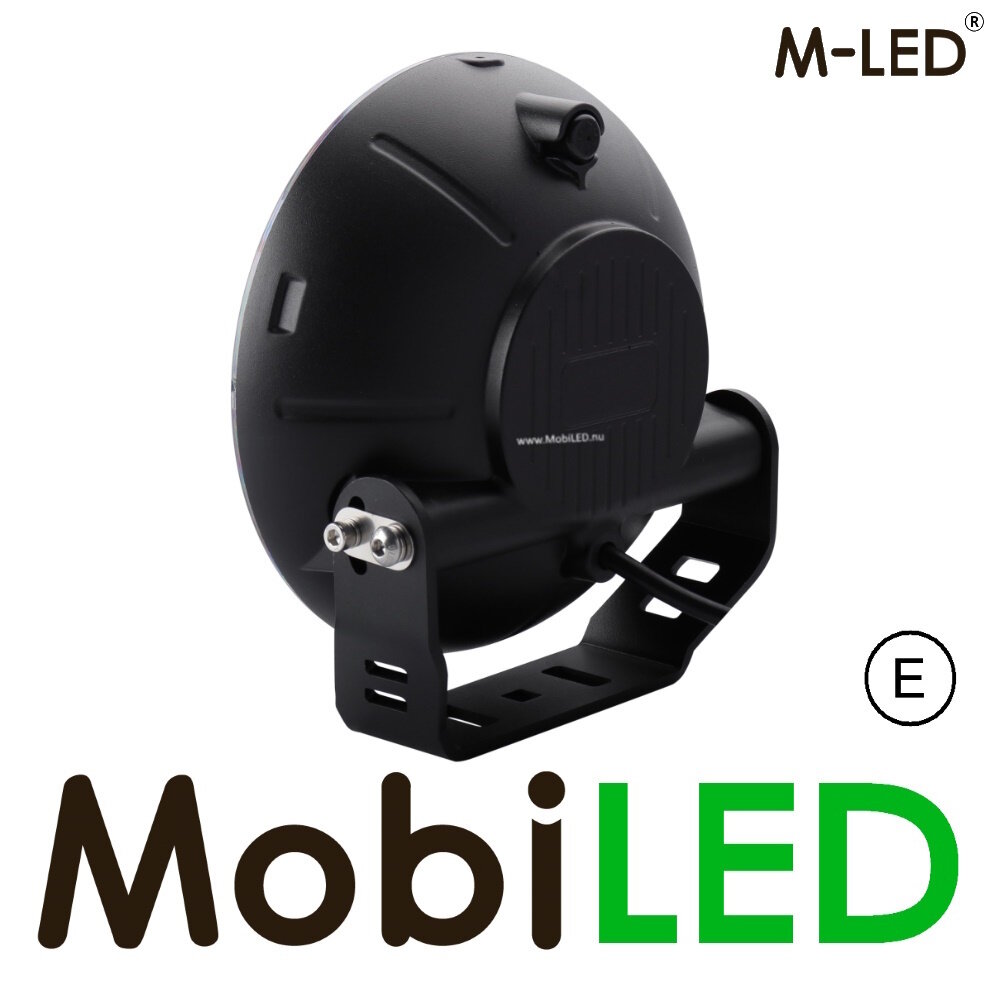

The lamp is made of high-quality material, equipped with a "breather" that compensates for air pressure difference and an ETM system. ETM adjusts the power of the lamp by measuring how hot it gets in order to optimize its lifespan. Due to the flat shape, this spotlight can also be mounted on the grill or next to the light box on your truck. The dark look also makes it easy to combine with the M-LED Touring. All in all, a top lamp that should not be missing on your truck or 4x4.

Note:

• The lamp is equipped with a DT connector. This must not be cut to prevent moisture ingress. Warranty void if cut!
• Price per piece.

Specifications:

• LED power high beam (total): 120 W (4x 20 W + 4x 10 W)
• LED power position light: 4x 1 W

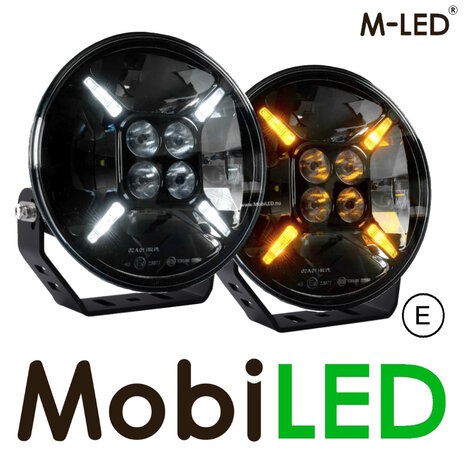

• Color position light: amber and white (selectable)
• Voltage: 9-36 V DC
• Amperage: 12 V: 8.1 A / 24 V: 4.4 A
• Range: 938 m (0.25 lux), 469 m (1 lux)
• Light output: 12000 lumens (raw), 10200 lumens (actual)
• Light color: cold white light (5700K)
• EMC secured (radio suppressed)
• Light functions: high beam and city light
• Equipped with electronic thermal management system (ETM)
• TIR (Total Inner Reflection)
• Housing: aluminum with breather
• Mounting: adjustable SS mounting bracket
• Lexan polycarbonate front cover
• Rating: IP68/IP69K
• Certification: ECE R112, R7, EMC R10 and CE
• Lifespan: >50,000 hours
• Diameter: 9" / 22.9 cm
• Dimensions: H 218 mm (233 incl support), D 84 mm
• Weight: 1,8 kg

Connection scheme:

• Black = mass (-)
• Red = high beam (+)
• White = white position light (+)
• Yellow = amber position light (+)
