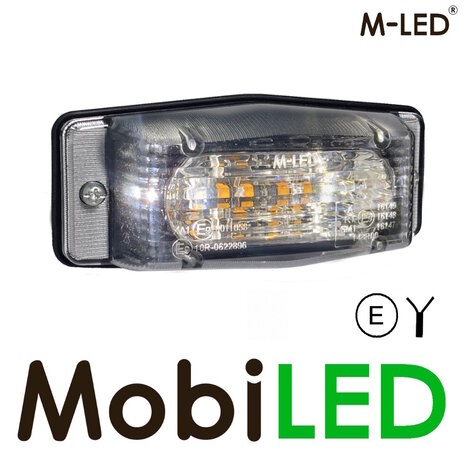

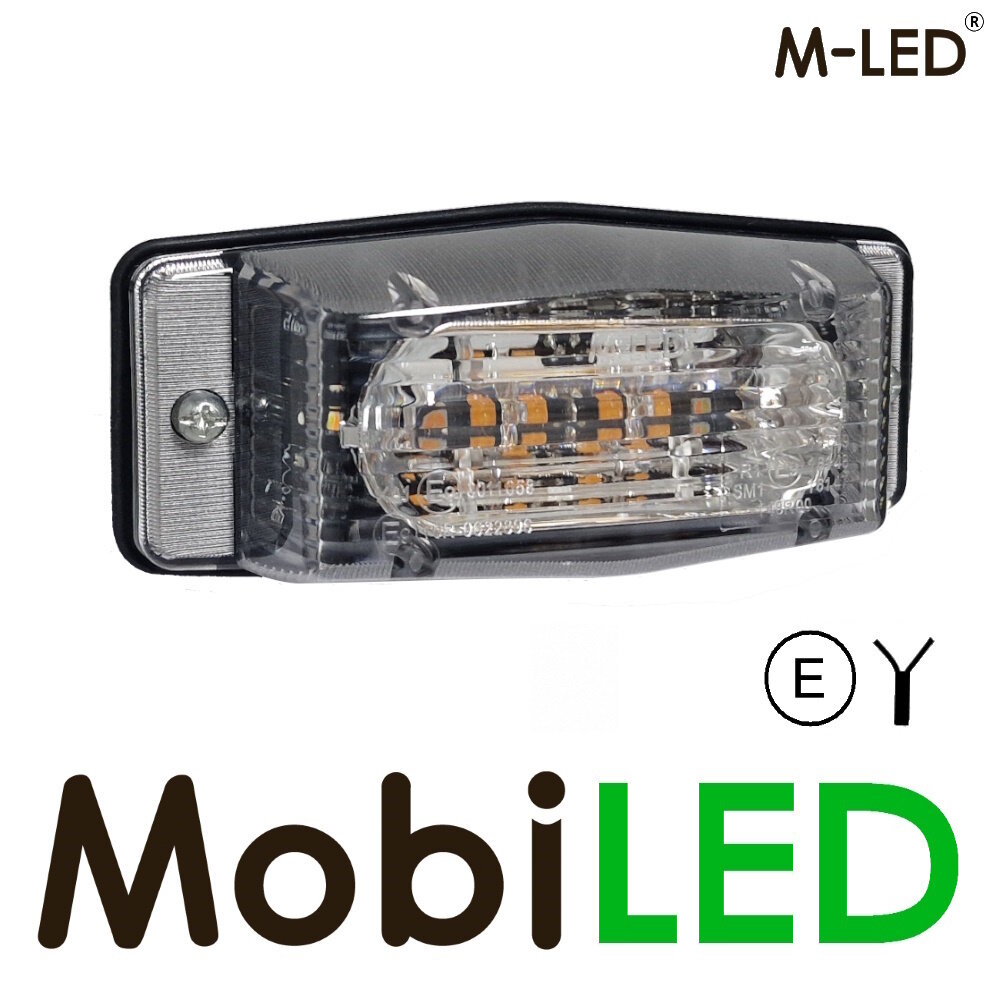

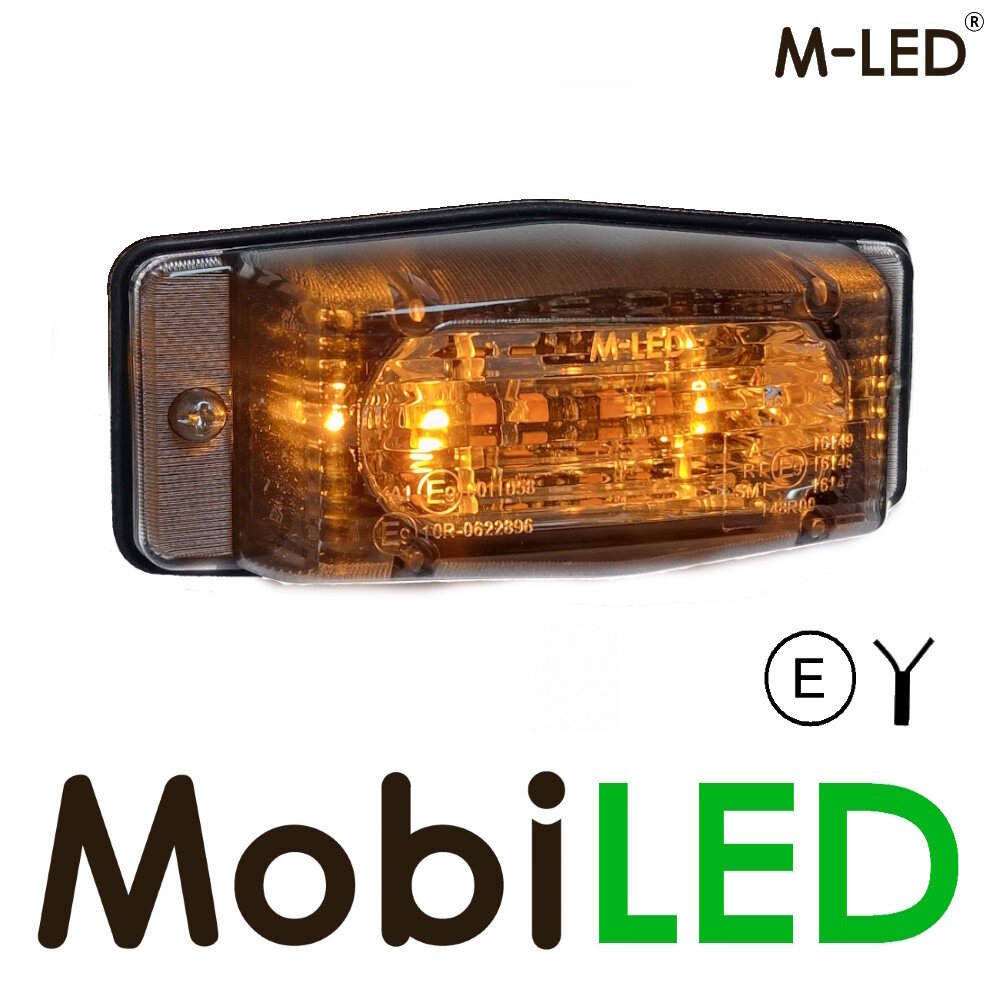

M-LED Double Burner Amber/white classic style transparant lens
The M-LED double-burner with warning light: classic elegance combined with modern functionality.
MobiLED developed the M-LED double-burner at request of oldschool purists. The characteristic and recognisable look of the halogen double-burner in a contemporary LED version, without making concessions to the well-known luminous pattern. By keeping the same mounting dimensions as the halogen version, it can be replaced one-to-one by the M-LED double-burner.
Of course, this double-burner is suitable for 10 to 30 volts. Replacement for Hella ref. 2BM 001 321-001.
Features:
- Dual functionality: a powerful double-burner in a compact design. This saves space on the vehicle as well as in the warehouse.
- Classic look: classic duo-lamp design with the advantages of modern LED lighting.
- Two-colour marker light: switch from bright white to warm orange marker light on the fly.
- Maintenance-free: no hassle of replacing bulbs thanks to long-life LED technology. The housing is sealed off so the inside does not corrode.
- Quick installation: thanks to the same dimensions as the old duo lights, the M-LED double-burner can be installed in a jiffy. Supplied with two metres of cable as standard.
- Fully certified: amber and white position light and radio interference suppression.

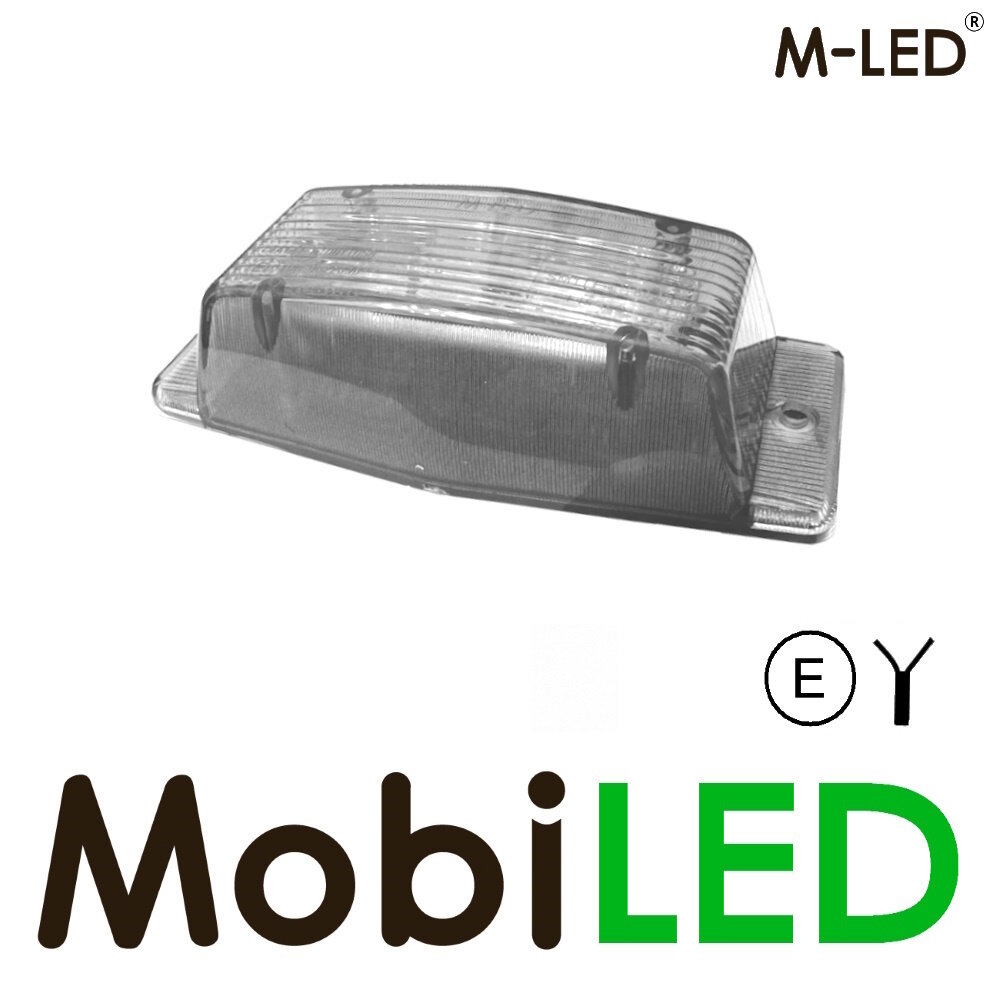

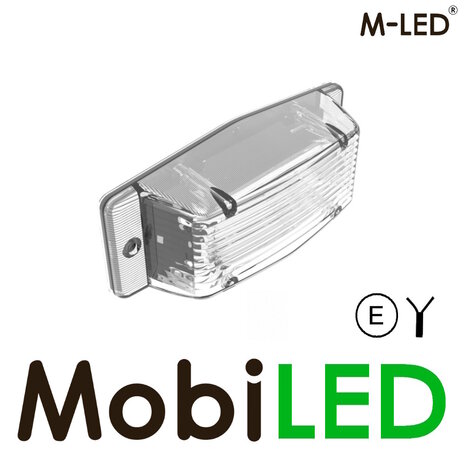

The M-LED double-burner is available in different versions. This is the version with a transparant lens and white/amber position light.
Connection diagram:
- Black: mass
- Green: amber position light
- Orange: white position light
Product specifications
- Article number
- ZM391

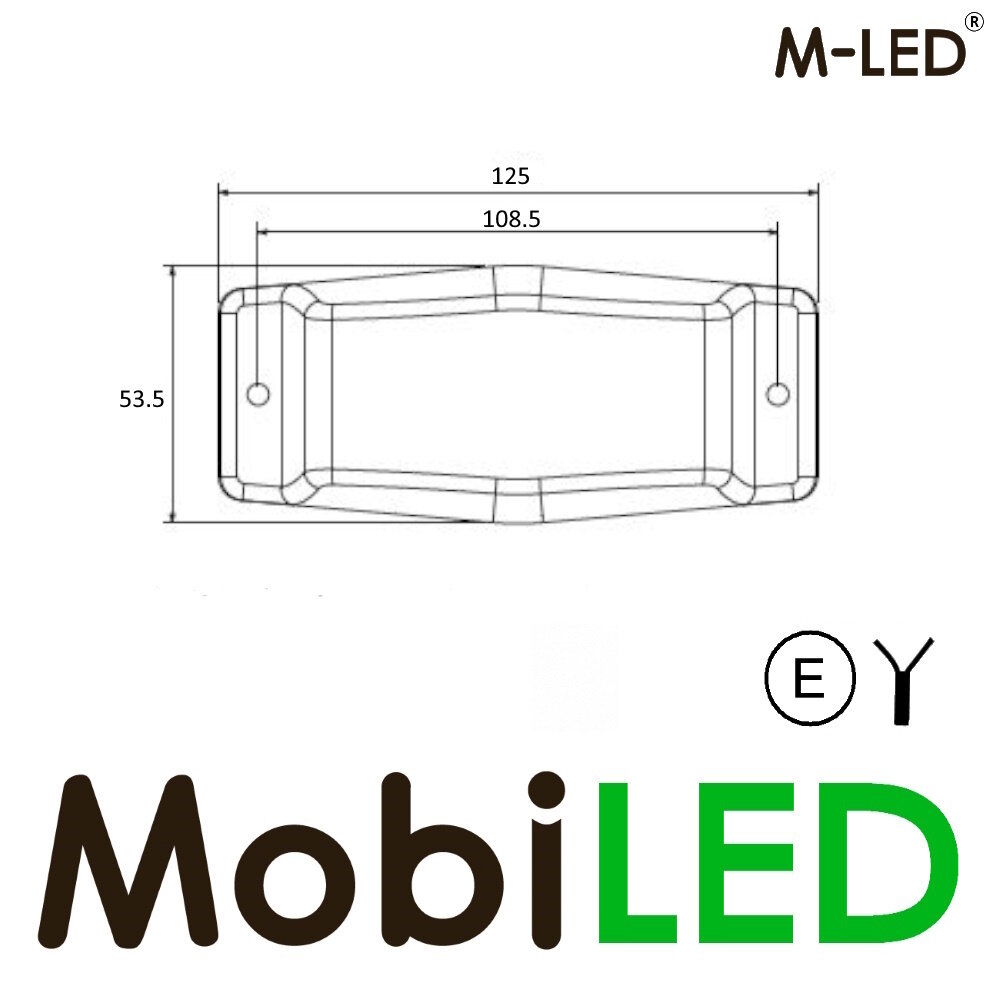

- Length (cm)
- 12,5
- Height (cm)
- 5,35
- Depth (cm)
- 3,3
- Shape
- Rectangle
- Number of LEDs
- Markerlight 4
- Housing material
- Aluminium
- Light colour
- Warning light amber; Markerlight white/amber
- Lens colour
- Transparant
- Tension
- 10-30V
- Power
- Markerlight 2W
- Current draw
- Markerlight 12V: 0,2A/24V: 0,1A
- Mounting type
- Screw
- Bolt spacing / bolt size (cm)
- 10,9
- Connection
- Cable
- Cable Length (cm)
- 200
- Number of wire cores
- 6
- Flush-mounted / surface-mounted
- Surface-mounted
- Certification
- UNECE R10, R148.00 Cat SM1, R148 Cat A
- IP rating
- IP67
- Vehicle side
- Side + front
- Packed per
- 1
- Manufacturer article number
- Substitute for 2BM001321001
